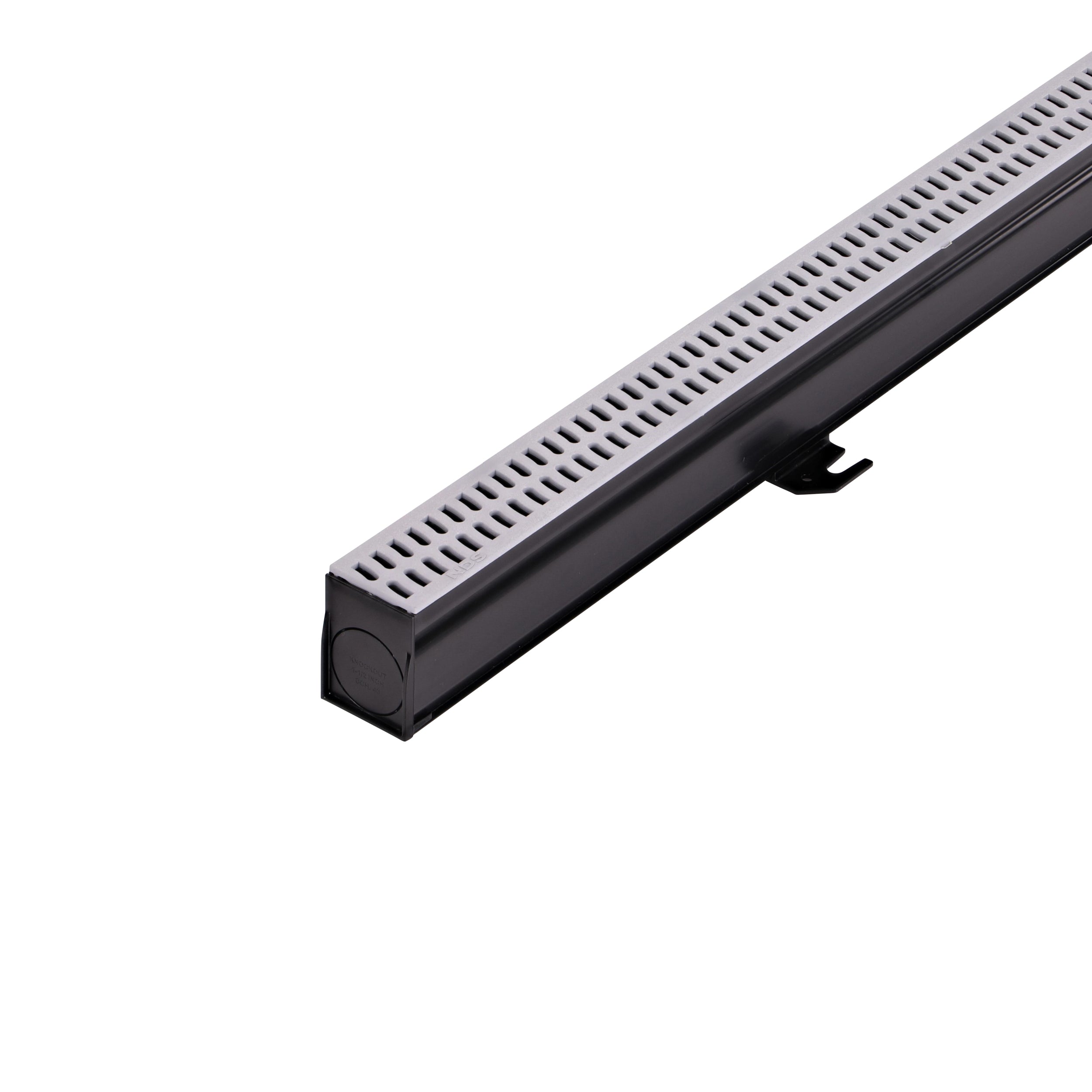

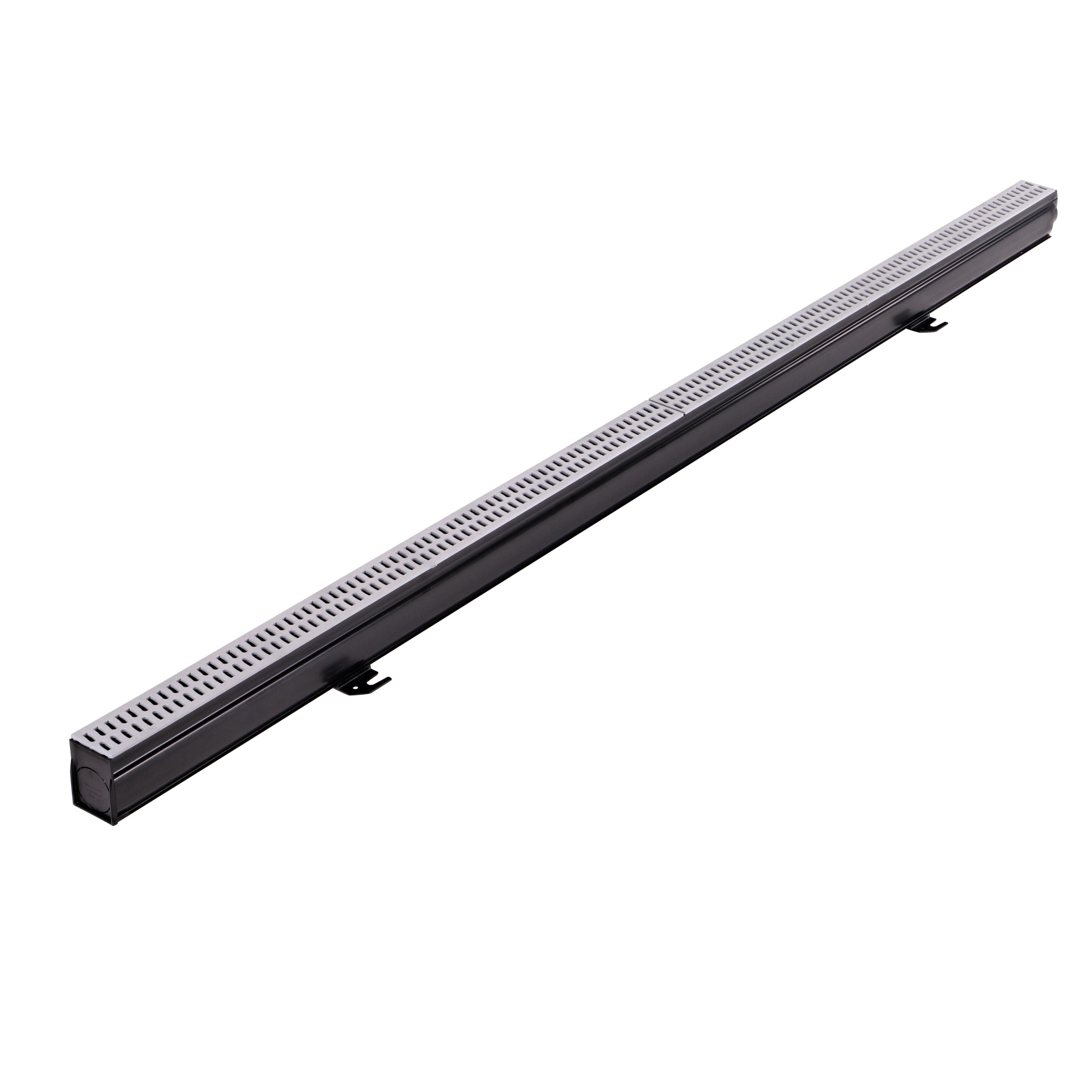

NDS 9243 - 3FT Slim Channel Grate - Gray

NDS 9243 - Slim Channel Grate - Gray

The NDS 9242 3FT Slim Channel Grate is a durable, low-profile drainage solution designed for efficient water management in residential and light commercial applications. This 3-foot long grate provides effective surface water collection while maintaining an aesthetically pleasing appearance.

Key Features:

• Slim profile for discreet installation
• Durable construction for long-lasting performance
• Easy to install and maintain
• Suitable for various outdoor settings

Installation Instructions:

1. Excavate a trench to accommodate the channel and grate.
2. Prepare a compacted base layer of gravel or sand.
3. Install the channel, ensuring proper slope for drainage.
4. Connect the channel to the drainage system.
5. Place the grate securely on top of the channel.
6. Backfill and finish the surrounding area to match existing surfaces.

Product Specifications:

• Length: 3 feet (36 inches)
• Material: High-impact plastic
• Load class: Light duty (suitable for pedestrian and light vehicle traffic)
• Color: Gray
• Compatible with NDS channel drain systems
