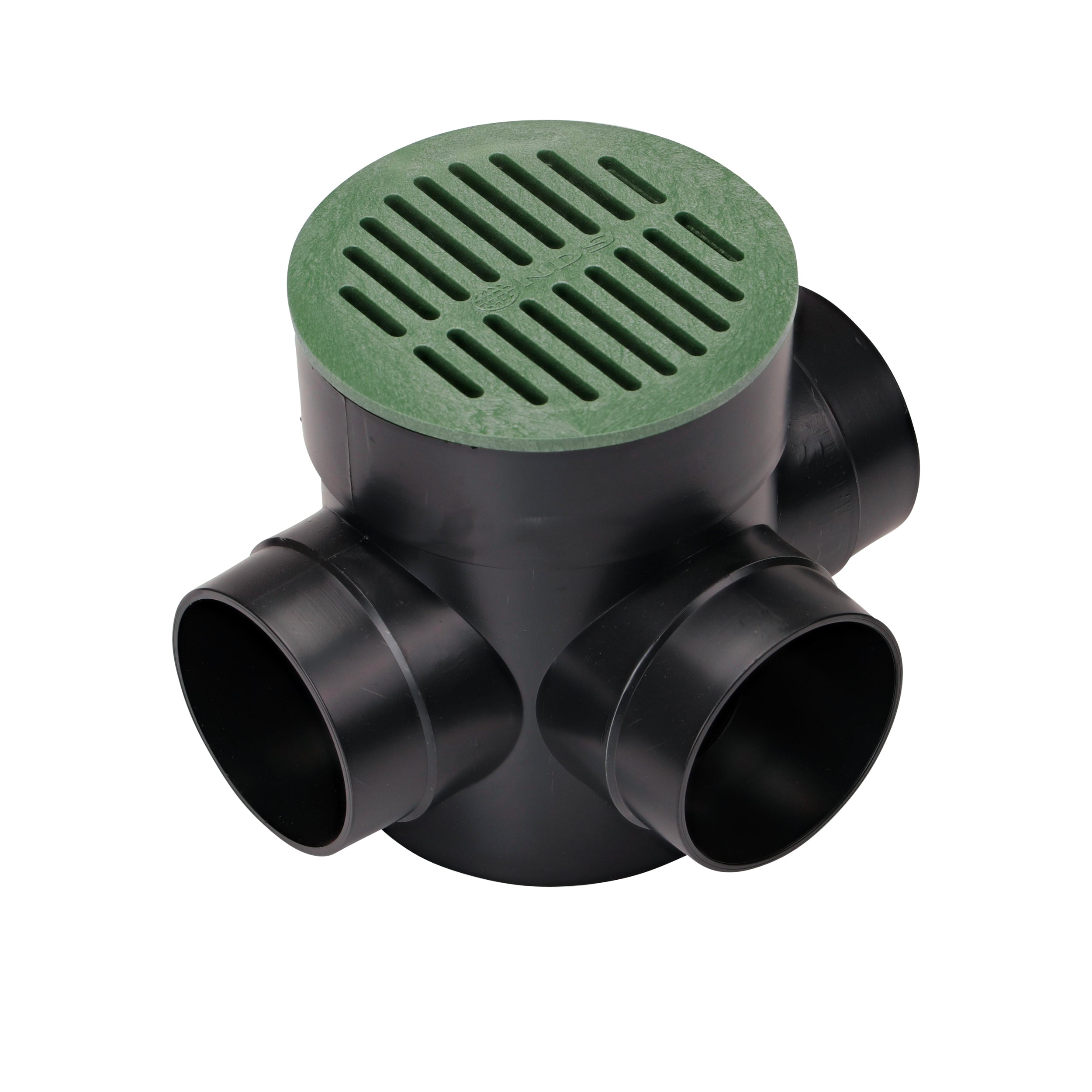

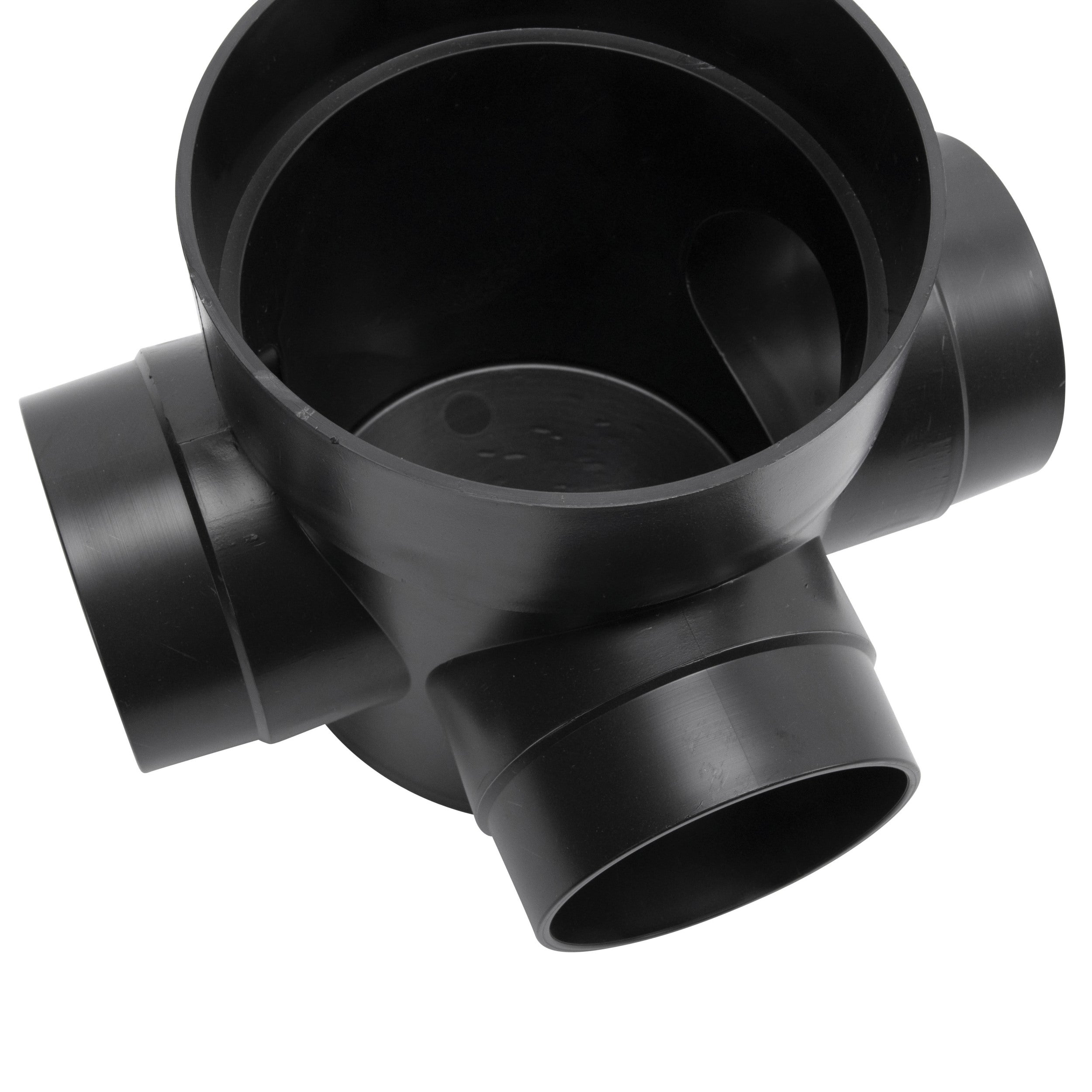

NDS 300 - Spee-D 3-Way Spee-D Basin with 3IN & 4IN Outlets

NDS 300 - Spee-D 3-Way Spee-D Basin with 3" & 4" Outlets

Product Description: The NDS 300 Spee-D 3-Way Spee-D Basin is a versatile and efficient drainage solution designed for residential and commercial applications. This high-quality catch basin features three inlets and two outlet options, making it ideal for managing water runoff in various landscapes and hardscapes.

Key Features:

• 3-way design for maximum water collection
• Dual outlet sizes: 3-inch and 4-inch
• Durable, UV-resistant construction
• Compatible with various grate options
• Easy to install and maintain

Installation Instructions:

1. Excavate an area slightly larger than the basin dimensions.
2. Create a level base using compacted gravel or sand.
3. Place the basin in the excavated area, ensuring it's level.
4. Connect inlet and outlet pipes using appropriate fittings.
5. Backfill around the basin, compacting the soil in layers.
6. Install the desired grate on top of the basin.
7. Finish the surrounding area with landscaping or hardscaping materials.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Dimensions: 12" x 12" x 12" (L x W x H)
• Inlet sizes: Three 3-inch or 4-inch knock-out ports
• Outlet sizes: One 3-inch and one 4-inch
• Load rating: Varies based on grate selection
• Color: Black
• Weight: Approximately 1.82 lbs

The NDS 300 Spee-D 3-Way Spee-D Basin offers a reliable and adaptable solution for effective water management in various settings. Its multiple inlets and dual outlet options provide flexibility in design and installation, making it an excellent choice for contractors and DIY enthusiasts alike.

Product and Technical Information

• Technical Specification - NDS Spee-D 3-Way Spee-D Basin with 3" & 4" Outlets
• Technical Specifications - Catch Basin Flow Capacities
• CAD - Atrium Grate with Spee-D Basin
• CAD - Atrium Grate with Spee-D Basin 2 Outlets
• CAD - Atrium Grate with Spee-D Basin Corrugated
• Installation Instructions - NDS Round Grate with Spee-D Basin 2-Outlets using Corrugated Pipe
• Installation Instructions - NDS Round Grate with Spee-D Basin 2-Outlets
• Installation Instructions - NDS Round Grate with Spee-D Basin 1-Outlet using Corrugated Pipe
• Installation Instructions - NDS Round Grate with Spee-D Basin 1-Outlet
