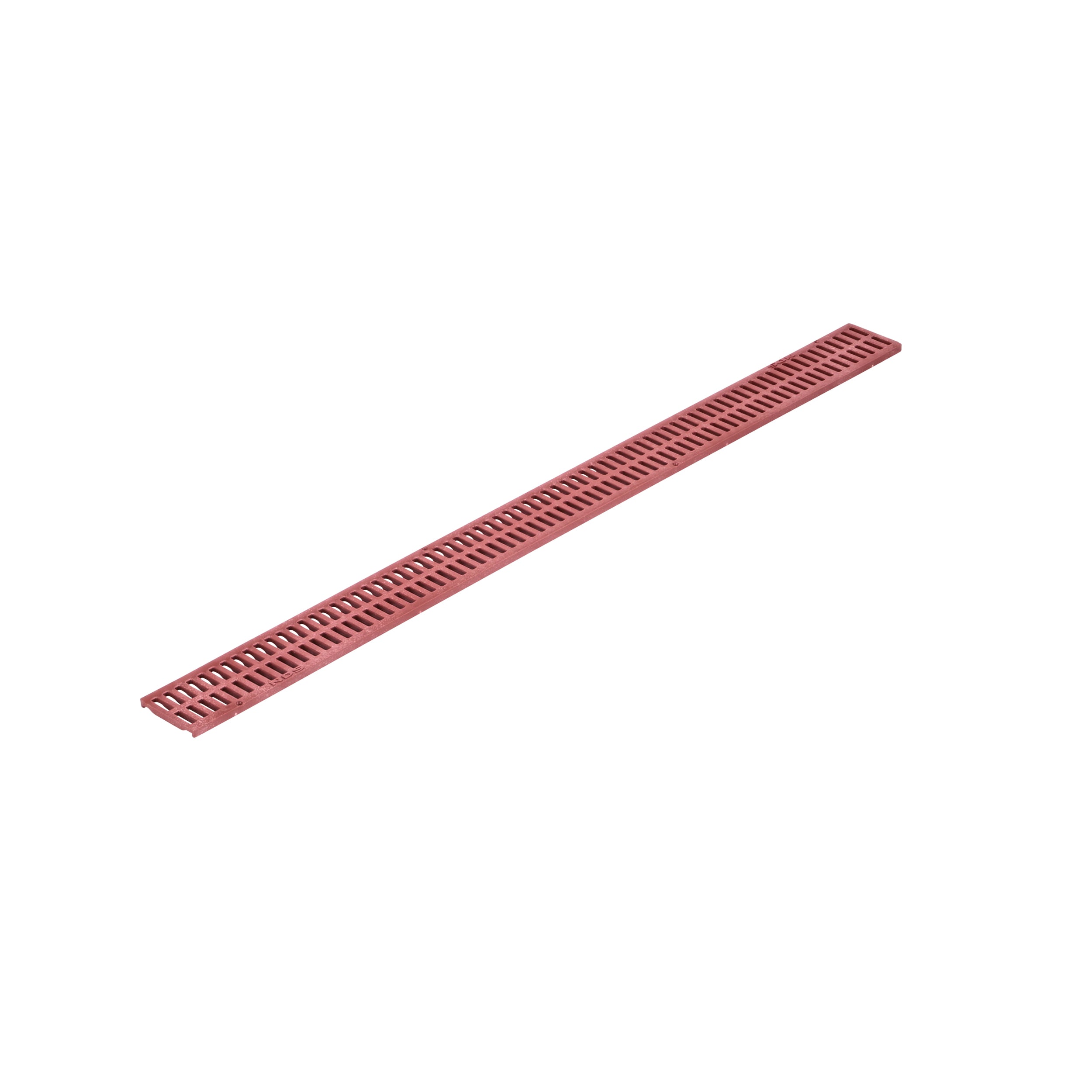

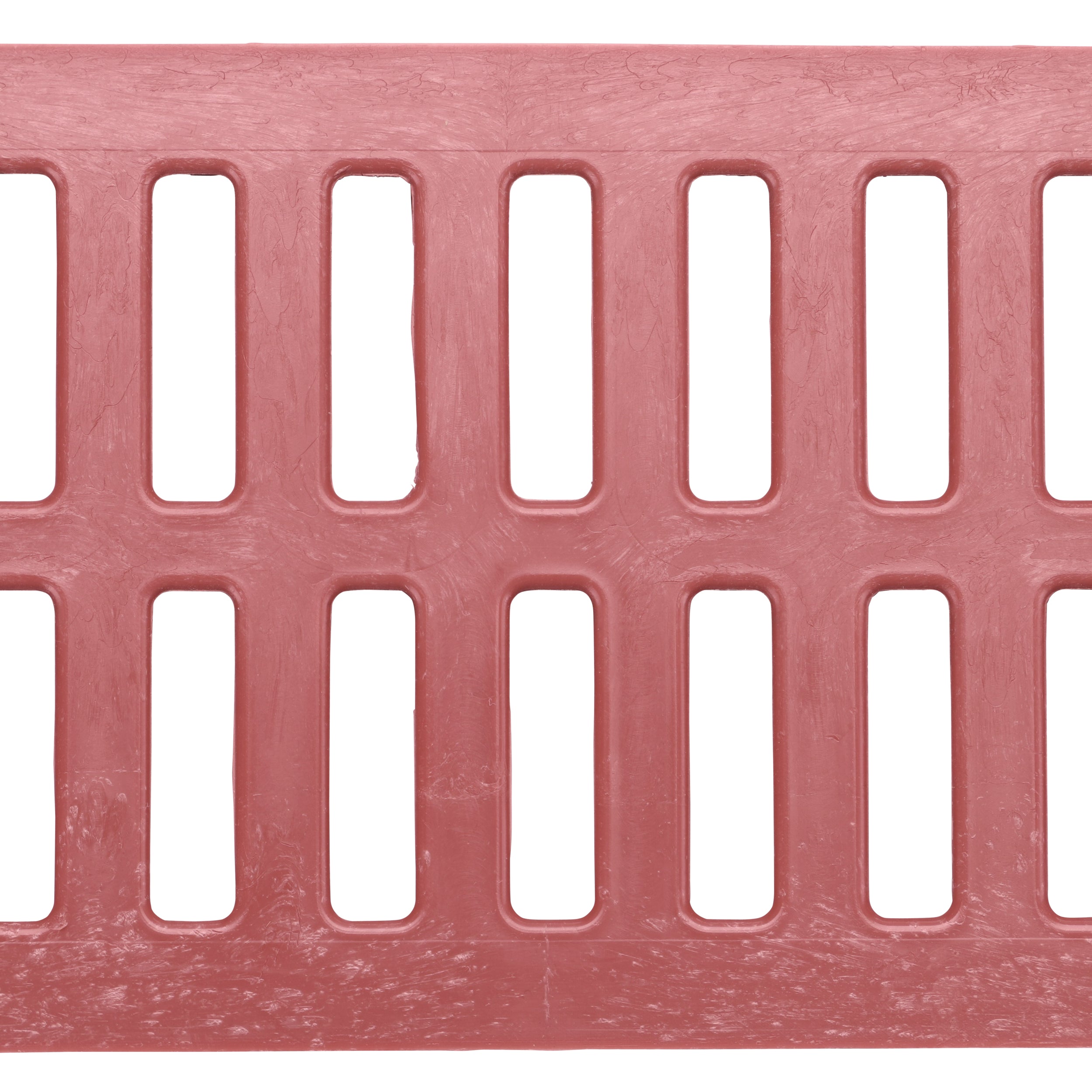

NDS 551 - Mini Channel Grate - Red Brick
Colors: Black (#543), Brick Red (#551), Gray (#541), Green (#542), Sand (#544), and White (#540)
The NDS 540 3FT Mini Channel Grate is a durable and efficient drainage solution designed for residential and light commercial applications. This versatile grating system effectively manages surface water runoff, preventing flooding and erosion in driveways, patios, pool decks, and other outdoor areas.
Key Features:
- Sturdy construction for long-lasting performance
- Sleek, low-profile design
- Easy installation and maintenance
- Compatible with NDS Mini Channel drainage systems
Product Specifications:
- Length: 3 feet (36 inches)
- Width: 3 inches
- Material: High-impact polypropylene
- Color: Red Brick
- Load class: Light duty (pedestrian and light vehicle traffic)
- Flow rate: Up to 11.9 GPM per linear foot
- UV-resistant for outdoor use
Installation Instructions:
- Excavate a trench 4 inches wide and at least 5 inches deep, ensuring a slight slope for proper water flow.
- Install the NDS Mini Channel drainage system according to manufacturer guidelines.
- Place the 3FT Mini Channel Grate on top of the installed channel, ensuring it sits flush with the surrounding surface.
- Secure the grate to the channel using the built-in locking mechanism.
- Backfill around the channel and compact the soil to prevent settling.
- Finish the surrounding area with your desired surface material (concrete, pavers, etc.), making sure it's level with the top of the grate.
- Test the drainage system by running water through it to ensure proper flow.
Maintenance: Regularly clean the grate and channel to remove debris and maintain optimal performance. The grate can be easily removed for thorough cleaning of the channel.
