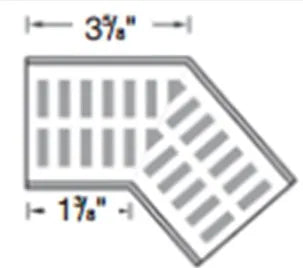

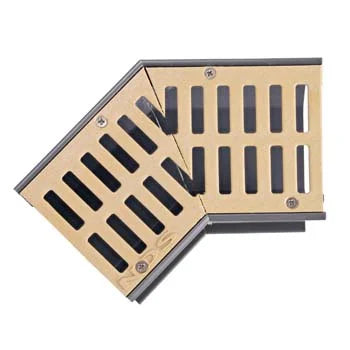

NDS 5303 - Mini Channel Fabricated 45 Degree Elbow With Grate - Sand

NDS 5303 - Mini Channel Fabricated 45 Degree Elbow With Grate - Sand

The NDS 5303 Mini Channel Fabricated 45-Degree Elbow With Grate is a high-quality drainage solution designed for efficient water management in residential and light commercial applications. This pre-fabricated elbow allows for smooth directional changes in mini channel drainage systems, ensuring optimal water flow and reduced risk of clogs.

Key Features:

• 45-degree angle for versatile drainage system layouts
• Durable construction for long-lasting performance
• Includes a removable grate for easy maintenance
• Compatible with NDS mini channel drainage systems
• Suitable for pedestrian traffic areas

Installation Instructions:

1. Excavate the area where the elbow will be installed, ensuring proper depth and width.
2. Place a layer of gravel or crushed stone as a base for stability.
3. Position the elbow in the desired location, ensuring it aligns with connecting channel sections.
4. Connect the elbow to adjacent channel sections using NDS connectors or adhesive.
5. Check that the elbow and connected channels are level and have the correct slope for proper drainage.
6. Backfill around the elbow with concrete or compacted soil, leaving the top edge slightly below the finished surface level.
7. Install the grate securely onto the elbow.
8. Complete the surrounding surface installation, ensuring it's slightly higher than the grate for proper water flow.

Product Specifications:

• Material: High-impact polypropylene
• Load class: Pedestrian traffic
• Flow rate: [Insert specific flow rate]
• Compatible with: NDS Mini Channel Systems
• Color: Black (elbow), Sand
• UV resistant: Yes
• Chemical resistant: Yes
