NDS grates represent the pinnacle of drainage system engineering, serving as critical components that balance optimal water flow with effective debris filtration. These precision-engineered elements work as the visible interface of comprehensive drainage networks, ensuring that water can enter the system efficiently while preventing clogs, blockages, and system failures that can lead to costly property damage and maintenance issues.
The fundamental operation of NDS grates relies on carefully calculated hydraulic principles and material engineering. Each grate features strategically positioned openings that maximize water intake capacity while creating barriers against debris infiltration. The grate design incorporates flow dynamics that create venturi effects, accelerating water movement through the openings even during heavy rainfall events.
When water encounters an NDS grate, the engineered surface pattern directs flow toward the most efficient entry points, while simultaneously creating turbulence that helps separate debris from the water stream. Heavier particles and organic matter are deflected or caught by the grate structure, while clean water passes through unimpeded to the collection system below. This dual-action process maintains system integrity while maximizing drainage efficiency across varying weather conditions and debris loads.
Atrium Grates: Specifically engineered for residential and light commercial applications, atrium grates excel in basement window wells, sunken patios, and below-grade areas where both drainage and aesthetic appeal are priorities. These grates feature refined styling that complements architectural elements while providing robust protection against water infiltration that could damage foundations, cause basement flooding, or create unhealthy moisture conditions in below-grade spaces.
Channel Grates: Designed for linear drainage applications, channel grates integrate seamlessly with trench drain systems to manage water flow along driveways, walkways, pool decks, and commercial loading areas. Their elongated design captures sheet flow across wide surfaces, preventing water from reaching sensitive areas while maintaining clean, professional appearances in high-visibility installations.
Catch Basin Grates: The workhorses of point drainage systems, catch basin grates handle concentrated water collection from multiple sources including roof downspouts, surface runoff, and irrigation overflow. These heavy-duty components feature reinforced construction capable of supporting vehicular traffic while maintaining superior hydraulic performance under extreme flow conditions.
Pop-up Emitter Grates: Engineered for discharge point management, pop-up emitter grates provide controlled water release at the terminus of underground drainage systems. Their spring-loaded mechanisms open automatically under water pressure, allowing efficient discharge while closing to prevent backflow, pest intrusion, and debris accumulation that could compromise system performance.
High-Density Polyethylene (HDPE) Construction: HDPE grates offer exceptional chemical resistance, impact strength, and dimensional stability across temperature extremes. The material's molecular structure provides inherent UV protection, preventing degradation, cracking, and color fading even under intense solar exposure. HDPE grates maintain structural integrity while offering lightweight installation advantages and resistance to freeze-thaw cycling.
Polypropylene Engineering: Polypropylene variants provide enhanced flexibility and impact resistance, making them ideal for areas subject to thermal expansion, ground movement, or occasional impact loads. The material's low-temperature performance characteristics ensure reliable operation in harsh winter conditions without brittle failure.
Cast Iron Durability: For maximum load-bearing capacity and longevity, cast iron grates deliver uncompromising strength suitable for vehicular traffic, industrial applications, and high-security installations. The material's inherent weight provides stability and anti-theft properties while offering superior resistance to vandalism and environmental degradation.
Comprehensive Yard Drainage Solutions: Homeowners utilize NDS grates to address chronic water management issues including soggy lawns, erosion problems, and landscape water damage. Strategic placement in low-lying areas, along property boundaries, and near foundation perimeters creates effective water collection networks that preserve property values and prevent costly repairs.
Advanced Downspout Management: Beyond basic water collection, NDS grates integrated with downspout systems provide sophisticated runoff control that prevents soil erosion, protects landscaping investments, and eliminates ice dam formation during winter months. The systems can be configured with underground piping networks that transport water to appropriate discharge points away from structures.
Foundation Protection Systems: Properly positioned NDS grates create defensive perimeters around building foundations, intercepting water before it can create hydrostatic pressure against basement walls. This proactive approach prevents structural damage, eliminates basement moisture problems, and protects against the costly remediation required for water-damaged foundations.
Aesthetic Integration: Professional landscapers rely on NDS grates to maintain design integrity while solving drainage challenges. The variety of styles, colors, and finishes allows seamless integration with hardscape elements, ensuring that functional drainage components enhance rather than detract from overall landscape aesthetics.
High-Performance Commercial Systems: In commercial environments, NDS grates must handle intense traffic loads while maintaining reliable drainage performance. Shopping centers, office complexes, and industrial facilities depend on these components to prevent water accumulation that could create liability issues, damage inventory, or disrupt business operations.
Contractor-Grade Durability: Professional contractors specify NDS grates for demanding applications including parking structures, loading docks, and heavy equipment areas where component failure is not acceptable. The grates' proven performance under extreme conditions provides the reliability necessary for warranty compliance and client satisfaction.
Vehicular Traffic Engineering: NDS grates designed for driveway and roadway applications incorporate structural engineering principles that distribute loads across the entire grate surface and underlying support structure. This prevents localized stress concentrations that could cause failure under repeated heavy loading.
Pedestrian Safety Features: All NDS grates include safety considerations such as slip-resistant surfaces, heel-proof opening designs, and smooth edges that prevent injury while maintaining optimal drainage performance. These features ensure compliance with accessibility requirements and liability standards.
Size Versatility: The comprehensive range of available sizes accommodates everything from residential catch basins to large-scale commercial drainage systems. Custom sizing options ensure optimal fit and performance for unique applications where standard dimensions may not be suitable.
Finish Options: Multiple finish choices including various colors, textures, and coating options allow specification professionals to match existing architectural elements or create distinctive design statements while maintaining functional performance.
Load Class Specifications: Different load ratings ensure appropriate selection for specific applications, from light-duty residential use through heavy-duty commercial and industrial requirements. This specification flexibility prevents over-engineering costs while ensuring adequate performance margins.
Proper installation techniques maximize NDS grate performance and longevity, requiring attention to substrate preparation, proper seating, and integration with surrounding drainage infrastructure. Regular maintenance protocols involve periodic cleaning to remove accumulated debris and inspection to ensure continued structural integrity and hydraulic performance.
The NDS grate system represents a comprehensive approach to drainage management that combines engineering excellence with practical functionality, delivering reliable water management solutions that protect property investments while maintaining aesthetic and performance standards across diverse applications.
NDS offers a range of grates designed to meet specific drainage needs across residential, commercial and landscaping applications. Each type of grate serves a unique purpose and is built to perform in its environment.
Atrium Grates are dome-shaped to allow water to flow in even when surrounded by mulch, leaves or debris, making them ideal for yard drainage, garden beds and turf areas. They are commonly made from plastic or polyethylene and come in diameters ranging from 6" to 18".

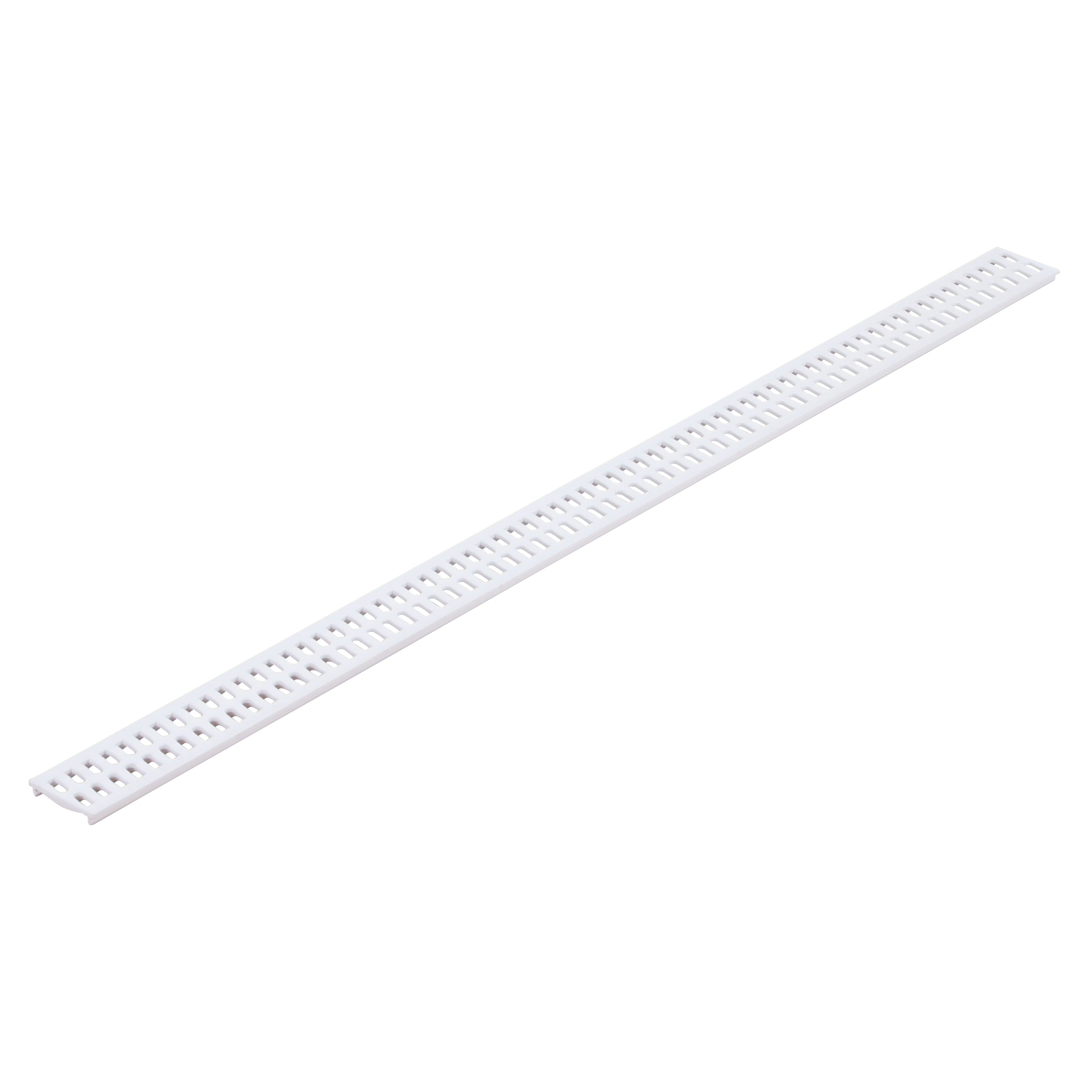

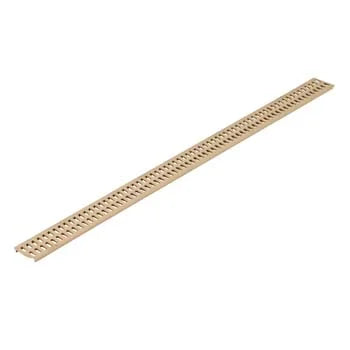

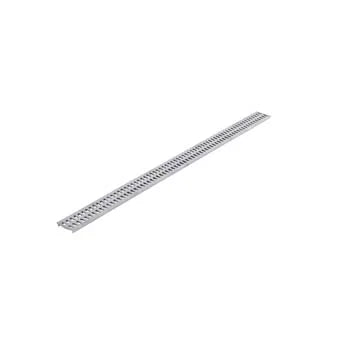

Channel Grates are designed to cover trench or channel drains, making them perfect for driveways, patios and walkways where surface runoff needs to be managed efficiently. They’re available in durable materials like polypropylene, HDPE and cast iron for heavy-load applications. Styles include slotted, perforated and decorative patterns to match both function and aesthetic needs.
Catch Basin Grates are square or rectangular and fit securely over catch basins to manage large volumes of water, particularly in backyard drainage systems or low points in a landscape. Options range from light-duty plastic to heavy-duty cast iron, depending on load requirements.
Pop-Up Emitters serve as the final water discharge point in a drainage system. These 3" to 4" emitter heads open with water pressure and close afterward, preventing clogs from dirt and debris.
NDS grates come in a variety of materials to suit different strength and application needs. High-Density Polyethylene (HDPE) is lightweight, UV-resistant and ideal for residential landscaping or yard drainage. Polypropylene is slightly more rigid and durable, making it a solid choice for walkways, patios and light-duty areas. For heavy-load applications, cast iron grates offer unmatched strength, perfect for driveways, commercial properties or areas with vehicular traffic.
NDS also categorizes grates by load class, from light duty to medium duty and heavy duty, ensuring the right fit for every project.
Maxx Drains is your trusted source to buy NDS grates, offering competitive pricing, bulk discounts and fast shipping for both homeowners and contractors. As an authorized NDS seller, we provide reliable service and genuine products, including a wide selection of NDS channel grates. Shop now for the best value and support!
