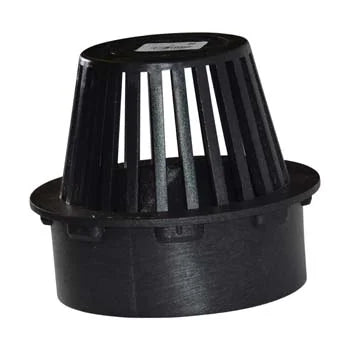

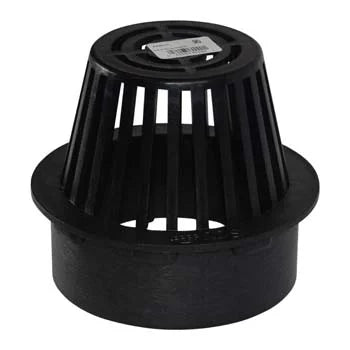

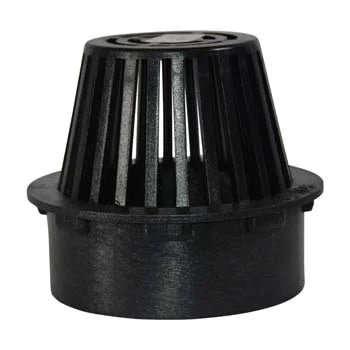

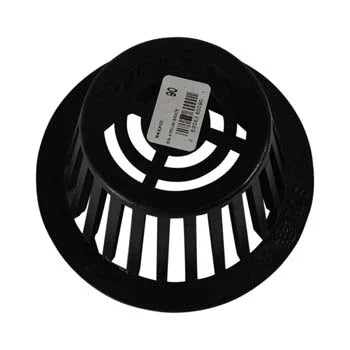

NDS 90 - 6" Atrium Grate - Black
Colors: Black (#90), Brass (#90B), Gray (#81), Green (#80) and Sand (#90S)
The NDS 81 6IN Atrium Grate is a durable and efficient drainage solution designed for outdoor spaces. This 6-inch round atrium grate effectively prevents debris from entering your drainage system while allowing water to flow freely. Ideal for use in landscaped areas, patios, and around downspouts, this grate helps maintain proper drainage and prevents flooding.
Key Features:
- 6-inch round design
- Durable plastic construction
- UV-resistant material
- Low-profile surface
- Easy to install and maintain
Installation Instructions:
- Excavate the area where the grate will be installed, ensuring it's level with the surrounding surface.
- Place the grate over the drain pipe or catch basin.
- Secure the grate in place using landscape adhesive or mortar if necessary.
- Backfill around the grate with soil or surrounding material, ensuring it remains level.
- Test the installation by pouring water over the grate to confirm proper drainage.
Product Specifications:
- Material: High-impact plastic
- Color: Black
- Diameter: 6 inches (15.24 cm)
- Height: 1.5 inches (3.81 cm)
- Weight: 0.63 lbs (0.11 kg)
- Maximum flow rate: 41 GPM (155 LPM)
- Compatible with 3-inch and 4-inch drain pipes
Maintenance: Regularly remove debris from the grate surface to ensure optimal performance. The grate can be easily lifted for cleaning of the drain pipe or catch basin as needed.
Product and Technical Information

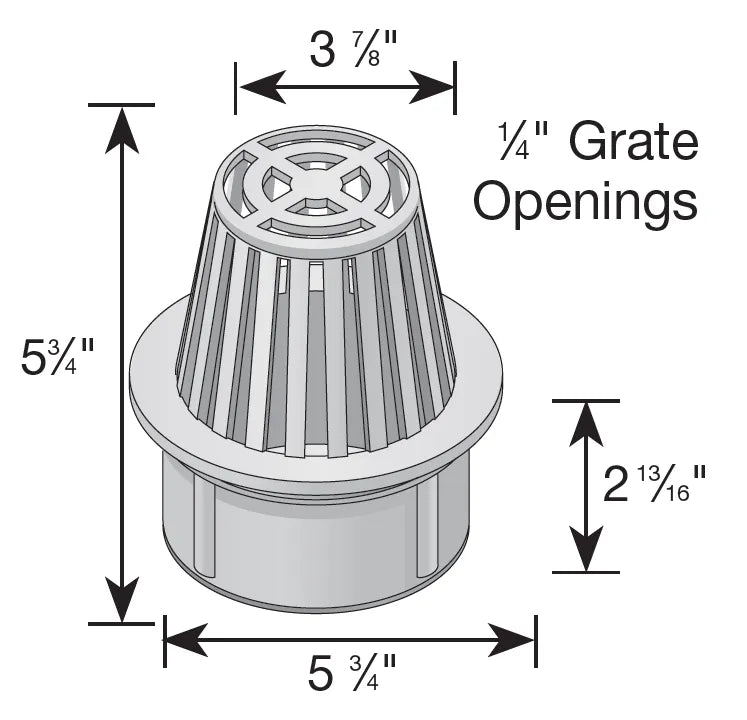

Technical Specifications - NDS 6" Atrium Grate
