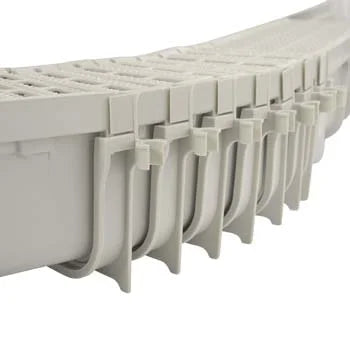

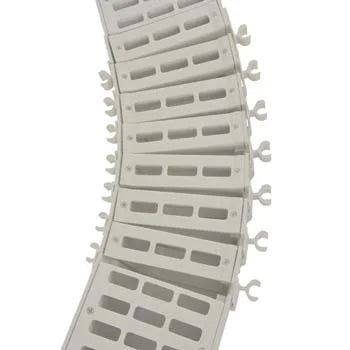

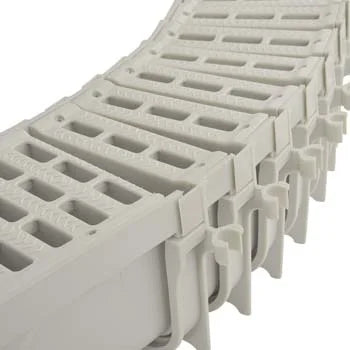

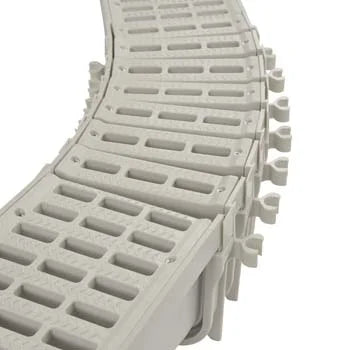

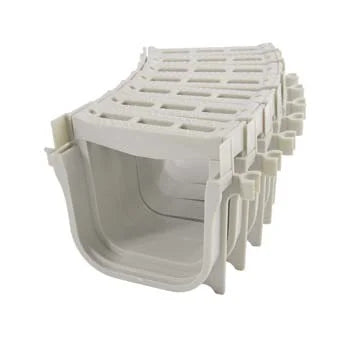

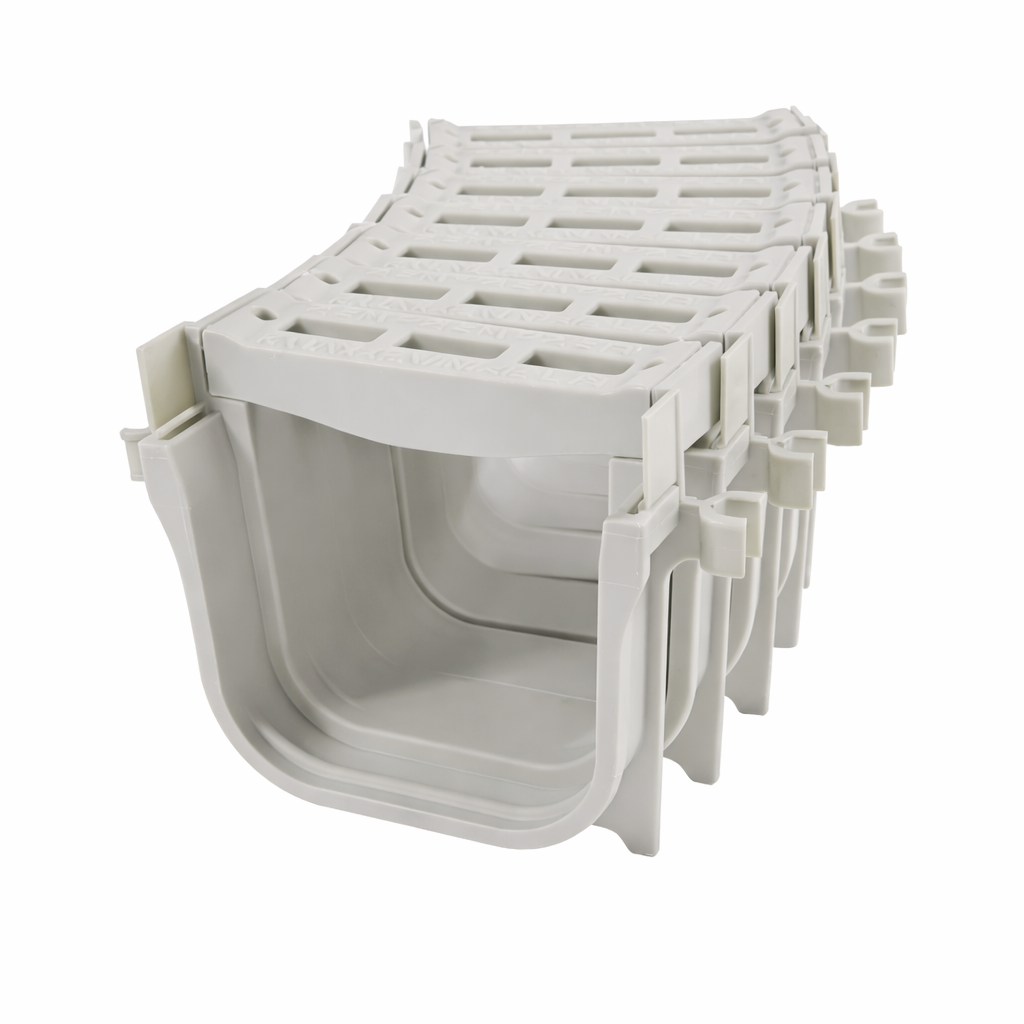

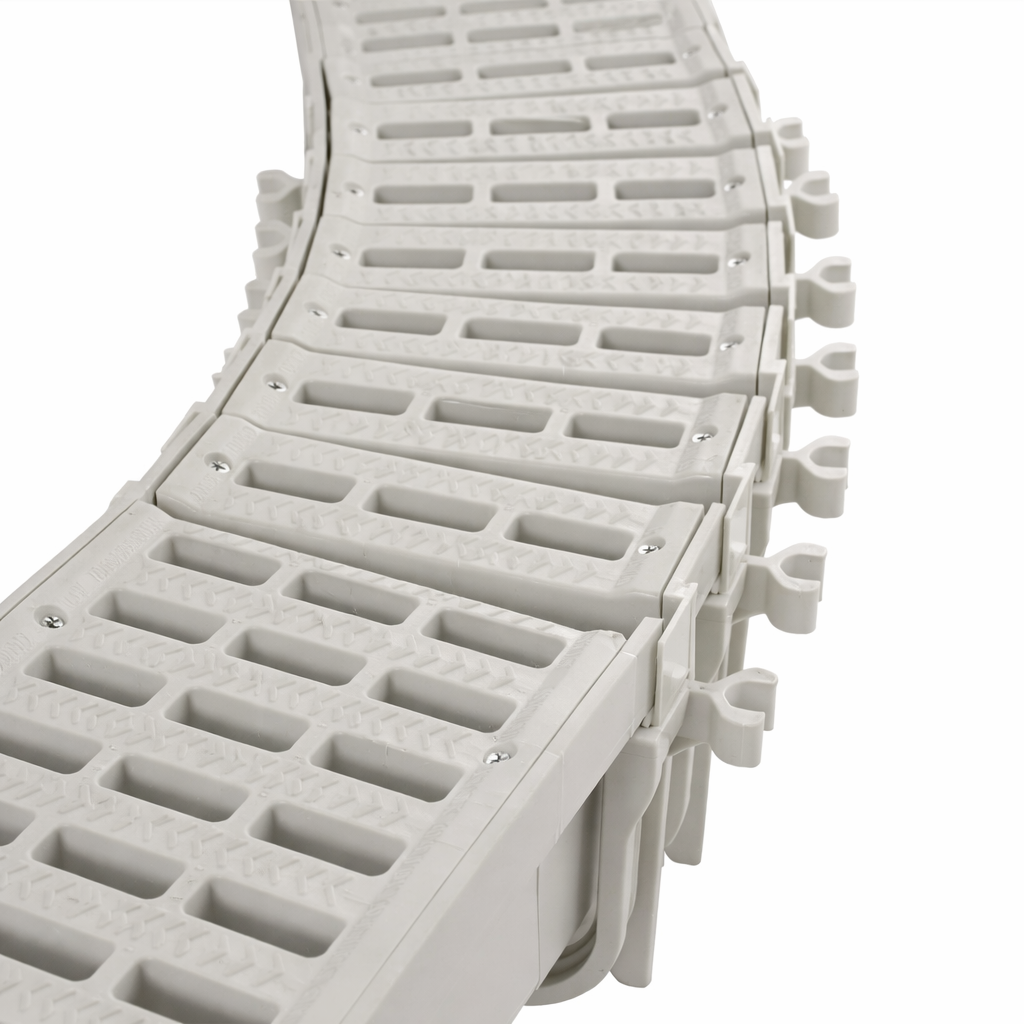

NDS PSRC-864 - Qwik-Turn Radius Coupling
The NDS PSRC-864 Qwik-Turn Radius Coupling is an innovative solution for connecting PVC pipes in tight spaces. This coupling allows for quick and easy installation, even in areas with limited access or confined radii.
Key Features:
- Designed for 8" PVC pipe connections
- Allows for up to 5° deflection
- No-hub style for easy installation
- Corrosion-resistant stainless steel clamps
- Durable neoprene gasket for watertight seal
Installation Instructions:
- Clean pipe ends thoroughly
- Slide coupling onto one pipe end
- Align second pipe end with the coupling
- Tighten stainless steel clamps using a torque wrench
- Ensure proper alignment and seal
Product Specifications:
- Material: PVC body, stainless steel clamps, neoprene gasket
- Size: 8" diameter
- Max working pressure: 4.3 PSI
- Temperature range: -40°F to 180°F
- Deflection angle: Up to 5°
- Torque requirement: 60 in-lbs
The NDS PSRC-864 Qwik-Turn Radius Coupling is ideal for both new installations and repairs in drainage systems, irrigation networks, and other low-pressure applications where space is limited
Product and Technical Information
Installation Instructions - NDS Channel Drain
Technical Specifications - NDS 5 Inch Pro Series Grate

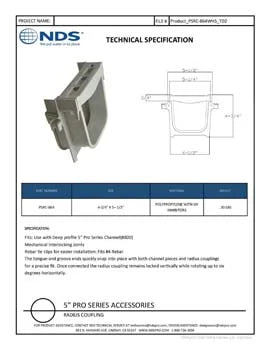

Technical Specifications - Qwik-Turn Radius Coupling
