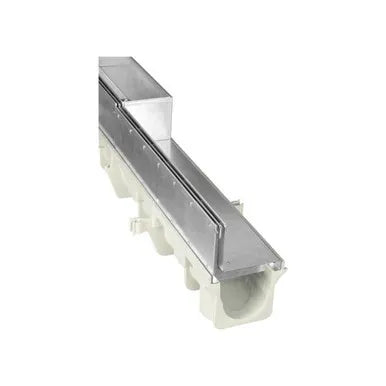

NDS DS-ST4 - Dura Slope Slot Top Channel Drain Grate - Galvanized
The NDS DS-ST4 Dura Slope Slot Top Grate is a durable, galvanized steel drainage solution designed for efficient water management in various applications. This slot top grate provides excellent water intake while maintaining a sleek, low-profile appearance. Ideal for driveways, walkways, patios, and other areas requiring surface water removal.
Key Features:
- Galvanized steel construction for corrosion resistance
- Slot top design for efficient water intake
- Compatible with NDS Dura Slope channel drain system
- Suitable for pedestrian and light vehicle traffic
Installation Instructions:
- Ensure the Dura Slope channel is properly installed and leveled.
- Clean the top edges of the channel to ensure a proper fit.
- Align the DS-ST4 grate with the channel opening.
- Lower the grate into place, ensuring it sits flush with the channel edges.
- Secure the grate using NDS grate locks or bolts (sold separately) if required for your application.
- Repeat the process for additional grate sections as needed.
Product Specifications:
- Material: Galvanized steel
- Dimensions: 48" in. x 6" in. x 5.75" in.
- Load Class: A (Up to 3,372 lbs / 1,530 kg)
- Compatible Channel: NDS Dura Slope
- Slot Width: 0.25" (6.35 mm)
- Weight: Approximately 3.5 lbs (1.6 kg)
- Color: Silver (galvanized finish)
Recommended Uses:
- Residential driveways
- Commercial walkways
- Patios and pool decks
- Garage entrances
- Light-duty commercial applications
Maintenance: Periodically clean the grate to remove debris and ensure proper water flow. Inspect annually for any signs of damage or wear.
