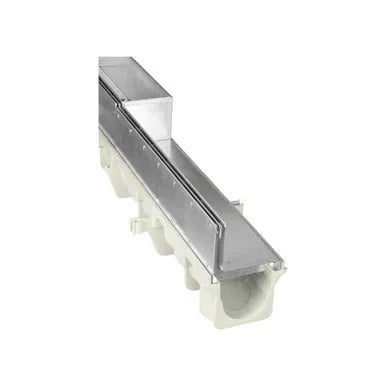

NDS DS-ST2 - Dura Slope Slot Top Channel Drain Grate - Galvanized

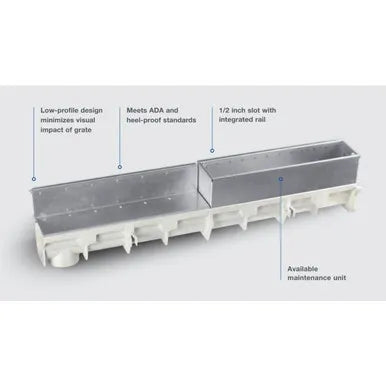

The NDS DS-ST2 Dura Slope Slot Top Grate is a high-quality, galvanized steel grate designed for use with NDS Dura Slope channel drain systems. This durable grate offers excellent drainage performance and load-bearing capacity, making it ideal for residential, commercial, and light industrial applications.
Key Features:
- Made of galvanized steel for corrosion resistance
- Slot top design for efficient water drainage
- Compatible with NDS Dura Slope channel drain systems
- Suitable for pedestrian and light vehicle traffic
- Easy to install and maintain
Installation Instructions:
- Ensure the Dura Slope channel is properly installed and leveled.
- Clean the channel of any debris or obstructions.
- Place the DS-ST2 grate onto the channel, ensuring it sits flush with the channel edges.
- Secure the grate using NDS locking devices or bolts (sold separately) if required for your application.
- Check that the grate is firmly in place and level with the surrounding surface.
Product Specifications:
- Material: Galvanized steel
- Length: 24" inchesĀ
- Width: 5.4 inches (to fit Dura Slope channel)
- Load class: Class D loads (up to 575 PSI)
- Slot width: 0.25 inches
- Compatible with: NDS Dura Slope channel drain systems
Recommended Applications:
- Residential driveways
- Patios and pool decks
- Pedestrian walkways
- Light commercial parking areas
- Warehouses and storage facilities
Maintenance: Regularly clean the grate and channel to ensure optimal drainage performance. Inspect periodically for any damage or wear, and replace if necessary.
