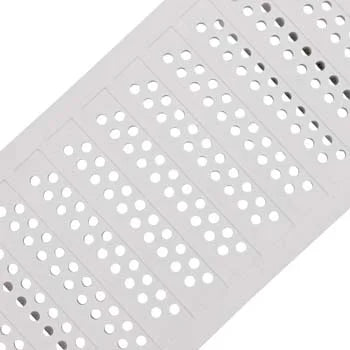

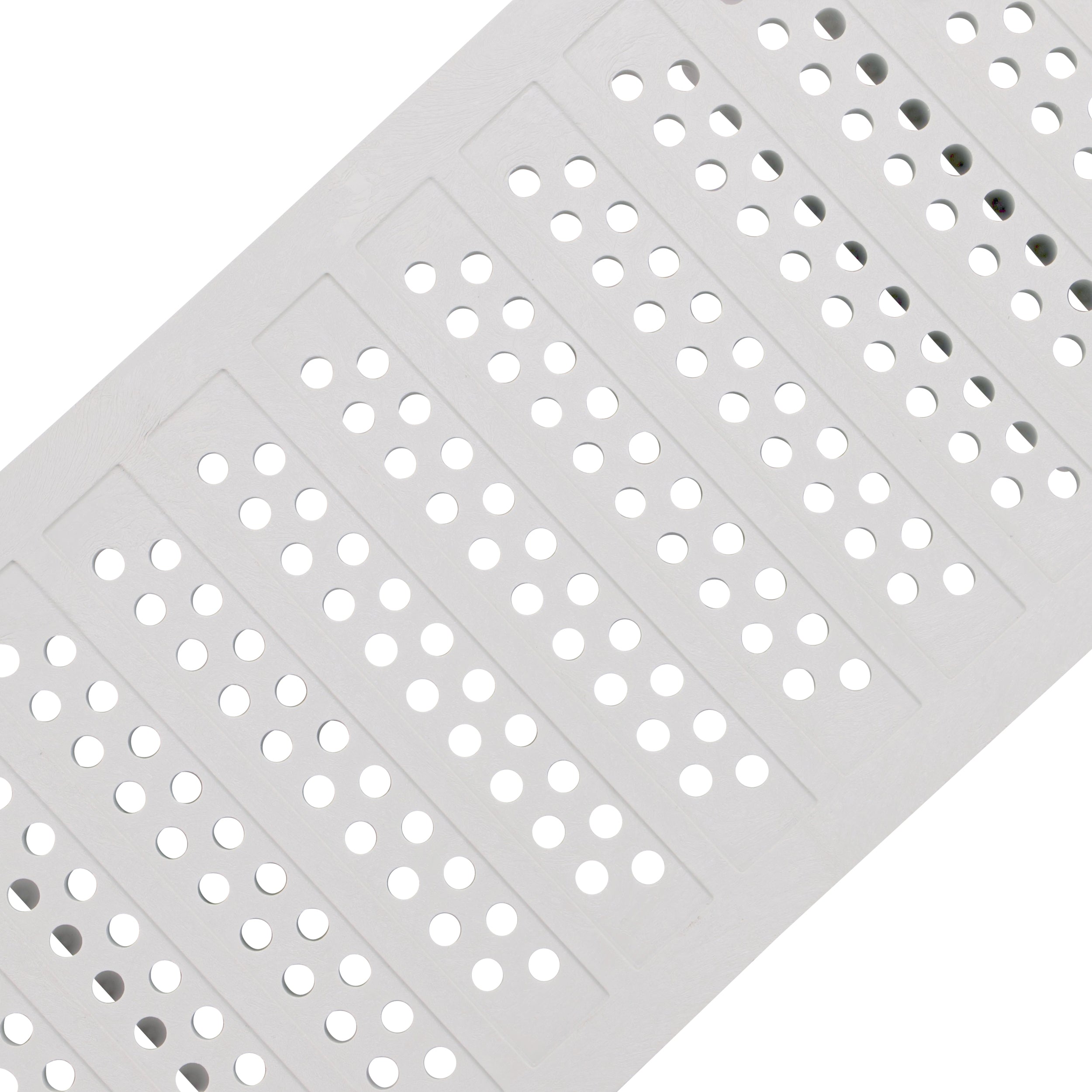

NDS DS-670 - Dura-Slope Plastic Perforated Channel Grate - Gray
The NDS DS-670 is a high-quality, 2-foot perforated channel grate designed for efficient water drainage in residential and light commercial applications. Made from durable gray polyolefin, this grate offers excellent resistance to UV radiation, chemicals, and impact. Its perforated design allows for maximum water intake while preventing debris from entering the drainage system.
Key Features:
- Length: 2 feet (24 inches)
- Color: Gray
- Material: UV-resistant polyolefin
- Perforated design for optimal water flow
- Compatible with NDS channel drain systems
- Ideal for driveways, patios, pool decks, and walkways
- Load class: Light duty (pedestrian and light vehicle traffic)
Installation Instructions:
- Ensure the channel drain is properly installed and level.
- Clean the top edges of the channel to ensure a proper fit.

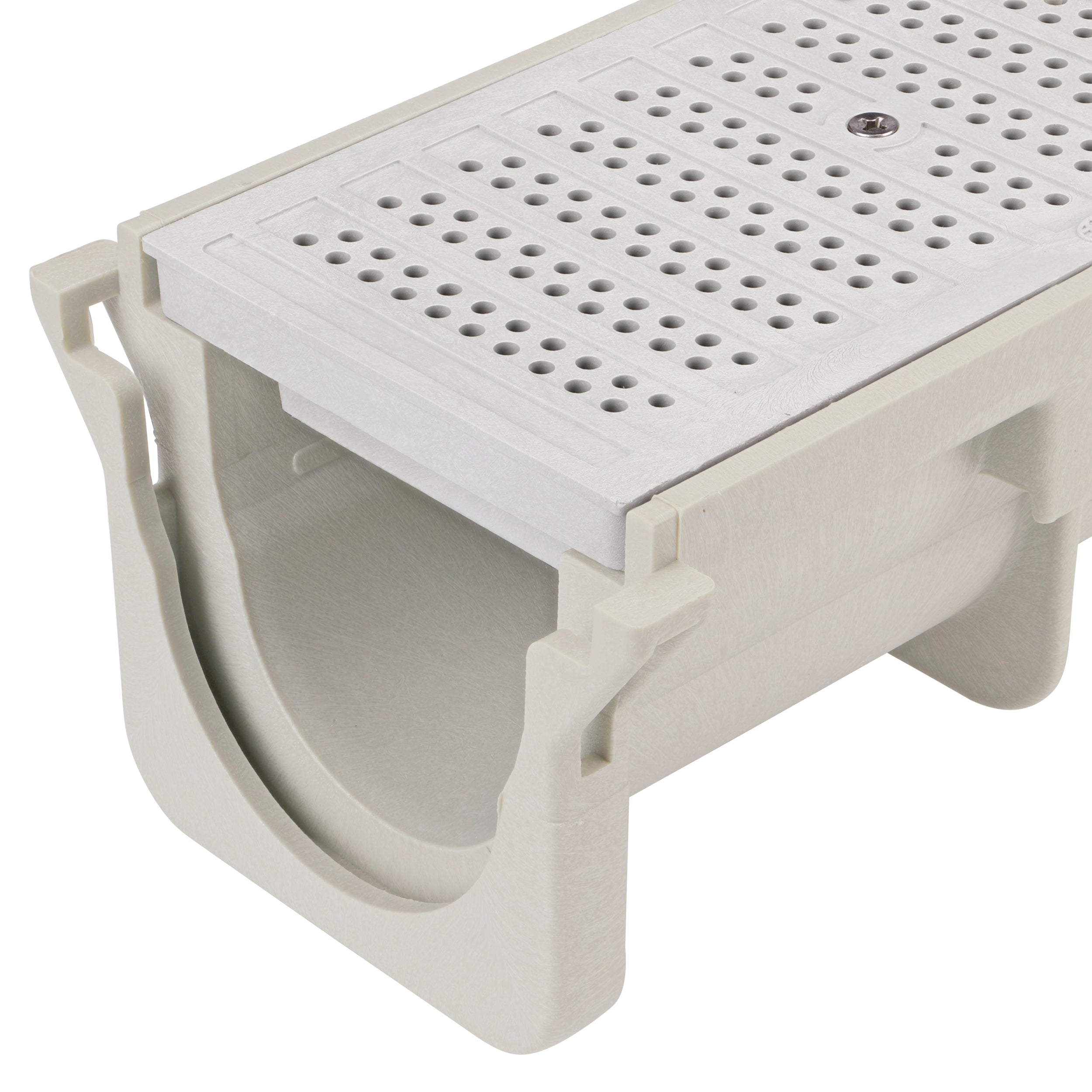

- Place the DS-670 grate onto the channel, starting at one end.
- Press down firmly to snap the grate into place.
- For longer runs, connect multiple grates end-to-end.
- Secure the grate using NDS grate locks (sold separately) if desired.
Product Specifications:

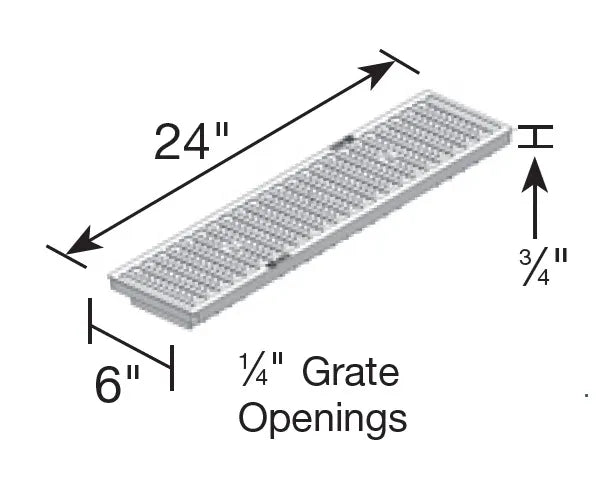

- Dimensions: 24"L x 6"W x 0.8"H
- Weight: Approximately 1.2 lbs
- Material composition: Polyolefin with UV inhibitors
- Load rating: Up to 56 psi (light duty)
- Water intake capacity: 17.4 GPM per linear foot
- Compatible channel systems: NDS Pro Series and Spee-D channel drains
Maintenance: Regularly clean the grate to remove debris and ensure optimal water flow. The grate can be easily removed for cleaning or access to the channel below.
Warranty: Backed by NDS's limited lifetime warranty against defects in materials and workmanship.
