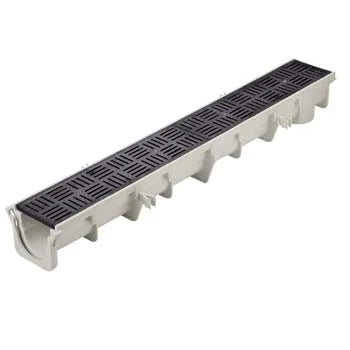

NDS DS-609 - Dura-Slope Raw Cast Iron Channel Drain Grate
The NDS DS-609 2FT Raw Deco Slot Drain Grate is a stylish and functional drainage solution for residential and commercial applications. This decorative slot grate features a sleek, modern design that complements various architectural styles while providing effective water management.
Key Features:
- Length: 2 feet (24 inches)
- Material: Raw cast iron

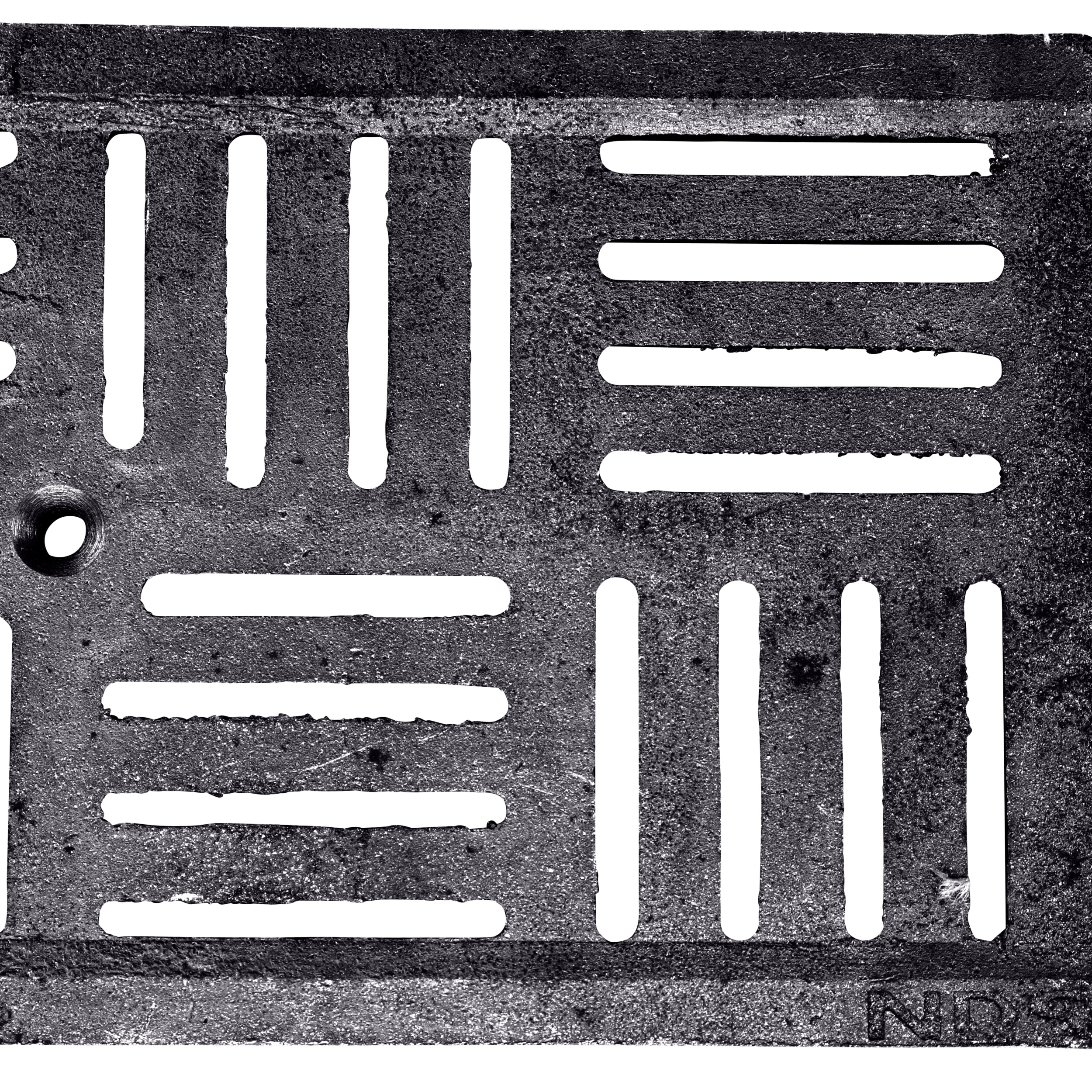

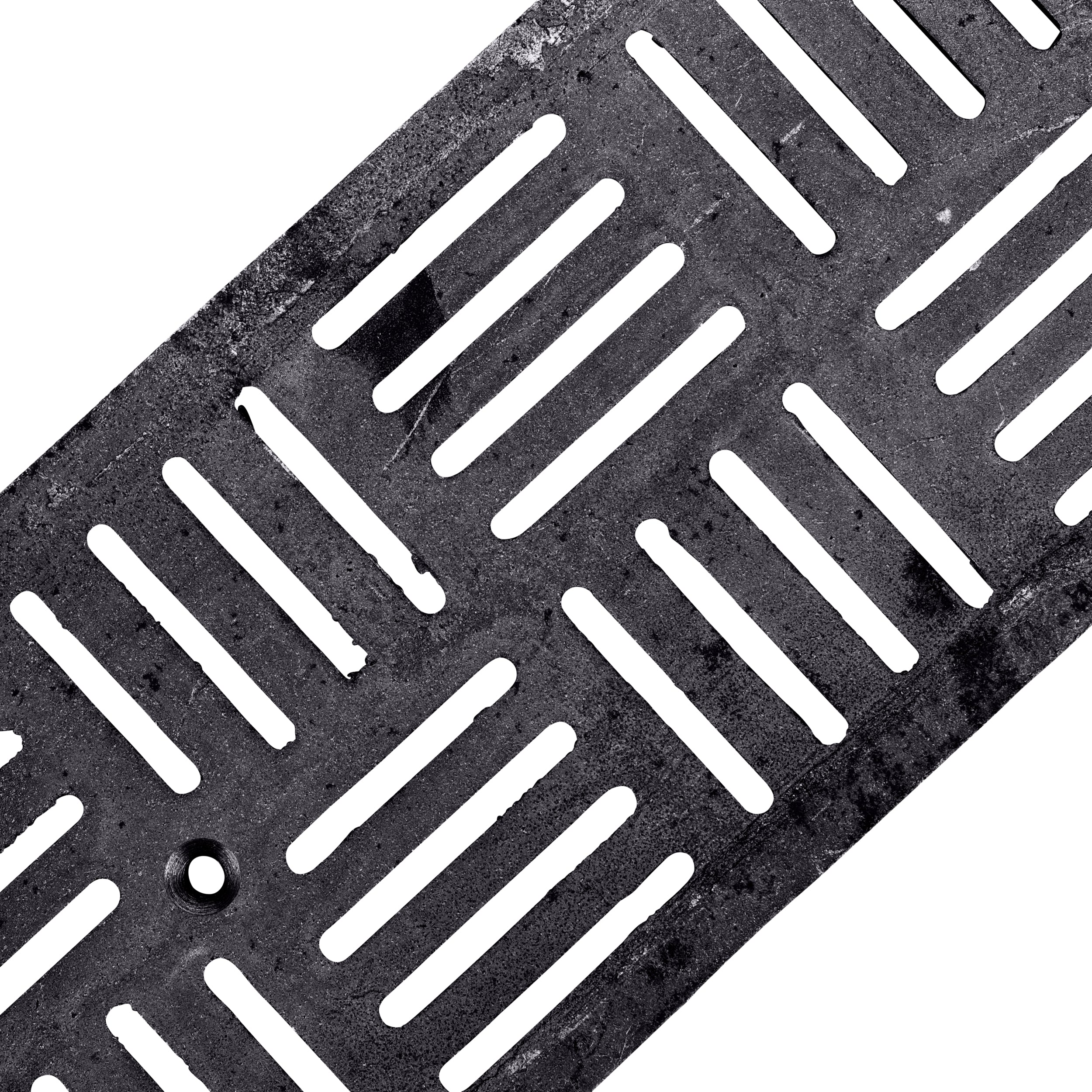

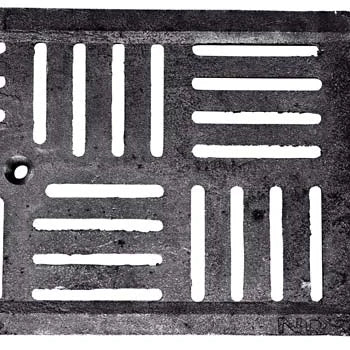

- Decorative slot pattern for enhanced aesthetics
- Durable construction for long-lasting performance
- Suitable for pedestrian traffic areas
- Compatible with NDS channel drain systems
Installation Instructions:
- Prepare the drainage channel according to local building codes.
- Ensure the channel is clean and free of debris.

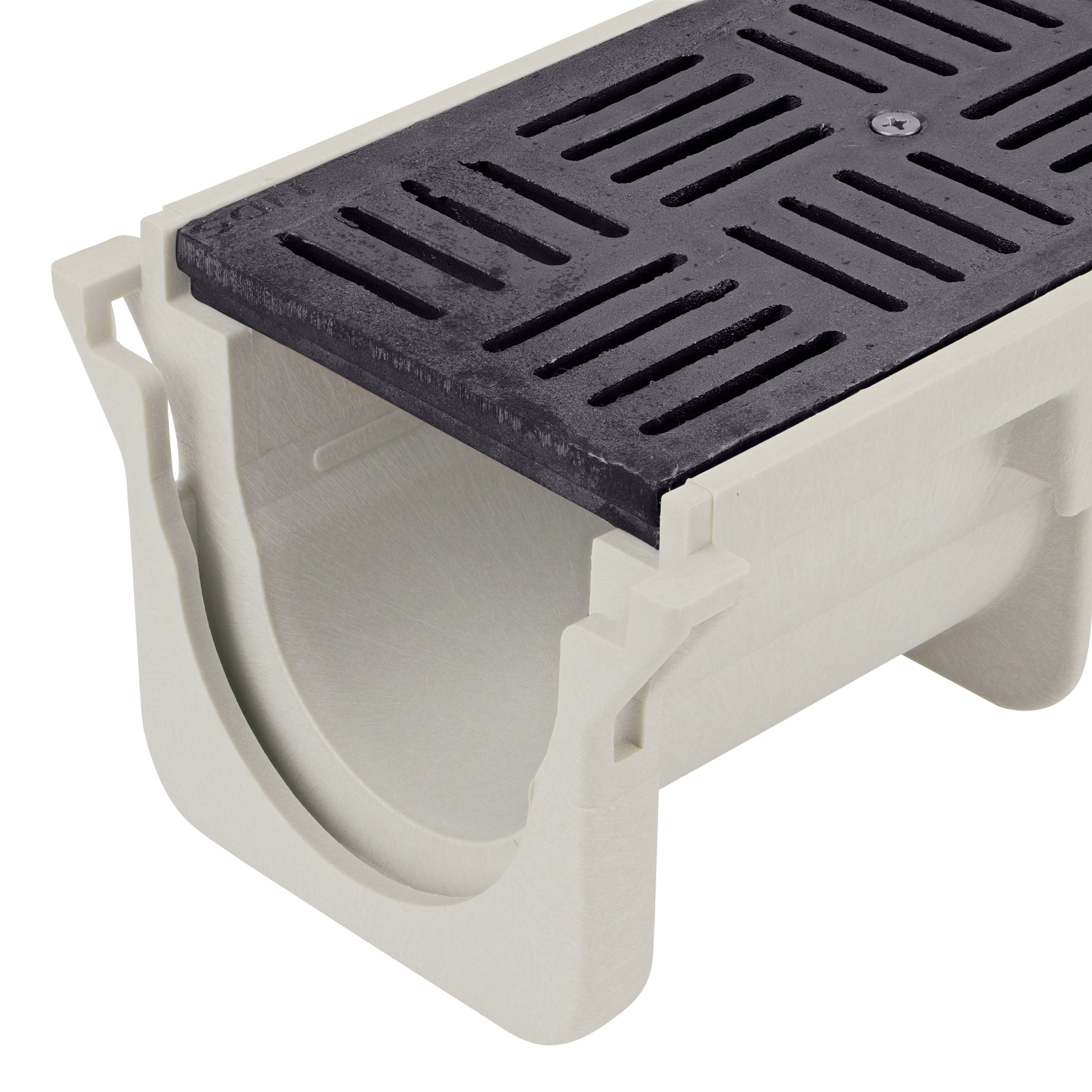

- Place the DS-609 grate into the channel, making sure it sits flush with the surrounding surface.
- For longer runs, connect multiple grates end-to-end.
- Secure the grate to the channel using appropriate fasteners if required.
- Test the installation by pouring water to ensure proper drainage.

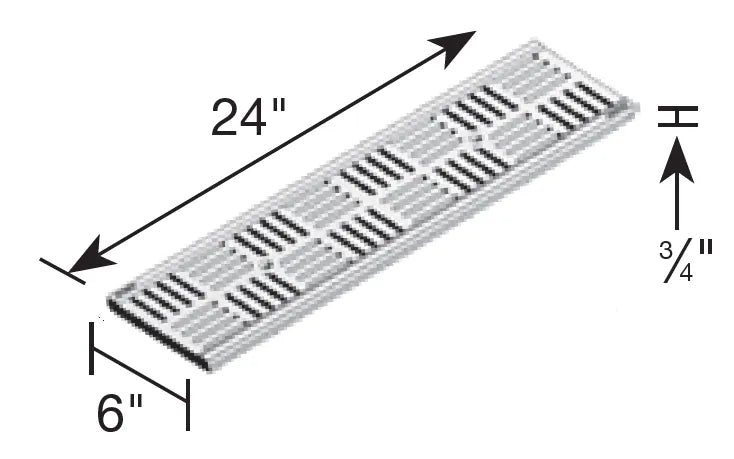

Product Specifications:
- Load class: Class D loads (up to 575 PSI)
- Length: 24" inches
- Width: 5.4" inches
- Material composition: Raw cast iron
- Grates will rust over time forming a protective iron-oxide patina that begins red-orange and ages to a deep, rich brown.
Maintenance: Regularly clean the grate to maintain optimal performance. Remove debris from slots and rinse with water as needed.
The NDS DS-609 2FT Raw Deco Slot Grate combines functionality with aesthetics, making it an excellent choice for patios, pool decks, driveways, and other areas requiring efficient water drainage and a sophisticated look
