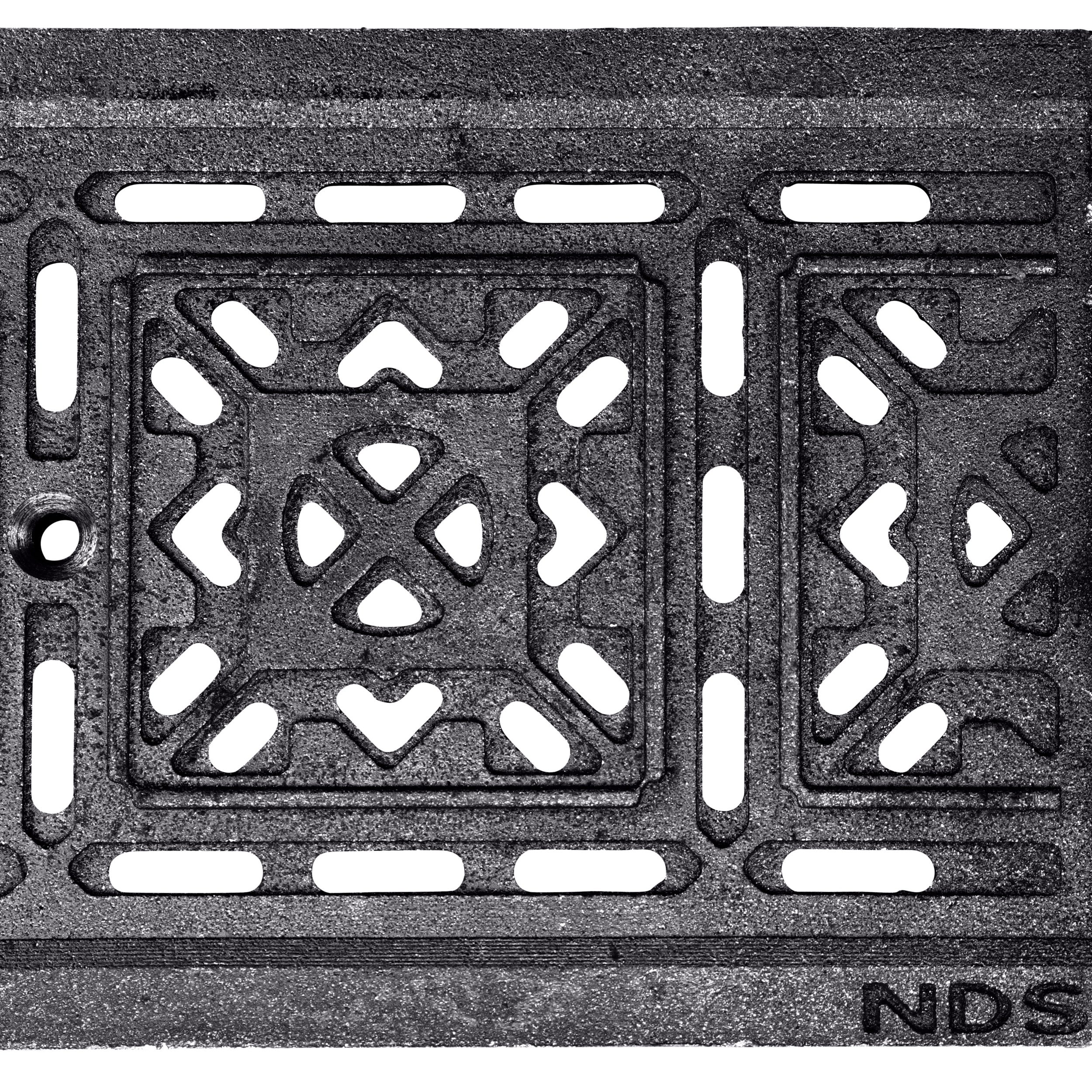

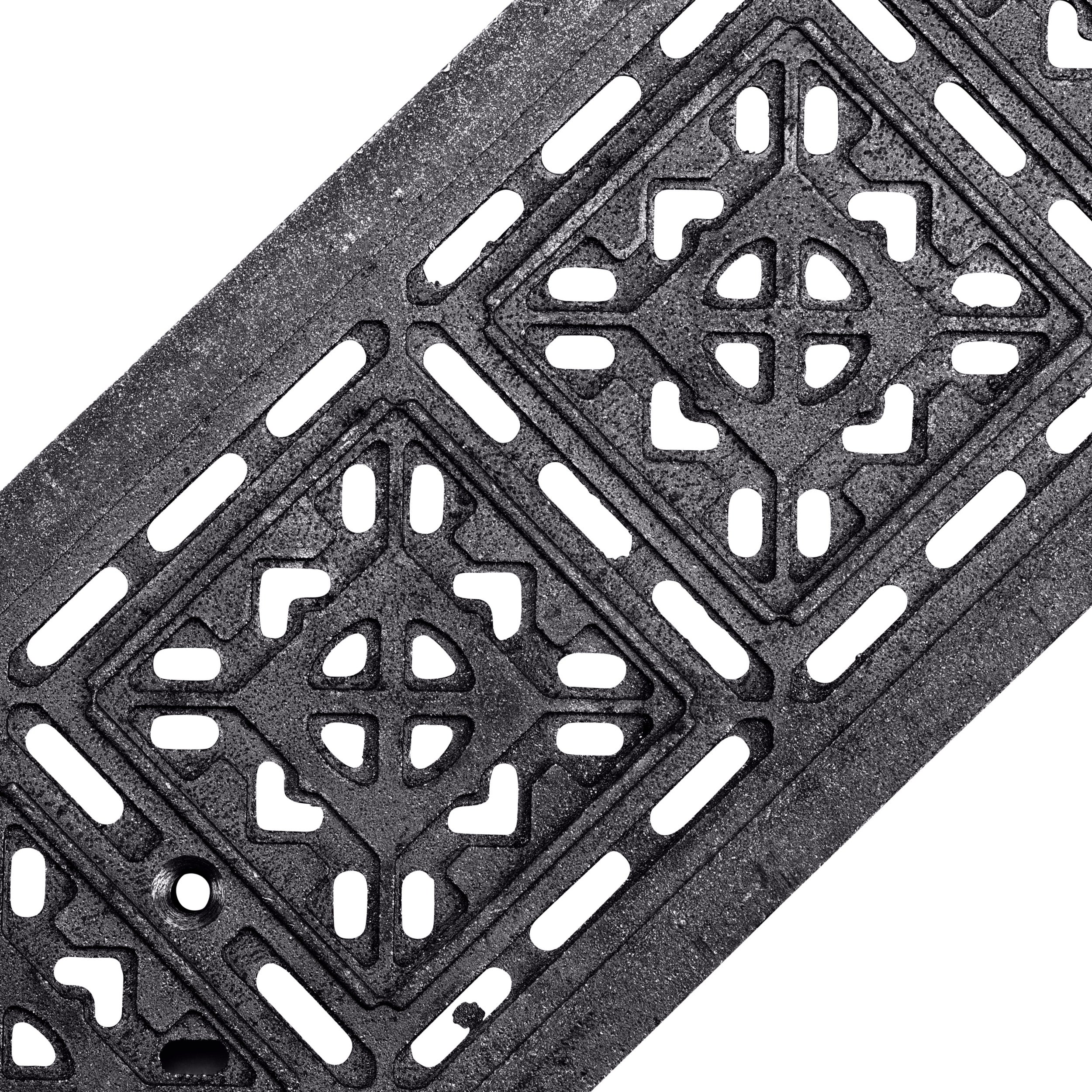

NDS DS-603 - 2FT Raw Deco Tile Drain Grate

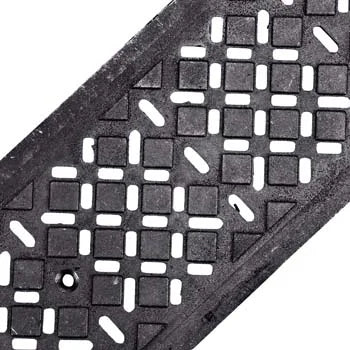

Enhance your drainage system with the stylish and functional NDS DS-602 2FT Raw Deco Diamond Grate. This decorative grate offers a perfect blend of aesthetics and performance for residential and commercial applications.
Key Features:

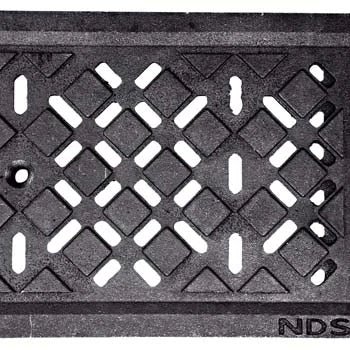

- Attractive diamond pattern design
- Durable raw cast iron construction
- 2-foot length for versatile installation

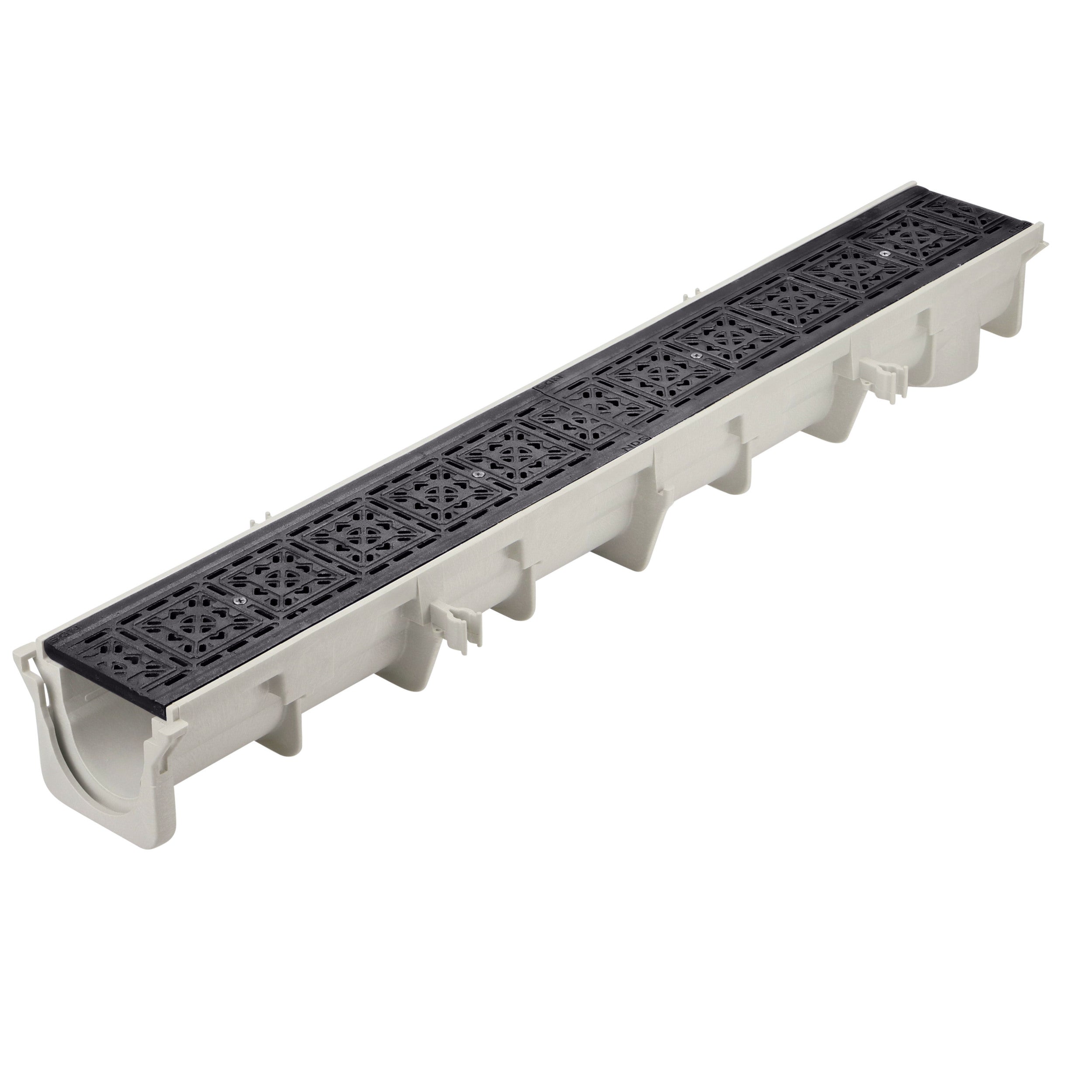

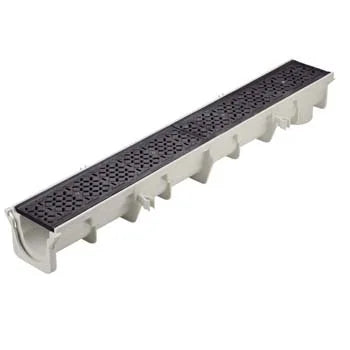

- Compatible with NDS channel drain systems
Product Specifications:
- Material: Raw cast iron

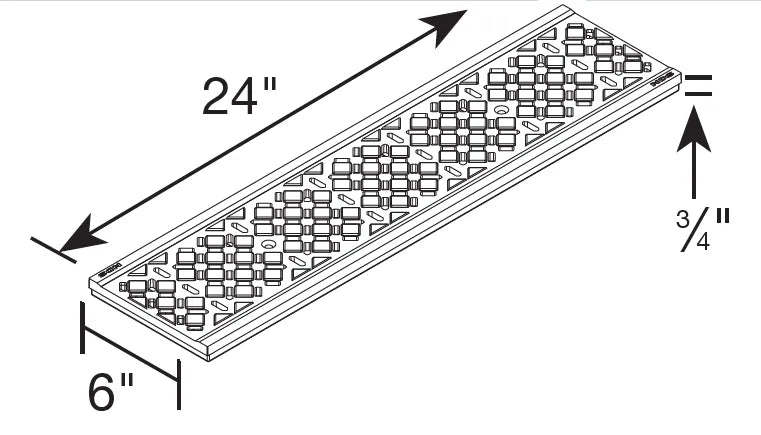

- Length: 24 inches (2 feet)
- Width: 5.4" inches
- Load Class: Class D loads (up to 575 PSI)
- Compatible with: NDS 600 series Dura Slope channel drain systems
- Grates will rust over time forming a protective iron-oxide patina that begins red-orange and ages to a deep, rich brown.
Installation Instructions:
- Ensure your NDS channel drain is properly installed and level.
- Clean the top edges of the channel to remove any debris.
- Starting at one end of the channel, place the DS-602 grate onto the drain.

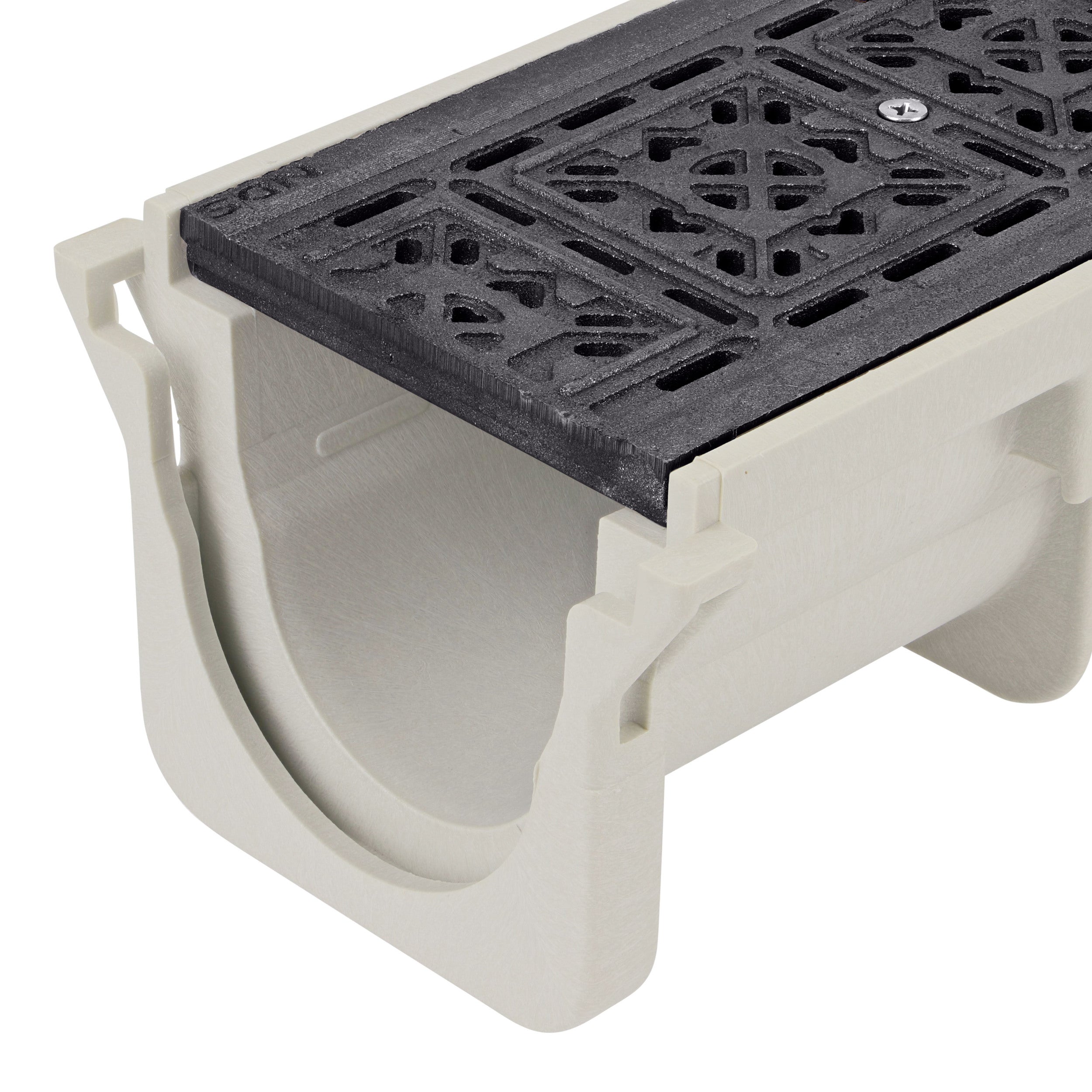

- Align the grate with the channel edges, ensuring a proper fit.
- If using multiple grates, align them end-to-end for a seamless appearance.
- Secure the grate using NDS grate locks or screws (sold separately) if required for your application.
- Repeat the process for additional sections of your drainage system.
Maintenance:
- Regularly remove the grate to clean out any accumulated debris in the channel.
- Occasionally clean the grate surface to maintain its appearance and ensure proper water flow.
The NDS DS-602 2FT Raw Deco Diamond Grate provides an elegant solution for your drainage needs, combining functionality with a decorative touch that complements various landscaping and hardscaping designs.
