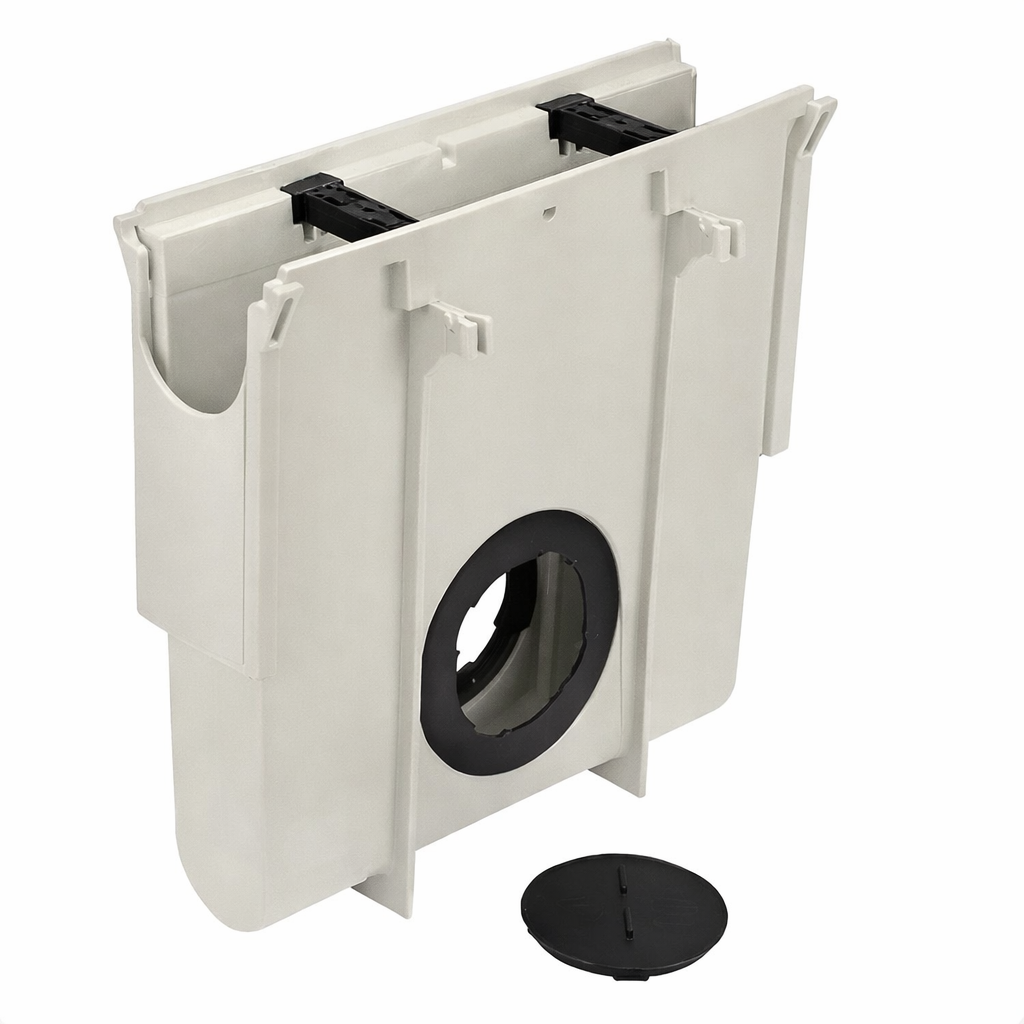

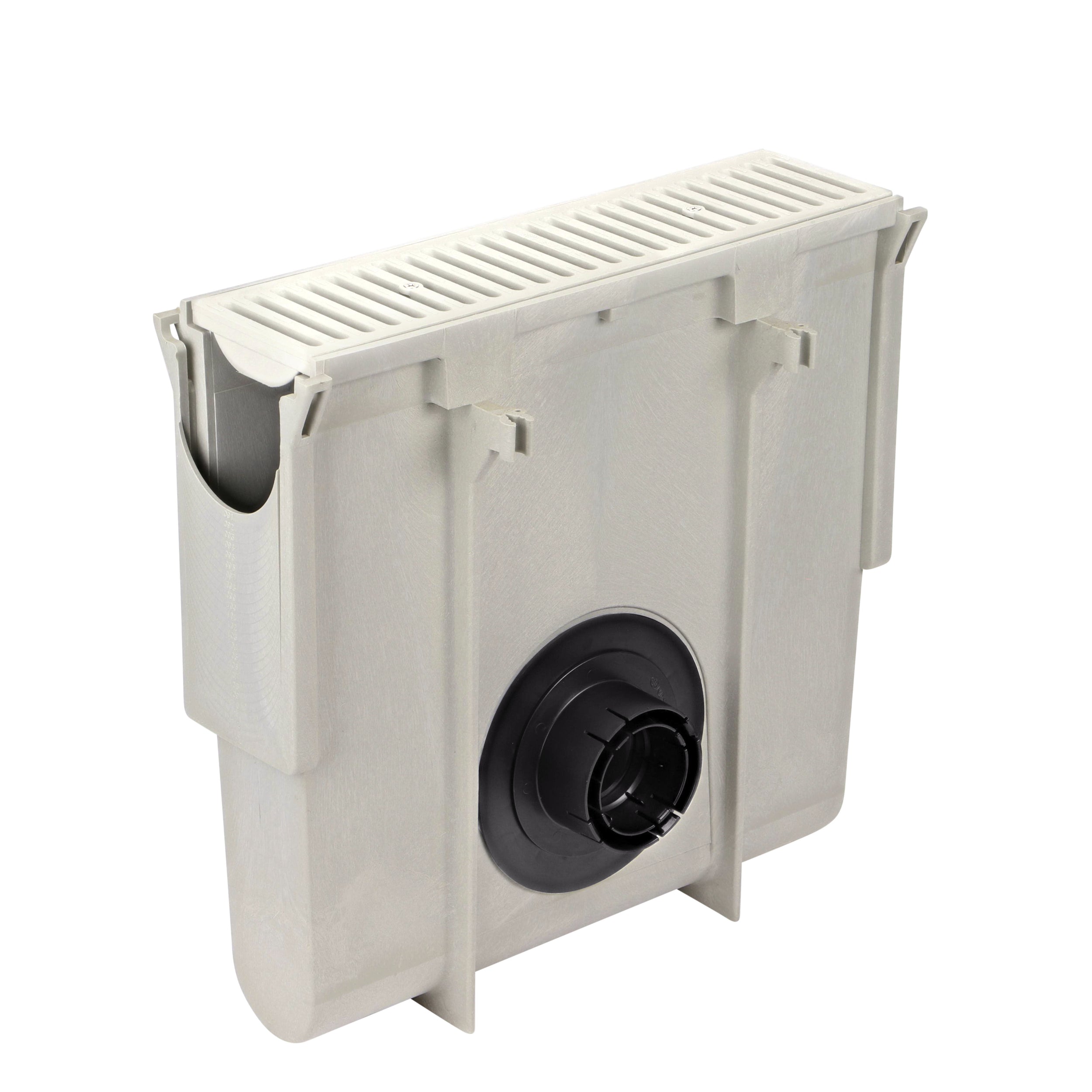

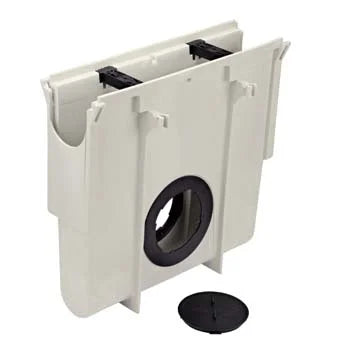

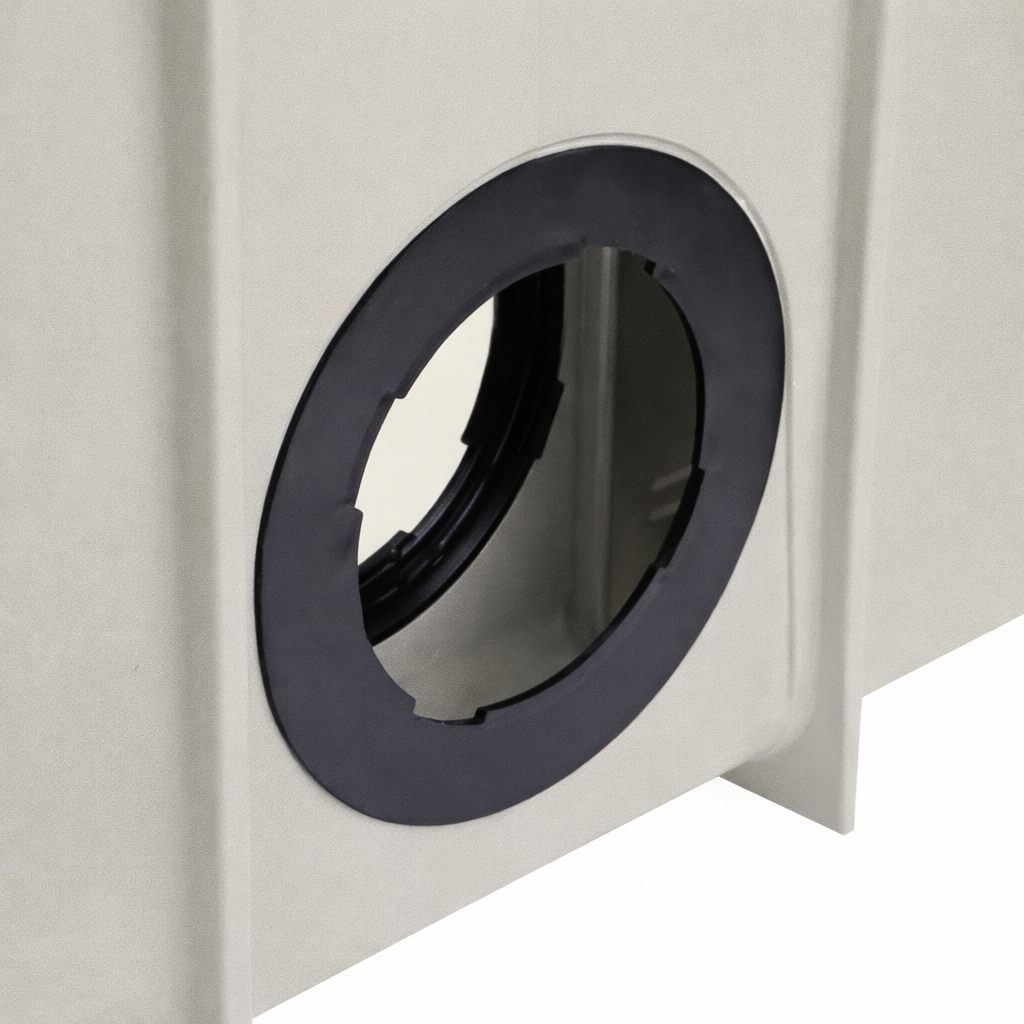

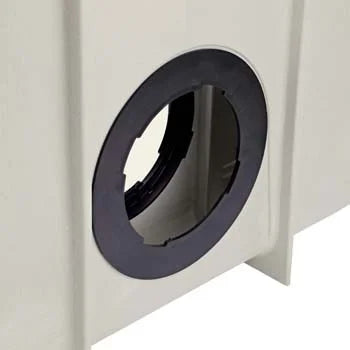

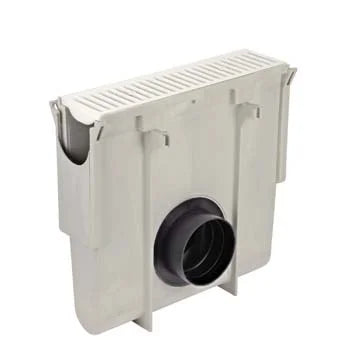

NDS DS-340 - Dura Slope In-Line Catch Basin

NDS DS-340 - Dura Slope In-Line Catch Basin

The NDS DS-340 Dura Slope In-Line Catch Basin is a high-performance drainage solution designed for efficient water management in residential and commercial applications. This versatile catch basin seamlessly integrates into your drainage system, providing superior water collection and distribution.

Key Features:

• Durable structural foam construction
• UV-resistant for long-lasting performance
• Compatible with 3" and 4" drainage pipes
• Adjustable outlet for customized slope
• Removable debris trap for easy maintenance

Installation Instructions:

1. Excavate an area slightly larger than the catch basin dimensions.
2. Create a level base using compacted gravel or sand.
3. Position the catch basin, ensuring it's level and at the desired height.
4. Connect inlet and outlet pipes, adjusting the outlet slope as needed.
5. Backfill around the basin, compacting the soil in layers.
6. Install the grate and ensure it's secure.

Product Specifications:

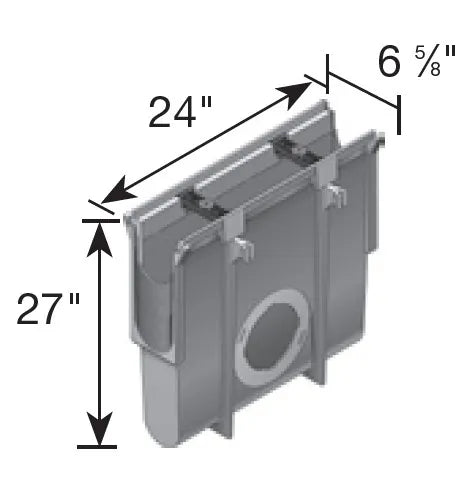

• Dimensions: 27"in x 24"in x 6 5/8"in (L x W x H)
• Material: High-density polyethylene (HDPE)
• Color: Gray
• Load rating: Light traffic (pedestrian)
• Pipe compatibility: 3" and 4" corrugated or sewer & drain pipe
• Adjustable outlet range: 0.5% to 5% slope
• Grate options: Atrium, flat, or wave design

The NDS DS-340 Dura Slope In-Line Catch Basin offers a reliable solution for effective stormwater management, helping to prevent flooding and erosion in your landscape.
