NDS DS-240 - Dura Slope Channel Drain Trash Bucket
The NDS DS-231 Dura Slope Channel Drain Grate is a high-performance drainage solution designed for residential and light commercial applications. This durable grate provides efficient water management while offering a sleek, low-profile appearance.
Key Features:
- Made of zinc-plated steel and built to withstand harsh environments
- Suitable for pedestrian and light vehicle traffic
- Interlocking design for easy installation
- Compatible with NDS Dura Slope channel drain system

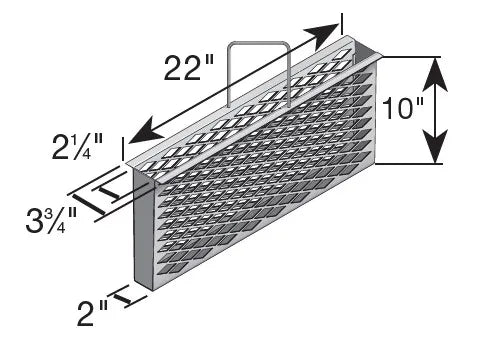

Product Specifications:
- Material: Made of zinc-plated steel
- Color: Silver
- Length: 22 inches
- Width: 3" 3/4 inches
- Depth: 10" inches
- Flow rate: Up to 17.6 GPM
- Compatible channel size: 5.4" wide Dura Slope Channel Drain Systems
Installation Instructions:
- Ensure the channel is properly installed and leveled according to NDS guidelines.
- Clean the channel of any debris or obstructions.
- Starting at one end, align the grate with the channel.
- Press down firmly to snap the grate into place, ensuring it's fully seated.
- Continue along the length of the channel, connecting additional grates as needed.
- For a secure fit, use NDS grate locks (sold separately) at regular intervals.
The NDS DS-231 Dura Slope Channel Drain Grate offers a perfect balance of functionality and aesthetics, making it an ideal choice for driveways, patios, pool decks, and other areas requiring effective surface drainage.
