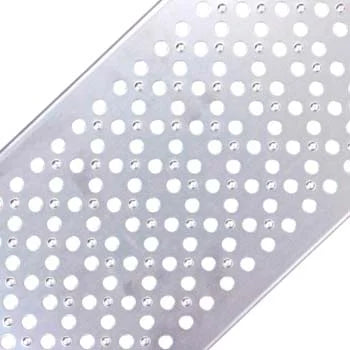

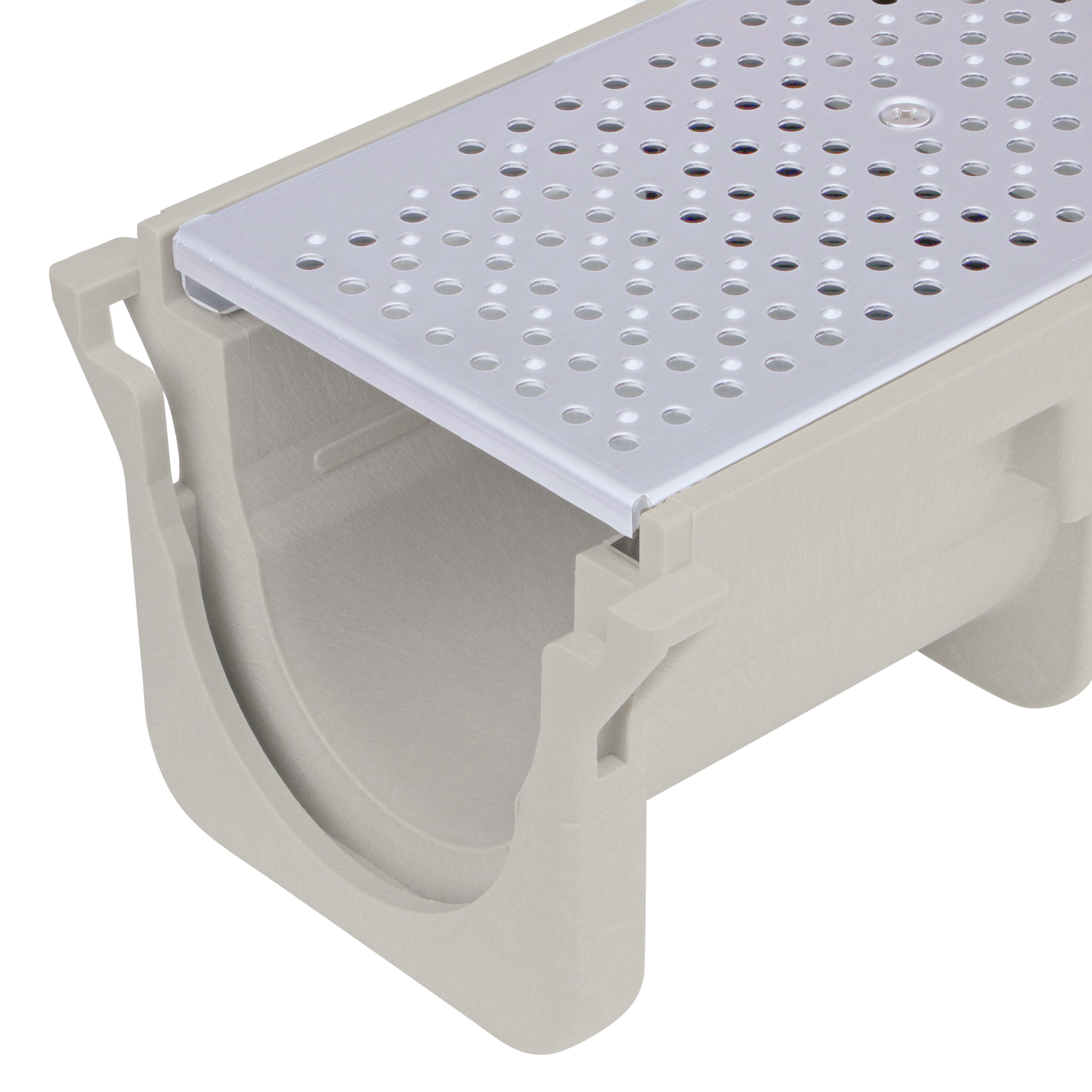

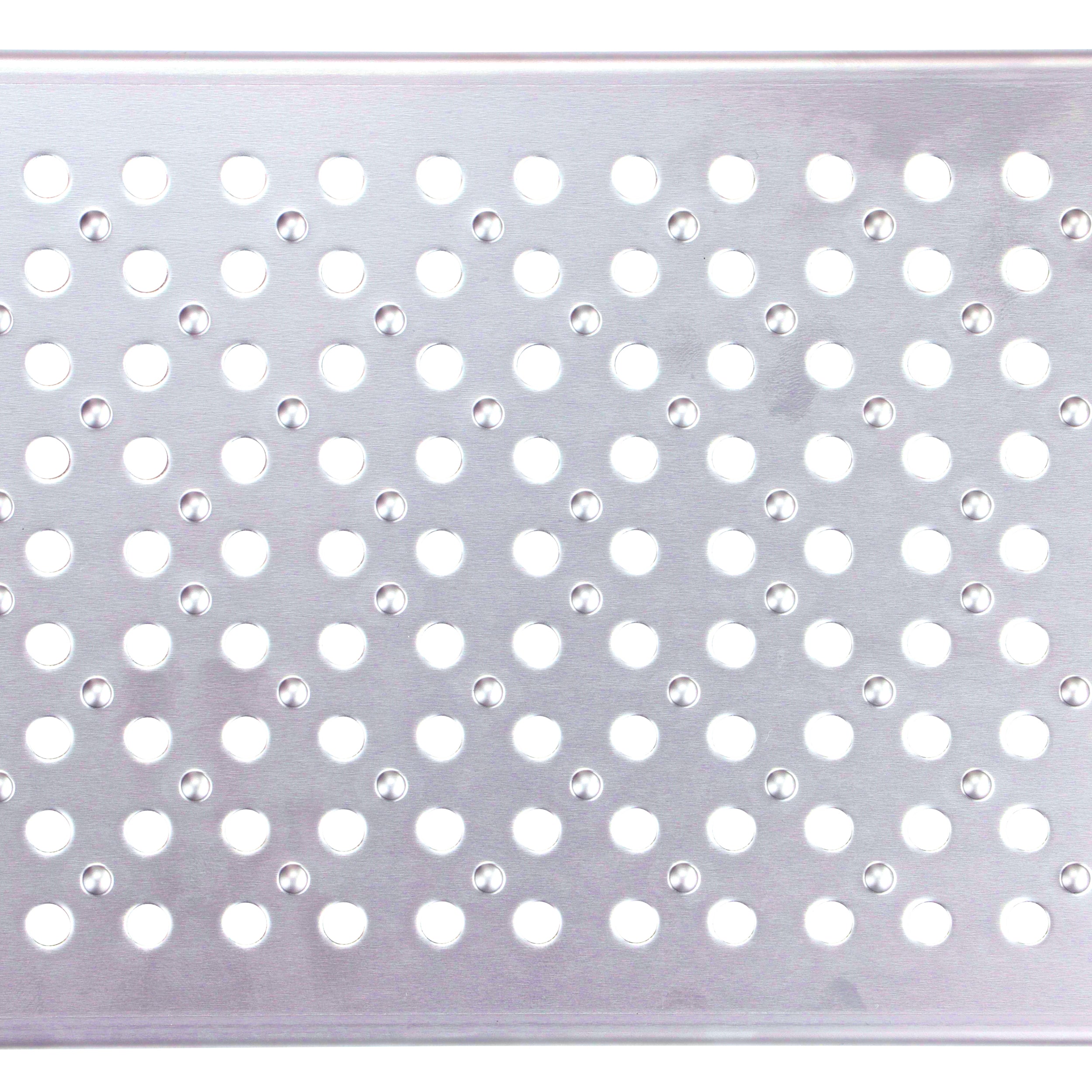

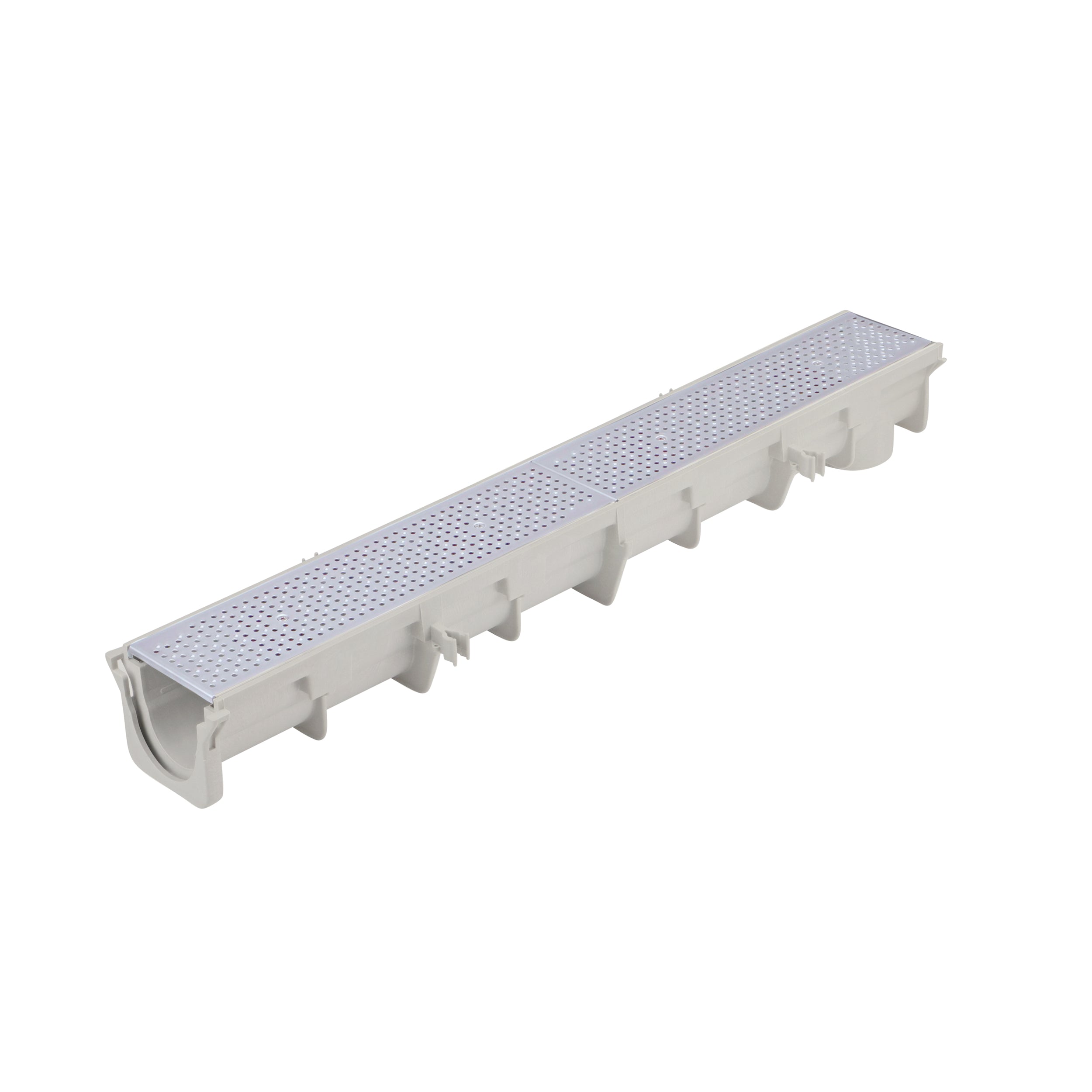

NDS DS-226 - Dura Slope Perforated Channel Grate - Stainless Steel
The NDS DS-226 Dura Slope Perforated Channel Grate is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications. This durable grate provides superior surface drainage while maintaining an aesthetically pleasing appearance.
Key Features:
- Perforated design for optimal water intake
- Corrosion-resistant materials for long-lasting performance
- ADA compliant for safe pedestrian traffic
- Easy installation and maintenance
Product Specifications:
- Material: High-impact polypropylene
- Dimensions: 24" L x 6" W x 3/4" H
- Load Class: A (Pedestrian areas and light vehicles)
- Flow Rate: Up to 21 GPM (79.5 LPM)
- Color: Black
Installation Instructions:
- Excavate a trench to the required depth and width, ensuring proper slope for water flow.
- Install a compacted base layer of crushed stone or gravel.
- Place the Dura Slope channel sections, starting from the outlet and working uphill.
- Connect channel sections using the built-in male/female connections.
- Secure channels to the base material using concrete or anchoring devices.
- Install end caps and outlet adapters as needed.
- Pour concrete around the channels, leaving the top edge slightly below the finished surface level.
- Once concrete has cured, snap the DS-226 grates into place.
- Finish the surrounding surface to be flush with the top of the grate.
Maintenance: Regularly inspect and clean the grate and channel to ensure optimal performance. Remove debris and sediment as needed.
The NDS DS-226 Dura Slope Perforated Channel Grate offers a reliable and efficient drainage solution for various applications, combining durability with ease of installation and maintenance.
