NDS DS-200H - Dura Slope® Channel Drain Frame, 6-3/8 in. Wide X 2 ft. Long, Ductile Iron
The NDS DS-200H Dura Slope Ductile Iron Frame is a high-quality, durable solution for channel drainage systems. Designed for heavy-duty applications, this frame provides excellent support and protection for your drainage channels in areas with vehicular traffic or other high-load environments.
Key Features:
- Made of strong ductile iron for superior durability
- Compatible with NDS Dura Slope channel drain systems
- Provides NDS Class D load rating (up to 575 PSI)
- The iron frame is painted black to inhibit rust and will form a protective iron-oxide patina over time
- Easy to install and maintain
Installation Instructions:
- Prepare the trench according to your drainage plan, ensuring proper depth and slope.
- Install the Dura Slope channel sections in the trench.
- Place the DS-200H frame on top of the channel, aligning it properly.
- Secure the frame to the channel using the manufacturer-provided connectors.
- Pour concrete around the frame, leaving the top surface exposed.
- Allow the concrete to cure fully before subjecting the area to traffic.
- Install the appropriate grate (sold separately) into the frame.

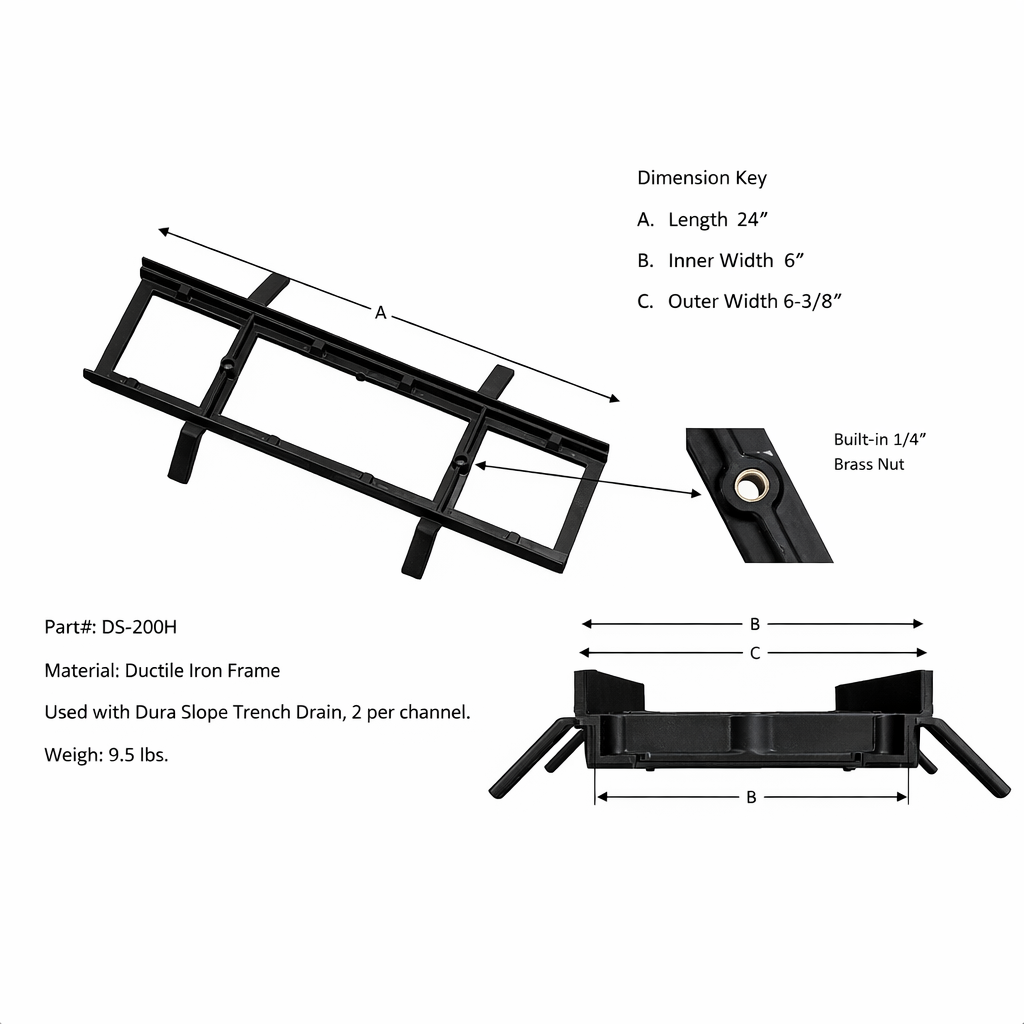

Product Specifications:
- Material: Ductile iron
- Load class: NDS Class D load rating (up to 575 PSI)
- Length: 24" in Long
- Width: 6"3/8 in
- Finish: Painted black
- Compatible with NDS Dura Slope channel drain systems
The NDS DS-200H Dura Slope Ductile Iron Frame offers a robust and reliable solution for your drainage needs in high-traffic areas. Its durable construction and easy installation make it an excellent choice for commercial, industrial, and heavy-duty residential applications.
