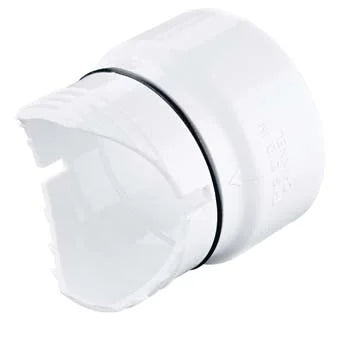

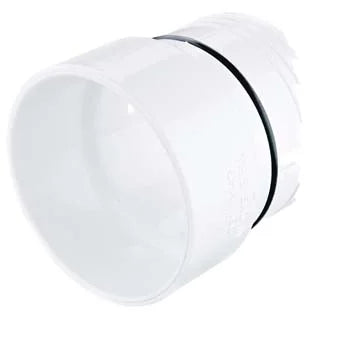

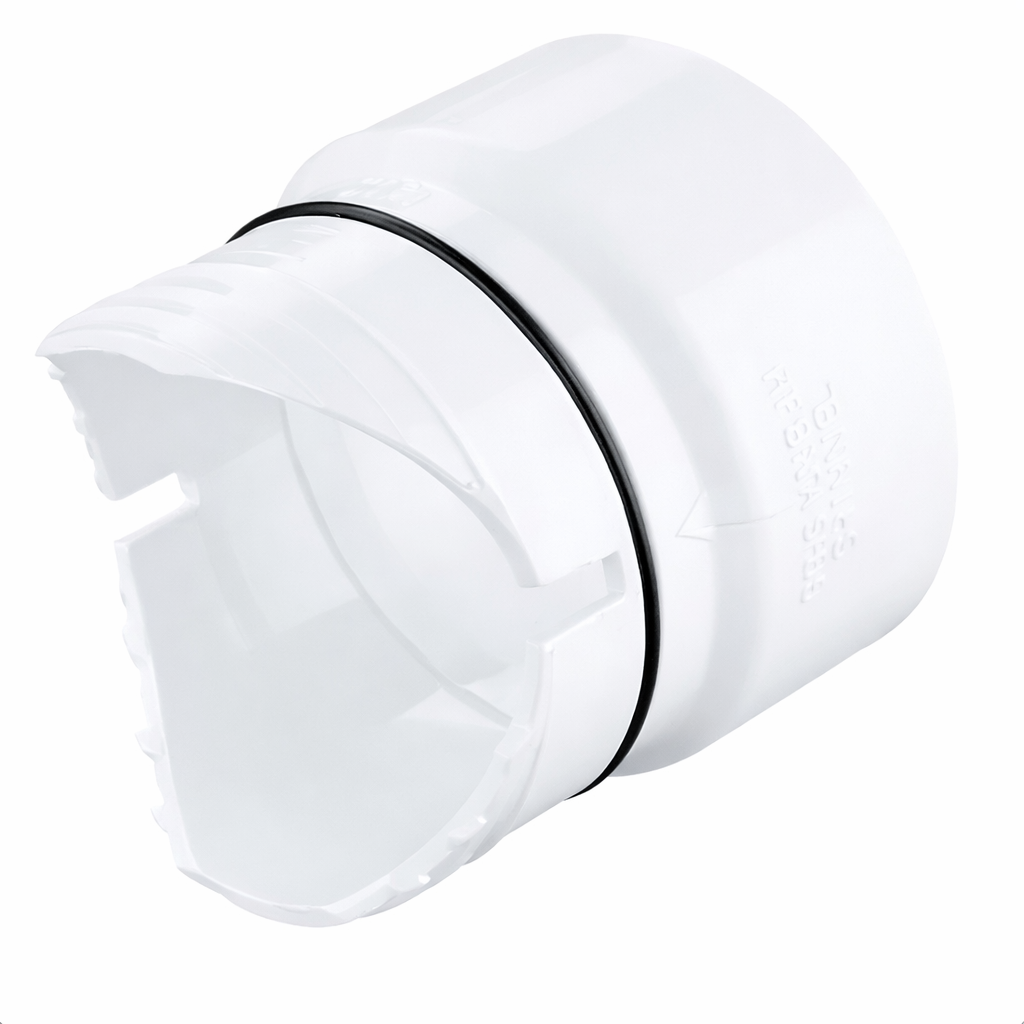

NDS DS-126 - Dura Slope Channel Drain Bottom Outlet Adapter
The NDS DS-126 Dura Slope Channel Drain bottom outlet adaptor with 4FT Trench Drain System is a high-performance drainage solution designed for efficient water management in residential and commercial applications. This system combines a durable bottom outlet adapter with a 4-foot trench drain, providing effective surface water collection and redirection.
Key Features:
- Bottom outlet design for improved water flow
- 4-foot trench drain for extended coverage
- Durable construction for long-lasting performance
- Compatible with various grate options
- Suitable for driveways, patios, pool decks, and other outdoor areas
Installation Instructions:
- Excavate a trench to the required depth and width, allowing for the drain body and surrounding concrete.
- Install a solid base of gravel or crushed stone for proper drainage.

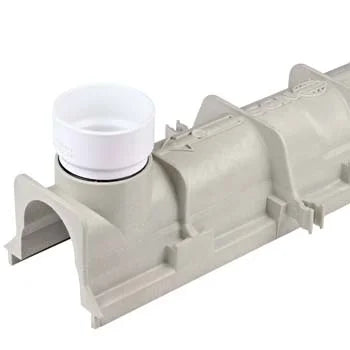

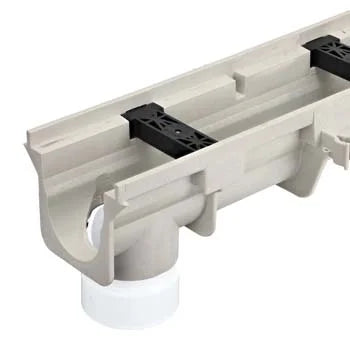

- Position the bottom outlet adapter at the desired location, ensuring it's level and properly aligned.
- Connect the outlet adapter to the drainage pipe using appropriate fittings.
- Place the 4-foot trench drain sections, connecting them securely to the bottom outlet adapter.
- Install end caps if required.
- Pour concrete around the drain system, leaving the top edge slightly below the finished surface level.
- Allow the concrete to cure completely.
- Install the chosen grate on top of the drain system.
Product Specifications:
- Material: high-density polyethylene (HDPE)
- Color: White
- UV resistant
-
Chemical resistant
This NDS DS-126 Bottom Outlet Adapter with 4FT Trench Drain System offers a reliable and efficient solution for managing surface water runoff, helping to prevent water accumulation and potential damage to surrounding structures
