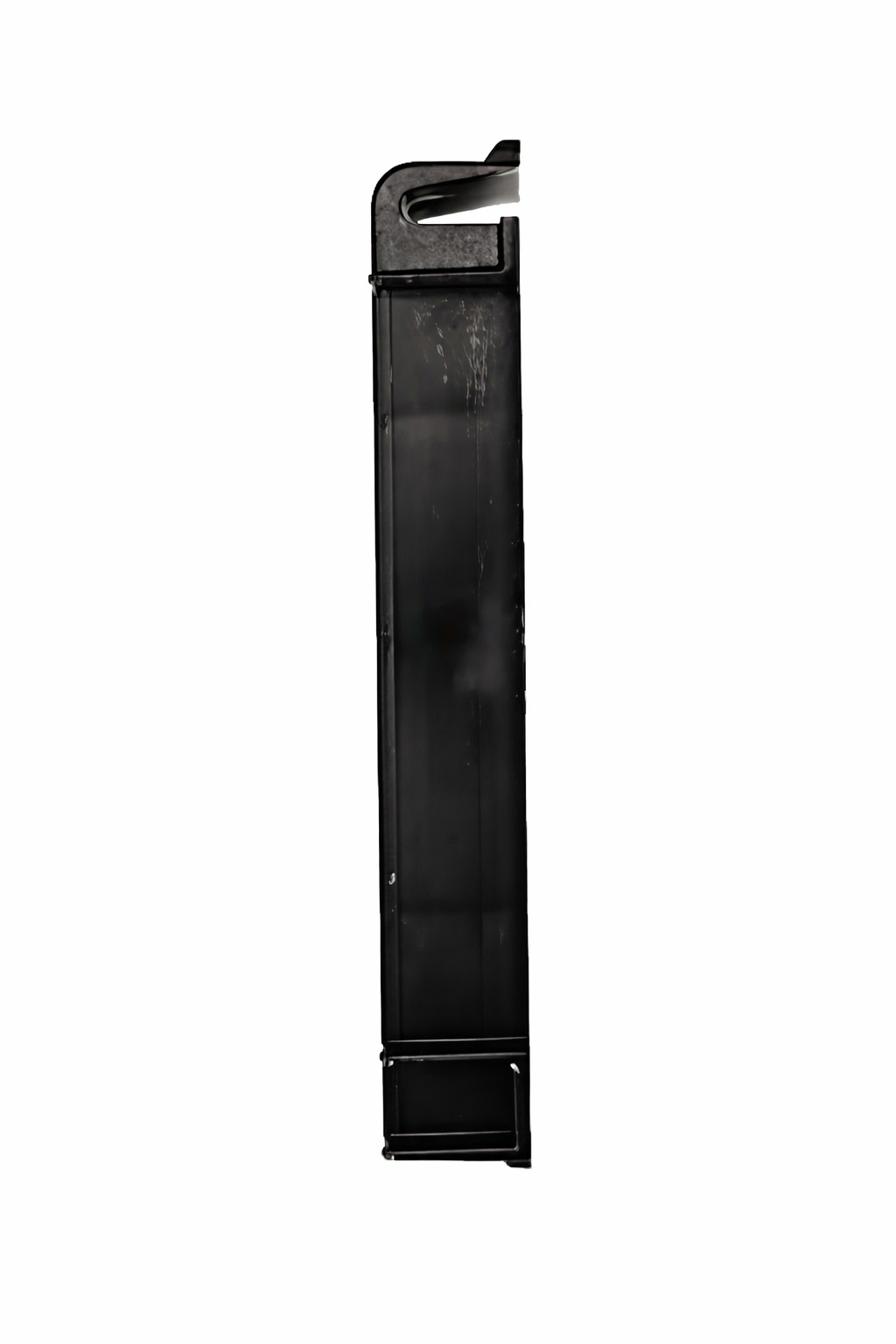

NDS DS-122 -
Dura Slope® Channel Drain ProFit Grate Lock
The NDS DS-122 Dura Slope Profit Grate Lock is a high-quality, durable locking mechanism designed to secure grates on Dura Slope channel drain systems. This innovative product ensures safety, prevents unauthorized access, and reduces the risk of grate displacement.
Key Features:
- Secure locking mechanism
- Made of high-density polyethylene (HDPE) containing UV inhibitors.
- Compatible with Dura Slope channel drain systems
- Easy installation and removal
- Tamper-resistant design
Installation Instructions:
- Ensure the channel drain and grate are clean and free of debris.
- Position the grate on the channel drain.
- Align the DS-122 Grate Lock with the pre-drilled holes on the grate and channel.
- Insert the locking bolt through the grate and into the channel.
- Use a flathead screwdriver to tighten the bolt until secure.
- Test the lock by attempting to lift the grate.
To remove:
- Insert a flathead screwdriver into the bolt head.
- Turn counterclockwise to loosen and remove the bolt.
- Lift the grate from the channel.
Product Specifications:
- Material: High-density polyethylene (HDPE) containing UV inhibitors.
- Dimensions: 6"1/4 in long x 2" in wide
- Weight: 0.2 oz (5.7g)
- Color: Black
- Compatibility: All Dura Slope channel drain system grates
- Recommended torque: 25-30 in-lbs (2.8-3.4 Nm)
- Quantity: Sold individually or in packs of 10
The NDS DS-122 Dura Slope Profit Grate Lock is an essential component for ensuring the safety and security of your drainage system. Its durable construction and easy installation make it the ideal choice for both residential and commercial applications.
