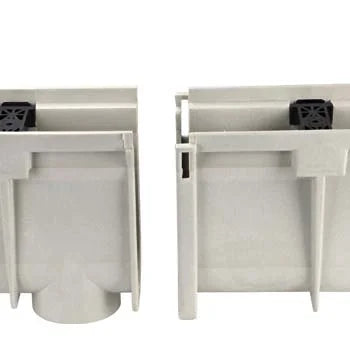

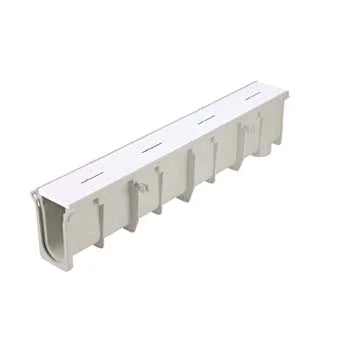

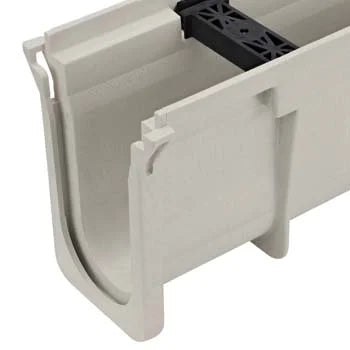

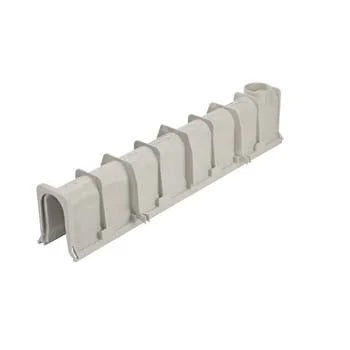

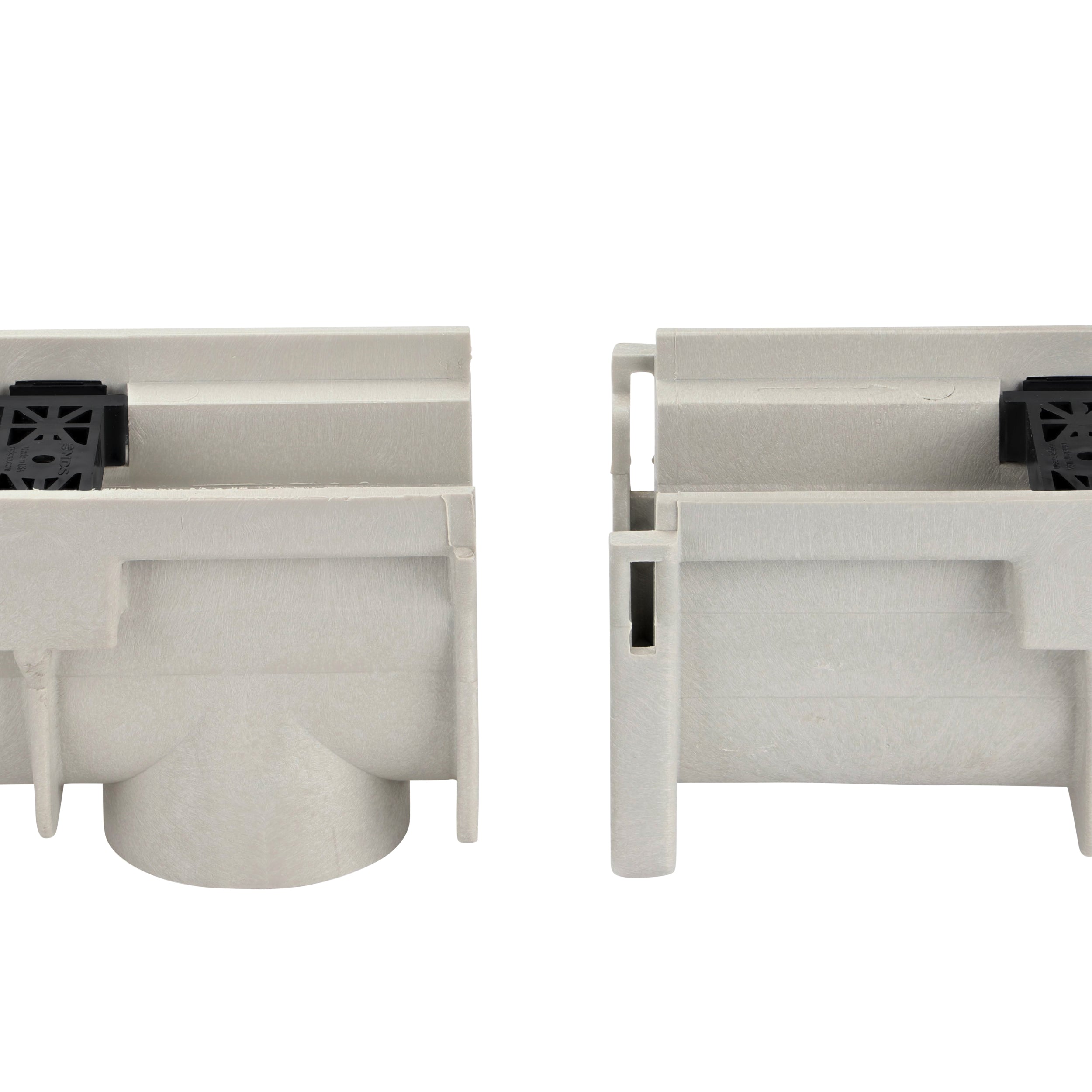

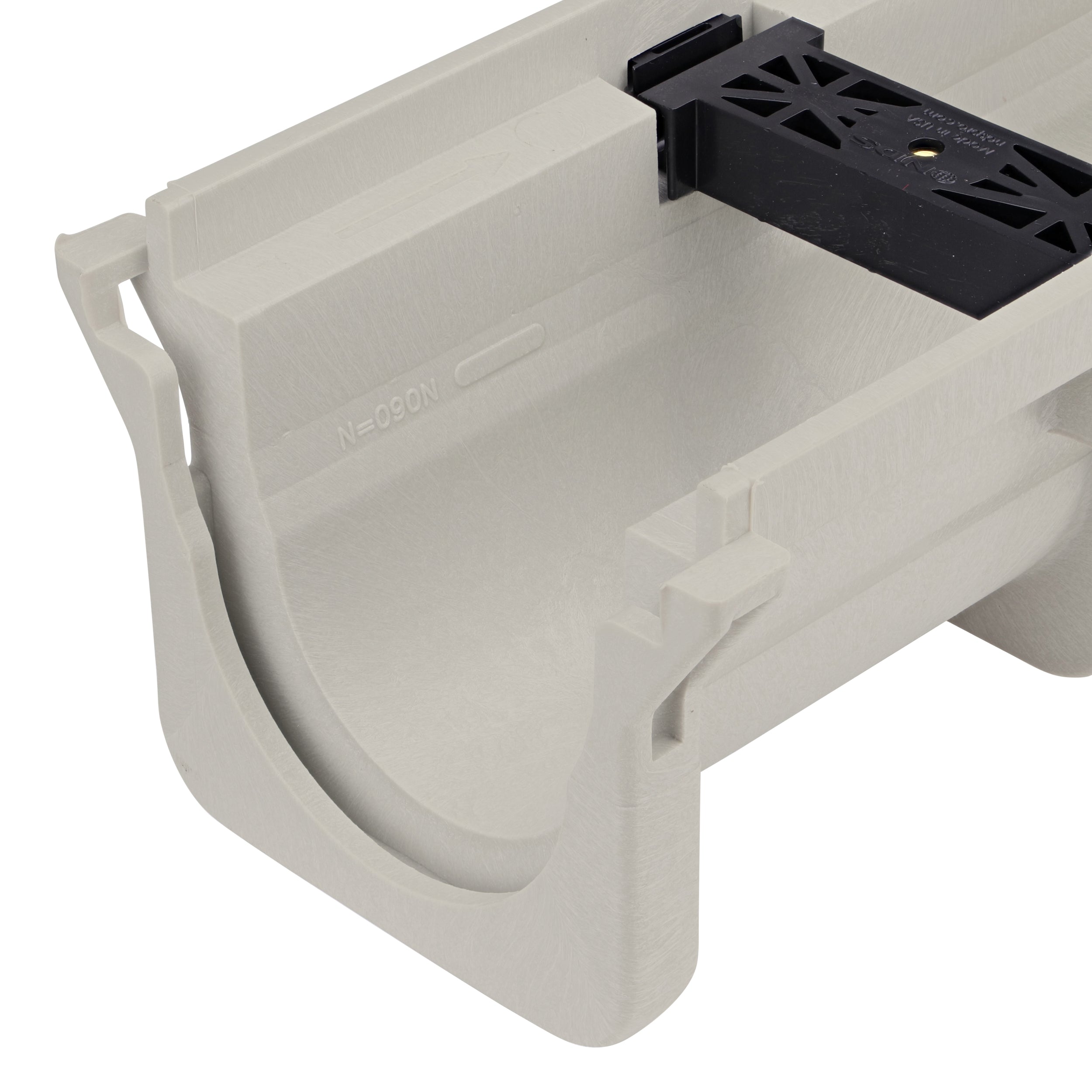

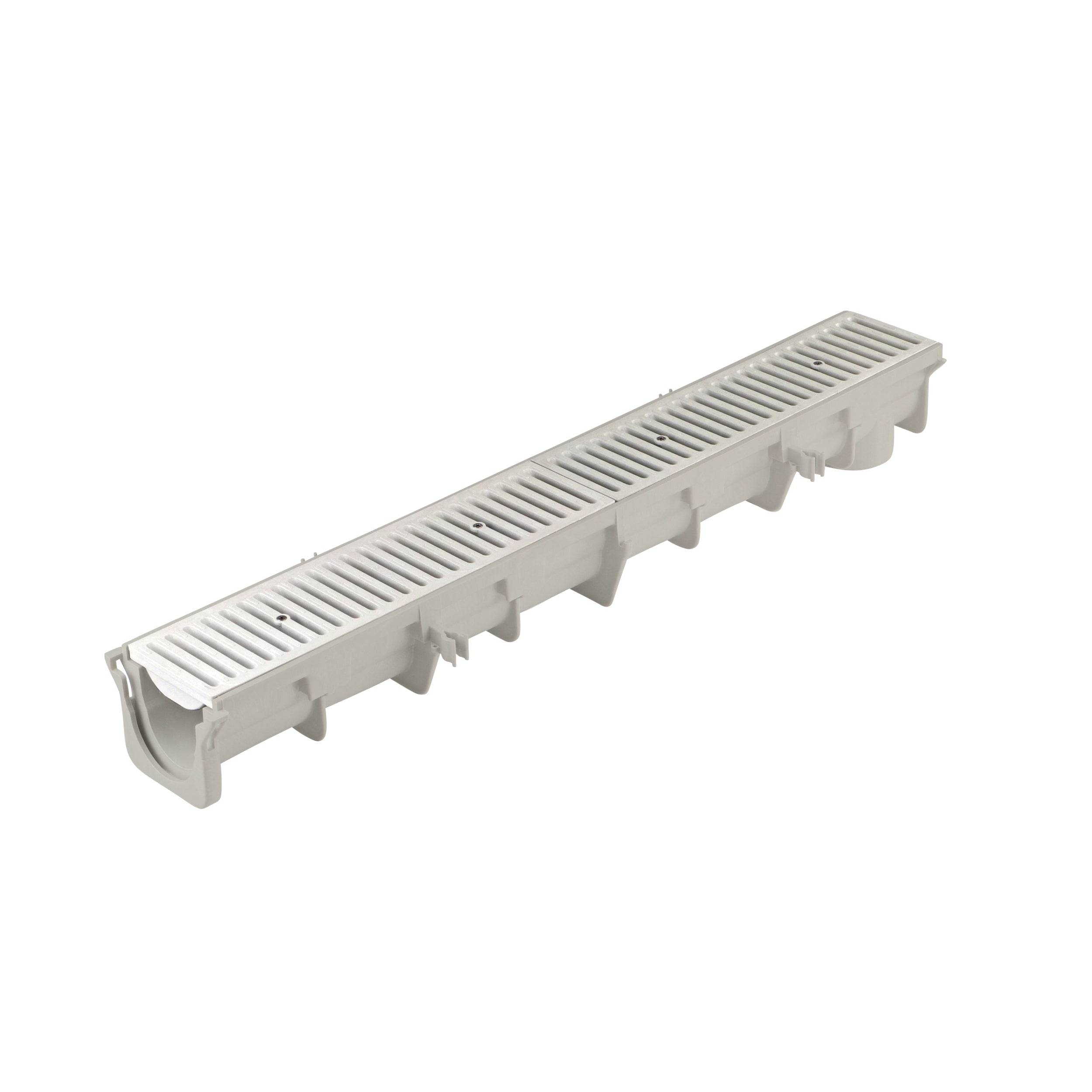

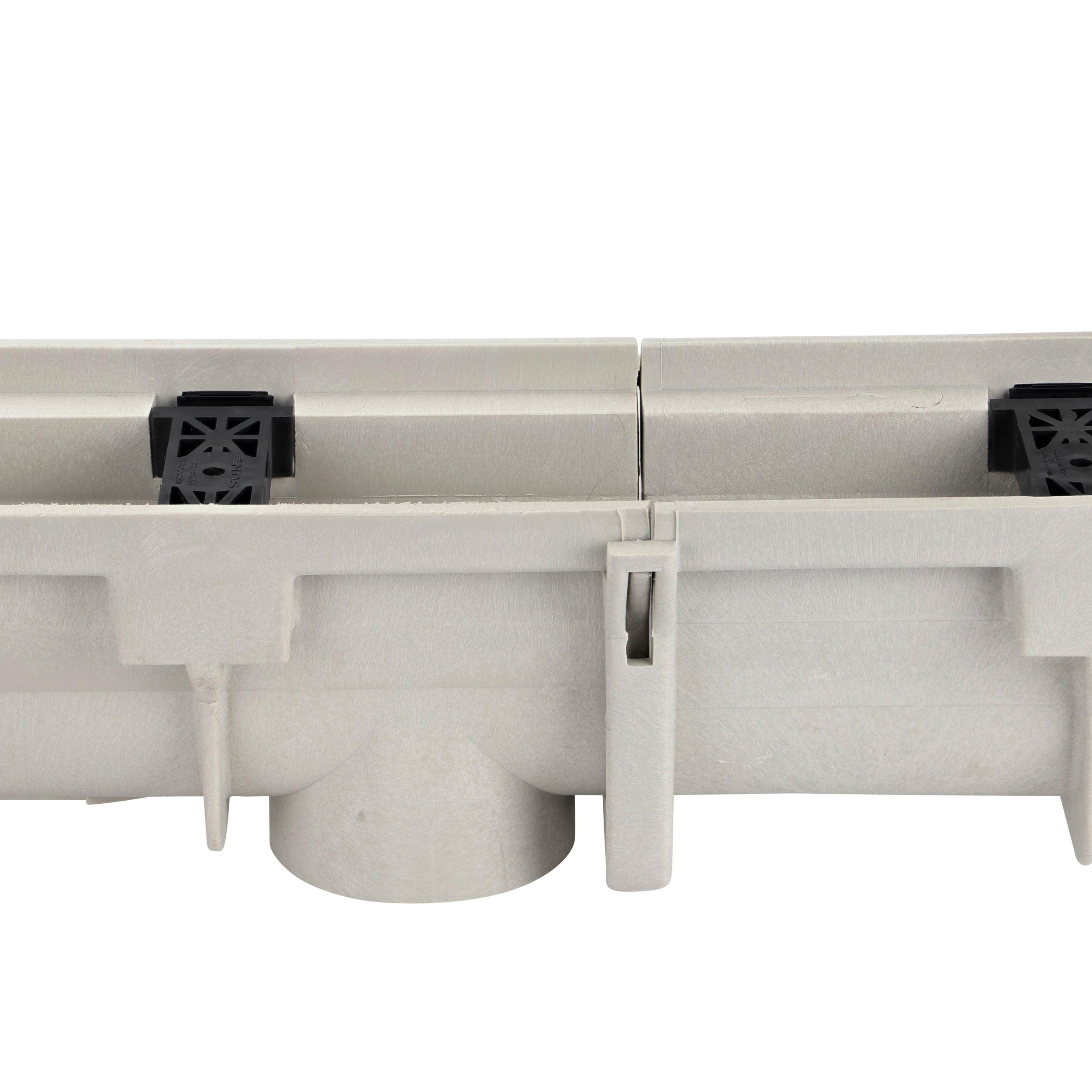

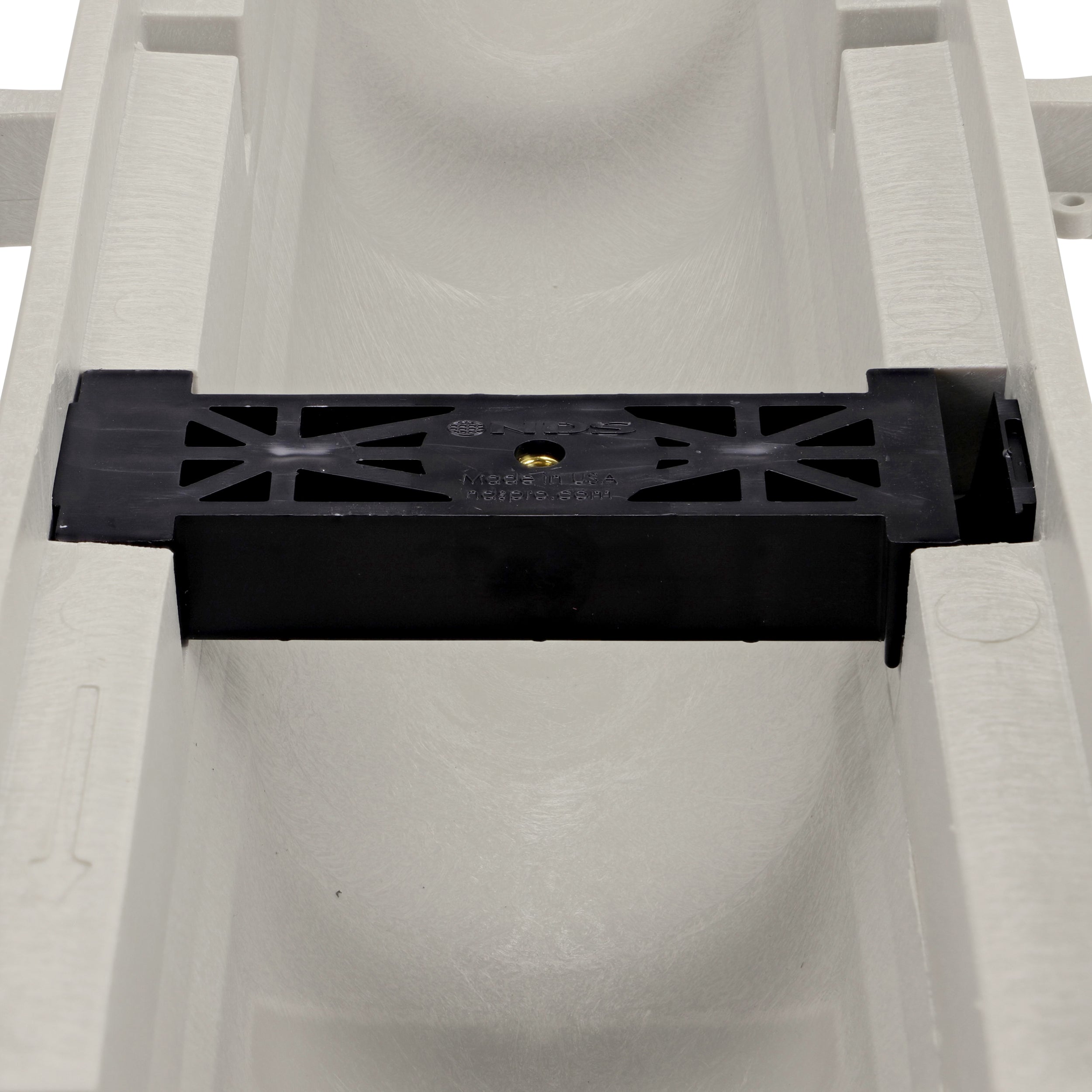

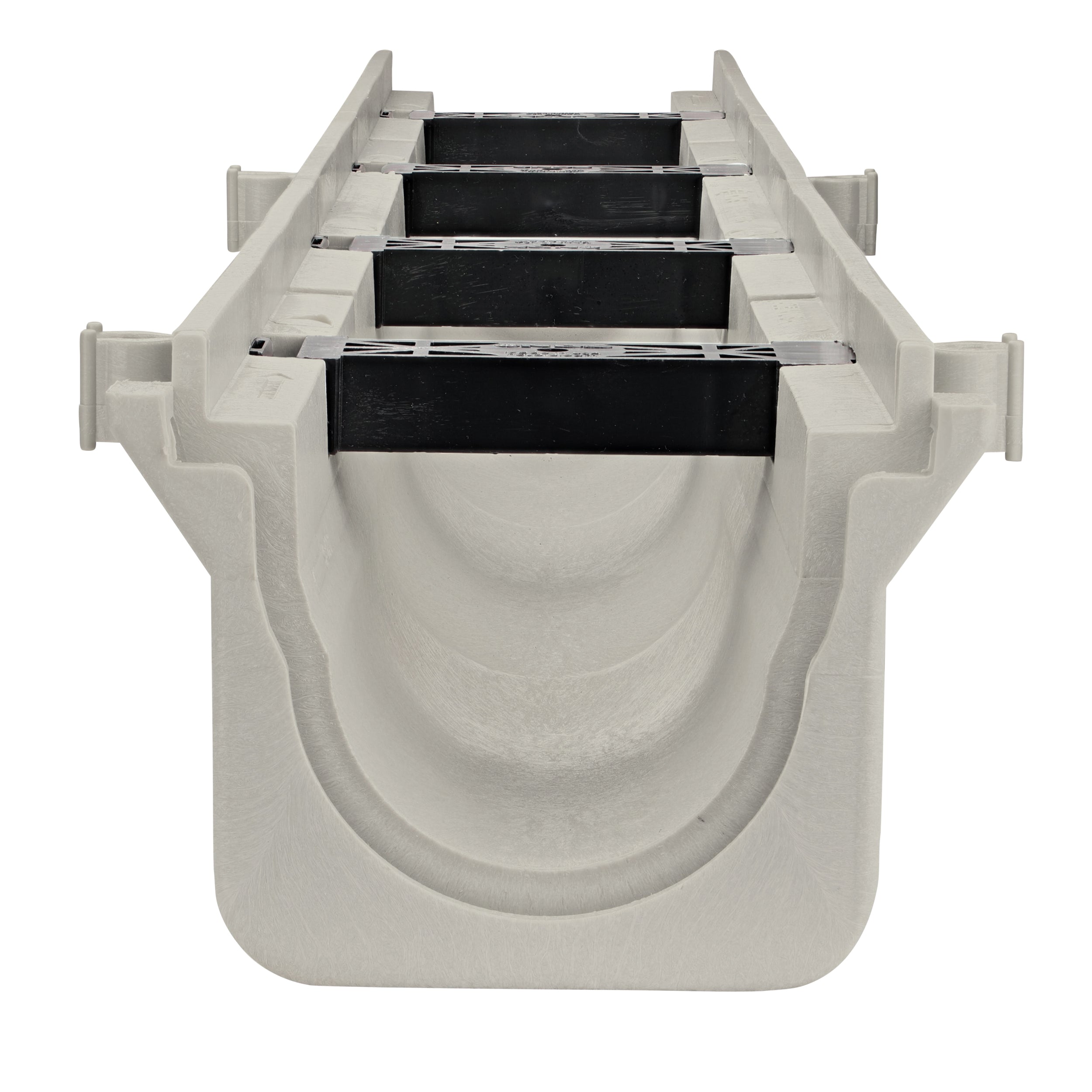

NDS DS-114 - Dura Slope Channel Drain (11.72" to 12.06" Deep)
The NDS DS-114 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This innovative product offers superior strength, durability, and ease of installation, making it an ideal solution for driveways, parking lots, patios, and other areas requiring effective surface water removal.
Key Features:
- Modular design for easy customization
- Built-in slope for optimal water flow
- UV-resistant, high-density polyethylene construction
- Compatible with various grate options

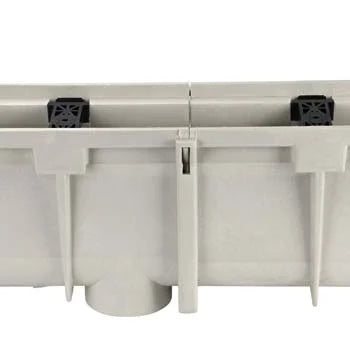

- Interlocking system for secure connections
- Suitable for pedestrian and light vehicle traffic
Installation Instructions:
- Plan the drain layout and excavate a trench according to local building codes.
- Pour a 4-inch concrete base in the trench and allow it to cure.
- Begin installing channel sections starting from the outlet point.
- Connect subsequent sections using the interlocking system.
- Ensure proper alignment and slope for effective drainage.
- Secure channels in place with concrete backfill.
- Install desired grates and end caps.
- Allow concrete to fully cure before subjecting the drain to traffic.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Length per section: 39.4 inches (1 meter)
- Channel width: 4.8 inches (122 mm)
- Channel depth: 4.7 inches (119 mm)
- Built-in slope: 0.6%
- Load class: A15 (pedestrian) to C250 (light vehicles)
- Chemical resistance: Excellent
- UV resistance: Yes
- Freeze-thaw cycle resistance: Excellent
- Compatible grate materials: Plastic, galvanized steel, stainless steel
- Flow rate: Up to 21 gallons per minute (depending on grate selection)
The NDS DS-114 Dura Slope Channel Drain offers a reliable and efficient solution for managing surface water runoff. Its durable construction and versatile design make it suitable for a wide range of applications, ensuring long-lasting performance in various environments.
