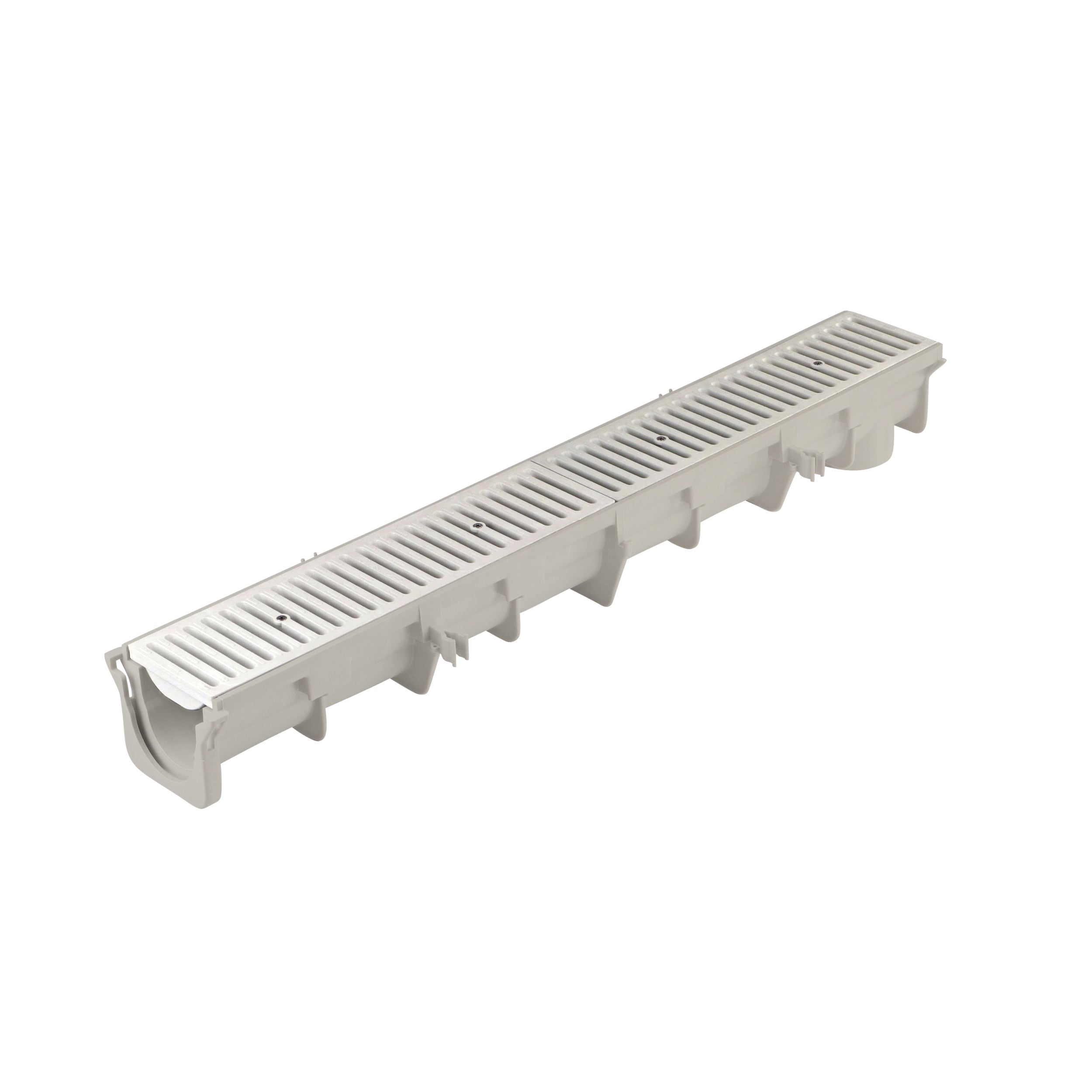

NDS DS-113 - Dura Slope Channel Drain (11.39" to 11.72" Deep)
The NDS DS-113 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This innovative product offers superior strength, durability, and ease of installation, making it the ideal choice for driveways, patios, pool decks, and other areas requiring effective surface water removal.
Key Features:
- Pre-sloped channel for optimal water flow
- Durable, high-density polyethylene construction
- UV-resistant for long-lasting performance
- Interlocking system for easy installation
- Compatible with various grate options
Product Specifications:
- Length: 39.4 inches (1 meter)
- Width: 5.4 inches (137 mm)
- Height: 4.7 inches (119 mm) at outlet end, 5.1 inches (130 mm) at start
- Slope: 0.6% built-in slope
- Load class: Up to Class C (when used with appropriate grates)
- Material: High-density polyethylene (HDPE)
- Color: Gray
Installation Instructions:
- Plan the drain layout and mark the installation area.
- Excavate a trench approximately 8 inches wider than the channel and deep enough to accommodate the channel, concrete bed, and desired finish height.
- Create a 4-inch thick concrete bed at the bottom of the trench, ensuring it's level and smooth.
- Begin installation at the outlet point, connecting the channel to the drainage pipe using the appropriate adapter.
- Place the first channel section onto the concrete bed, ensuring it's level and aligned correctly.
- Continue adding channel sections, utilizing the interlocking system to connect them securely.
- Install rebar stakes along the sides of the channel for additional support if required.
- Pour concrete around the sides of the channel, leaving the top edge exposed for the grate installation.
- Allow the concrete to cure according to manufacturer recommendations.
- Install the selected grates by snapping them into place along the channel.
- Finish the surrounding surface to the desired height, ensuring proper slope away from the drain.
The NDS DS-113 Dura Slope Channel Drain offers a reliable and efficient solution for managing surface water in various settings. Its pre-sloped design and durable construction make it an excellent choice for both professionals and DIY enthusiasts seeking a high-quality drainage system.
