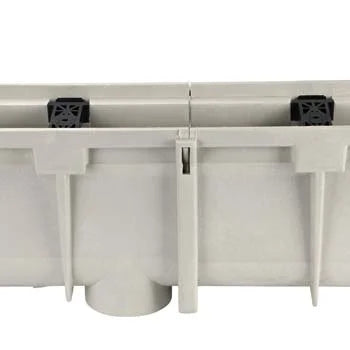

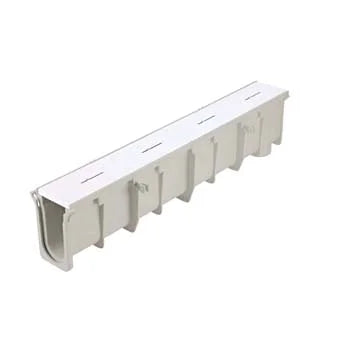

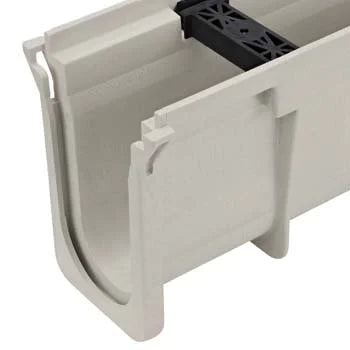

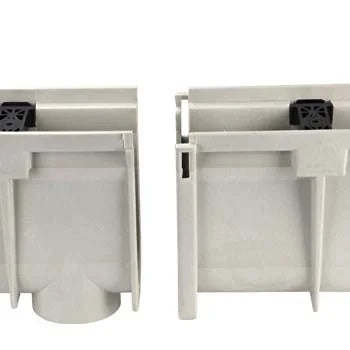

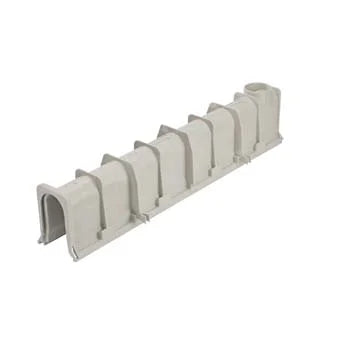

NDS DS-112 - Dura Slope Channel Drain (11.05" to 11.39" Deep)

NDS DS-112 - Dura Slope Channel Drain (11.05" to 11.39" Deep)

The NDS DS-112 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This durable, pre-sloped channel system offers superior strength and easy installation.

Key Features:

• Pre-sloped design (0.6% built-in slope)
• Interlocking channel sections
• Multiple grate options available
• Suitable for pedestrian to medium-duty vehicle traffic

Installation Instructions:

1. Excavate trench to required depth and width
2. Pour concrete bed (3" minimum thickness)
3. Set channel sections starting from outlet
4. Connect sections and align using integrated male/female joints
5. Install end caps and outlet adapter as needed
6. Pour concrete backfill, leaving space for final surface
7. Install grates and secure with locking mechanisms
8. Complete surrounding surface installation

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Channel length: 39.4" (1 meter)
• Channel width: 4.84" (123 mm)
• Loading class: A - C (depending on grate selection)
• Flow rate: Up to 17.5 GPM (varies by grate)
• Chemical resistance: Excellent
• UV resistance: Yes
• Frost resistance: Yes
• Compliance: ASTM F2418

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
