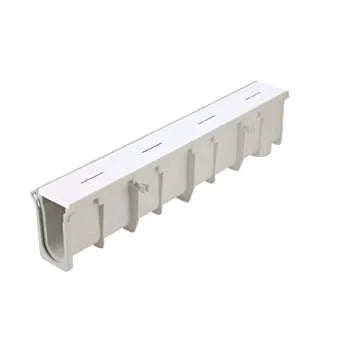

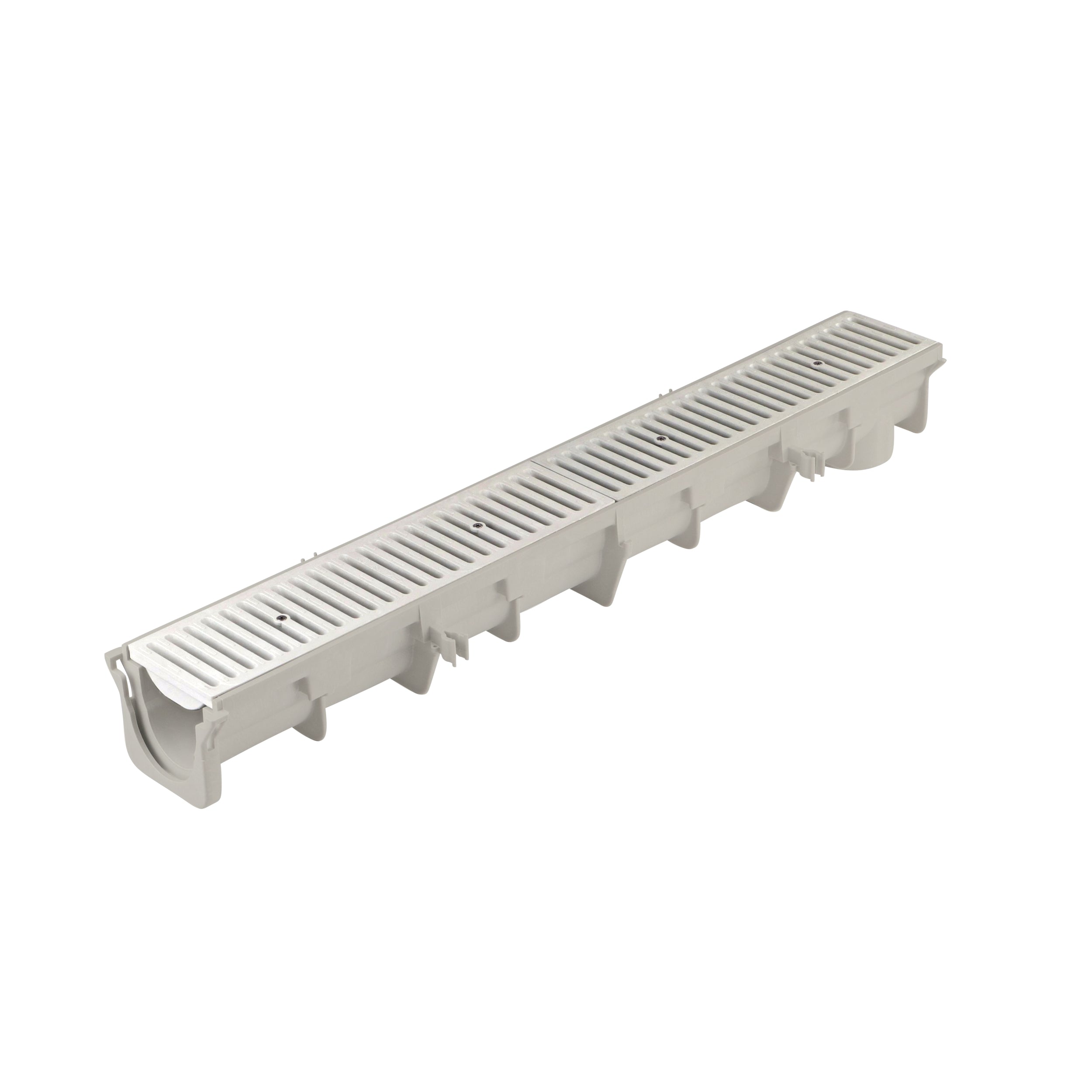

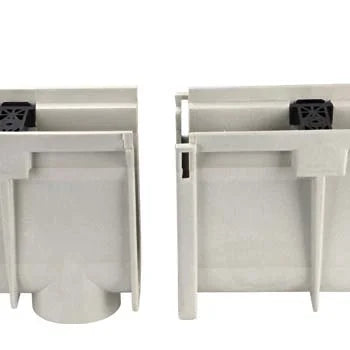

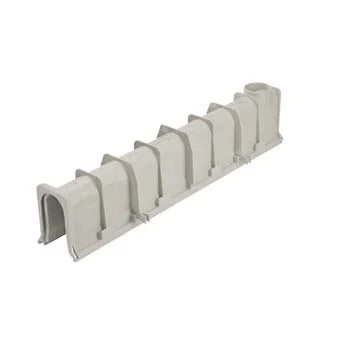

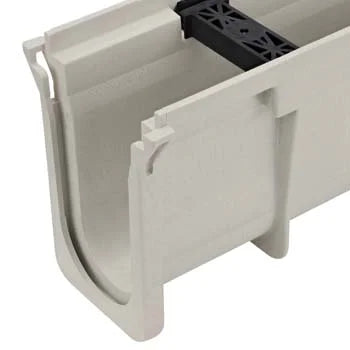

NDS DS-111 - Dura Slope Channel Drain (10.71" to 11.05" Deep)
The NDS DS-111 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This durable and versatile channel drain offers superior strength and easy installation, making it ideal for driveways, patios, pool decks, and other areas requiring effective surface water removal.
Key Features:
- Sloped channel design for optimal water flow
- Durable, chemical-resistant polymer construction

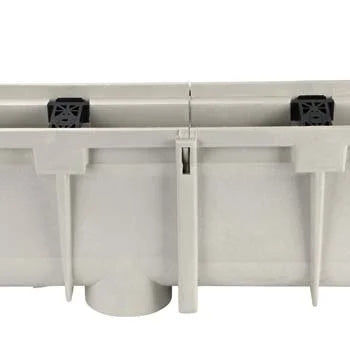

- Interlocking system for easy installation
- Compatible with various grate options
- Suitable for pedestrian and light vehicle traffic
Installation Instructions:
- Excavate a trench 6" wider than the channel width and deep enough to accommodate the drain plus 4" of concrete base.
- Pour a 4" concrete base and allow it to set.
- Starting at the outlet point, place the first channel section on the concrete base. Ensure proper slope and alignment.
- Connect subsequent channel sections using the interlocking system. Use silicone sealant at joints if desired.
- Install end caps and outlet adapters as needed.
- Place rebar along both sides of the channel for reinforcement.
- Pour concrete around the sides of the channel, leaving the top edge exposed.
- Once concrete has cured, snap the grates into place.
- Finish the surrounding surface to be flush with the top of the grate.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Channel length: 39.4" (1 meter)
- Channel width: 5.4"
- Channel depth: 5.1" to 6.3" (built-in slope)
- Load class: A15 (up to 3,372 lbs when properly installed)
- Flow rate: Up to 17.9 GPM
- Available grate materials: Plastic, galvanized steel, stainless steel
- Compliance: ADA compliant when used with appropriate grates
The NDS DS-111 Dura Slope Channel Drain offers a reliable and efficient solution for surface water management. Its innovative design and durable construction make it an excellent choice for various applications where effective drainage is crucial.
Product and Technical Information
Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System
Dura Slope - System Profile - Linear Fall with Neutrals
Dura Slope - System Profile - Linear Fall without Neutrals
Dura Slope - System Profile - Counter Directional Fall with Neutrals
Dura Slope - System Profile - Counter Directional Fall without Neutrals
Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain
Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
