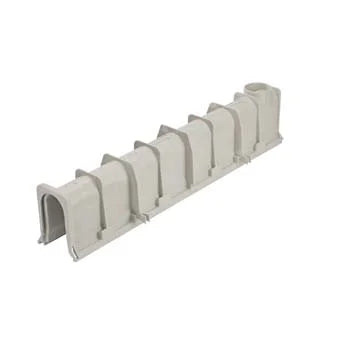

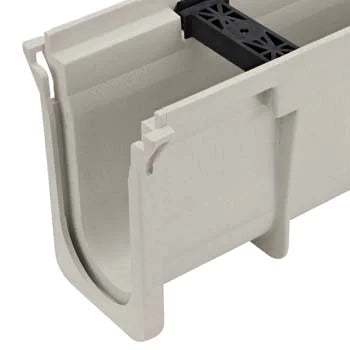

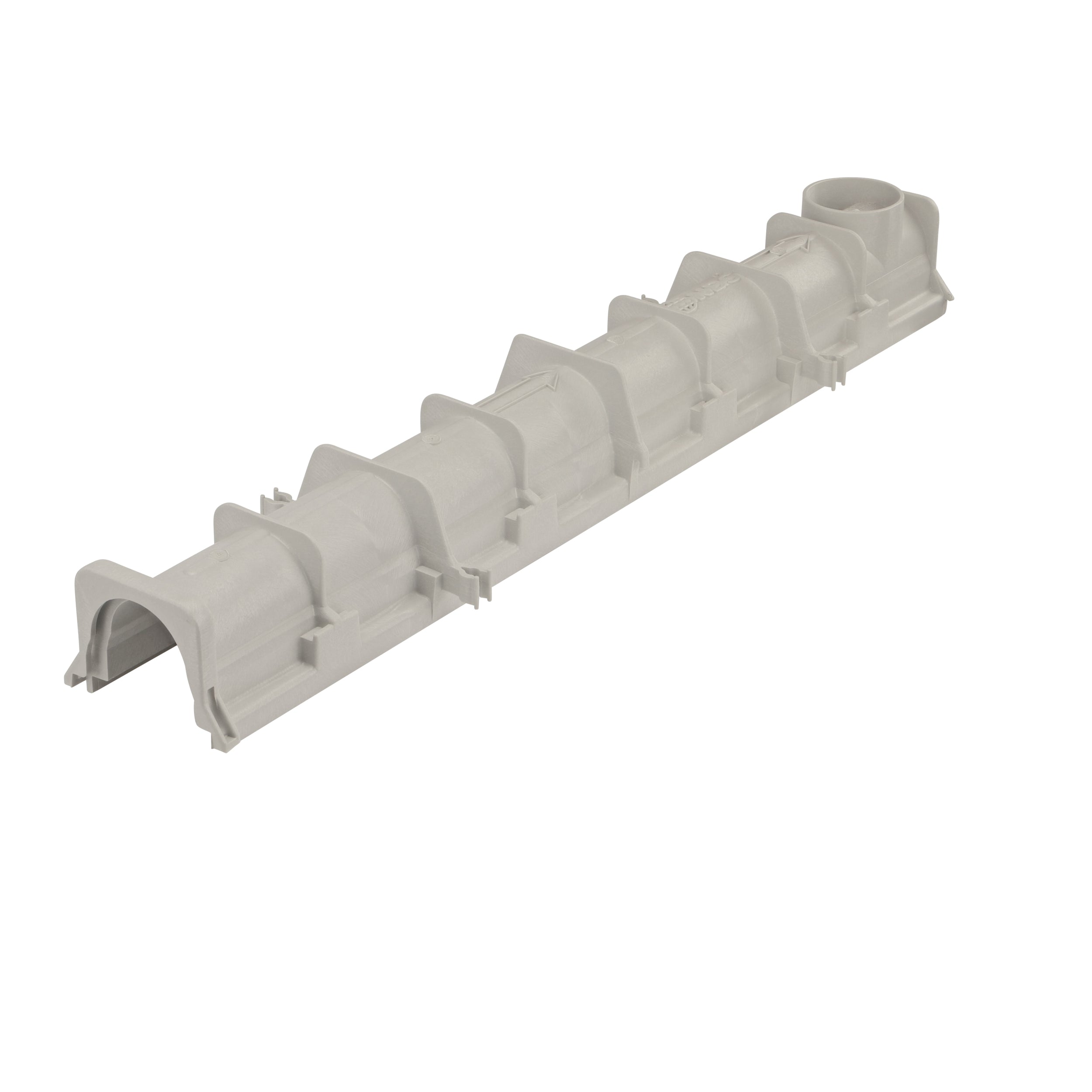

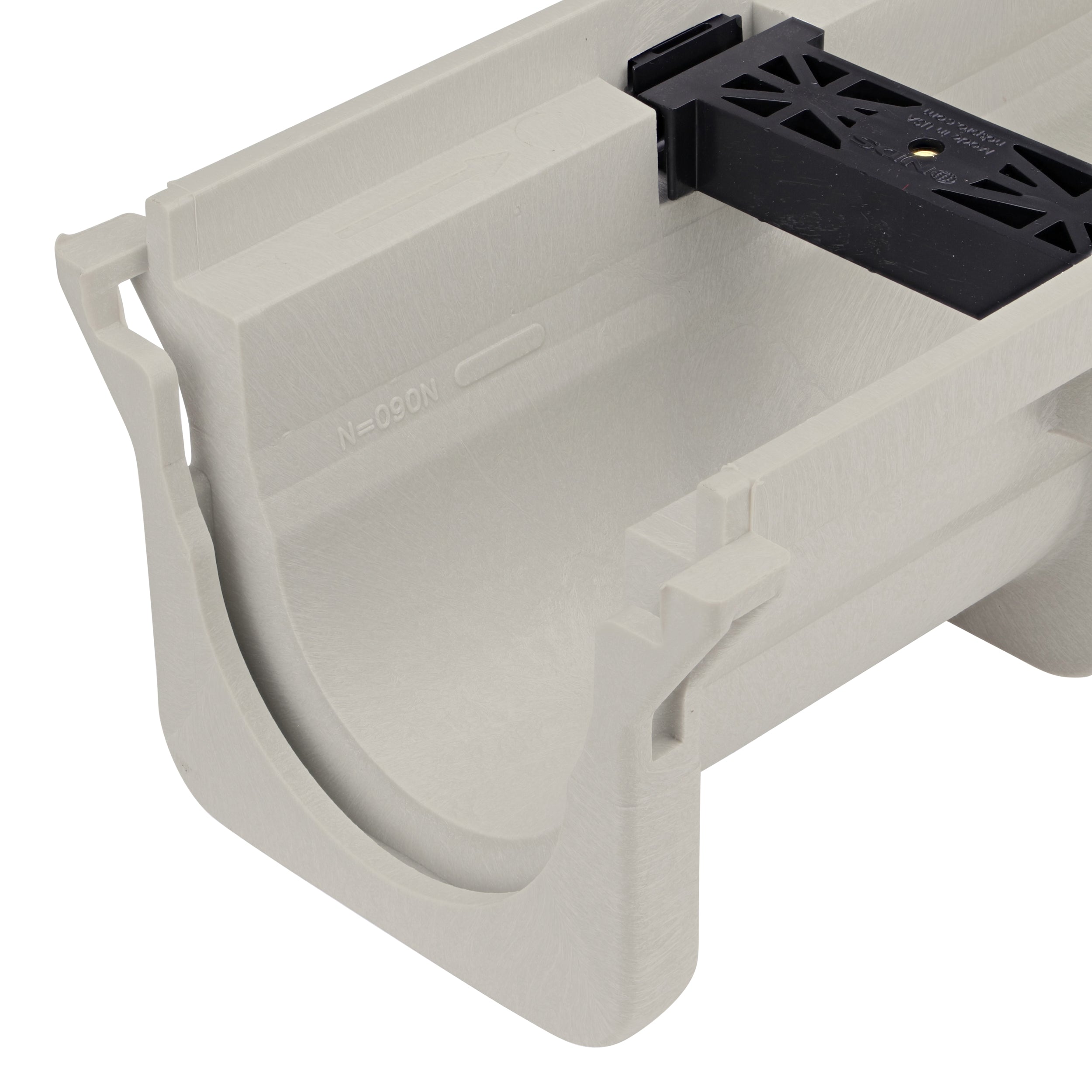

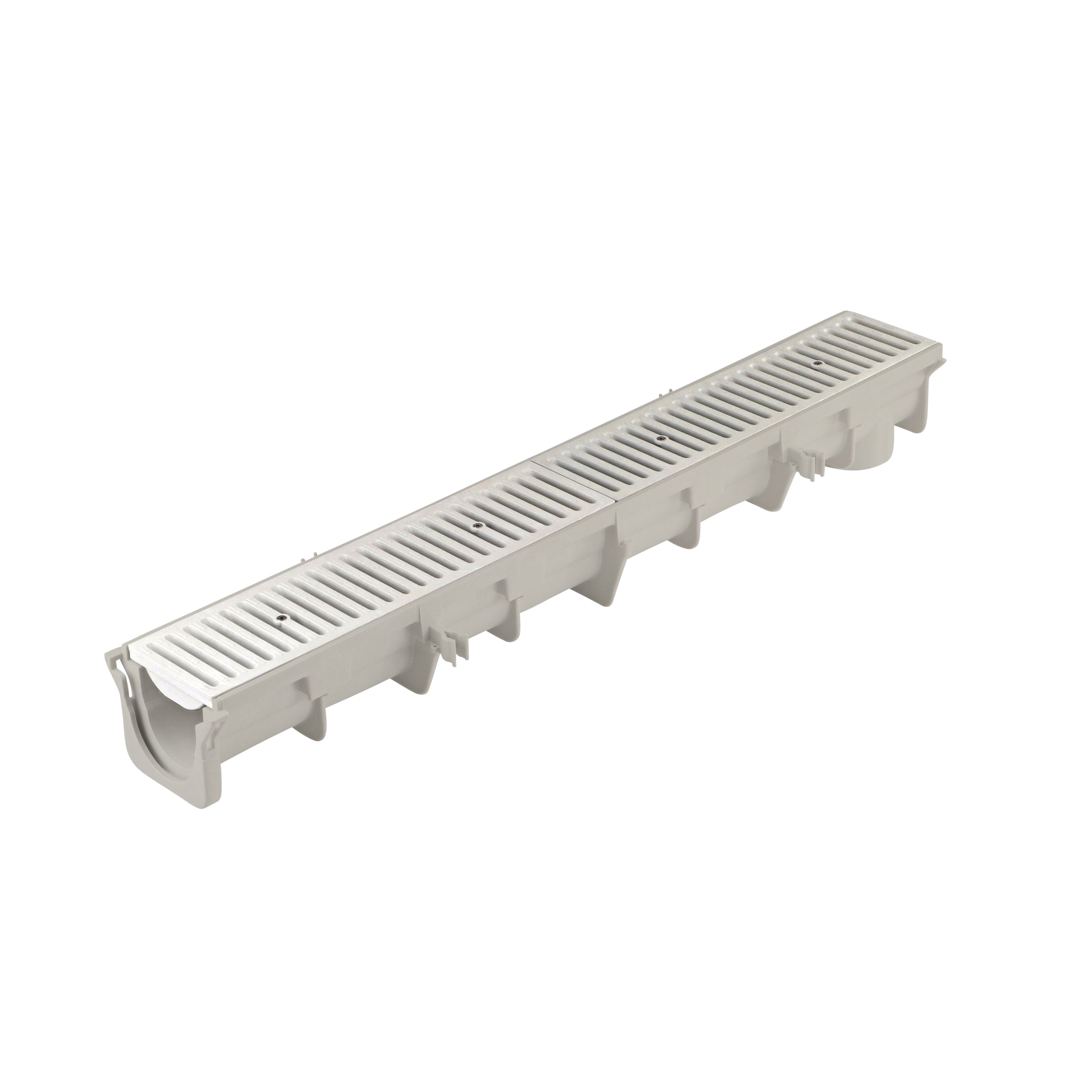

NDS DS-110 - Dura Slope Channel Drain (10.38" to 10.71" Deep)
The NDS DS-110 Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications. This innovative channel drain system offers superior durability, easy installation, and excellent flow capacity.
Key Features:
- Pre-sloped channel for optimal water flow
- Durable, high-density polyethylene construction

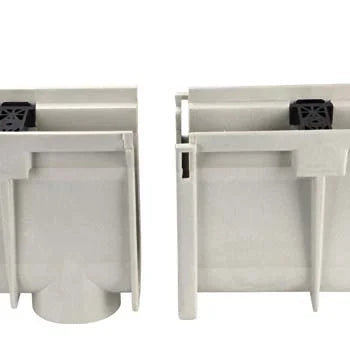

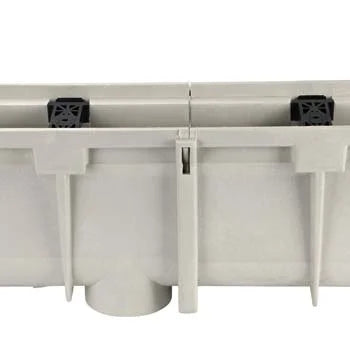

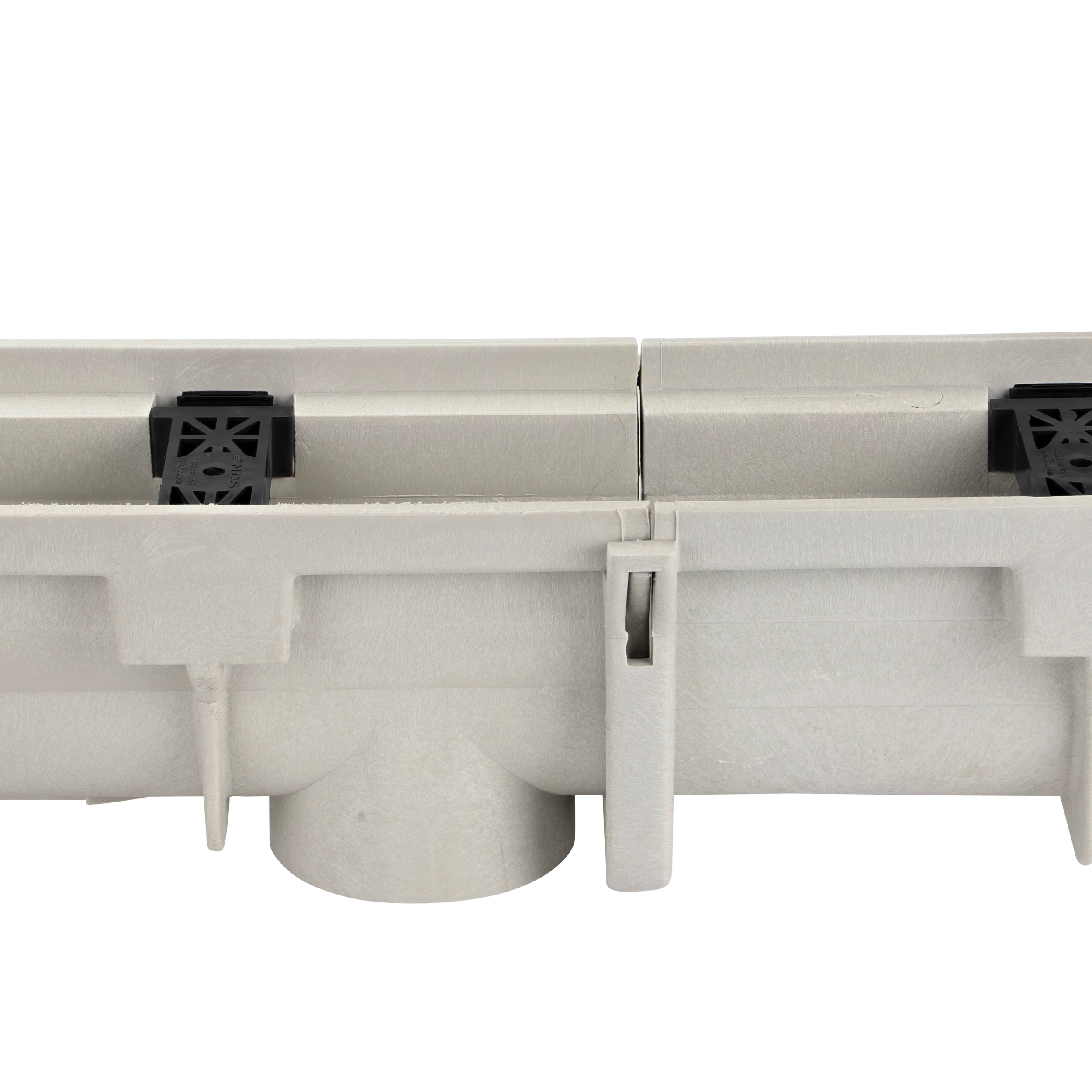

- Interlocking system for seamless connections

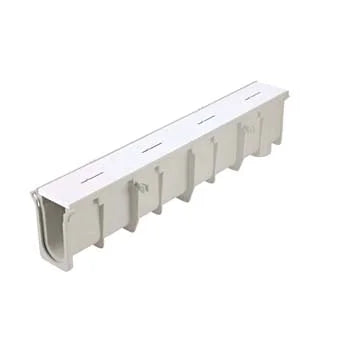

- Compatible with various grate options
- Suitable for pedestrian to light vehicle traffic
Installation Instructions:
- Excavate a trench wide enough to accommodate the channel and concrete surround.
- Pour a 4" thick concrete base and allow it to cure.
- Begin installing channels from the outlet or lowest point, ensuring proper slope.
- Connect subsequent channels using the interlocking system.
- Install end caps and outlet adapters as needed.
- Pour concrete around the channels, leaving 1/8" below the top for grate installation.
- Once concrete has cured, snap grates into place.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Channel length: 39.4" (1 meter)
- Channel width: 4.84" (123 mm)
- Channel depth: 4.92" to 6.10" (125 to 155 mm)
- Pre-sloped design: 0.6% built-in slope
- Load class: A15 (up to 3,372 lbs when properly installed)
- Flow rate: Up to 17.5 GPM (gallons per minute)
- Compatible grate materials: Plastic, galvanized steel, stainless steel
- UV-resistant and chemical-resistant
The NDS DS-110 Dura Slope Channel Drain offers a reliable and efficient drainage solution for various applications. Its pre-sloped design and durable construction make it an excellent choice for managing surface water in driveways, patios, pool decks, and light commercial areas.
