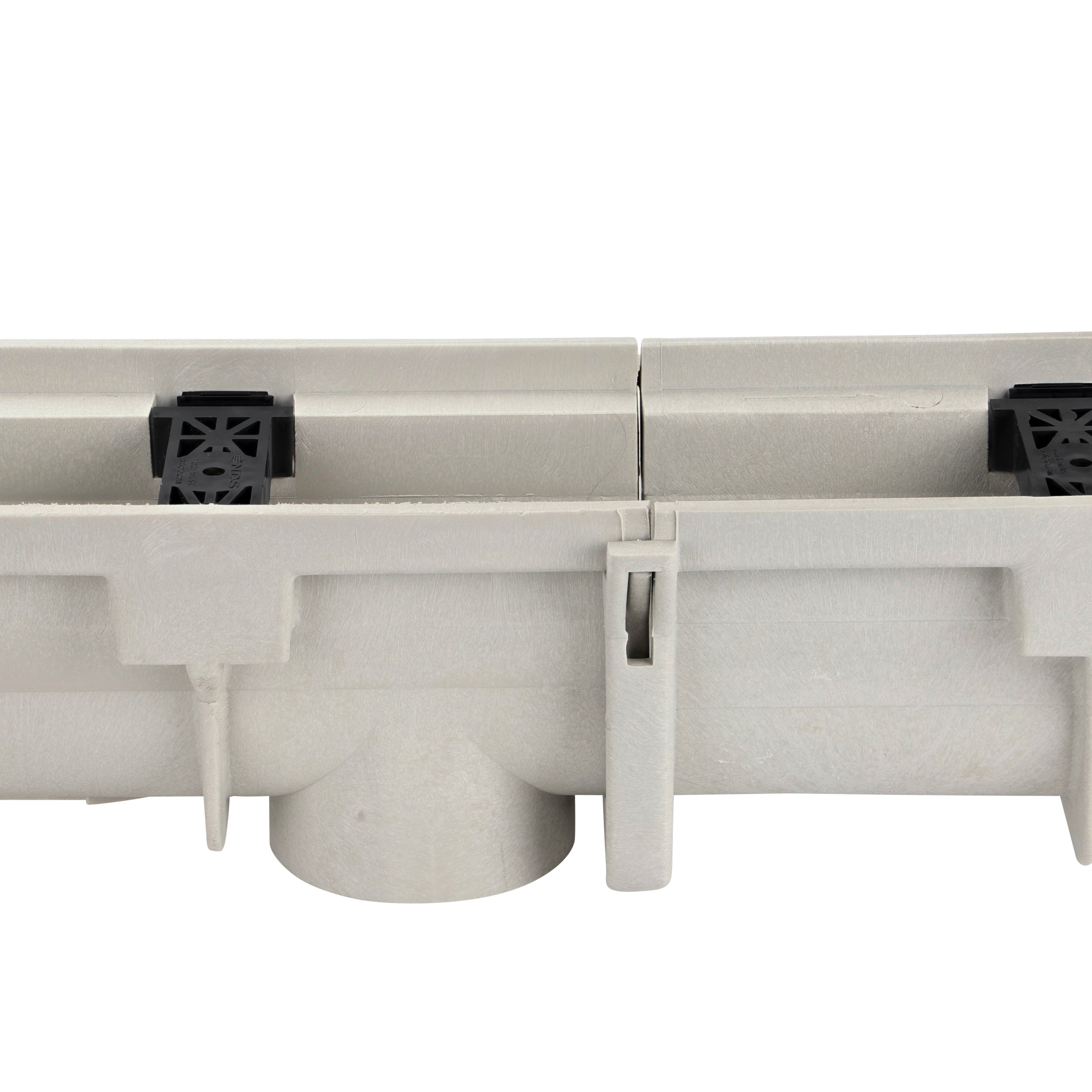

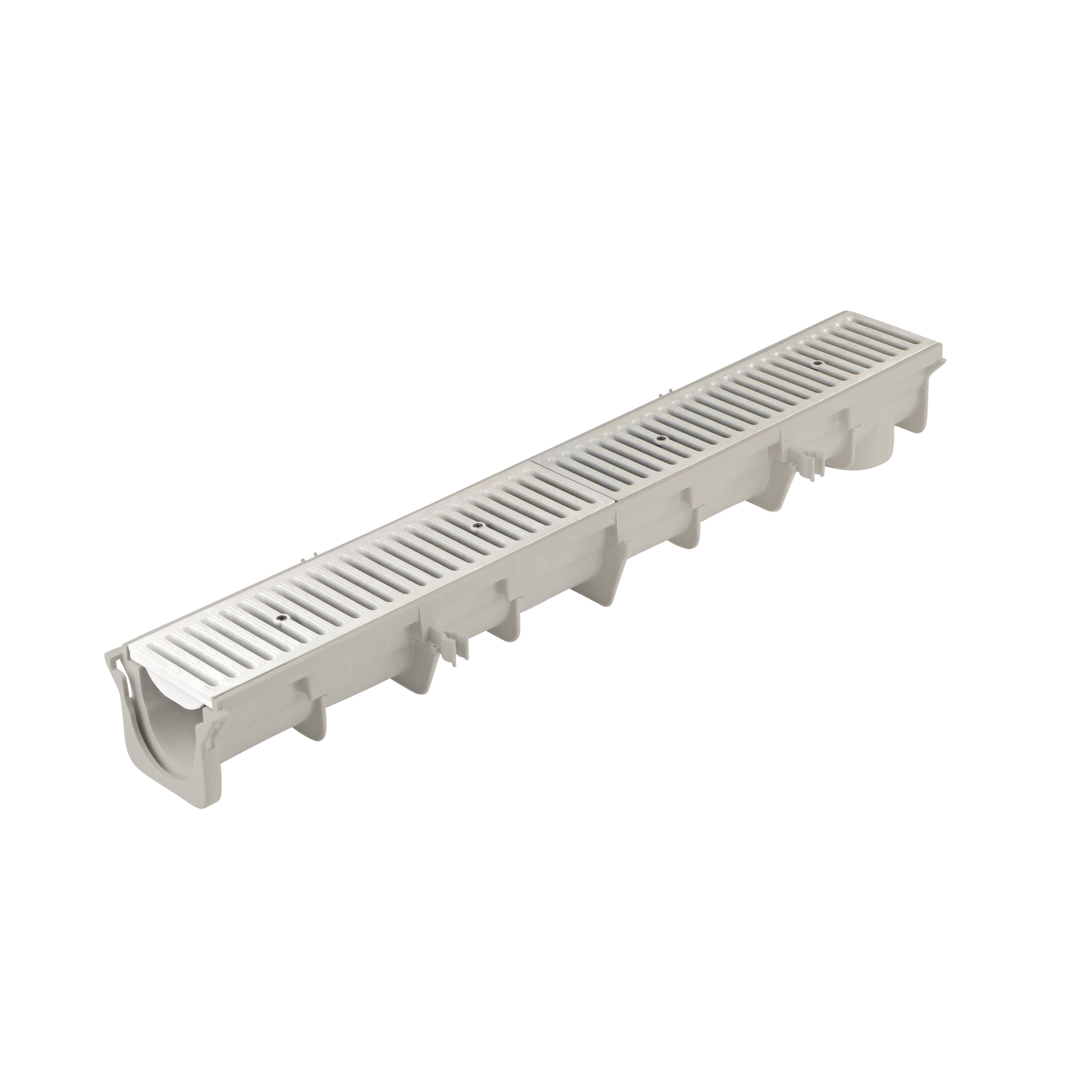

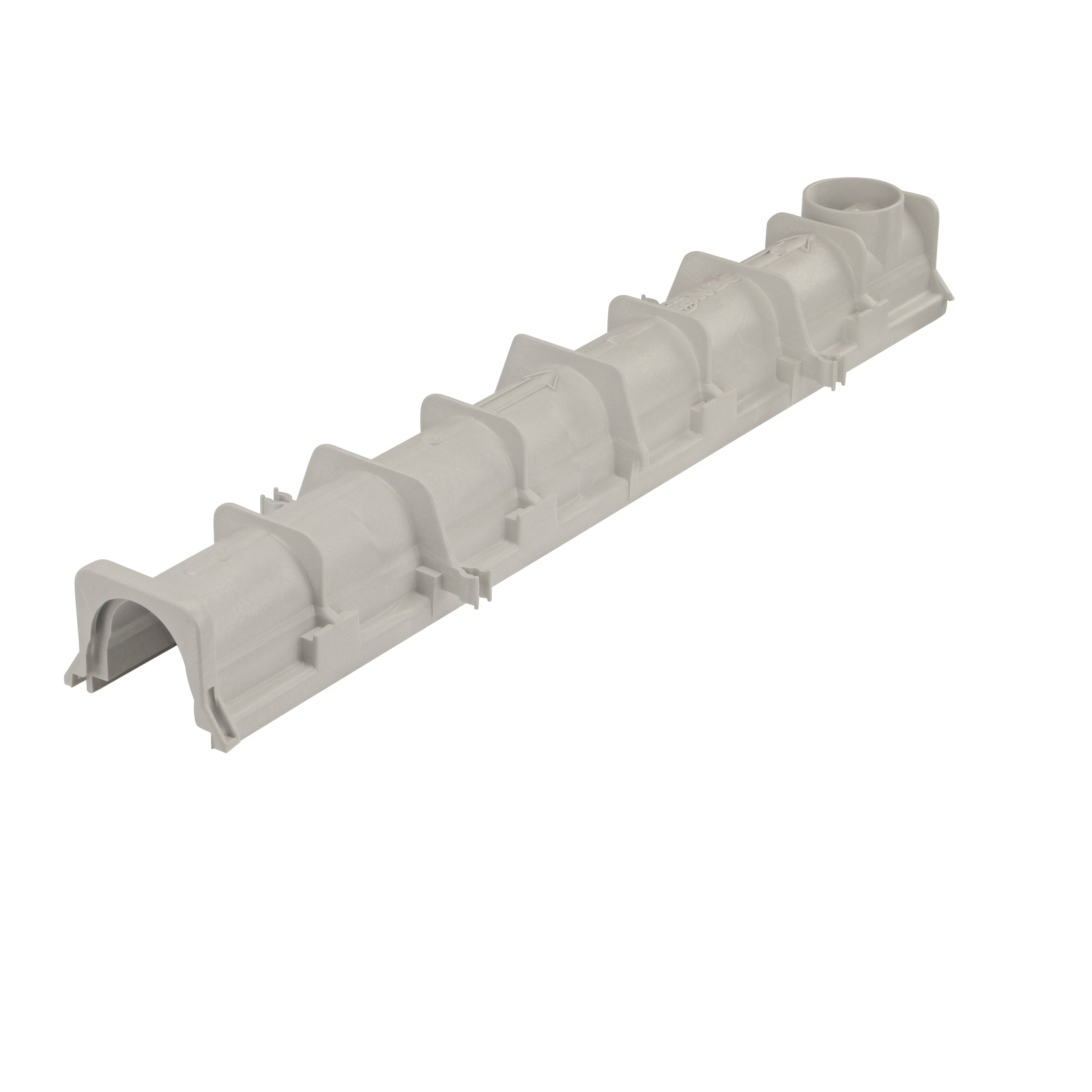

NDS DS-109N - Neutral Dura Slope Channel Drain (Neutral Slope)

NDS DS-109N - Neutral Dura Slope Channel Drain (Neutral Slope)

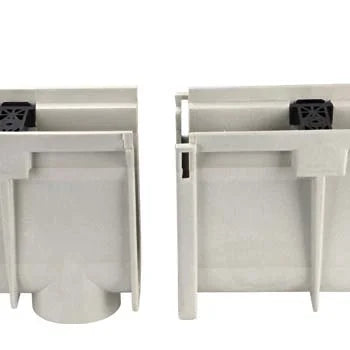

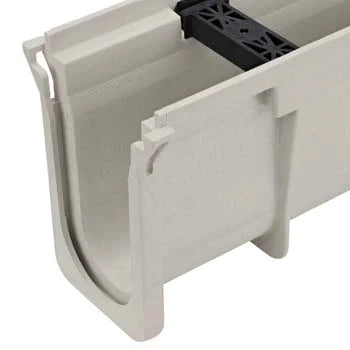

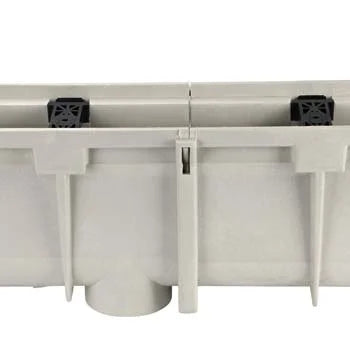

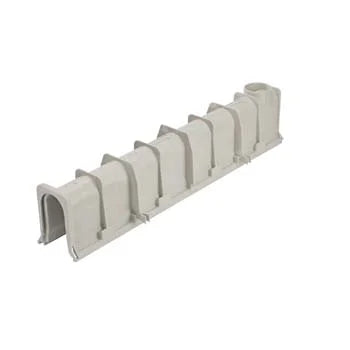

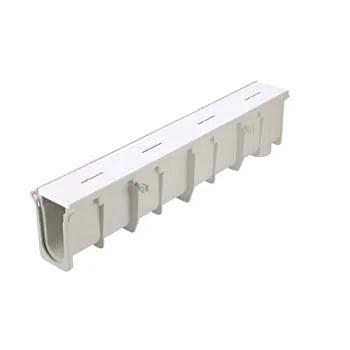

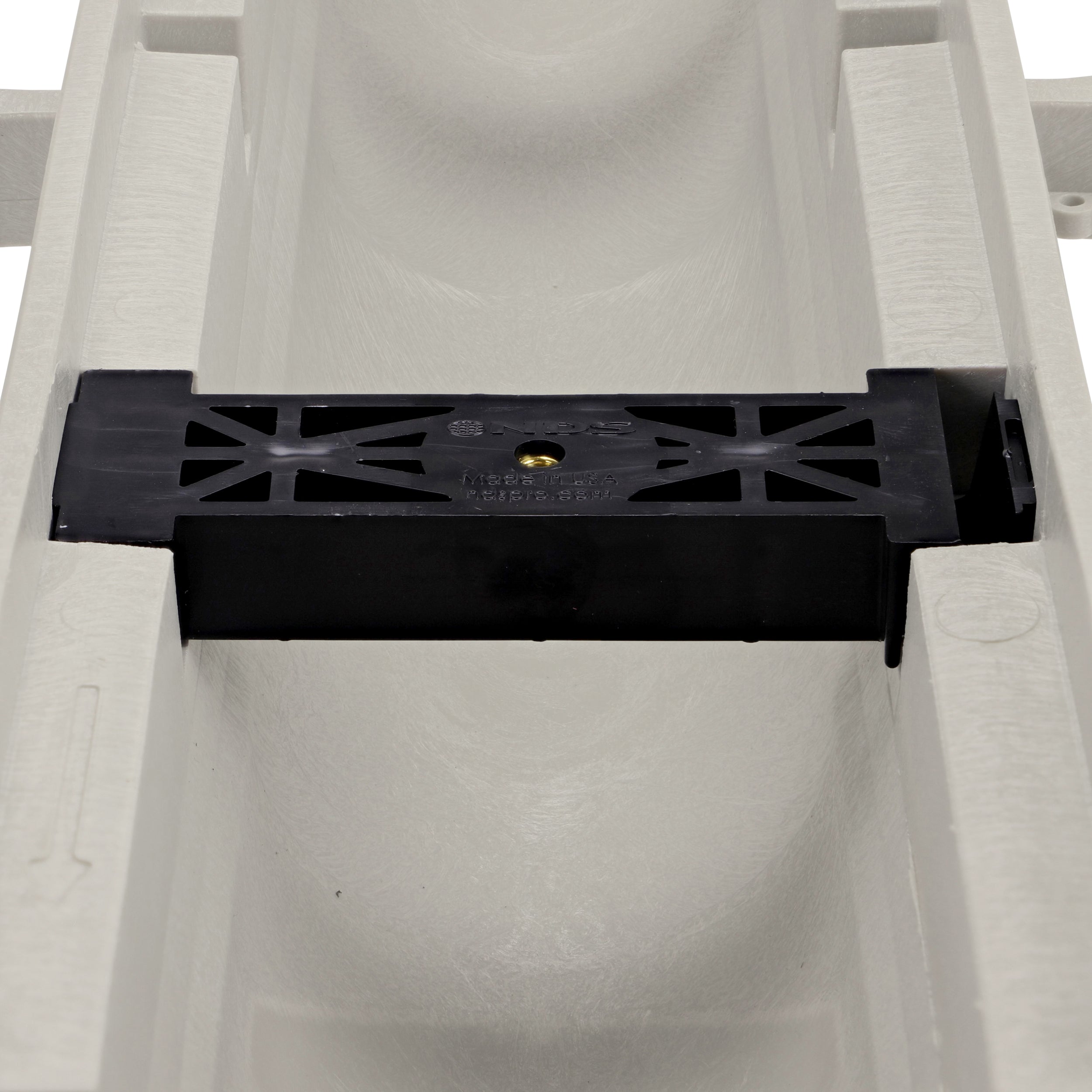

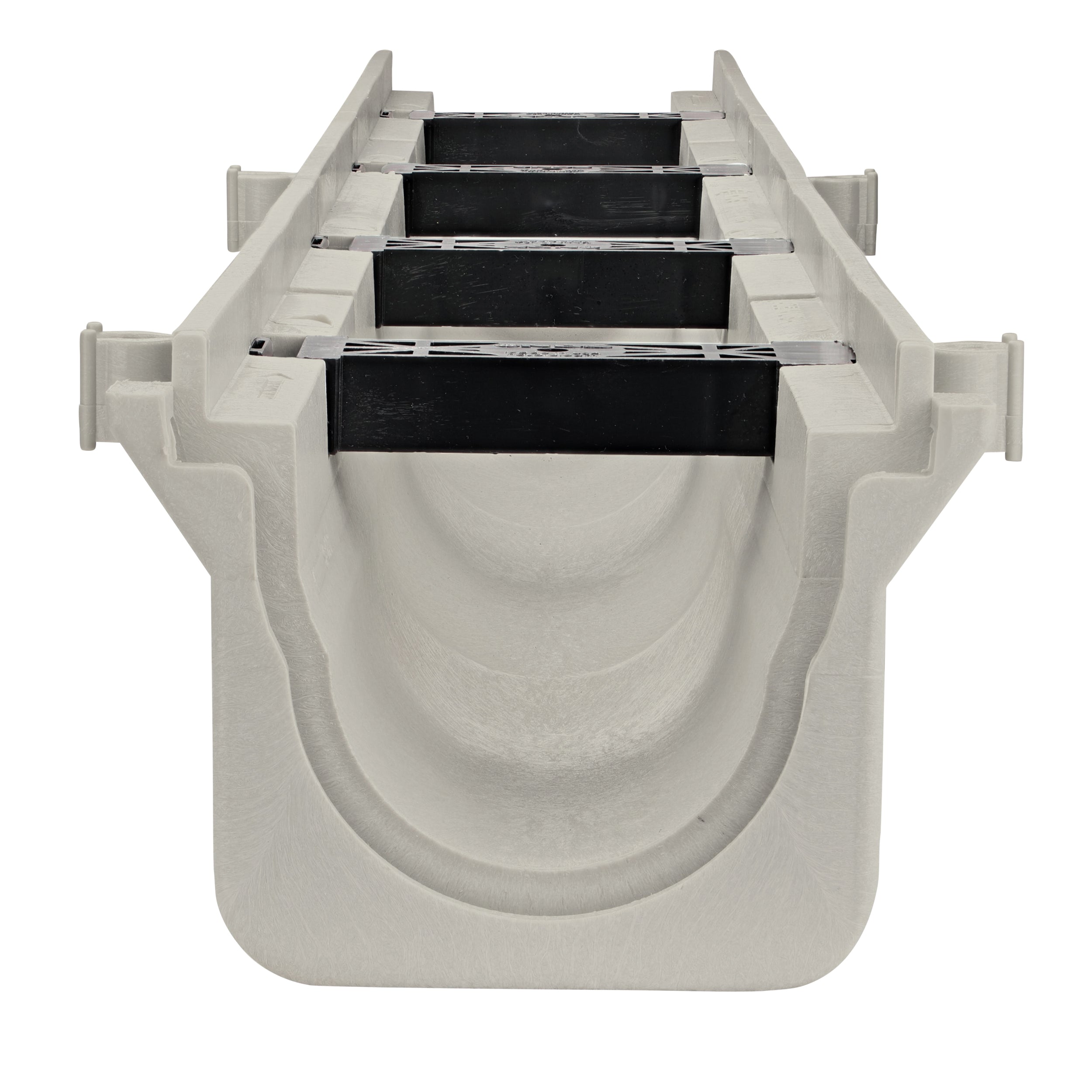

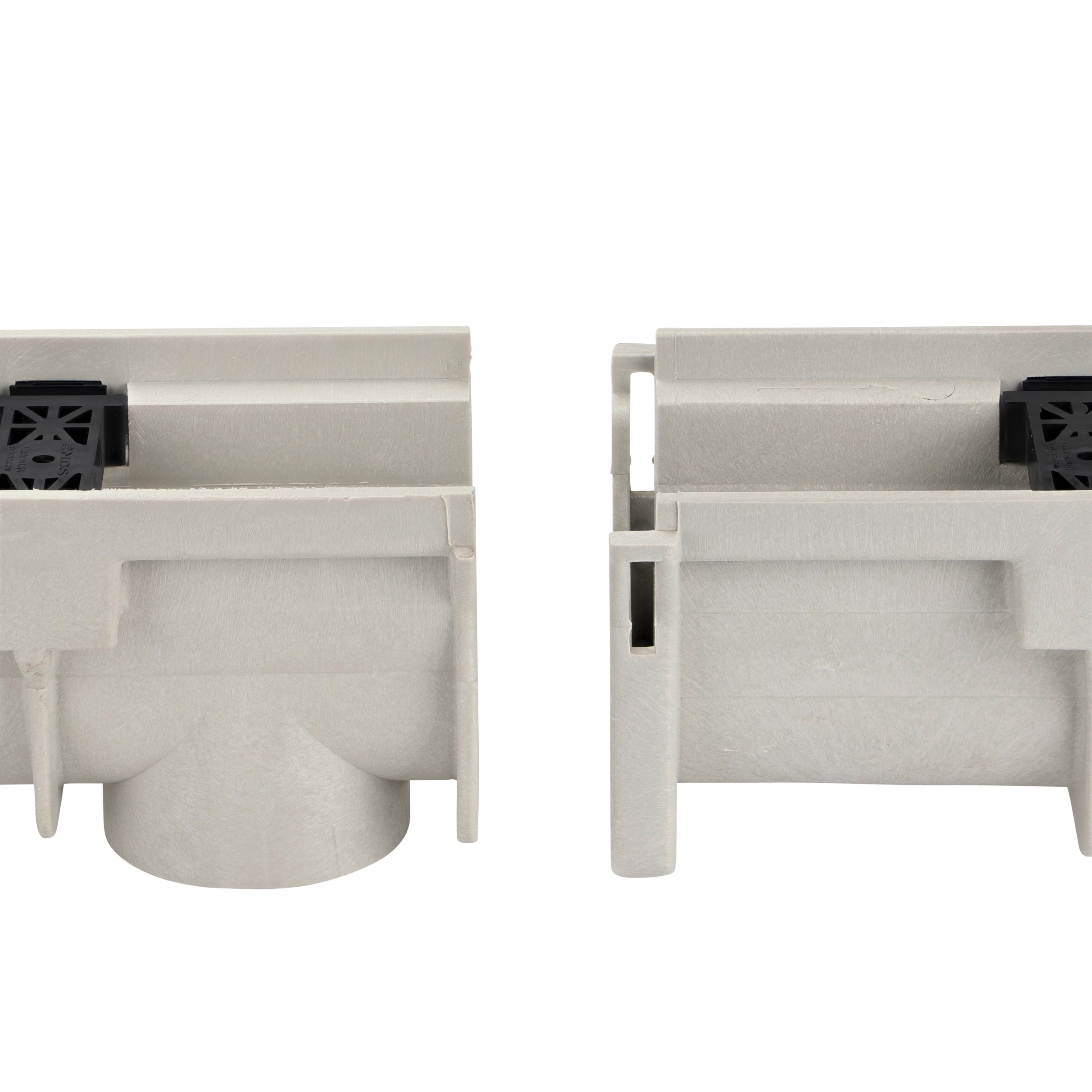

The NDS DS-109N Neutral Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential and commercial applications. This durable channel drain features a neutral color and sloped design for optimal water flow.

Key Features:

• Neutral color blends seamlessly with surroundings
• Sloped channel for improved water flow
• Durable construction for long-lasting performance
• Suitable for various applications including driveways, patios, and pool decks

Installation Instructions:

1. Excavate a trench to accommodate the channel and concrete surround
2. Install outlet pipe at the lowest point
3. Pour concrete base and set channel sections
4. Connect channels and seal joints
5. Install grates and secure
6. Pour finish concrete around the channel

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Length: 39.4 inches (1 meter) per section
• Width: 5.4 inches
• Depth: 4.3 inches (inlet) to 6.3 inches (outlet)
• Slope: 0.6% built-in slope
• Load class: Residential and light commercial use
• Grate options: Various styles available (sold separately)
