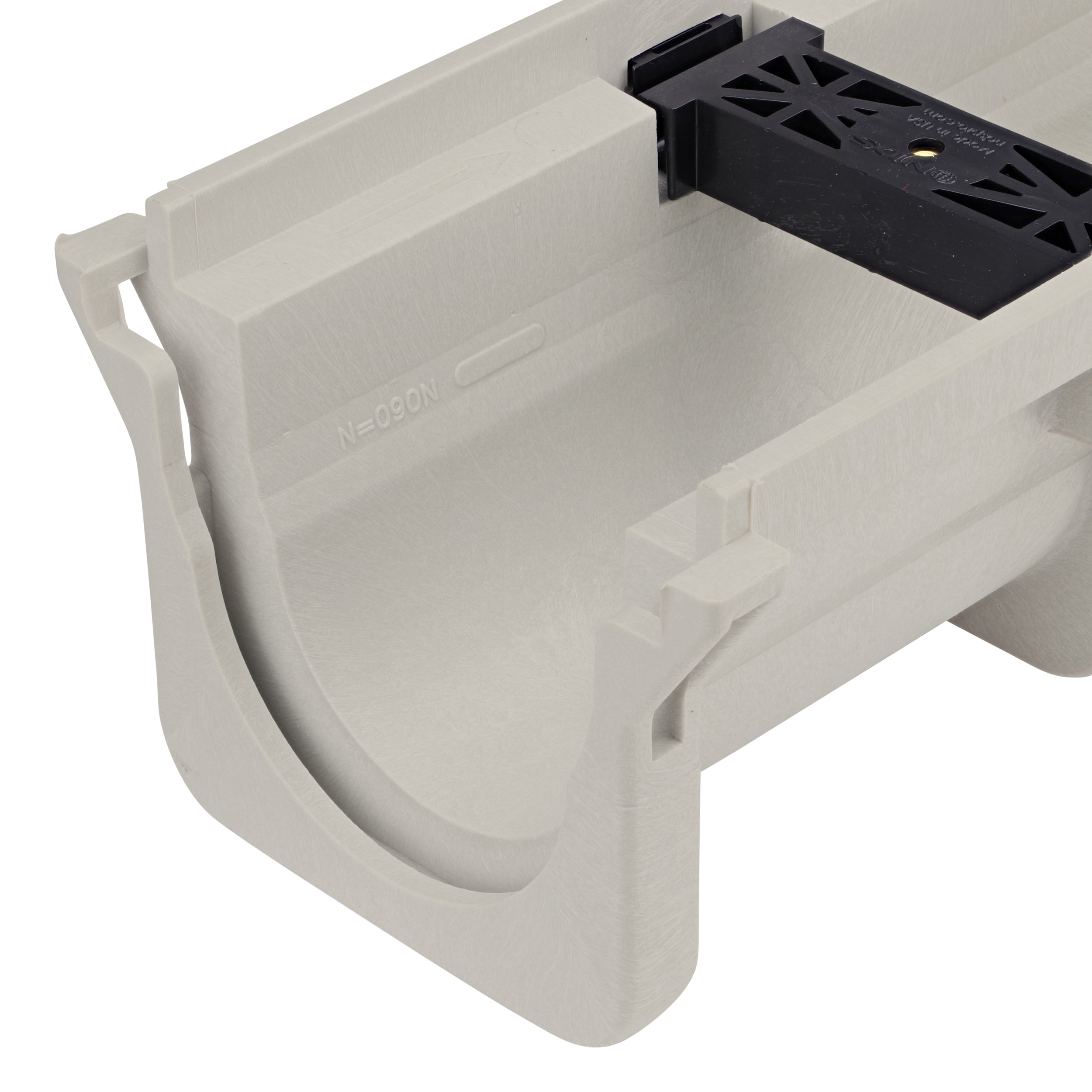

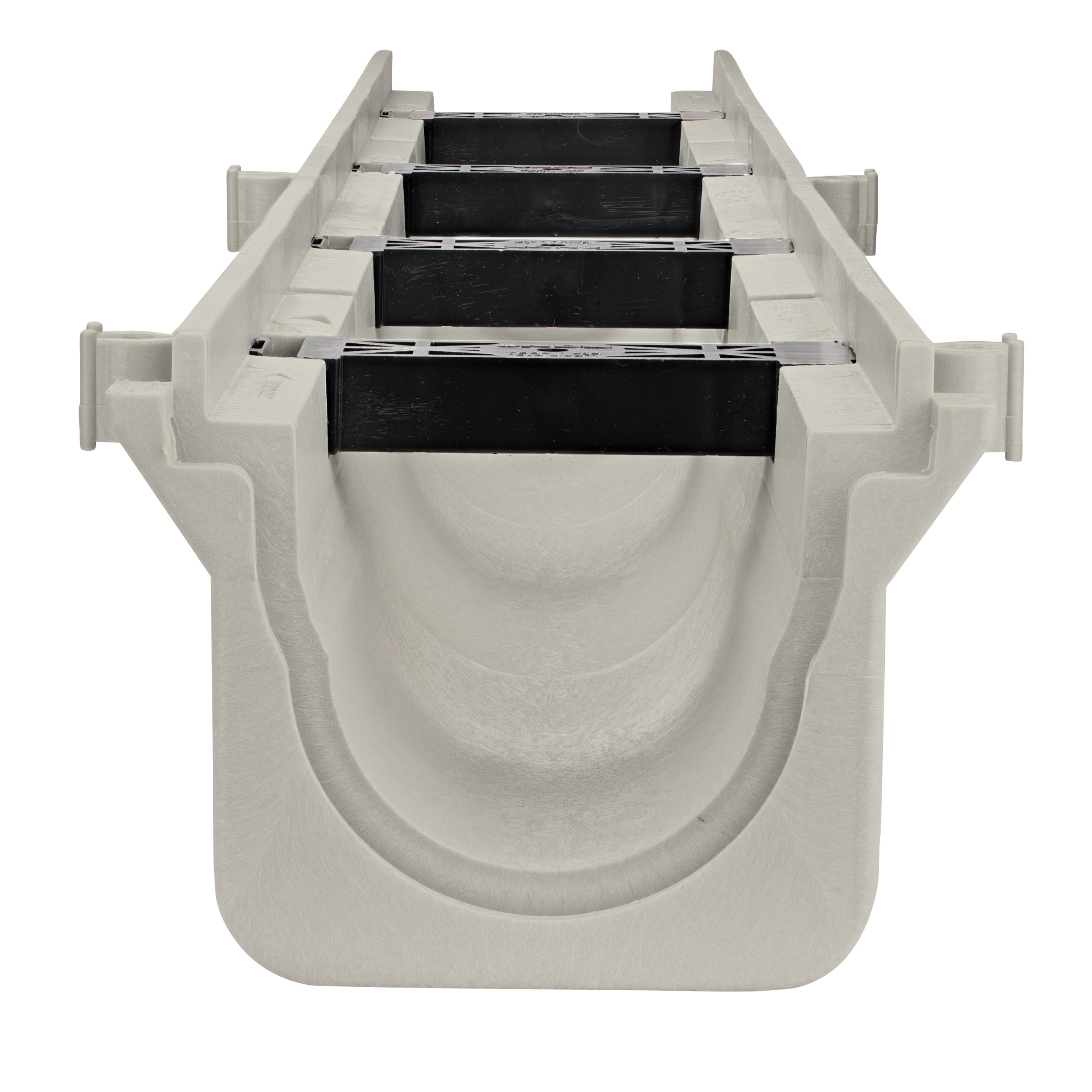

NDS DS-108 - Dura Slope Channel Drain (9.70" to 10.05" Deep)

NDS DS-108 - Dura Slope Channel Drain (9.70" to 10.05" Deep)

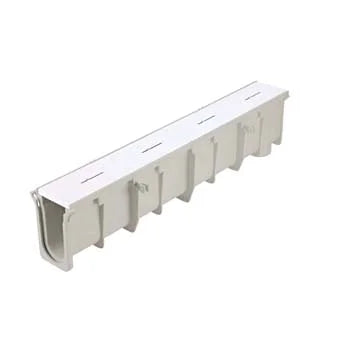

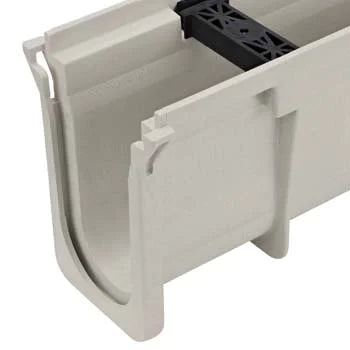

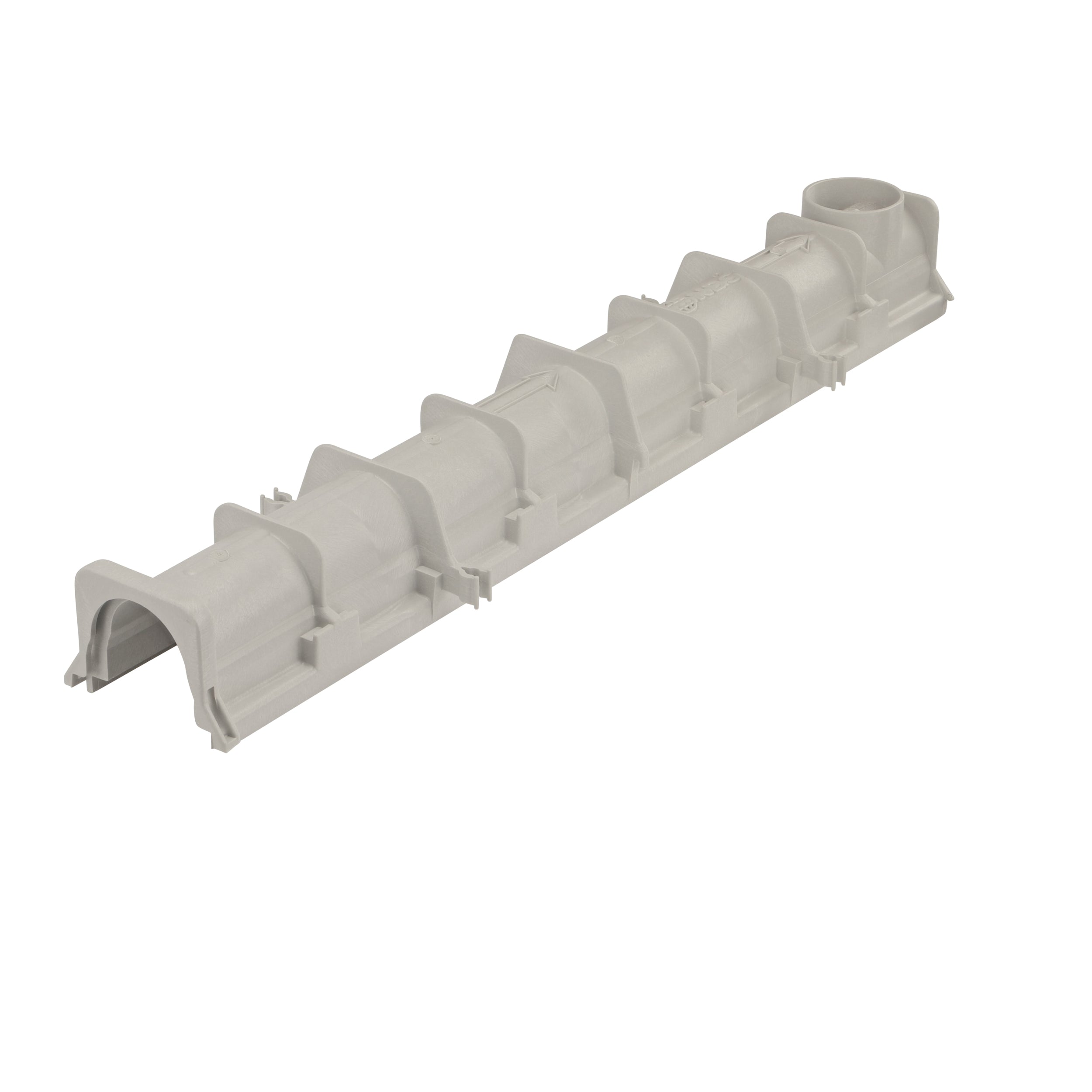

The NDS DS-108 Dura Slope Channel Drain is a professional-grade linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This durable and versatile channel drain offers superior performance and easy installation for a wide range of projects.

Key Features:

• Pre-sloped channel for optimal water flow
• Modular design for customizable lengths
• Heavy-duty construction for long-lasting durability
• Compatible with various grate options
• Suitable for pedestrian to light vehicle traffic areas

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Channel width: 4 inches (10.2 cm)
• Channel depth: 4.8 to 8 inches (12.2 to 20.3 cm)
• Length per section: 39.4 inches (1 meter)
• Built-in slope: 0.6%
• Load class: A-C (depending on grate selection)
• Chemical and UV resistant

Installation Instructions:

1. Excavation:
   • Dig a trench 6 inches wider than the channel on each side and 4 inches deeper than the finished height.
   • Ensure proper slope for water flow towards the outlet.
2. Base Preparation:
   • Pour 4 inches of concrete base and level it.
   • Allow concrete to set before proceeding.
3. Channel Placement:
   • Start at the outlet and work upslope.

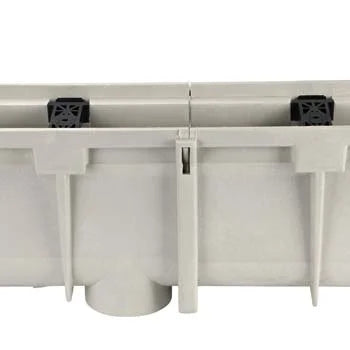

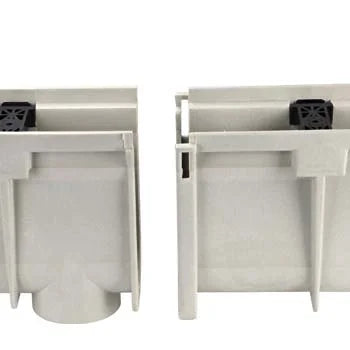

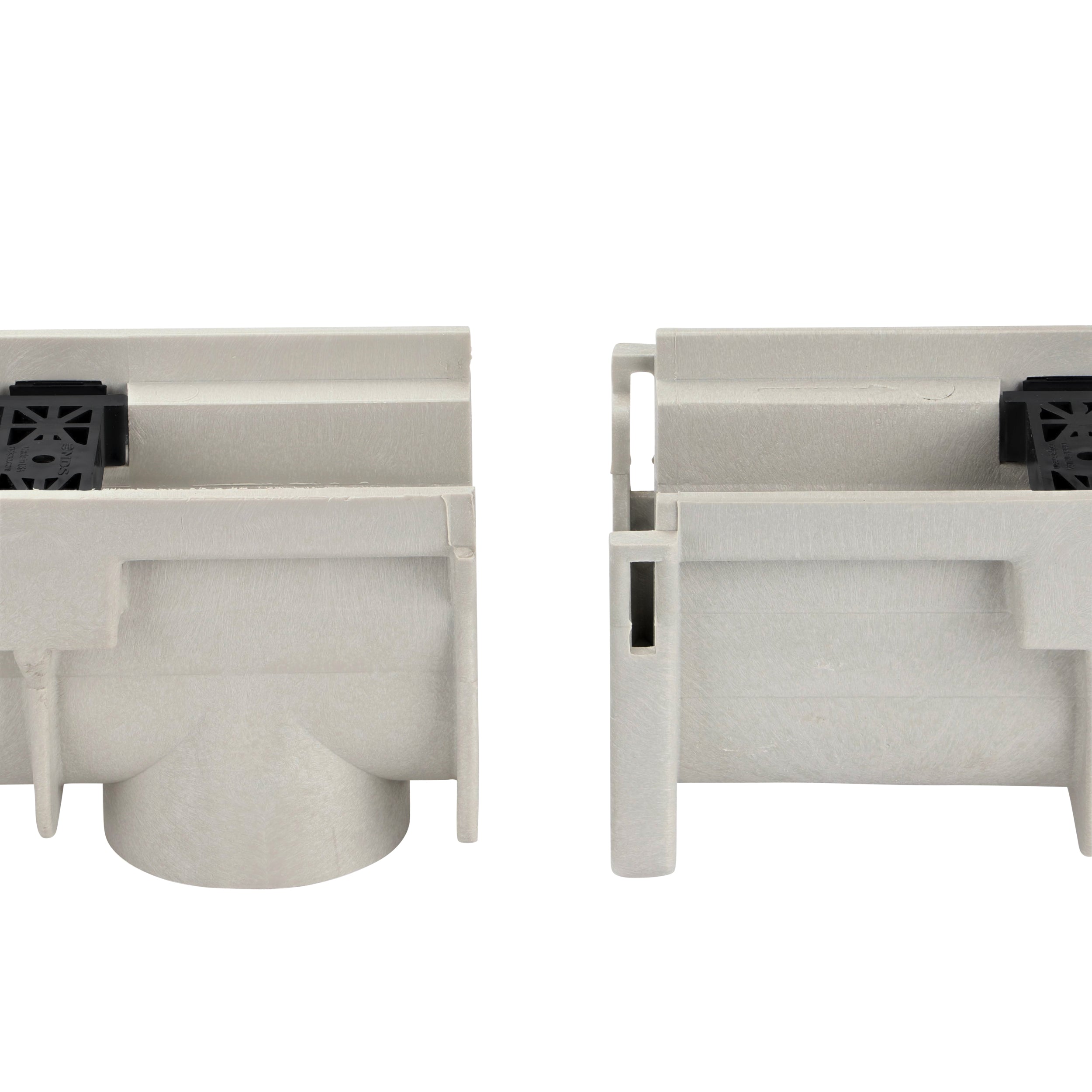

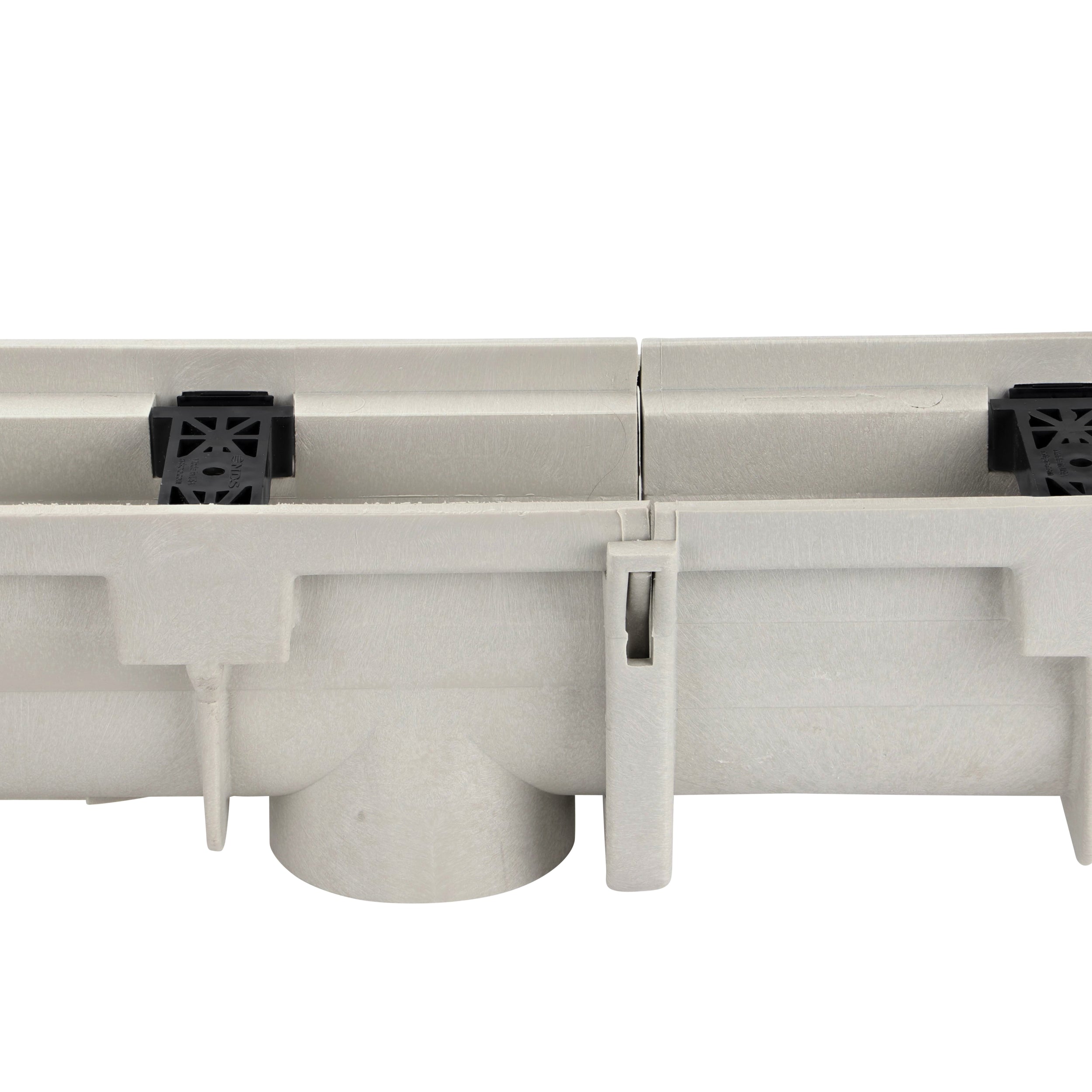

   • Connect channel sections using tongue and groove joints.
   • Ensure channels are level and aligned.
4. Concrete Backfill:
   • Pour concrete around the sides of the channel, leaving 1/8 inch below the top edge for final surface finishing.
   • Use rebar to reinforce concrete if necessary.
5. Grate Installation:
   • Once concrete has cured, snap in the chosen grate.
6. Final Surface:
   • Complete the surrounding surface (asphalt, concrete, or pavers) flush with the top of the grate.

The NDS DS-108 Dura Slope Channel Drain offers a reliable solution for effective surface water management. Its pre-sloped design and modular construction make it ideal for various applications, from driveways and patios to commercial spaces and light industrial areas.
