NDS DS-107 - Dura Slope Channel Drain (9.37" to 9.70" Deep)

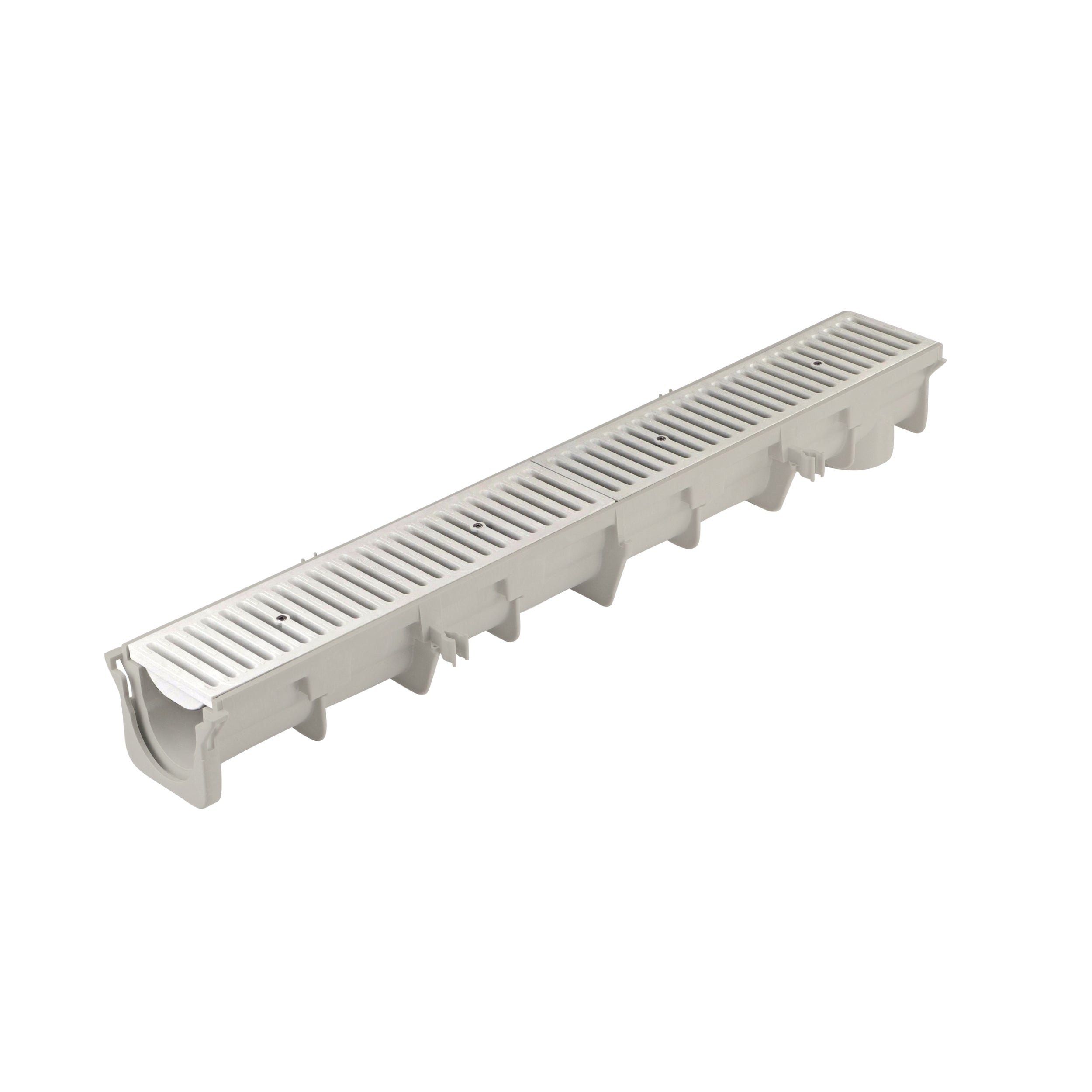

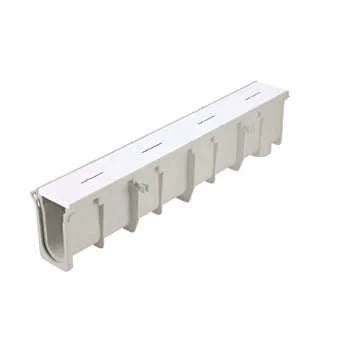

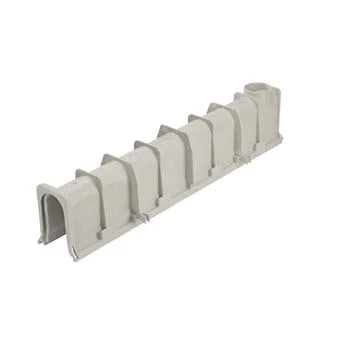

The NDS DS-107 Dura Slope Channel Drain is a high-performance surface drainage solution designed for efficient water management in residential, commercial, and industrial applications. This innovative channel drain system offers superior strength, durability, and ease of installation.
Key Features:
- Pre-sloped channel for optimal water flow
- Modular design for versatile installation
- Heavy-duty construction for long-lasting performance
- Compatible with various grate options
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Length: 39.4 inches (1 meter)
- Width: 5.2 inches (132 mm)
- Height: 5.9 inches (150 mm) at outlet end
- Slope: 0.6% built-in slope
- Load class: Up to Class C (EN 1433)
- Flow rate: Up to 34 GPM (gallons per minute)
- Available grate materials: Plastic, galvanized steel, stainless steel, cast iron
Installation Instructions:
- Excavation:
- Dig a trench 8 inches wider than the channel on each side and 4 inches deeper than the required finished height.
- Ensure proper slope for water drainage.
- Base preparation:
- Pour 4 inches of concrete base in the trench.
- Allow concrete to set until firm but still wet.
- Channel placement:
- Start at the outlet end and work upslope.

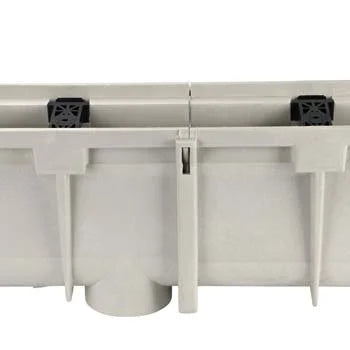

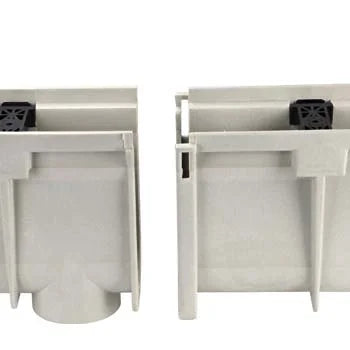

- Connect channels using tongue-and-groove joints.
- Ensure channels are level and aligned.
- Concrete backfill:
- Pour concrete around the sides of the channels, leaving the top 1/8 inch below the final surface level.
- Use rebar to reinforce the concrete if required for heavy traffic areas.
- Grate installation:
- Once concrete has cured, snap the selected grates into place.
- Final touches:
- Complete the surrounding surface installation (asphalt, concrete, or pavers).
- Ensure the finished surface is slightly higher than the grate for proper drainage.
The NDS DS-107 Dura Slope Channel Drain offers a reliable and efficient solution for surface water management. Its pre-sloped design and durable construction make it ideal for a wide range of applications, from driveways and patios to commercial parking lots and industrial facilities.
Product and Technical Information
Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System
Dura Slope - System Profile - Linear Fall with Neutrals
Dura Slope - System Profile - Linear Fall without Neutrals
Dura Slope - System Profile - Counter Directional Fall with Neutrals
Dura Slope - System Profile - Counter Directional Fall without Neutrals
Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain
Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
