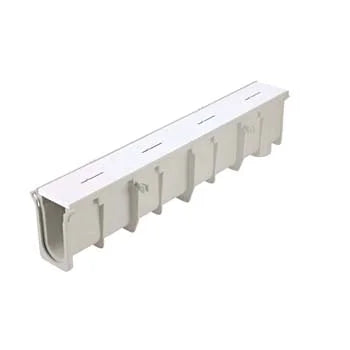

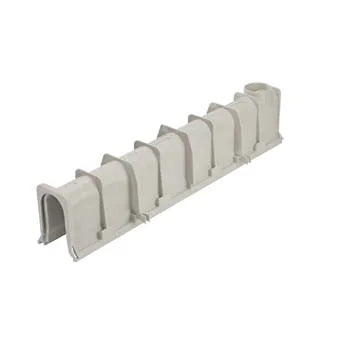

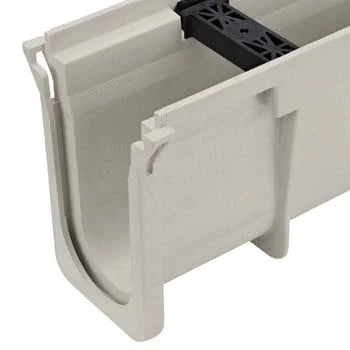

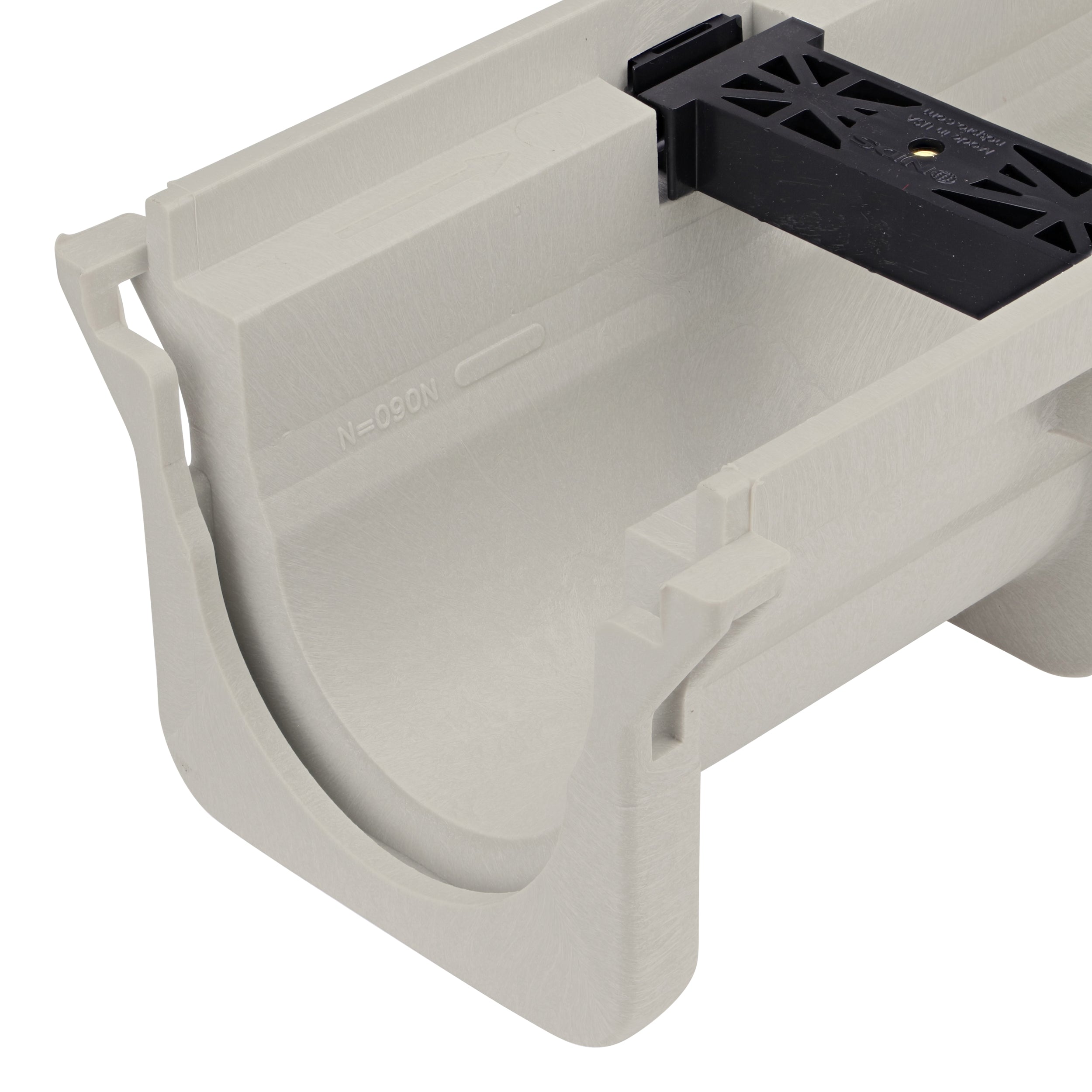

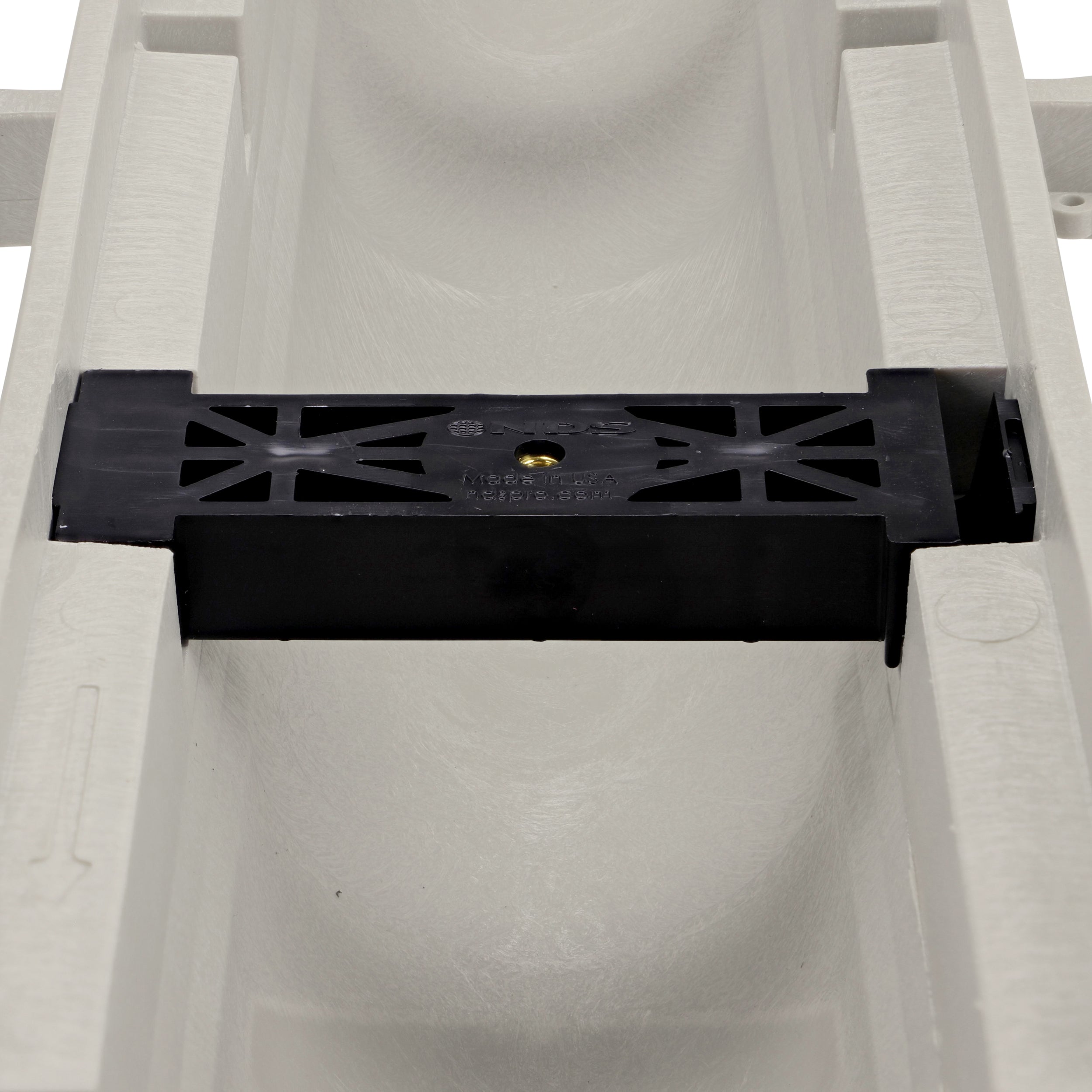

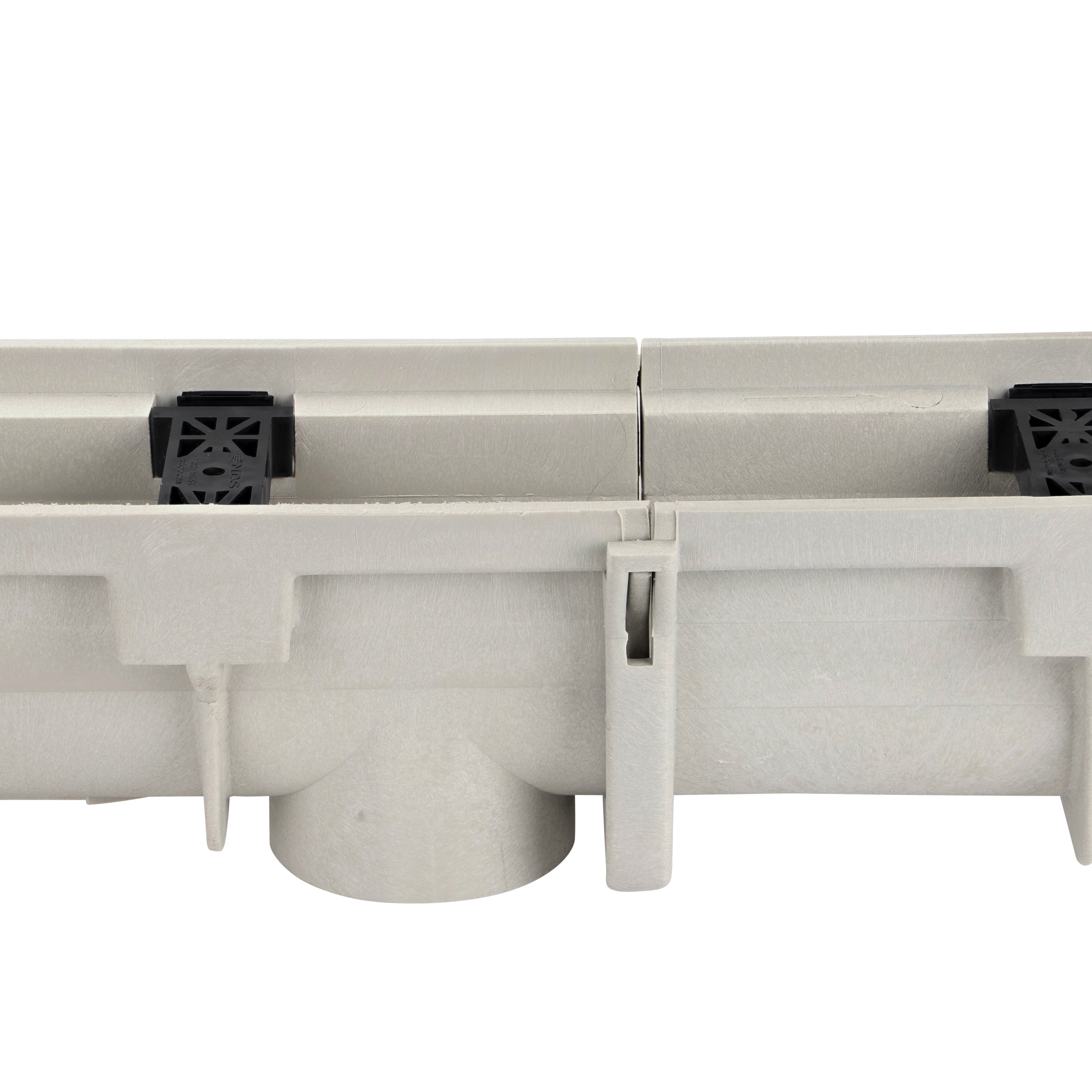

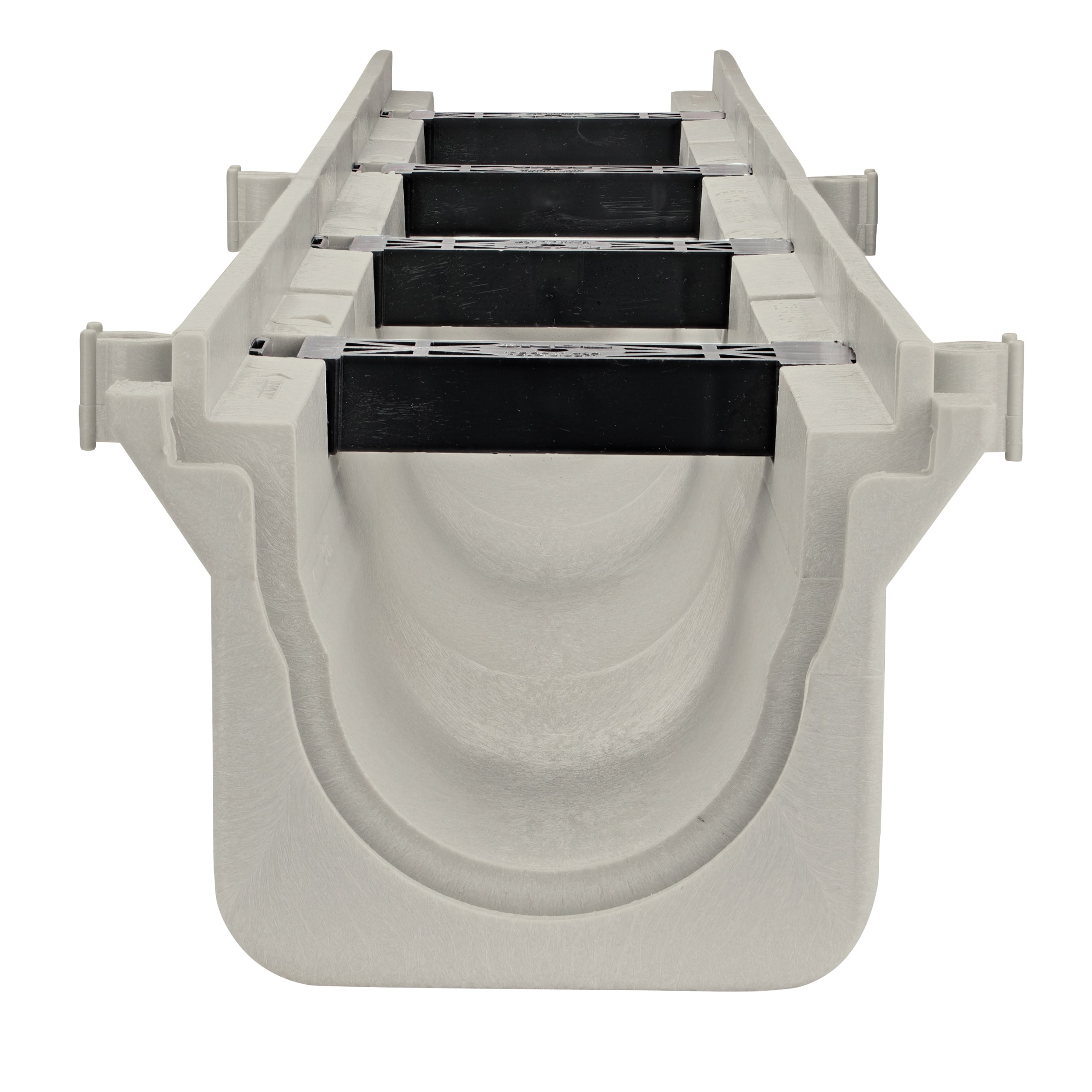

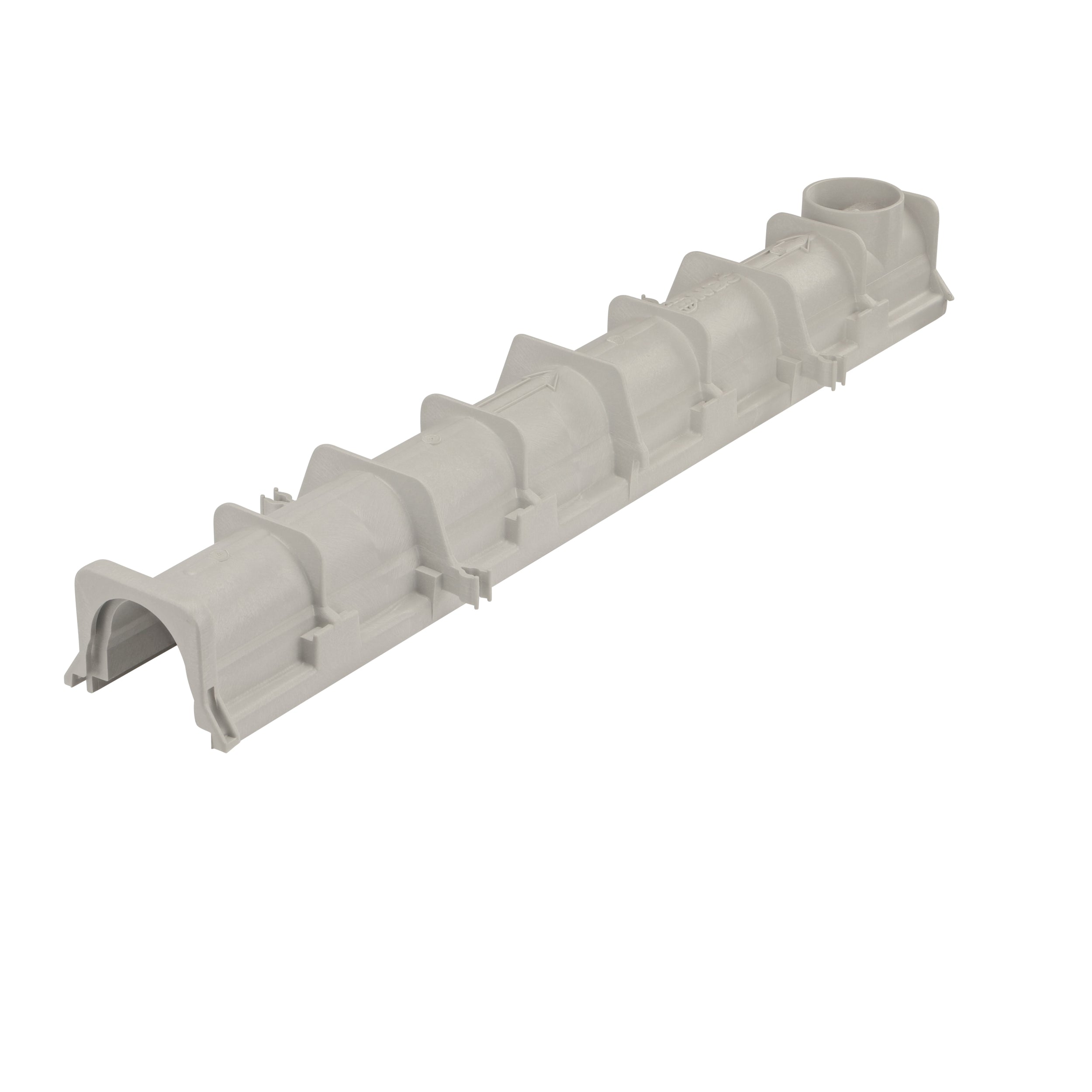

NDS DS-106N - Neutral Dura Slope Channel Drain (Neutral Slope)

NDS DS-106N - Neutral Dura Slope Channel Drain (Neutral Slope)

The NDS DS-106N Neutral Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential and commercial applications. This versatile channel drain system offers superior durability and easy installation, making it ideal for driveways, patios, pool decks, and other areas requiring effective surface water removal.

Key Features:

• Neutral slope design for versatile installation
• Durable, high-density polyethylene construction
• UV-resistant for long-lasting performance

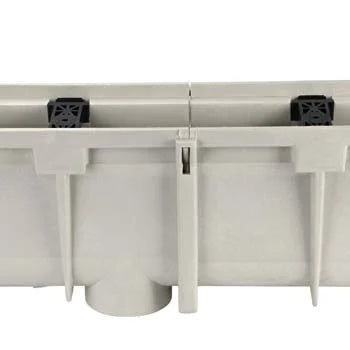

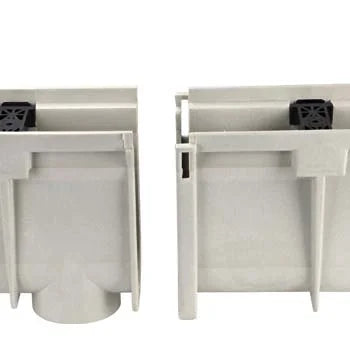

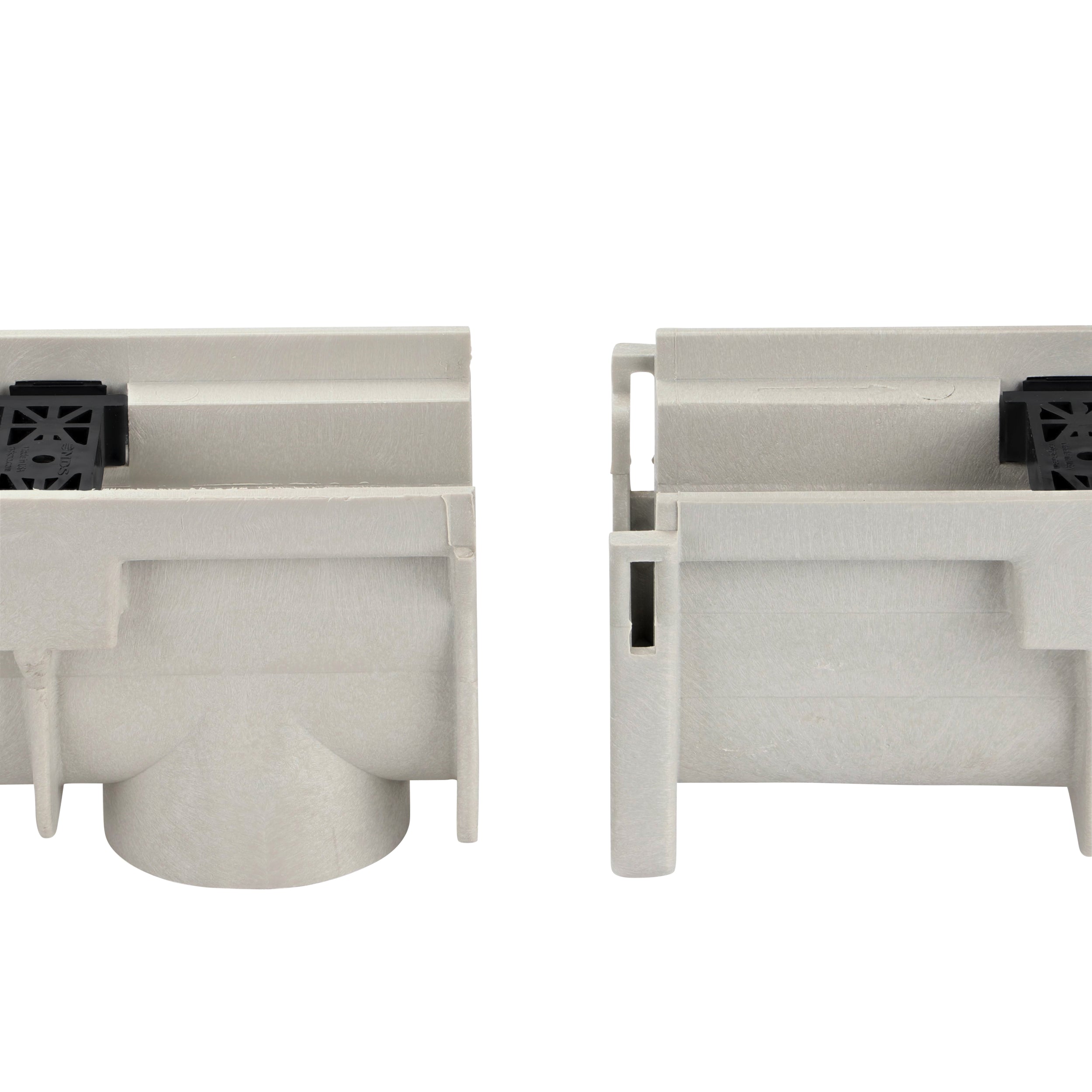

• Interlocking system for seamless connections

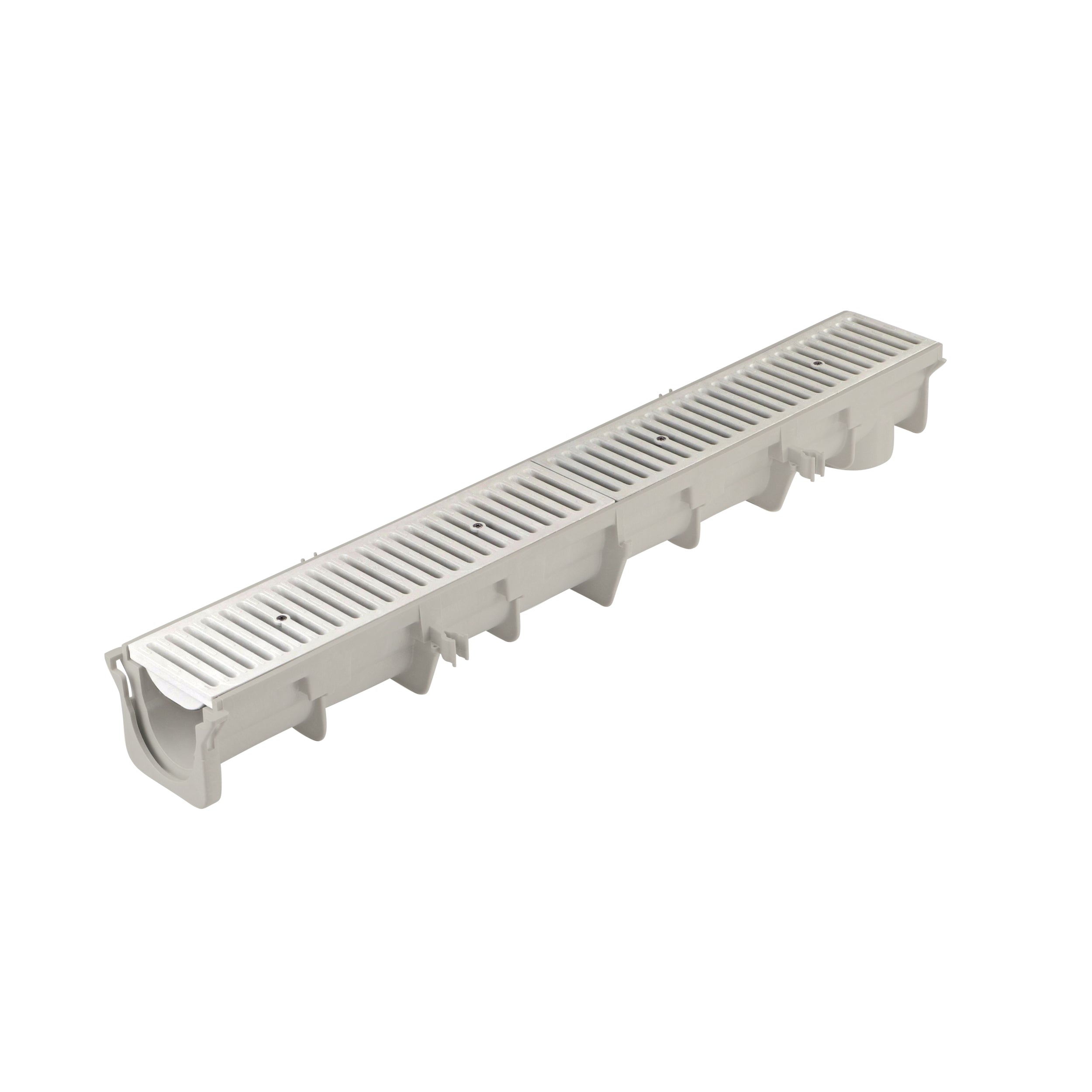

• Compatible with various grate options

Installation Instructions:

1. Excavate a trench 6 inches wider than the channel and deep enough to accommodate the drain plus 4 inches of concrete base.
2. Pour a 4-inch concrete base and allow it to set.
3. Begin laying channels from the outlet or lowest point, ensuring proper alignment.
4. Connect subsequent channels using the interlocking system.
5. Install end caps and outlets as needed.
6. Pour concrete around the sides of the channel, leaving the top 1/8 inch below the desired finished grade.
7. Install grates and secure them in place.
8. Finish the surrounding surface to the appropriate grade.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Length: 39.4 inches (1 meter)
• Width: 6 inches
• Height: 6 inches
• Load class: Light duty (pedestrian to light vehicle traffic)
• Flow rate: Up to 11 gallons per minute

The NDS DS-106N Neutral Dura Slope Channel Drain offers a reliable and efficient drainage solution for various applications. Its durable construction and easy installation make it an excellent choice for both DIY enthusiasts and professional contractors.
