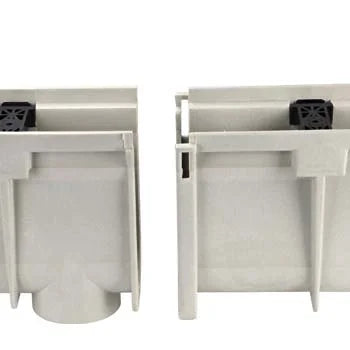

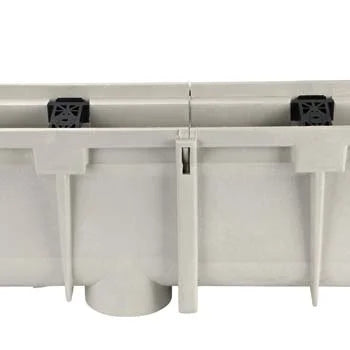

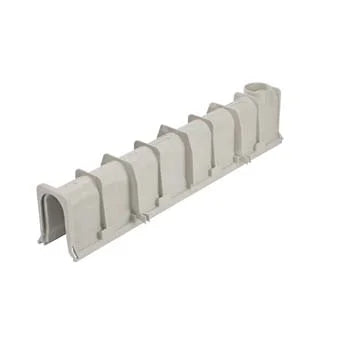

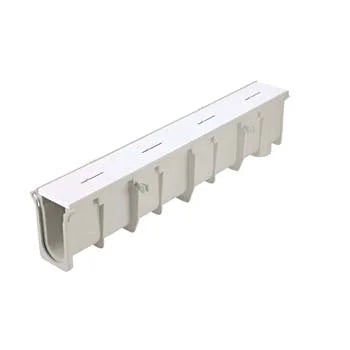

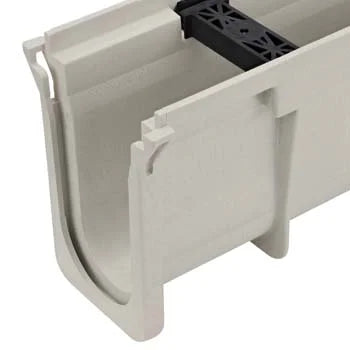

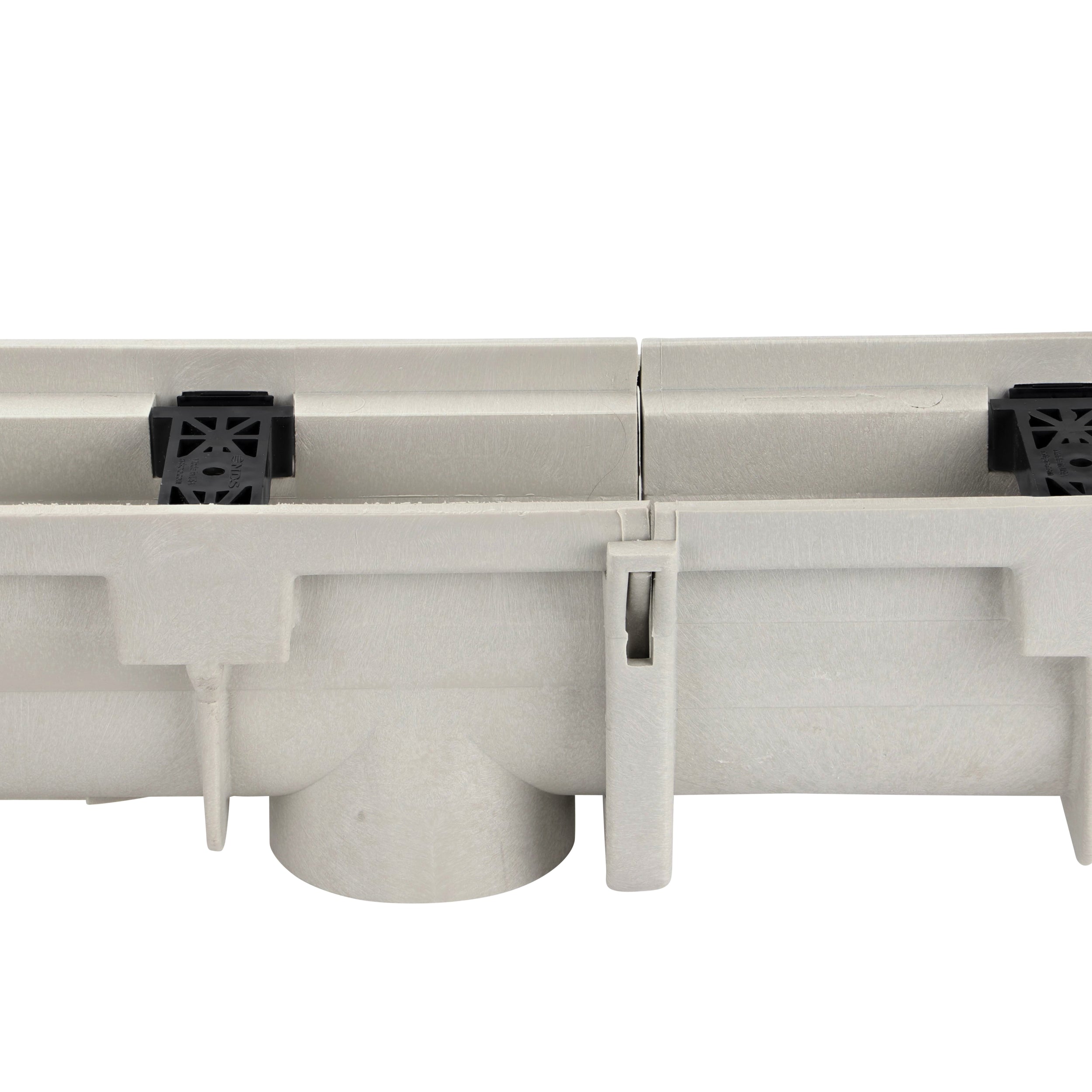

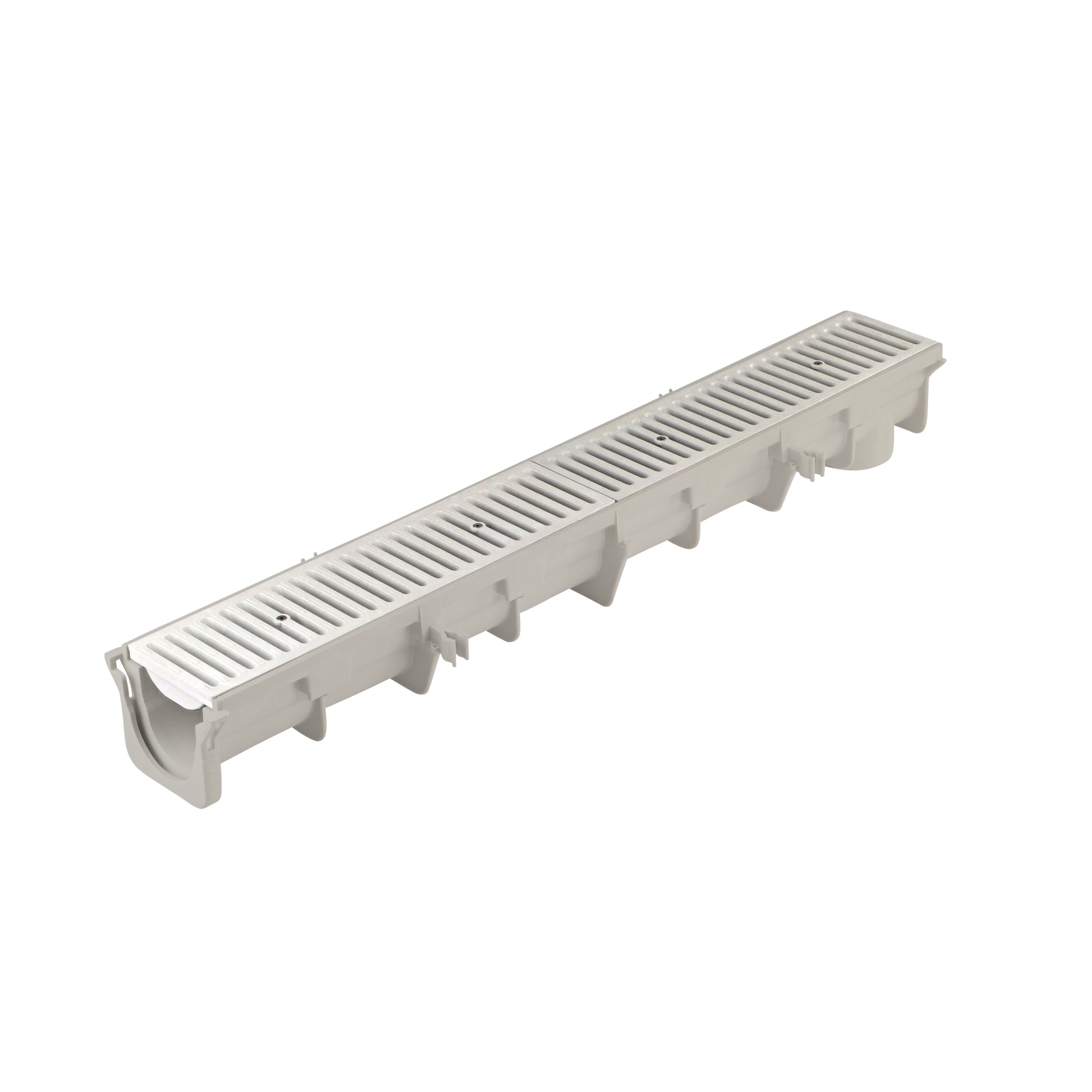

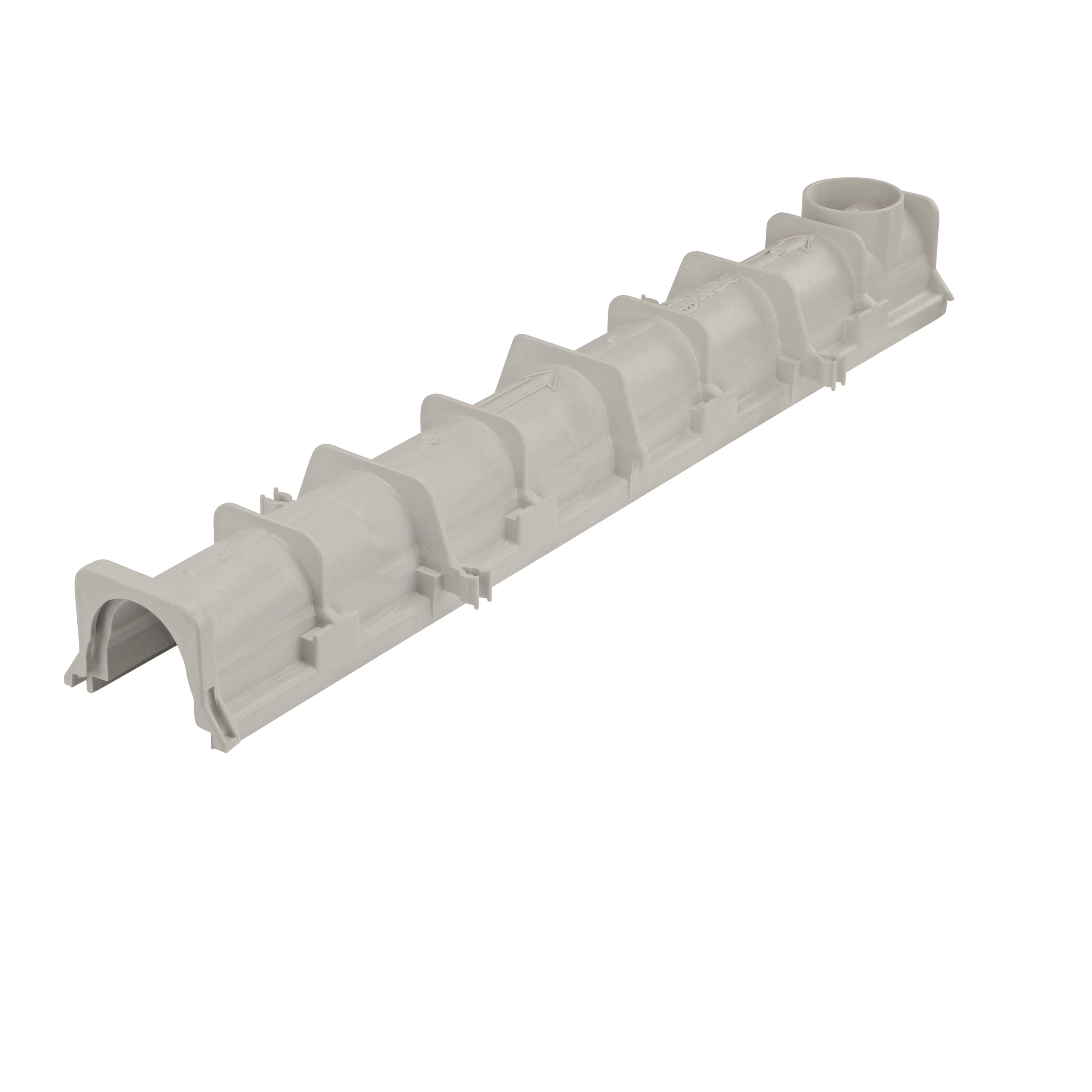

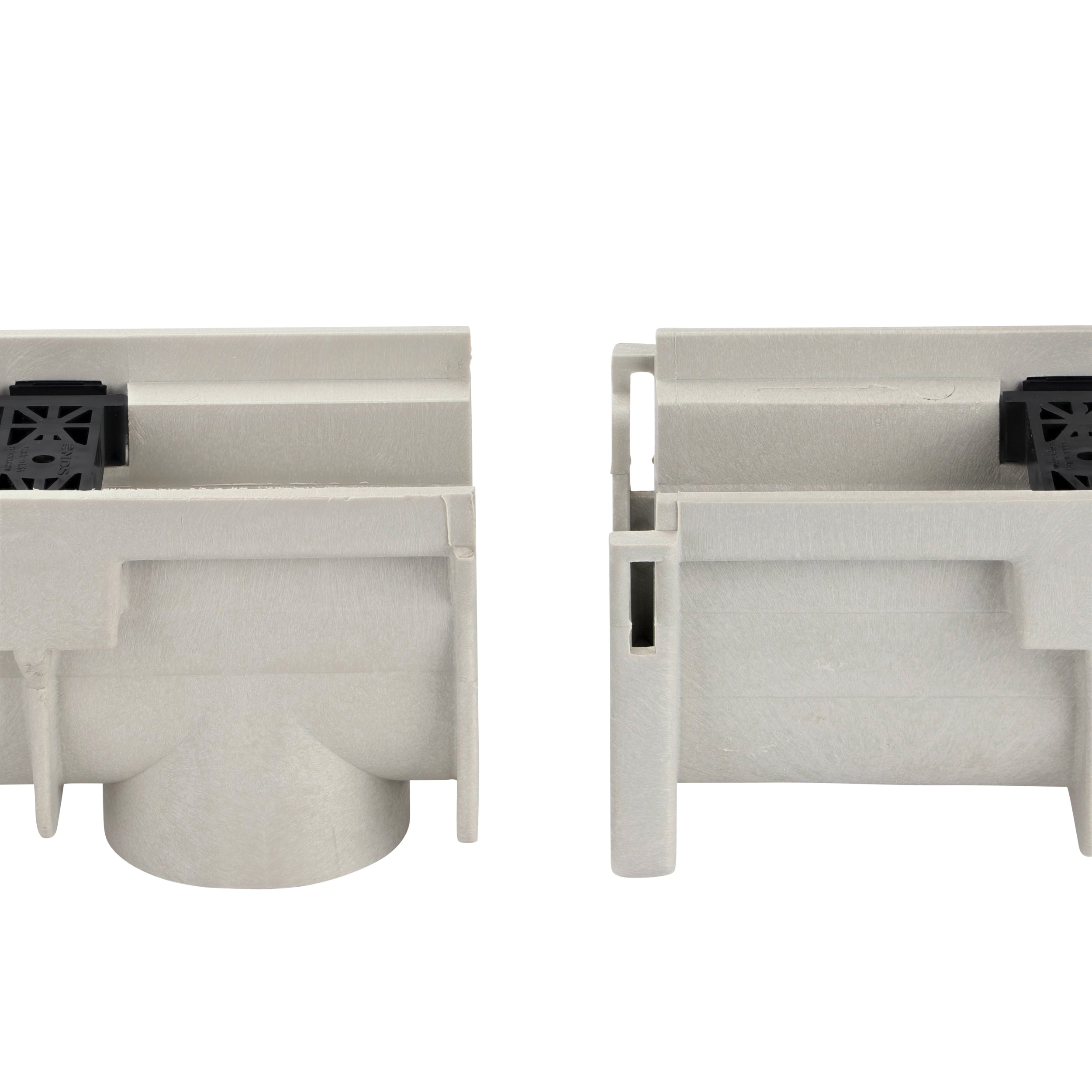

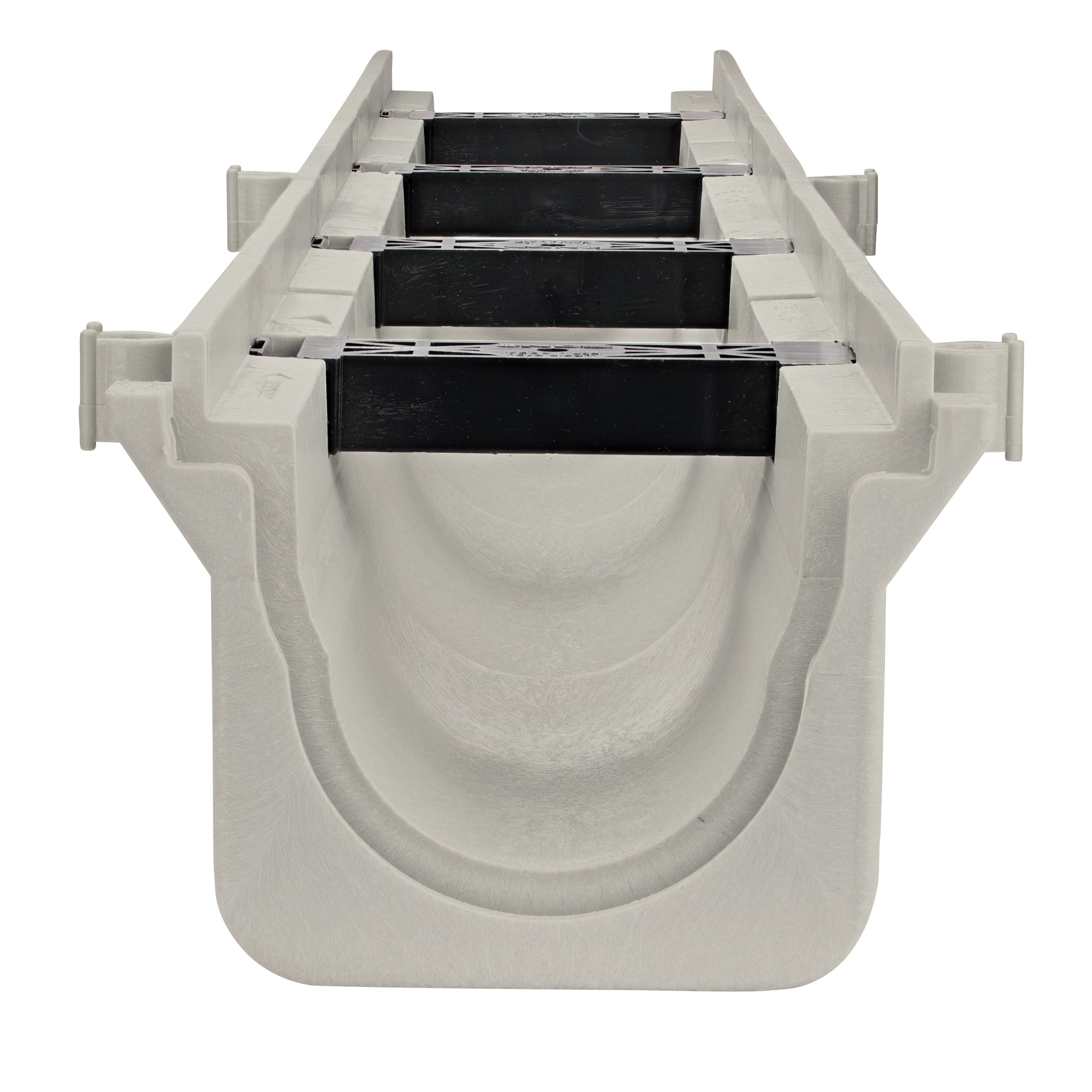

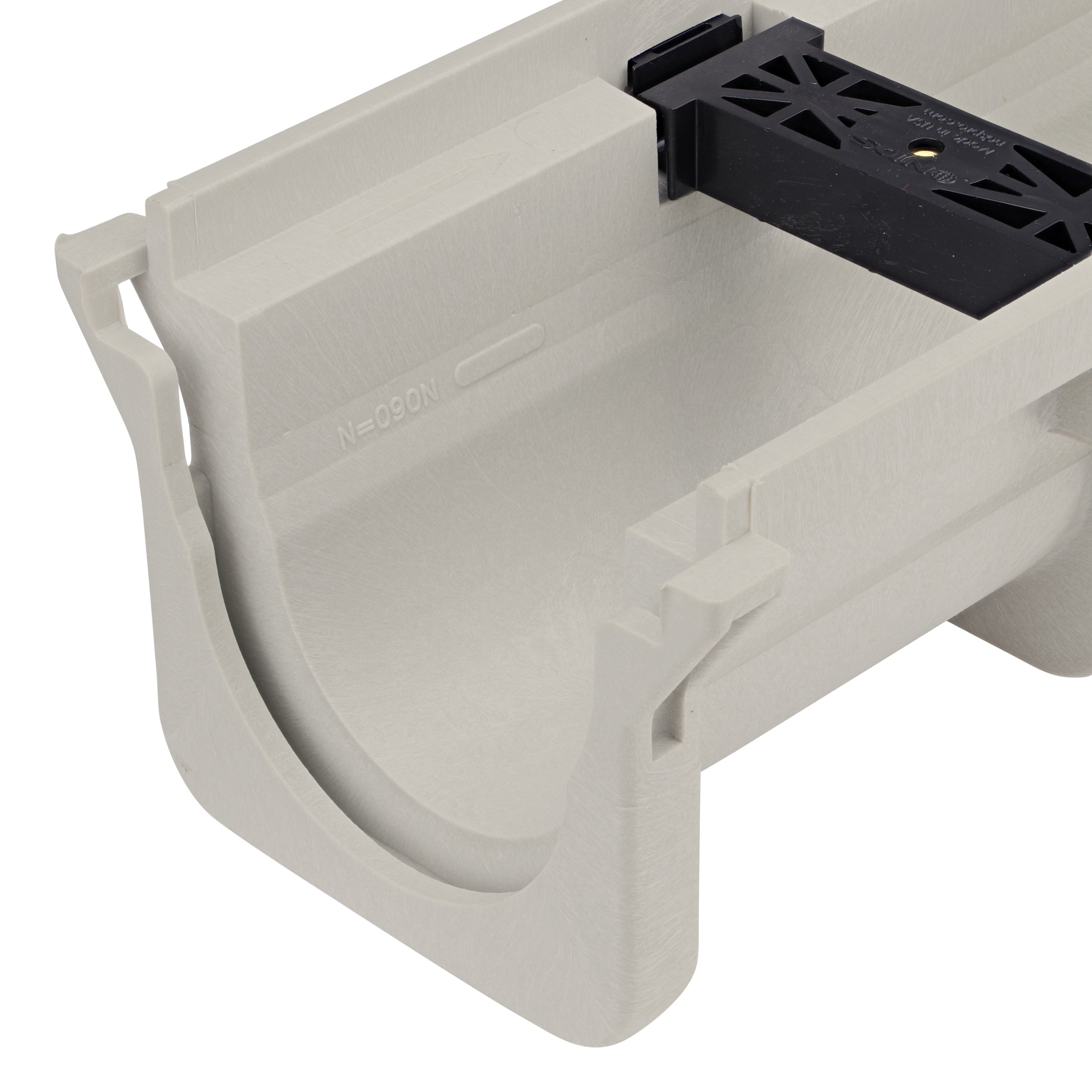

NDS DS-106 - Dura Slope Channel Drain (9.04" to 9.37" Deep)

NDS DS-106 - Dura Slope Channel Drain (9.04" to 9.37" Deep)

The NDS DS-106 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications.

Key Features:

• Durable, high-density polyethylene construction
• Pre-sloped channel for optimal water flow
• Modular design for easy installation and customization
• Compatible with various grate options

Installation Instructions:

1. Excavate a trench according to project specifications
2. Pour a concrete haunch around the perimeter
3. Install outlet pipe and connect to the drain system
4. Place and level channel sections, starting at the outlet
5. Connect sections using tongue-and-groove joints
6. Install grates and secure with locking mechanisms
7. Pour concrete around the channel, leaving grates exposed

Product Specifications:

• Channel width: 6 inches
• Channel length: 39.4 inches (1 meter)
• Slope: 0.6% built-in slope
• Load class: Suitable for pedestrian to light vehicle traffic
• Material: High-density polyethylene (HDPE)
• Available grate materials: Plastic, galvanized steel, stainless steel

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
