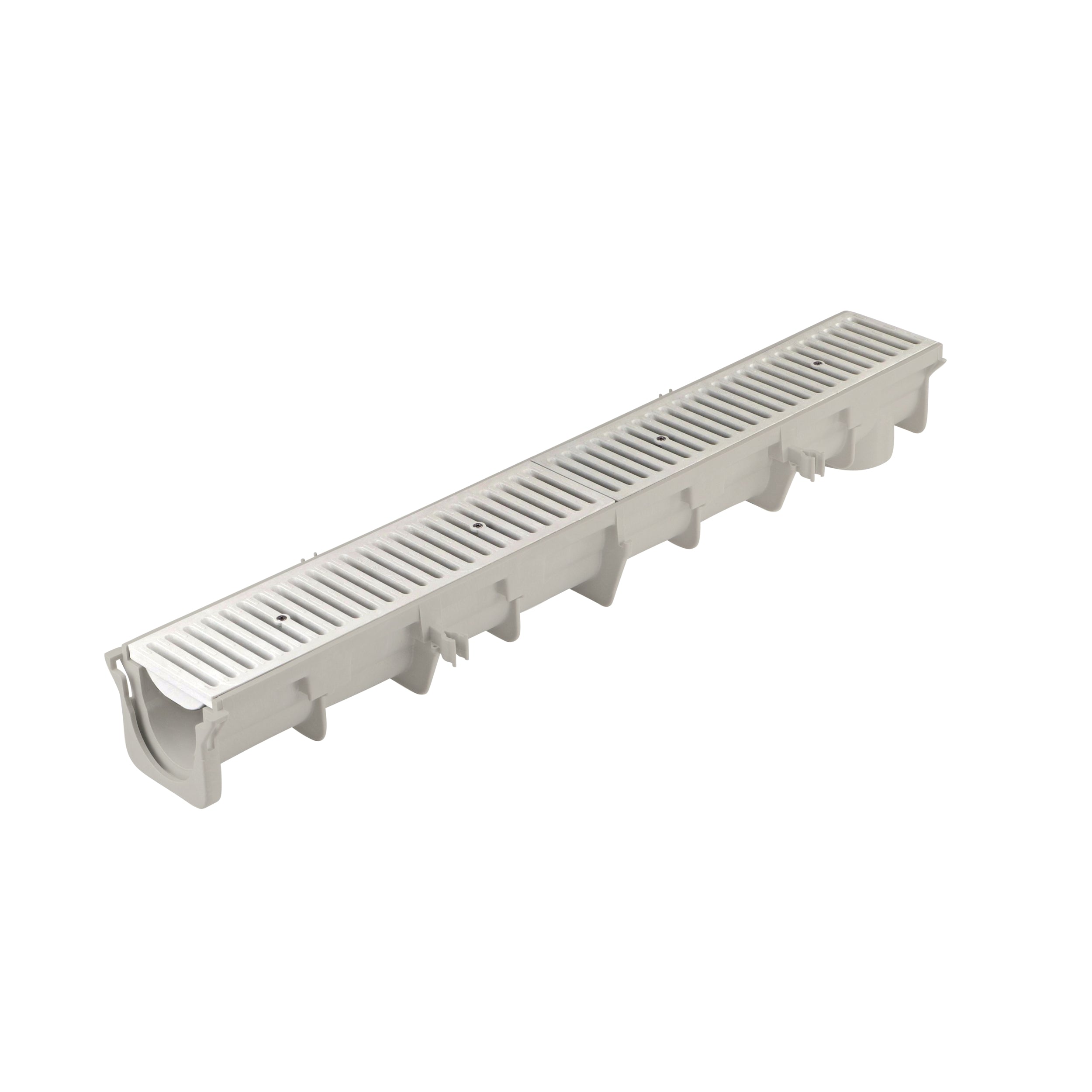

NDS DS-105 - Dura Slope Channel Drain (8.70" to 9.04" Deep)
The NDS DS-105 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This versatile channel drain offers superior strength, durability, and ease of installation.
Key Features:
- Pre-sloped channel for optimal water flow
- Modular design for easy customization
- Heavy-duty construction for various traffic ratings
- Compatible with multiple grate options
- UV-resistant material for long-lasting performance
Installation Instructions:
- Excavate a trench slightly wider than the channel and deep enough to accommodate the drain and required bedding.
- Pour a 2-3 inch concrete haunch around the sides and bottom of the trench.
- Begin laying channels from the outlet or lowest point, ensuring proper alignment and slope.
- Connect subsequent channels using the interlocking end connections.
- Install end caps and outlet adapters as needed.
- Backfill around the channels with concrete, leaving space for the final surface material.
- Install grates and secure them according to the manufacturer's instructions.
- Complete the surrounding surface installation, ensuring it's slightly higher than the grate for proper drainage.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Channel length: 39.4 inches (1 meter)
- Channel width: 5.4 inches (137 mm)
- Channel depth: 5.9 inches (150 mm)
- Pre-sloped design: 0.6% built-in slope
- Load class: Up to Class C (when installed with appropriate grates)
- Chemical resistance: Excellent resistance to most chemicals
- UV resistance: Yes
- Freeze-thaw cycle resistance: Excellent
- Compressive strength: 14,500 psi
- Flow rate: Up to 17.5 gallons per minute (varies based on installation and grate selection)
The NDS DS-105 Dura Slope Channel Drain is an ideal solution for effective surface water management, suitable for driveways, parking lots, patios, and other areas requiring reliable drainage. Its durable construction and versatile design make it a top choice for both professionals and DIY enthusiasts.
