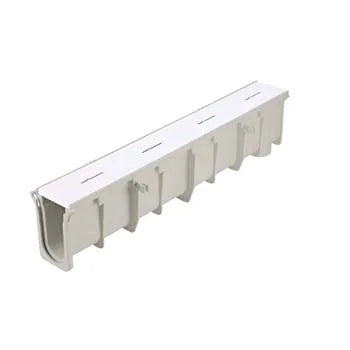

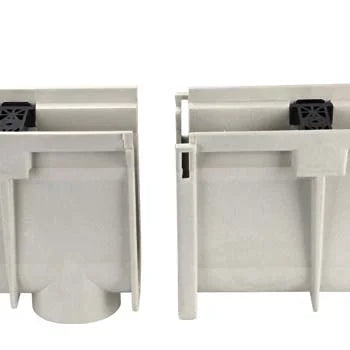

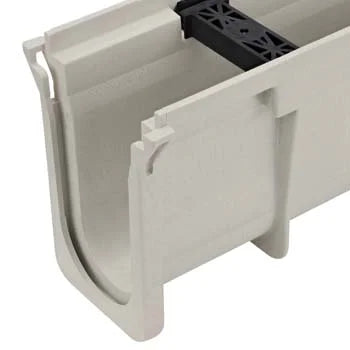

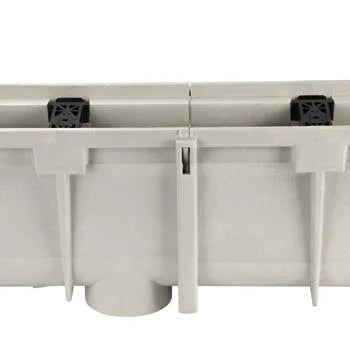

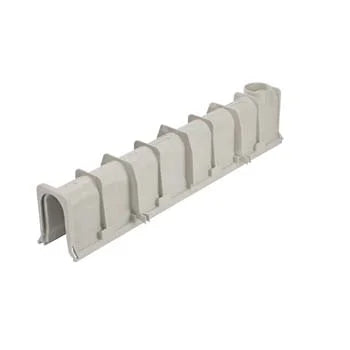

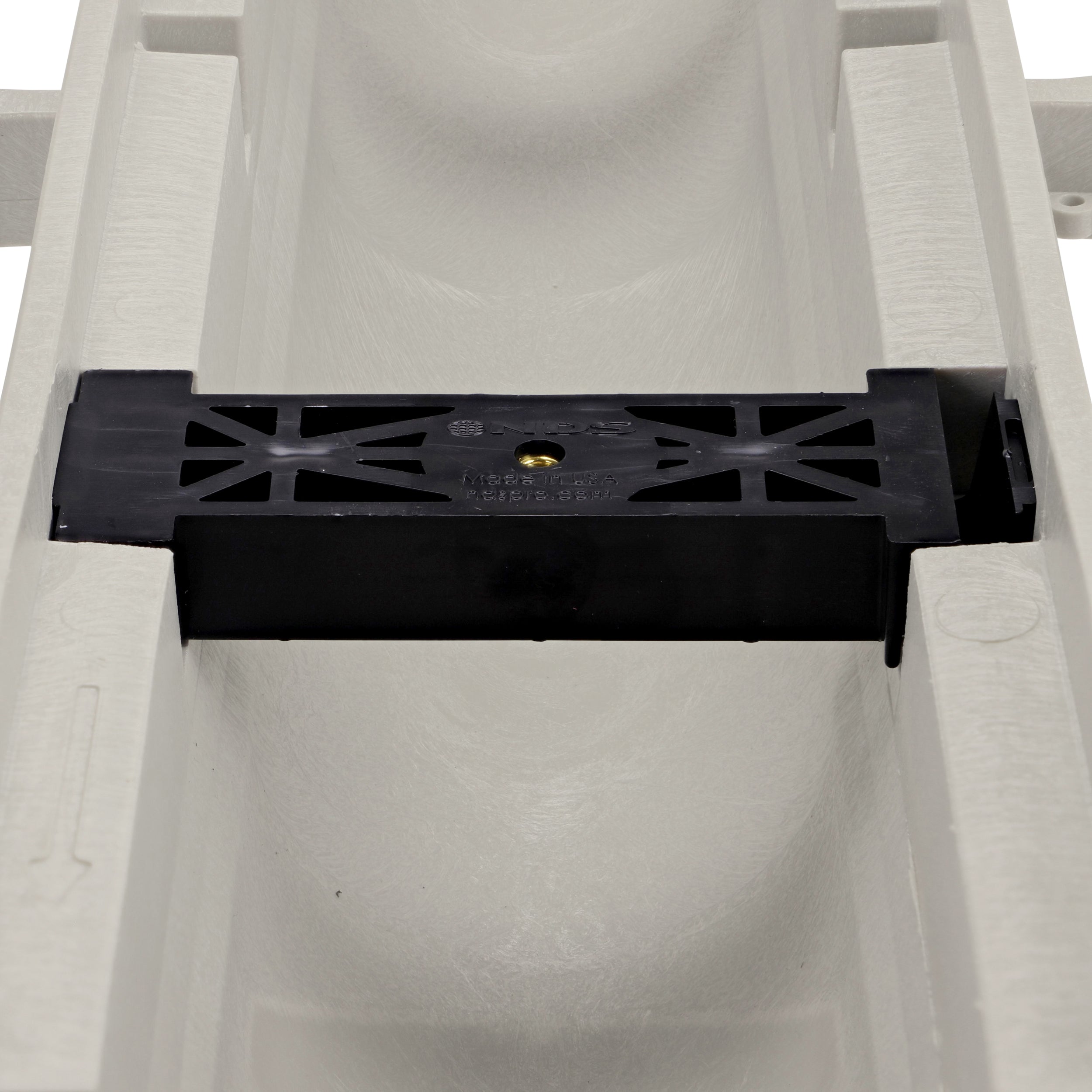

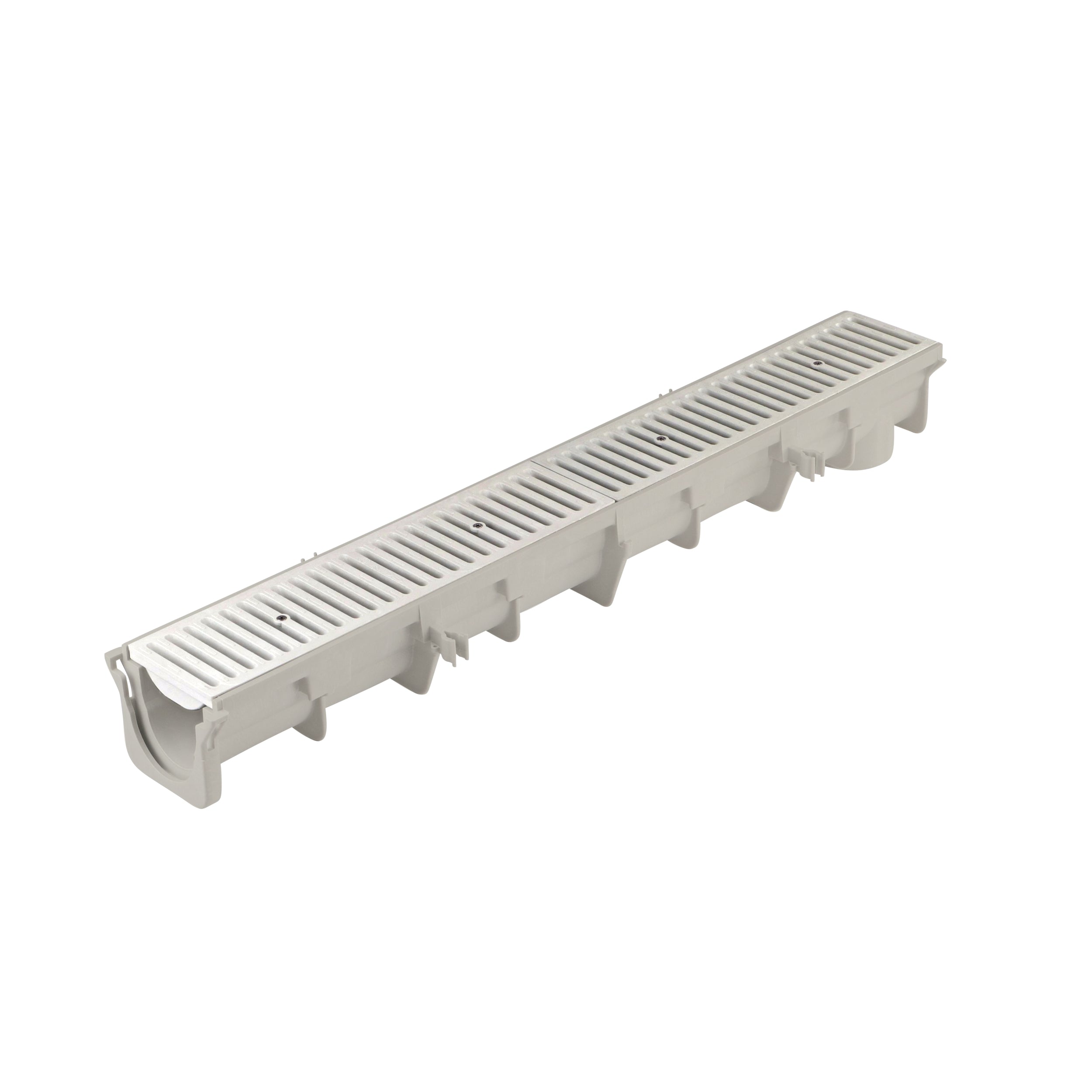

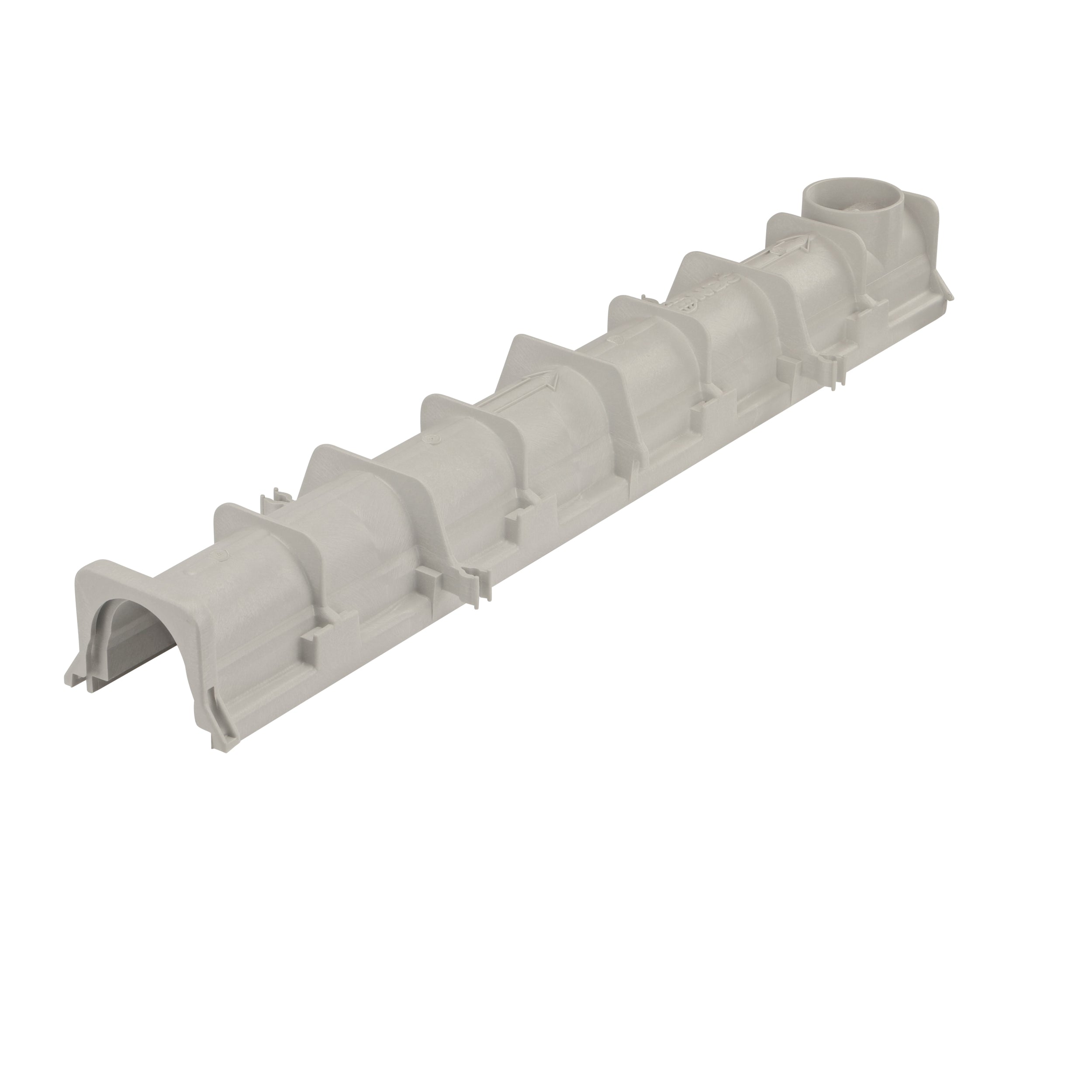

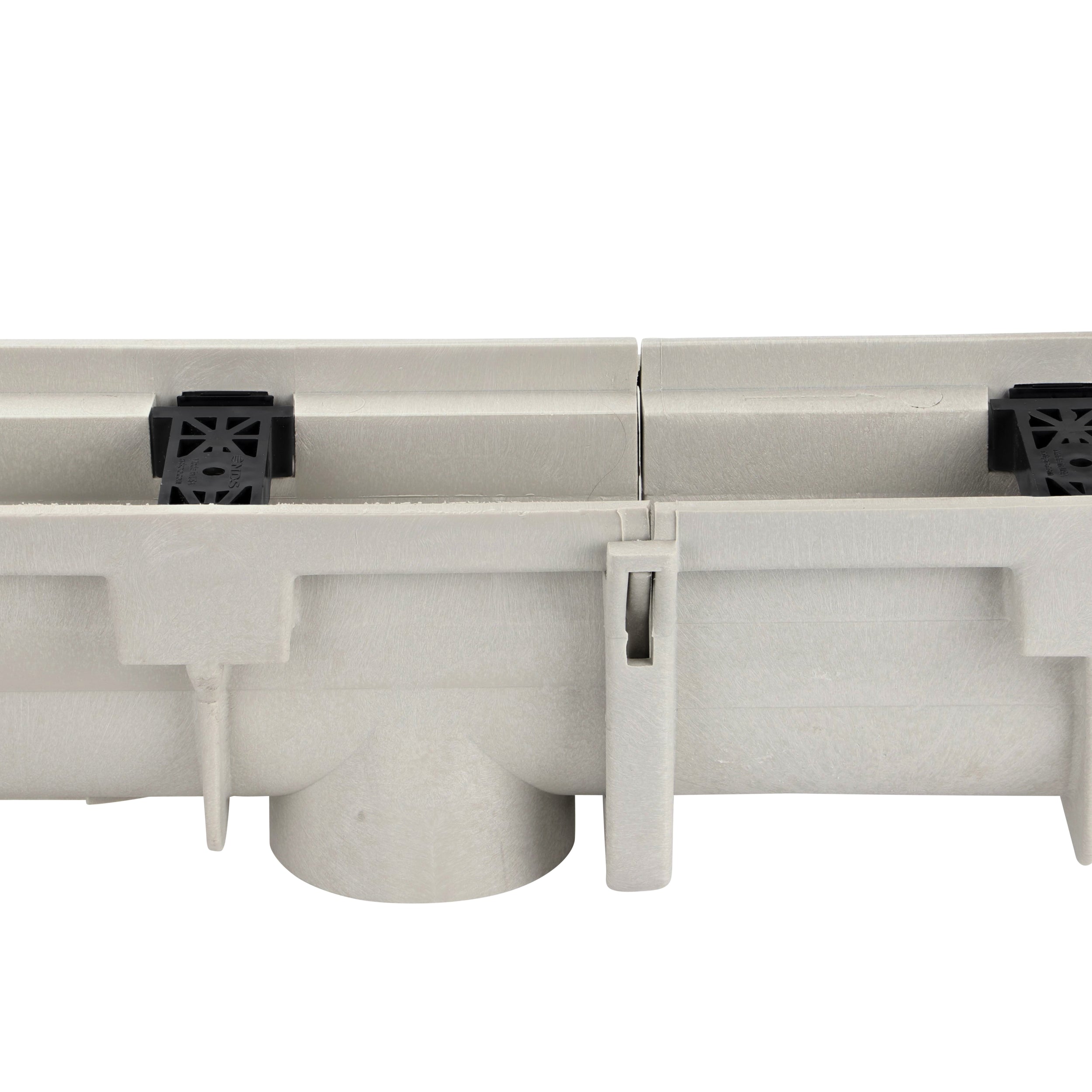

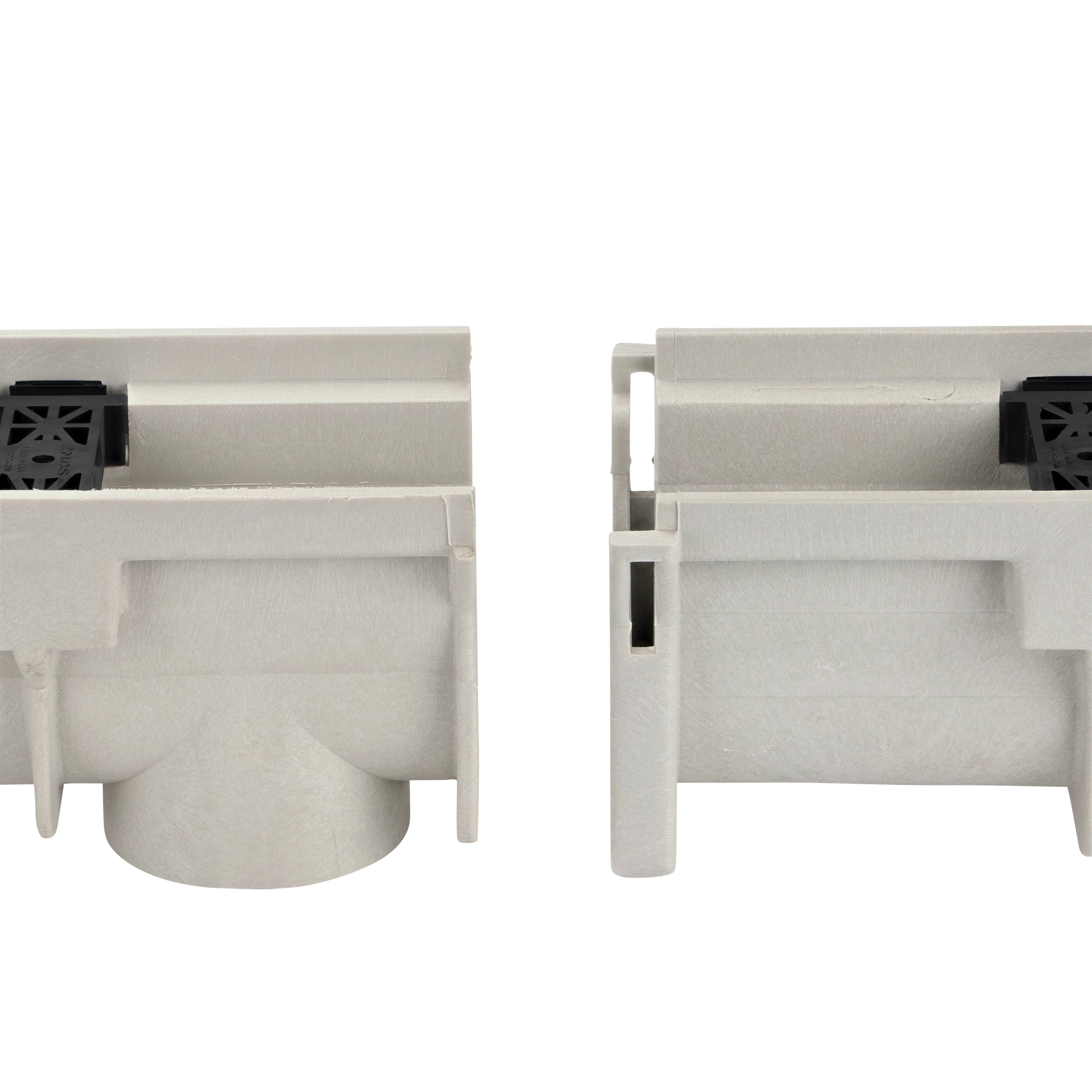

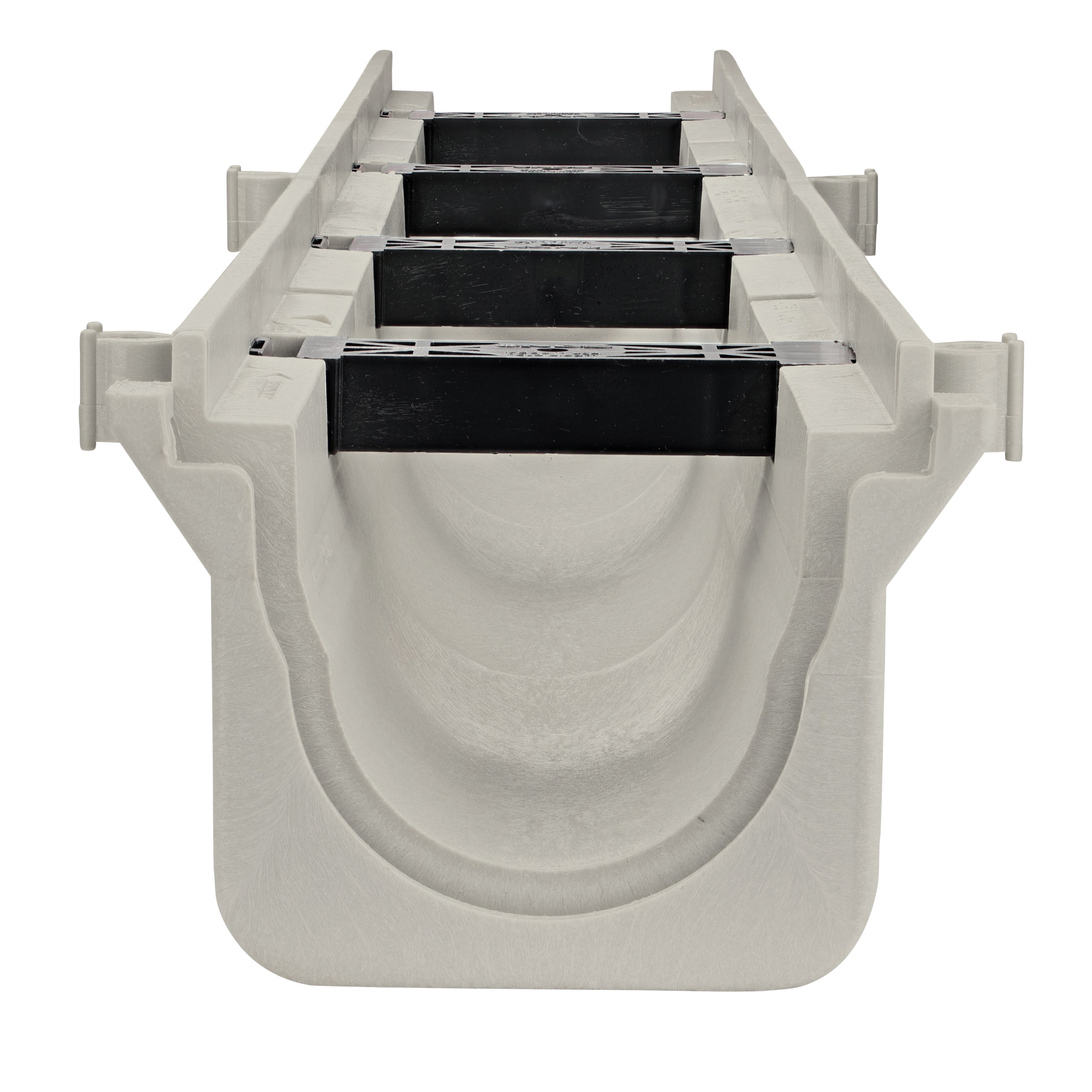

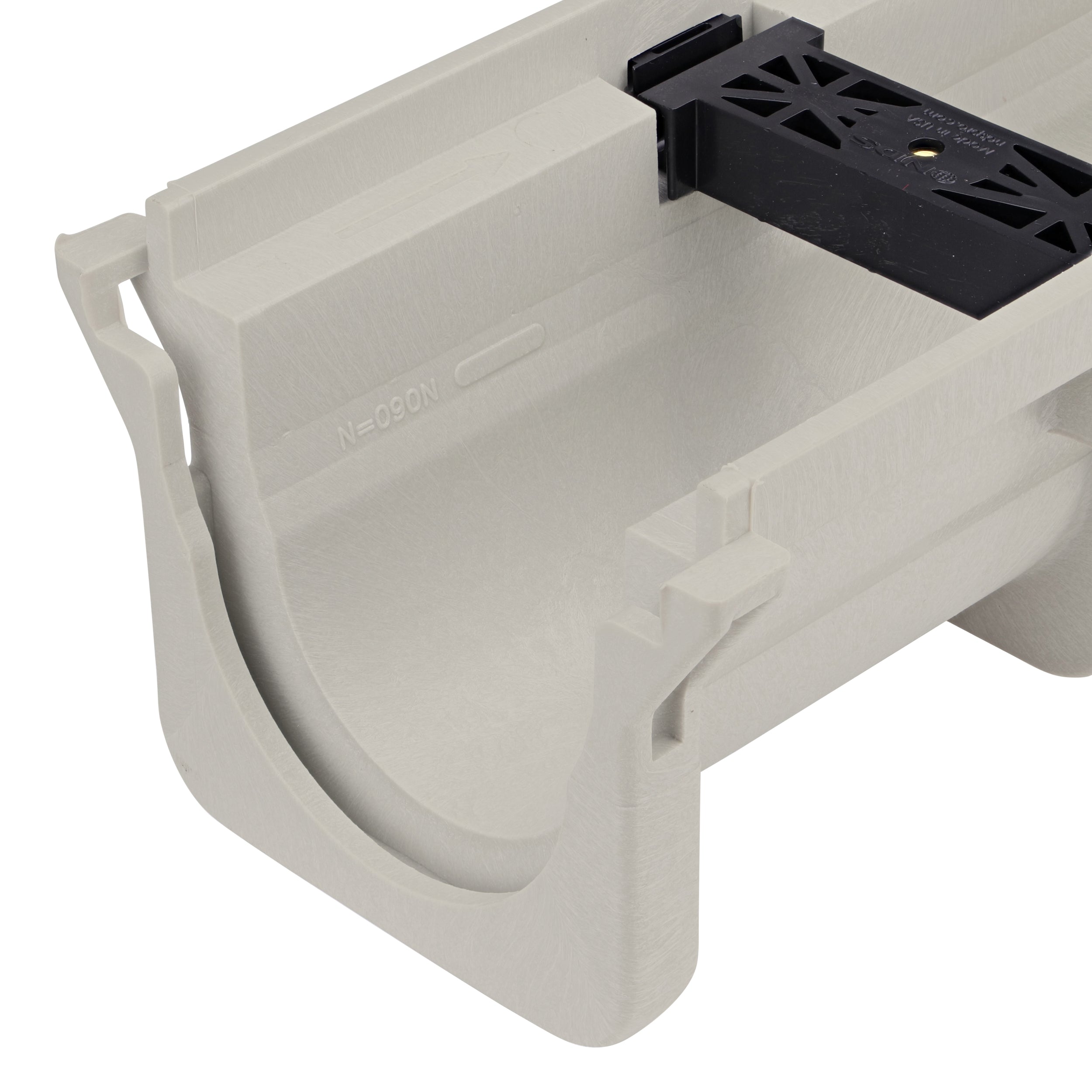

NDS DS-104 - Dura Slope Channel Drain (8.37" to 8.70" Deep)

The NDS DS-104 Dura Slope Channel Drain is a high-performance, pre-sloped trench drain system designed for efficient water management in residential, commercial, and industrial applications. This innovative drainage solution offers superior strength, durability, and ease of installation.

Key Features:

  • Pre-sloped channel for optimal water flow
  • Modular design for versatile installation
  • High-density polyethylene construction
  • UV-resistant for long-lasting performance
  • Available in various grate options

Installation Instructions:

  1. Excavate a trench according to project specifications, allowing for proper depth and width.
  2. Pour a concrete haunch around the perimeter of the trench.
  3. Begin installing channel sections starting from the outlet or lowest point.
  4. Connect subsequent sections using the interlocking joint system.
  5. Secure channels in place using rebar stakes through pre-molded holes.
  6. Install end caps and outlet adapters as needed.
  7. Pour concrete around the channel, ensuring it's level with the top edge.
  8. Once concrete has cured, install the selected grates.

Product Specifications:

  • Material: High-density polyethylene (HDPE)
  • Channel width: 4 inches (10.16 cm)
  • Channel length: 39.4 inches (1 meter) per section
  • Slope: 0.6% built-in slope
  • Load class: Suitable for pedestrian to light vehicle traffic (Class A)
  • Chemical resistance: Excellent resistance to most chemicals
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Compressive strength: Up to 1,162 psi (8 MPa)
  • Grate options: Plastic, galvanized steel, or stainless steel

The NDS DS-104 Dura Slope Channel Drain offers a reliable and efficient solution for managing surface water runoff. Its durable construction and easy installation make it an ideal choice for a wide range of drainage applications.

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
