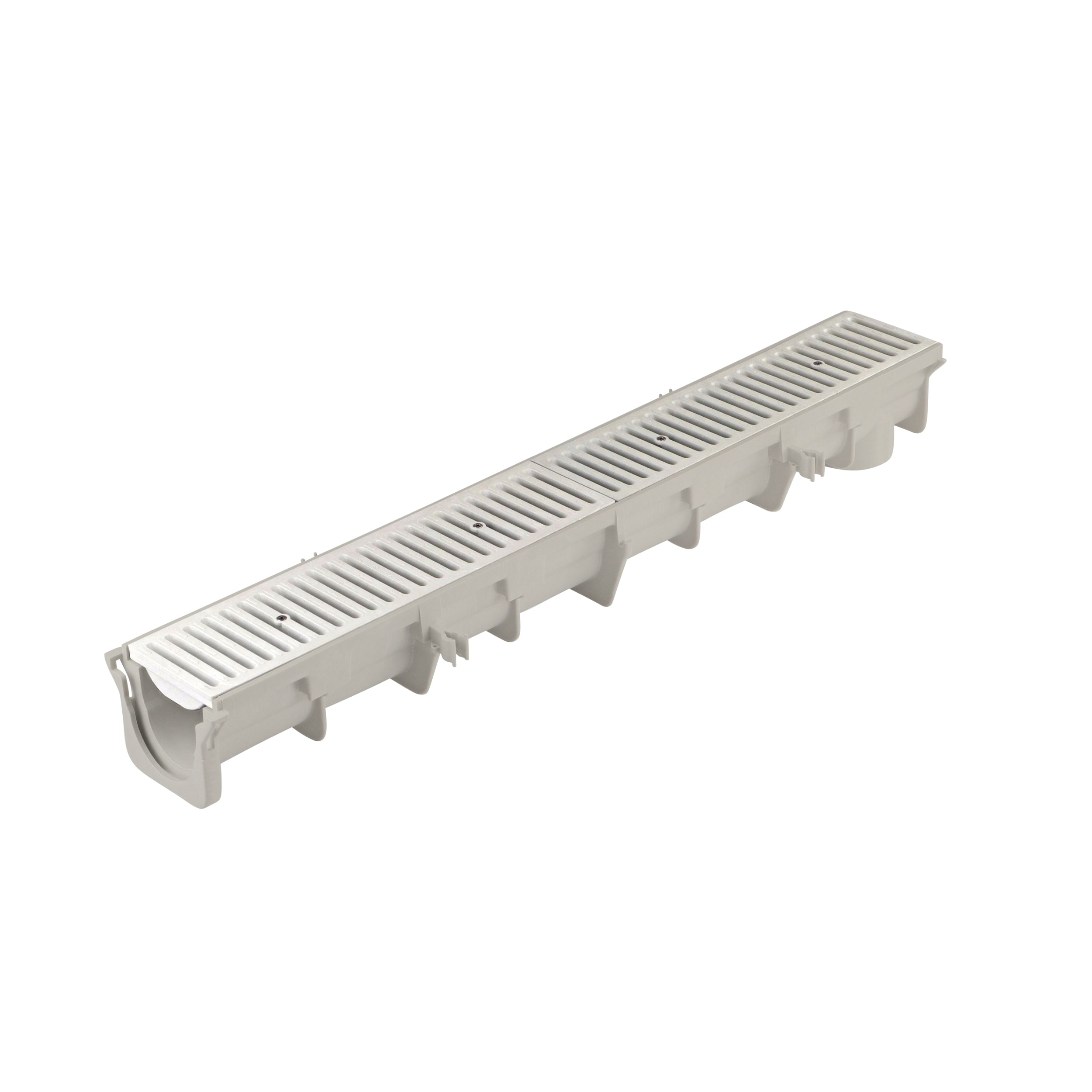

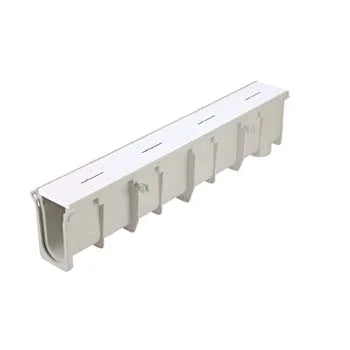

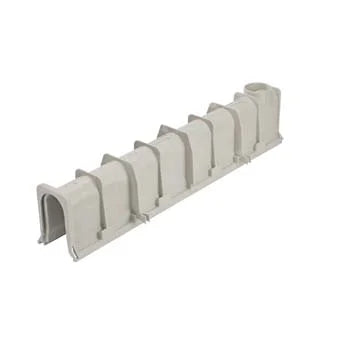

NDS DS-103N - Neutral Dura Slope Channel Drain (Neutral Slope)
The NDS DS-103N Neutral Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential and commercial applications. This innovative channel drain system offers superior durability, easy installation, and excellent flow capacity.
Key Features:
- Pre-sloped channel for optimal water flow
- Neutral sand color blends seamlessly with surroundings
- Durable, chemical-resistant polypropylene construction
- Interlocking design for easy installation
- Compatible with various grate options

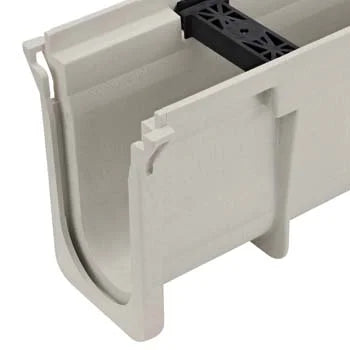

Product Specifications:
- Material: Polypropylene
- Color: Neutral sand
- Length: 39.4 inches (1 meter)
- Width: 5.4 inches
- Height: 4.3 inches (inlet) to 5.1 inches (outlet)
- Slope: 0.6% built-in slope
- Load class: Pedestrian to light vehicle traffic (when used with appropriate grates)
- Flow rate: Up to 11.3 gallons per minute
Installation Instructions:
- Excavation:
- Dig a trench 8 inches wider than the channel and at least 4 inches deeper than the overall height of the system.
- Ensure proper slope for water drainage.
- Base preparation:
- Pour a 4-inch concrete base in the trench.
- Allow concrete to set before proceeding.

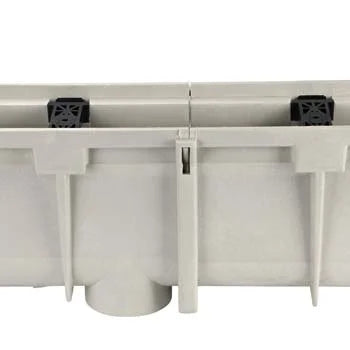

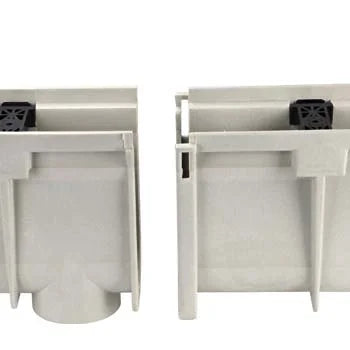

- Channel placement:
- Start at the outlet end and work upslope.
- Connect channels using the interlocking system.
- Ensure proper alignment and leveling.
- Concrete backfill:
- Pour concrete around the sides of the channel, leaving the top 1/8 inch below the final surface level.
- Use temporary bracing to prevent channel deformation during concrete pour.
- Grate installation:
- Once concrete has cured, remove temporary bracing.
- Install chosen grates according to manufacturer instructions.
- Final touches:
- Complete surrounding surface installation (pavers, concrete, asphalt, etc.).
- Ensure proper drainage slope away from the channel.
The NDS DS-103N Neutral Dura Slope Channel Drain is ideal for driveways, patios, pool decks, and other areas requiring efficient surface water management. Its pre-sloped design and durable construction make it a reliable solution for both residential and light commercial applications.
