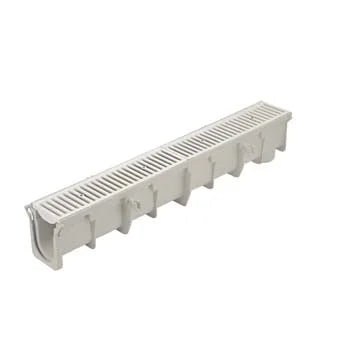

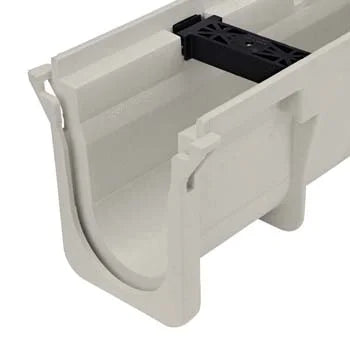

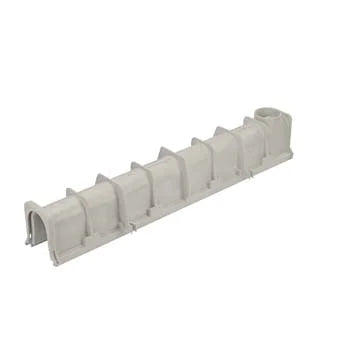

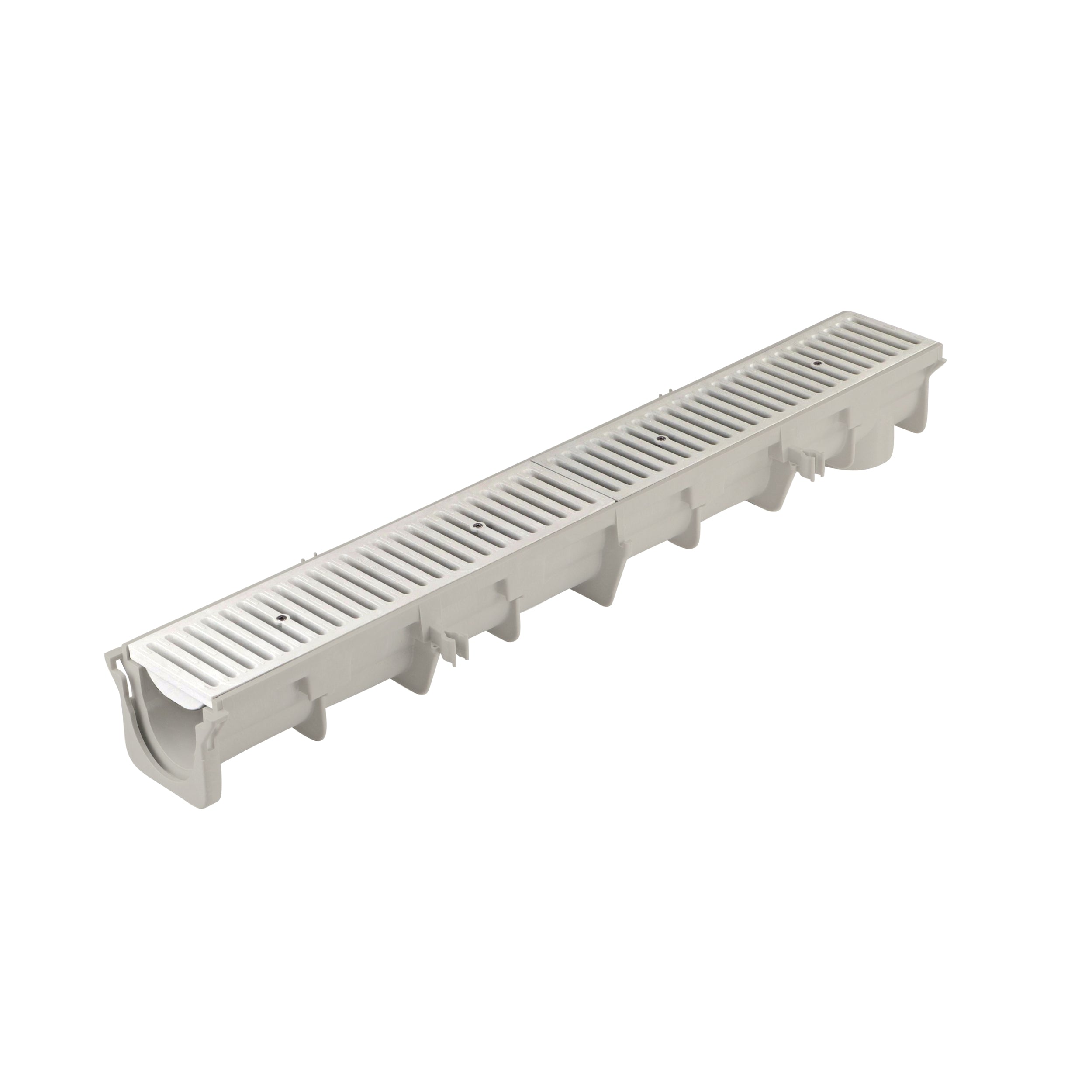

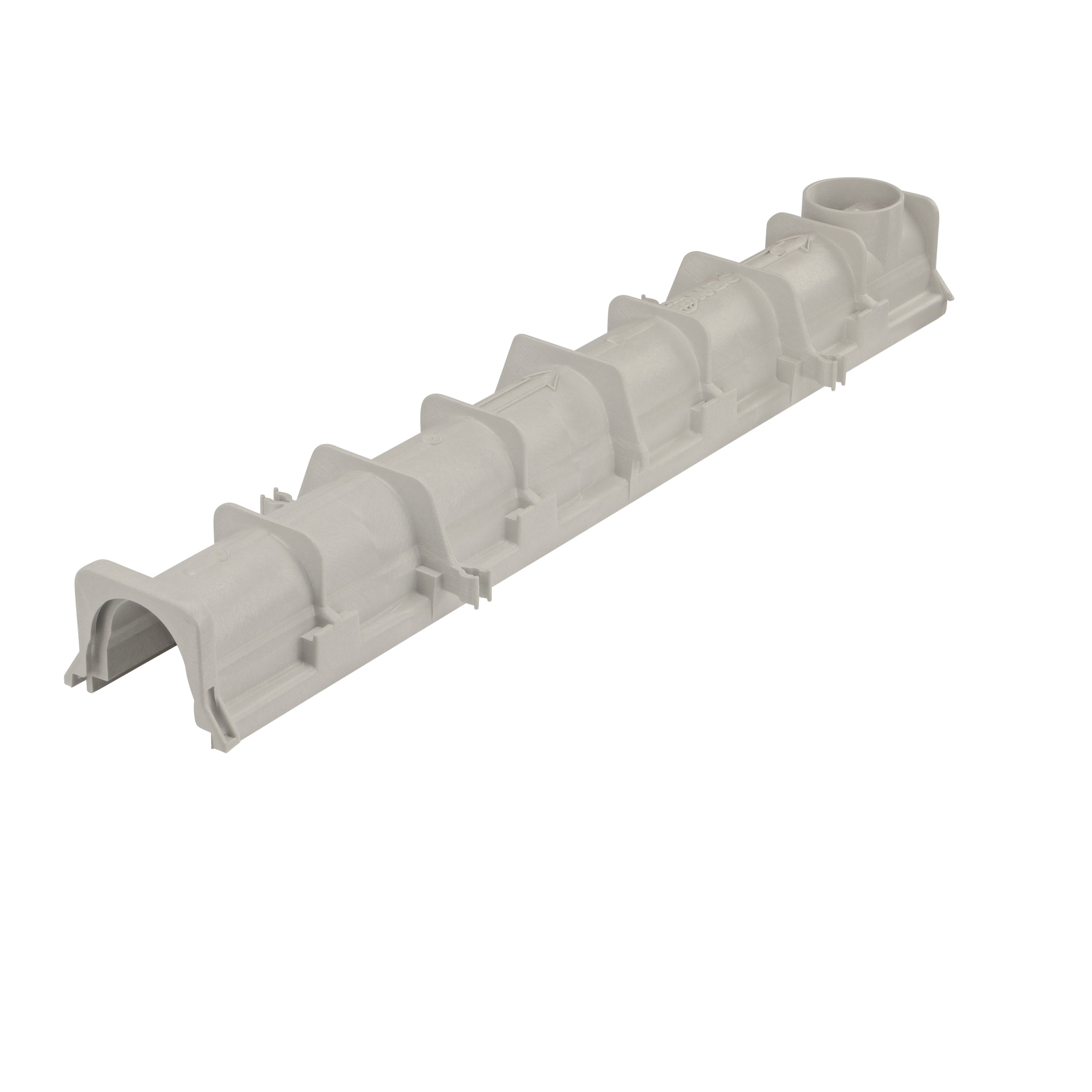

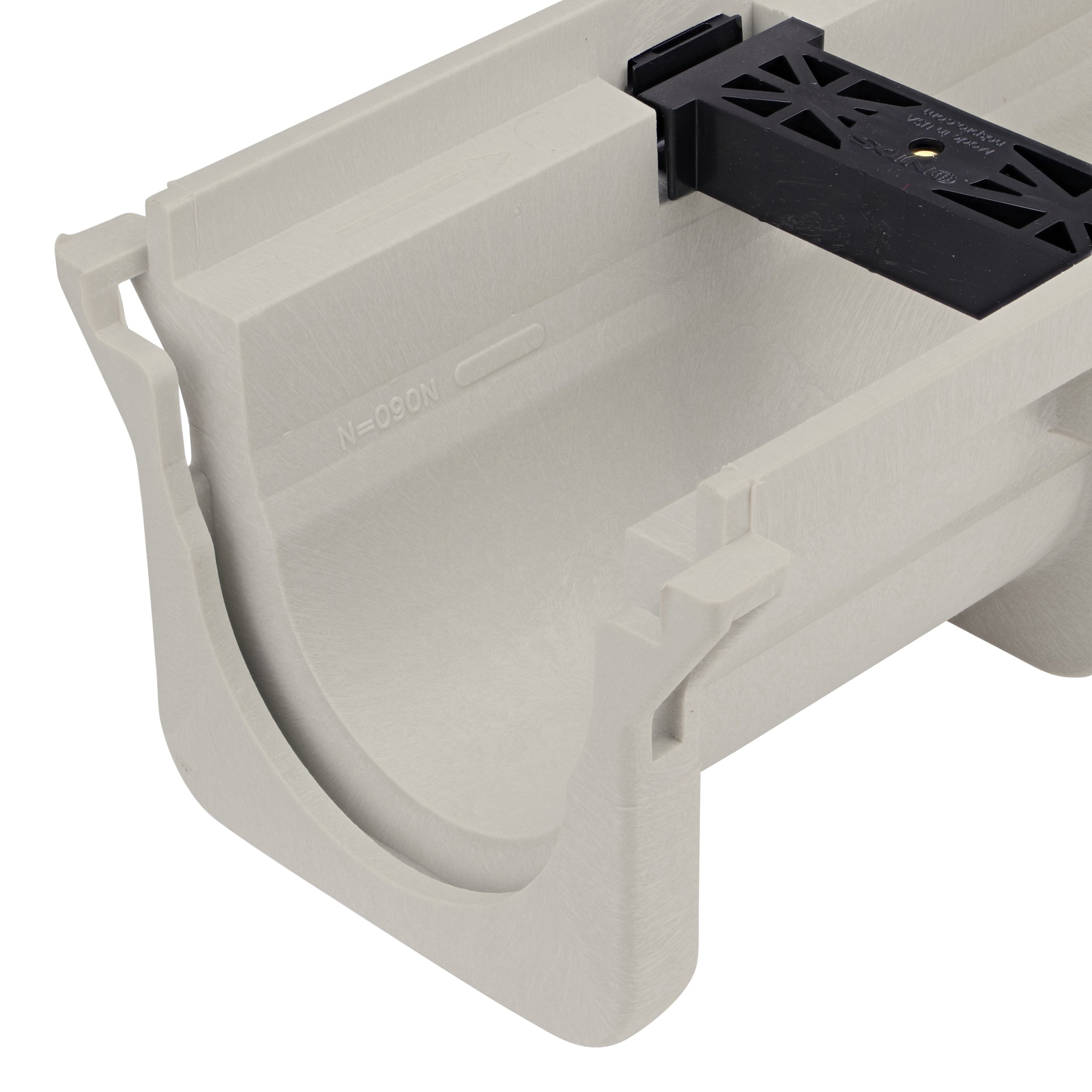

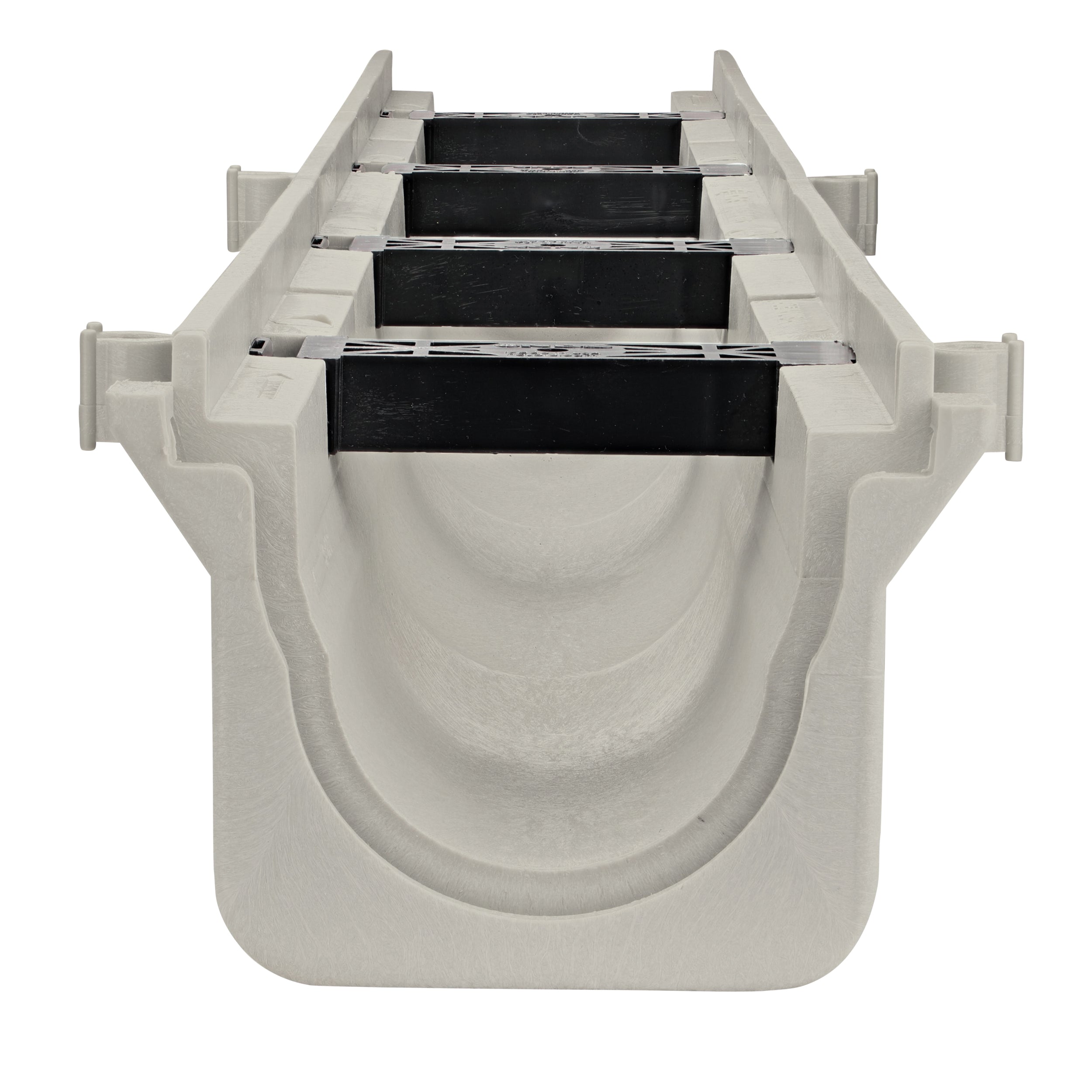

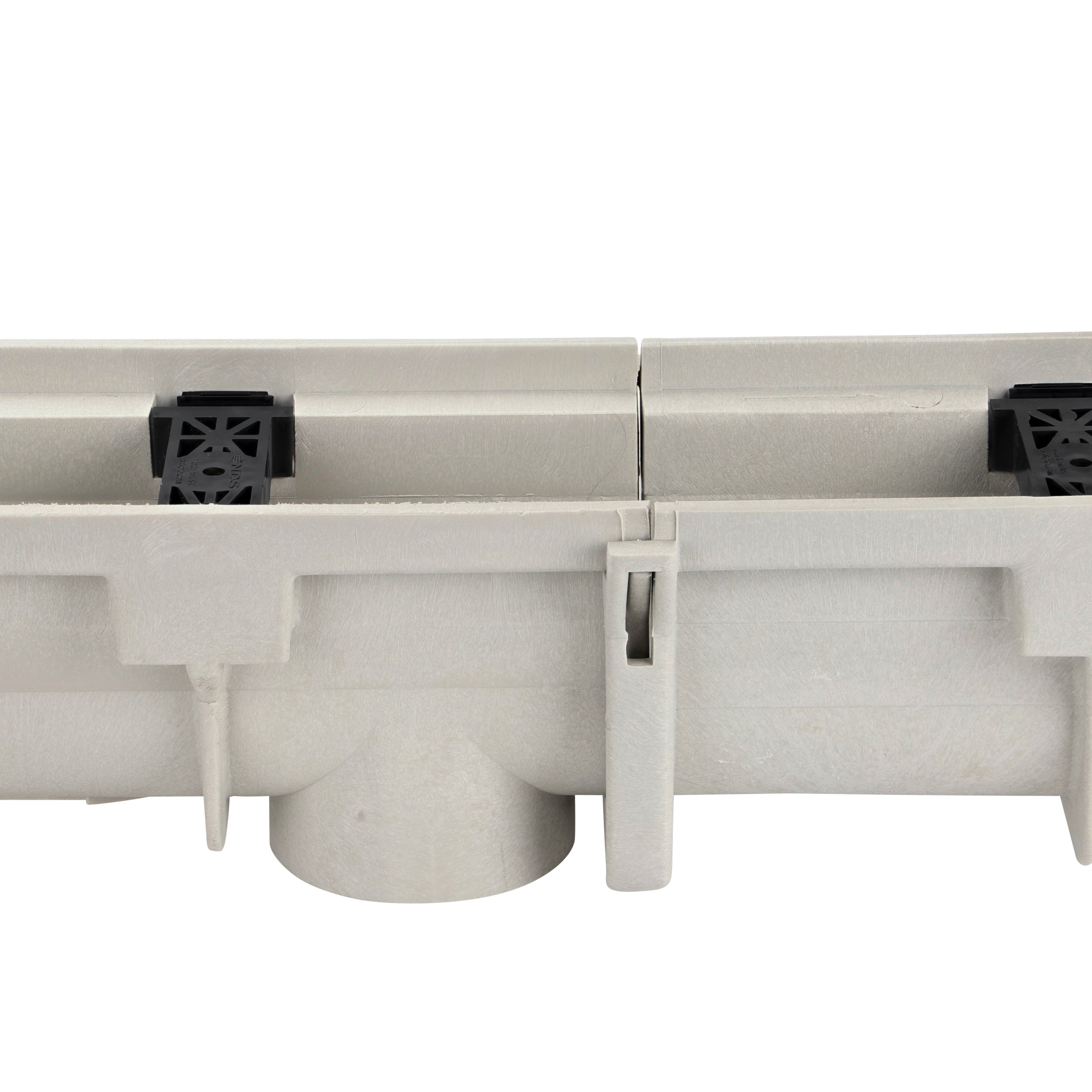

NDS DS-103 - Dura Slope Channel Drain (8.03" to 8.37" Deep)

Price
$149.60
Taxes and shipping calculated at checkout

Frequently Bought Together

In stock and ready for shipping

Product Information

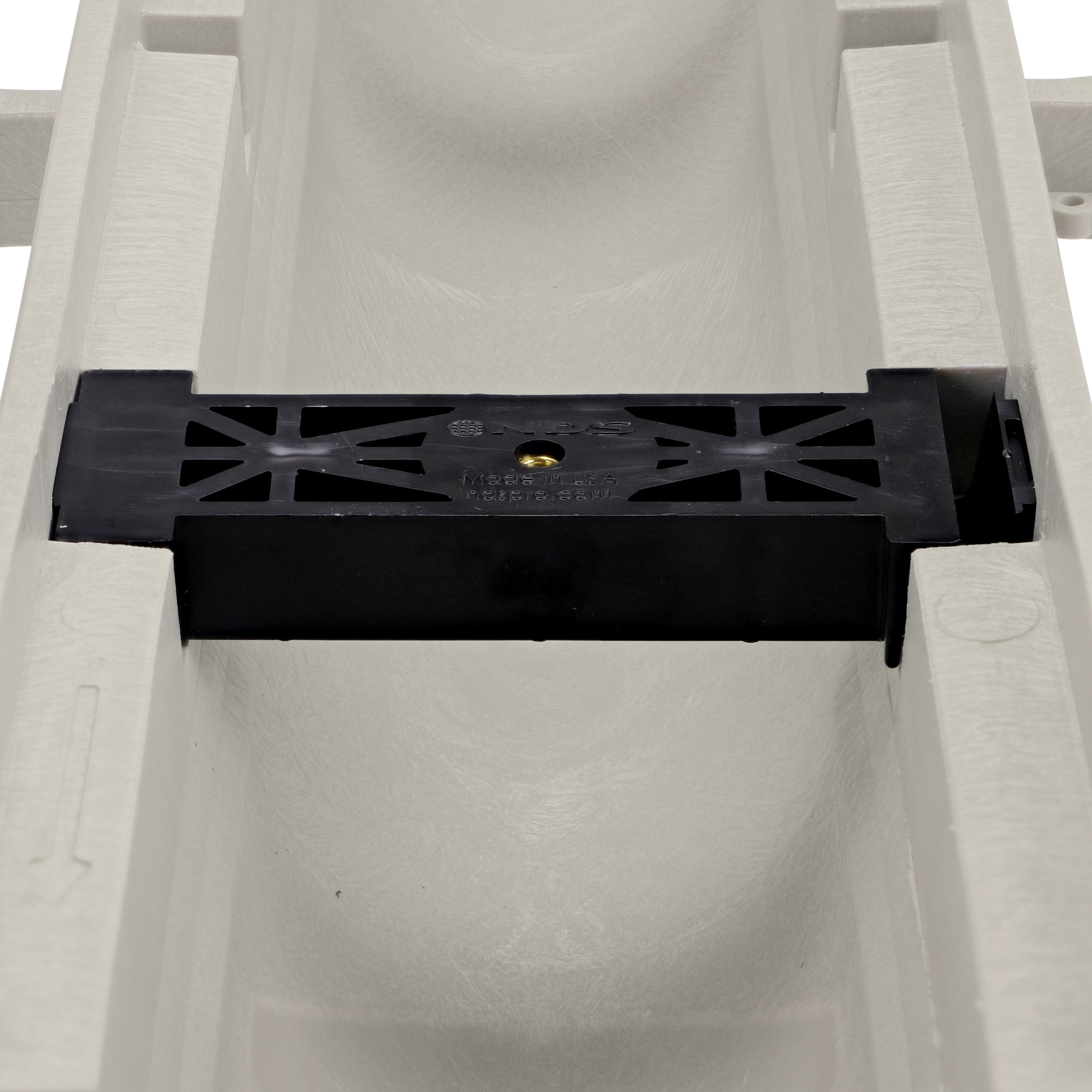

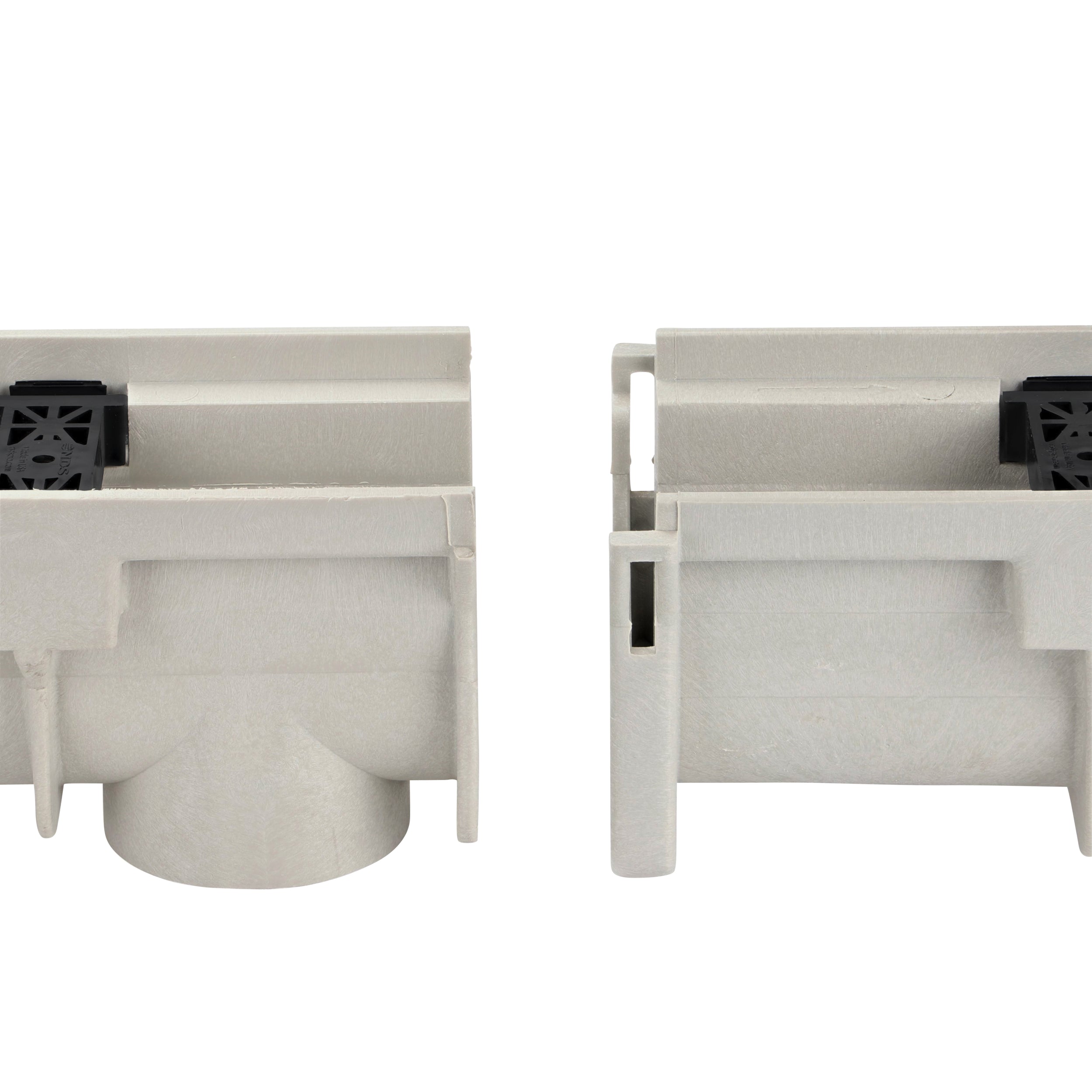

NDS DS-103 - Dura Slope Channel Drain (8.03" to 8.37" Deep)

The NDS DS-103 Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications. This durable and versatile channel drain system effectively collects and diverts surface water, preventing flooding and water damage.

Key Features:

  • Pre-sloped channel for optimal water flow
  • Modular design for easy installation and customization
  • High-strength polymer construction
  • UV-resistant material for long-lasting performance
  • Compatible with various grate options

Installation Instructions:

  1. Excavate a trench according to project specifications, allowing for proper depth and width.
  2. Pour a concrete haunch around the perimeter of the trench.
  3. Install the outlet adapter at the lowest point of the drain run.
  4. Connect channel sections, ensuring proper alignment and slope.
  5. Secure channels in place with concrete backfill.
  6. Install grates and secure them with locking mechanisms.
  7. Complete final grading, ensuring surrounding surfaces are slightly higher than the drain.

Product Specifications:

  • Material: High-density polyethylene (HDPE)
  • Channel length: 39.4 inches (1 meter)
  • Channel width: 4.8 inches (122 mm)
  • Load class: A-C (depending on grate selection)
  • Flow rate: Up to 31 GPM (117 LPM) per channel
  • Slope: 0.6% built-in slope
  • Chemical resistance: Excellent
  • Temperature range: -22°F to 180°F (-30°C to 82°C)
  • Compliance: Meets ASTM D1248 and ASTM F2418

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
