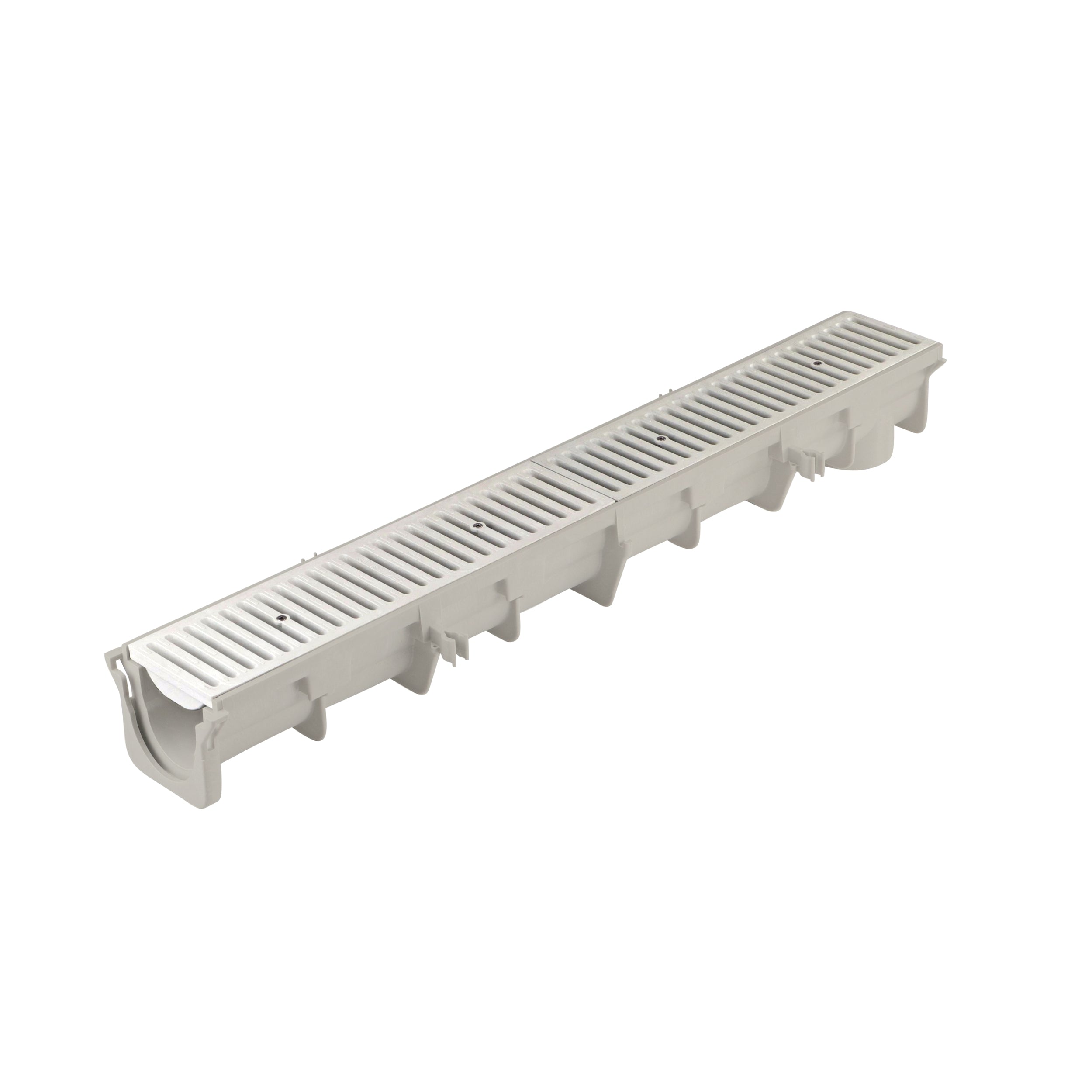

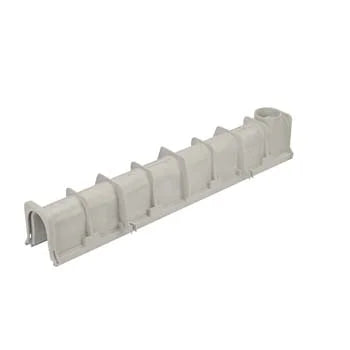

NDS DS-102 - Dura Slope Channel Drain (7.69" to 8.03" Deep)

Price
$149.60
Taxes and shipping calculated at checkout

Frequently Bought Together

In stock and ready for shipping

Product Information

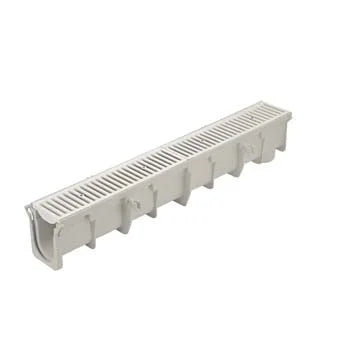

NDS DS-102 - Dura Slope Channel Drain (7.69" to 8.03" Deep)

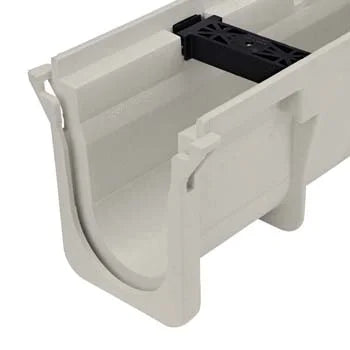

The NDS DS-102 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This innovative solution offers superior durability, easy installation, and excellent hydraulic performance.

Key Features:

  • Pre-sloped channel for optimal water flow
  • Modular design for versatile installation
  • High-strength polymer construction
  • Compatible with various grate options
  • Suitable for pedestrian to light vehicle traffic

Product Specifications:

  • Material: High-density polyethylene (HDPE)
  • Channel length: 39.4 inches (1 meter)
  • Channel width: 4 inches (102 mm)
  • Pre-sloped gradient: 0.6%
  • Load class: A15 (up to 3,372 lbs)
  • Flow rate: Up to 21 gallons per minute
  • Compressive strength: 14,500 psi
  • UV resistant and chemical resistant

Installation Instructions:

  1. Excavation:
    • Dig a trench 6 inches wider than the channel on each side and deep enough to accommodate the channel, concrete, and desired finish grade.
  2. Prepare the base:
    • Pour a 4-inch thick concrete base in the trench and level it.
  3. Channel placement:
    • Start at the outlet and work upstream.
    • Connect channels using the built-in male/female connections.
    • Ensure proper alignment and slope.
  4. Rebar installation:
    • Install #3 rebar on both sides of the channel, 6 inches on center.
  5. Concrete backfill:
    • Pour concrete around the sides of the channel, leaving 1/8 inch below the top for the grate.
    • Ensure concrete is flush with the channel's outer wall.
  6. Grate installation:
    • Once concrete has cured, snap the selected grates into place.
  7. Final touches:
    • Install end caps and outlet connections as needed.
    • Finish the surrounding surface to the desired grade.

The NDS DS-102 Dura Slope Channel Drain offers a reliable and efficient drainage solution for various applications. Its pre-sloped design and easy installation make it an excellent choice for contractors and DIY enthusiasts alike.

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
