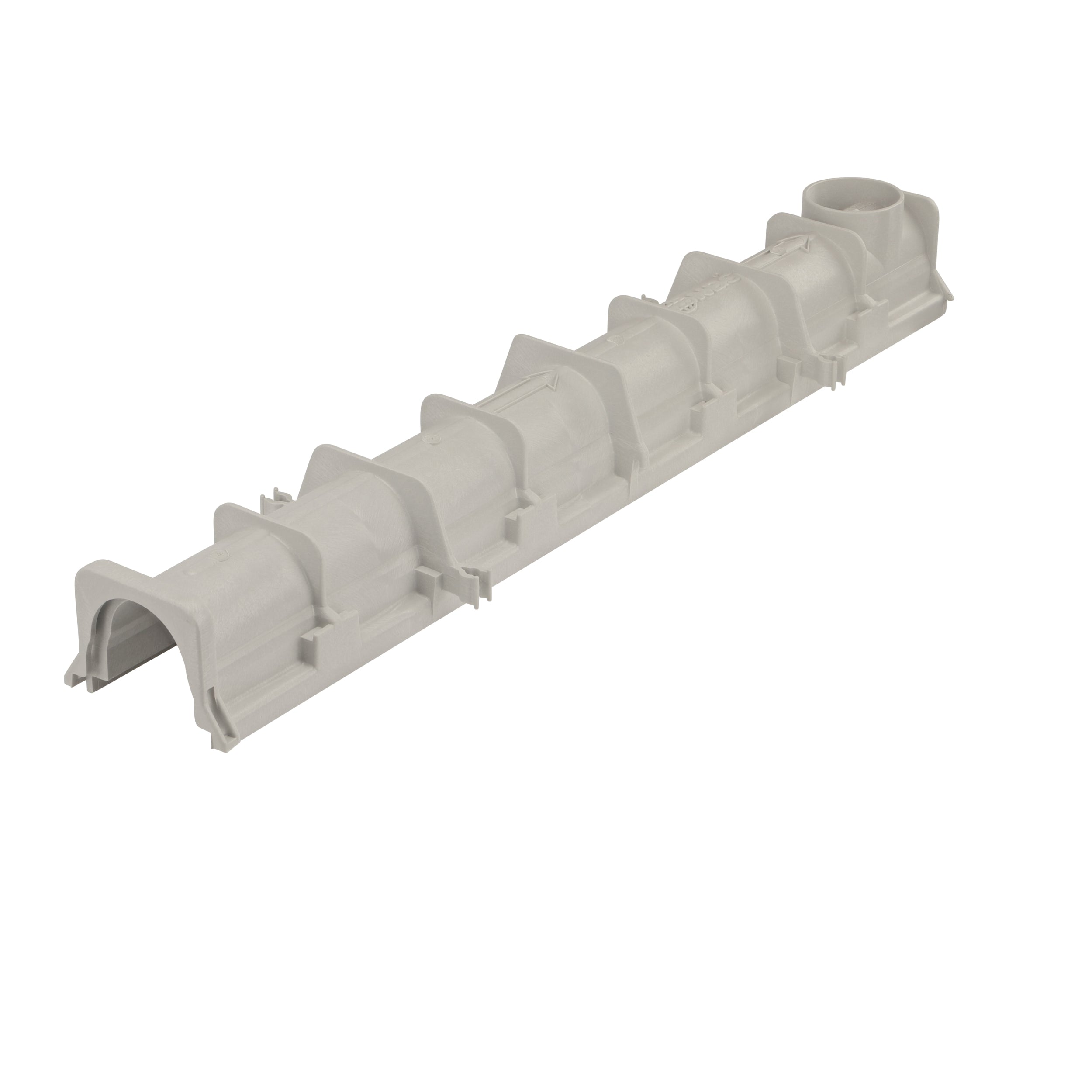

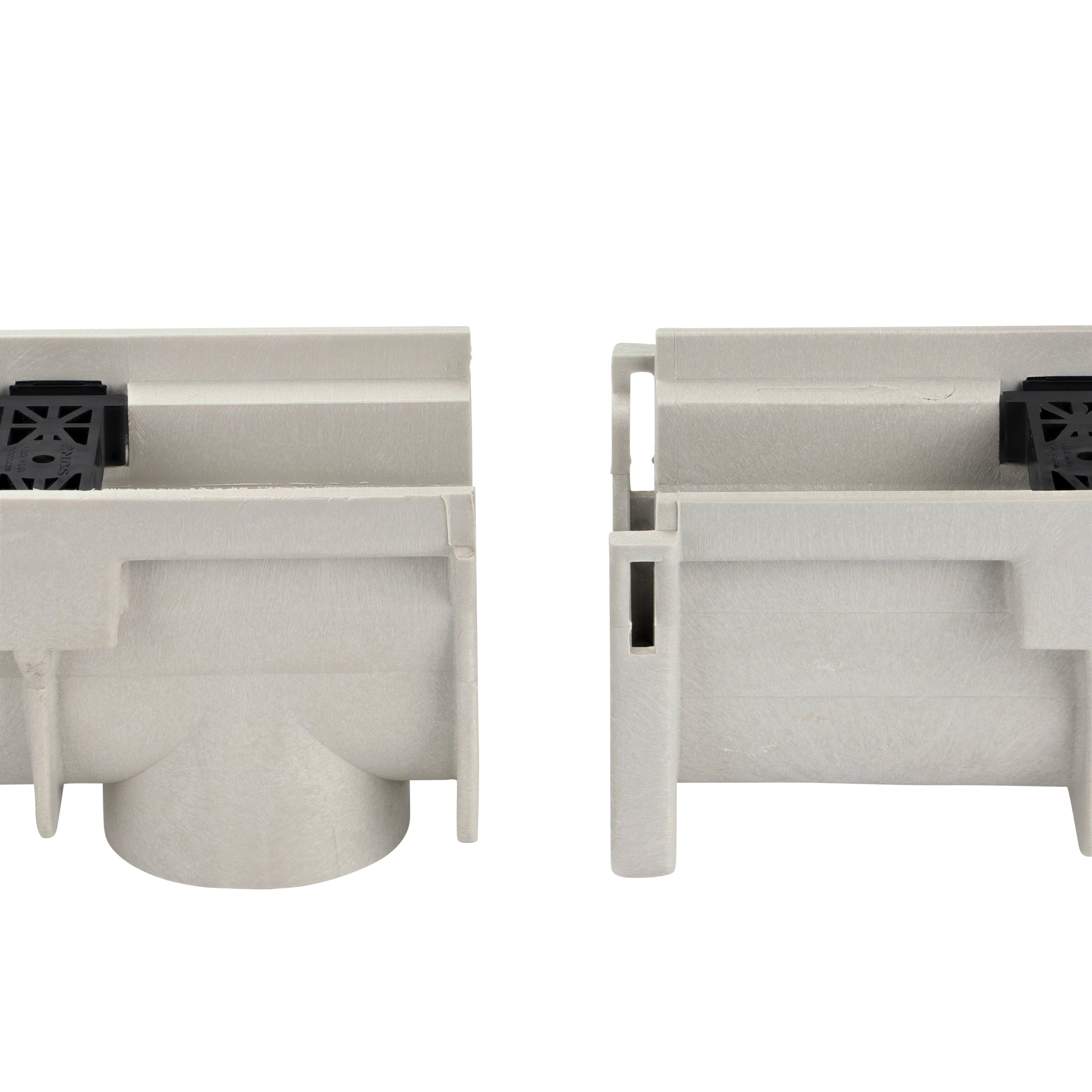

NDS DS-101 - Dura Slope Channel Drain (7.36" to 7.69" Deep)

Price
$149.60
Taxes and shipping calculated at checkout

Frequently Bought Together

In stock and ready for shipping

Product Information

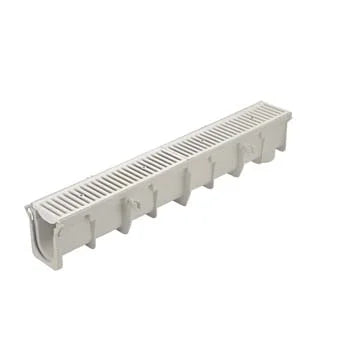

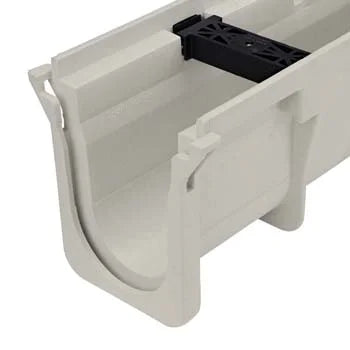

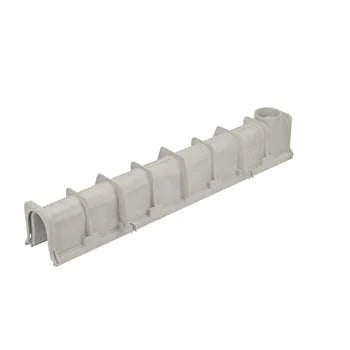

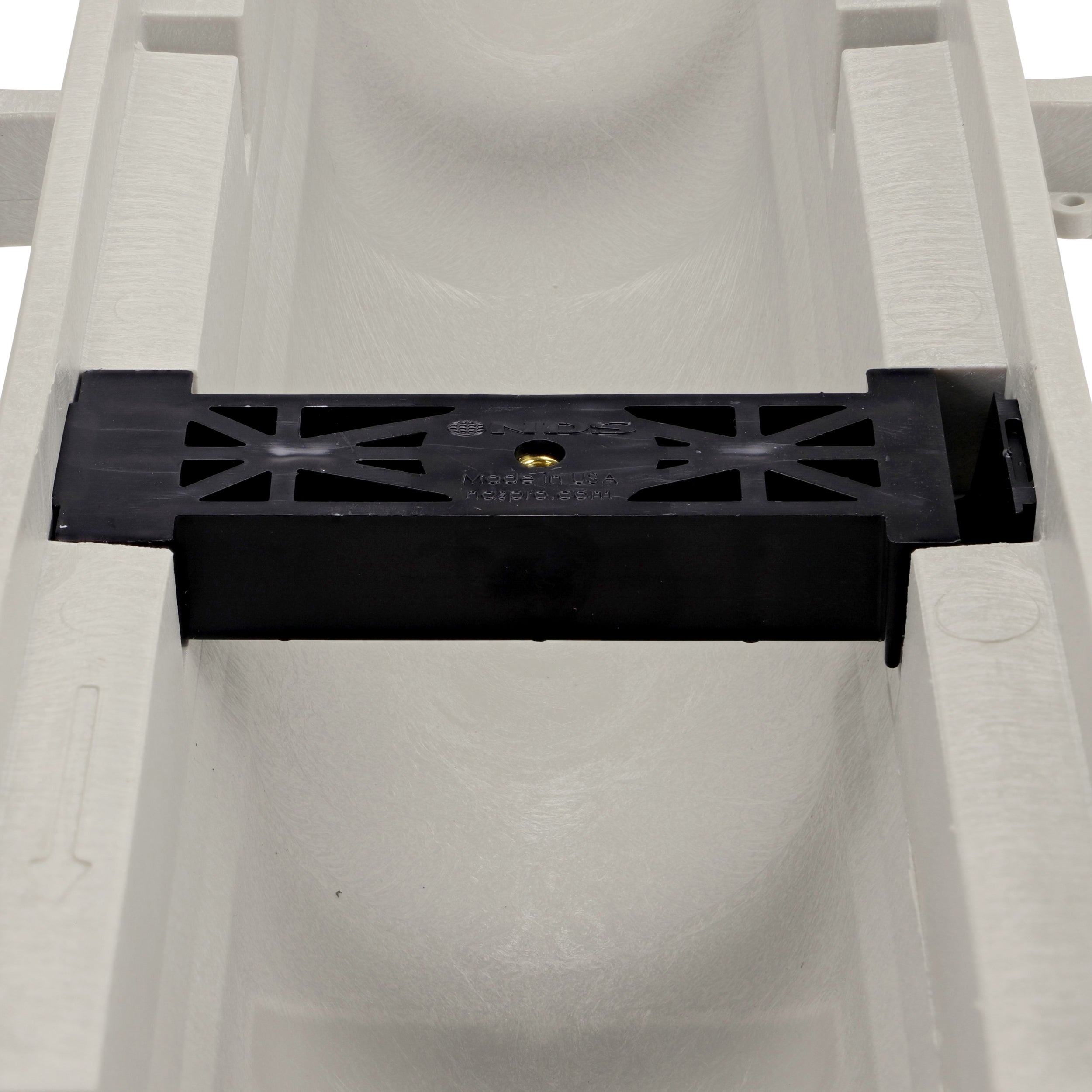

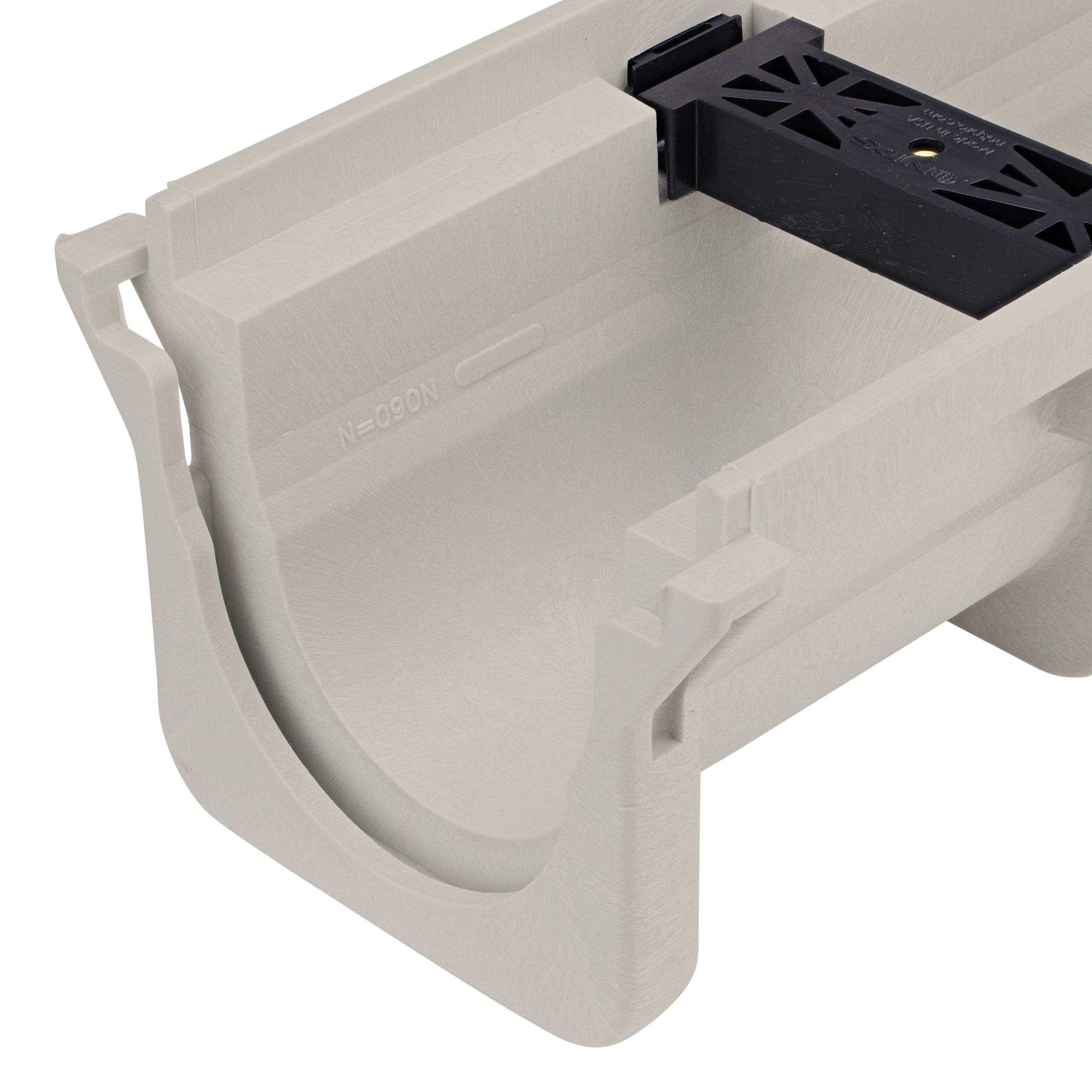

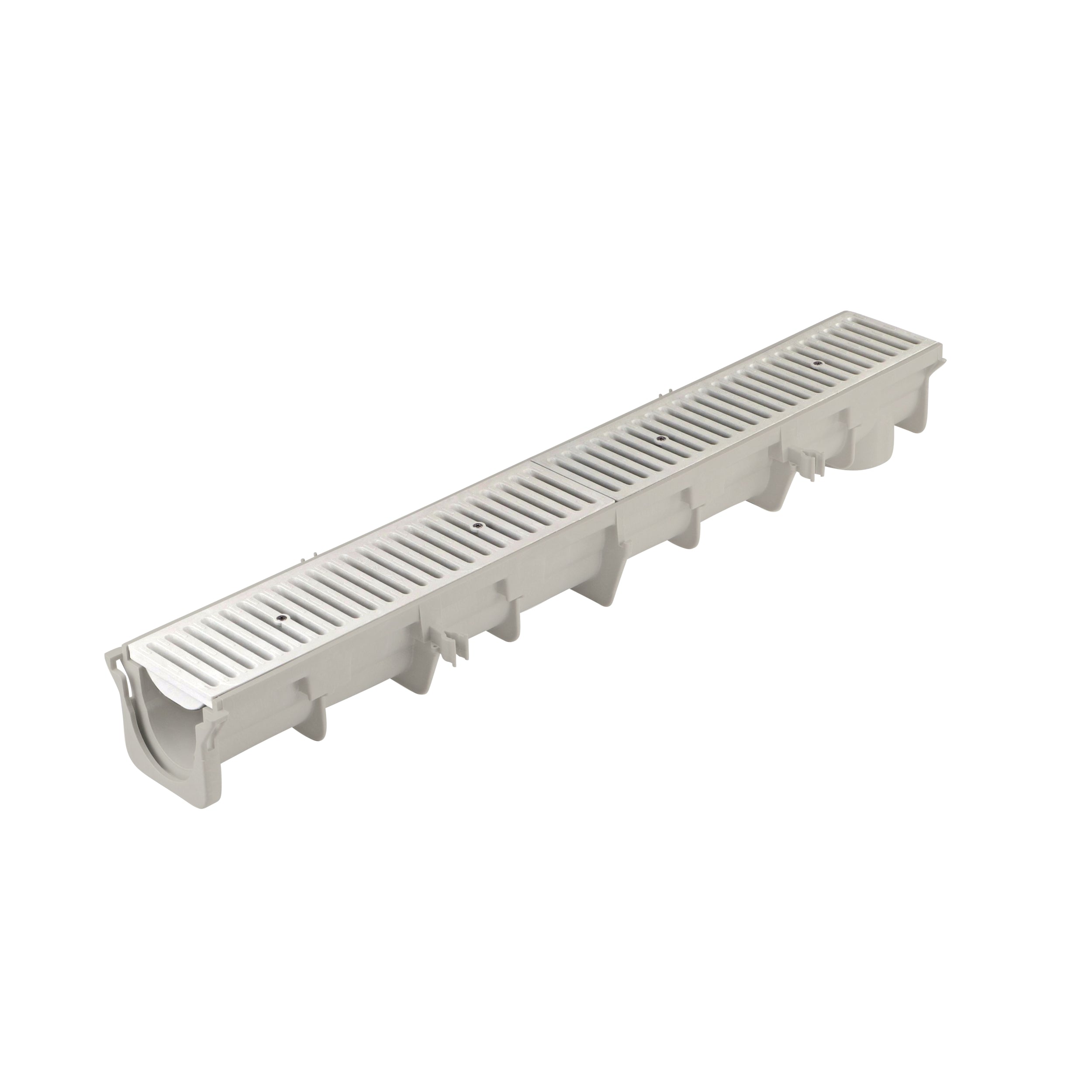

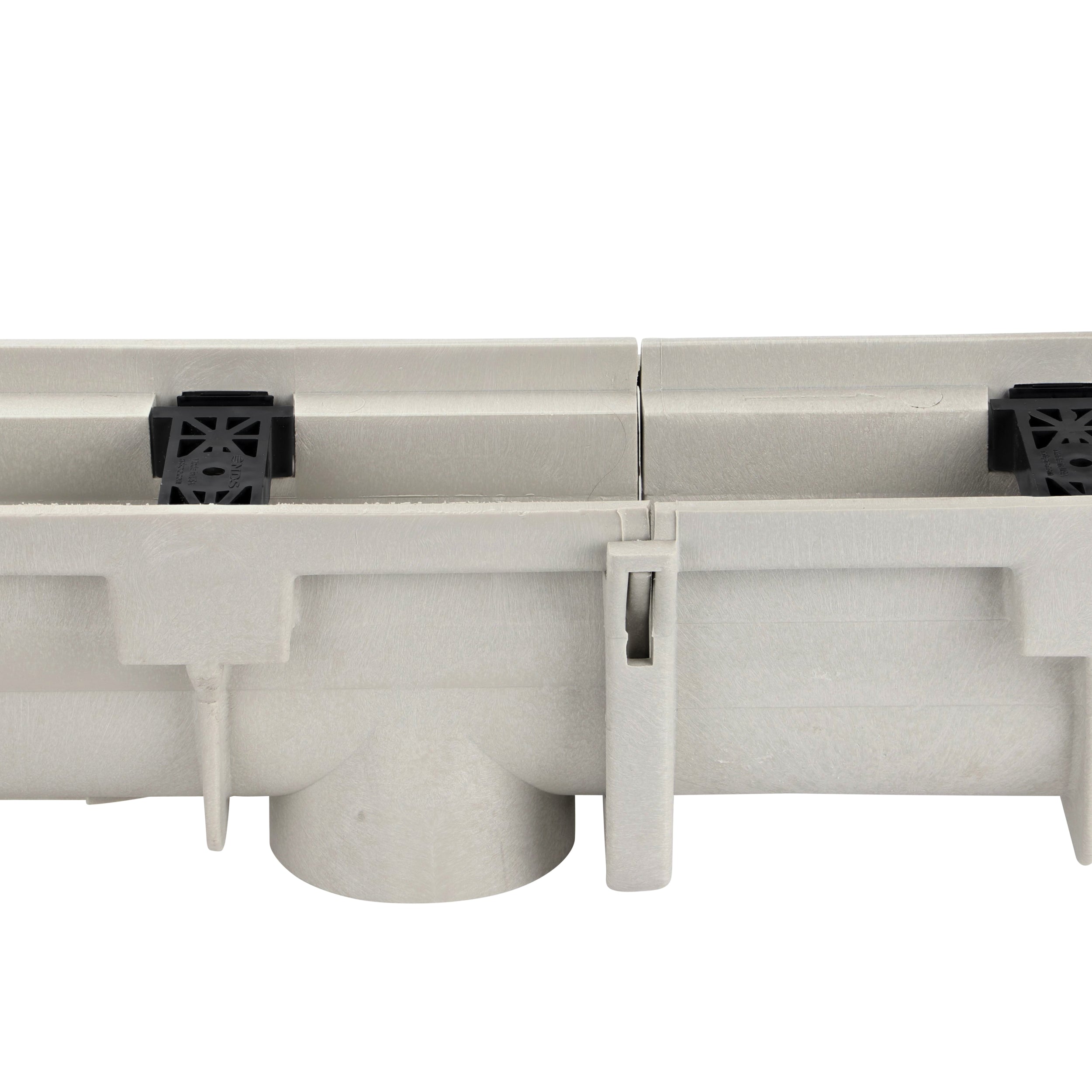

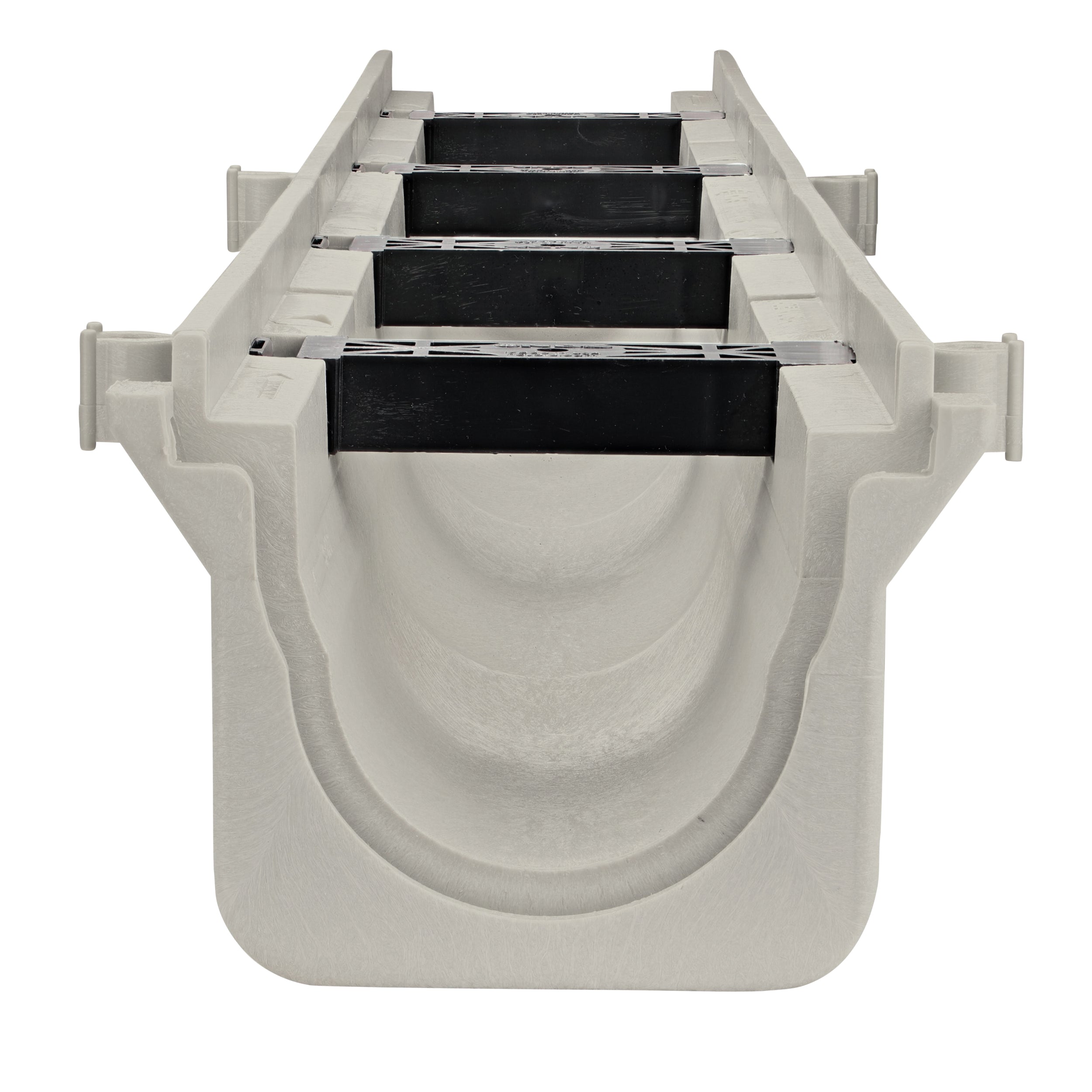

NDS DS-101 - Dura Slope Channel Drain (7.36" to 7.69" Deep)

The NDS DS-101 Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications.

Key Features:

  • Durable, lightweight polymer construction
  • Built-in slope for optimal water flow
  • Modular design for easy installation and customization
  • Compatible with various grate options

Product Specifications:

  • Length: 39.4 inches (1 meter)
  • Width: 5.4 inches
  • Depth: 4.3 inches to 5.9 inches (sloped)
  • Material: High-density polyethylene (HDPE)
  • Load class: A15 (walkways, patios, driveways)
  • Flow rate: Up to 11 gallons per minute

Installation Instructions:

  1. Excavate a trench 2 inches wider than the channel on each side and 6 inches deeper than the desired finished height.
  2. Pour a 4-inch concrete base and allow it to set.
  3. Begin laying channels from the outlet or lowest point, ensuring proper alignment and slope.
  4. Connect subsequent channels using the interlocking end caps.
  5. Install end caps or outlet adapters as needed.
  6. Backfill with concrete, leaving 1/8 inch below the top edge of the channel for the grate.
  7. Install grates and secure them in place.

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
