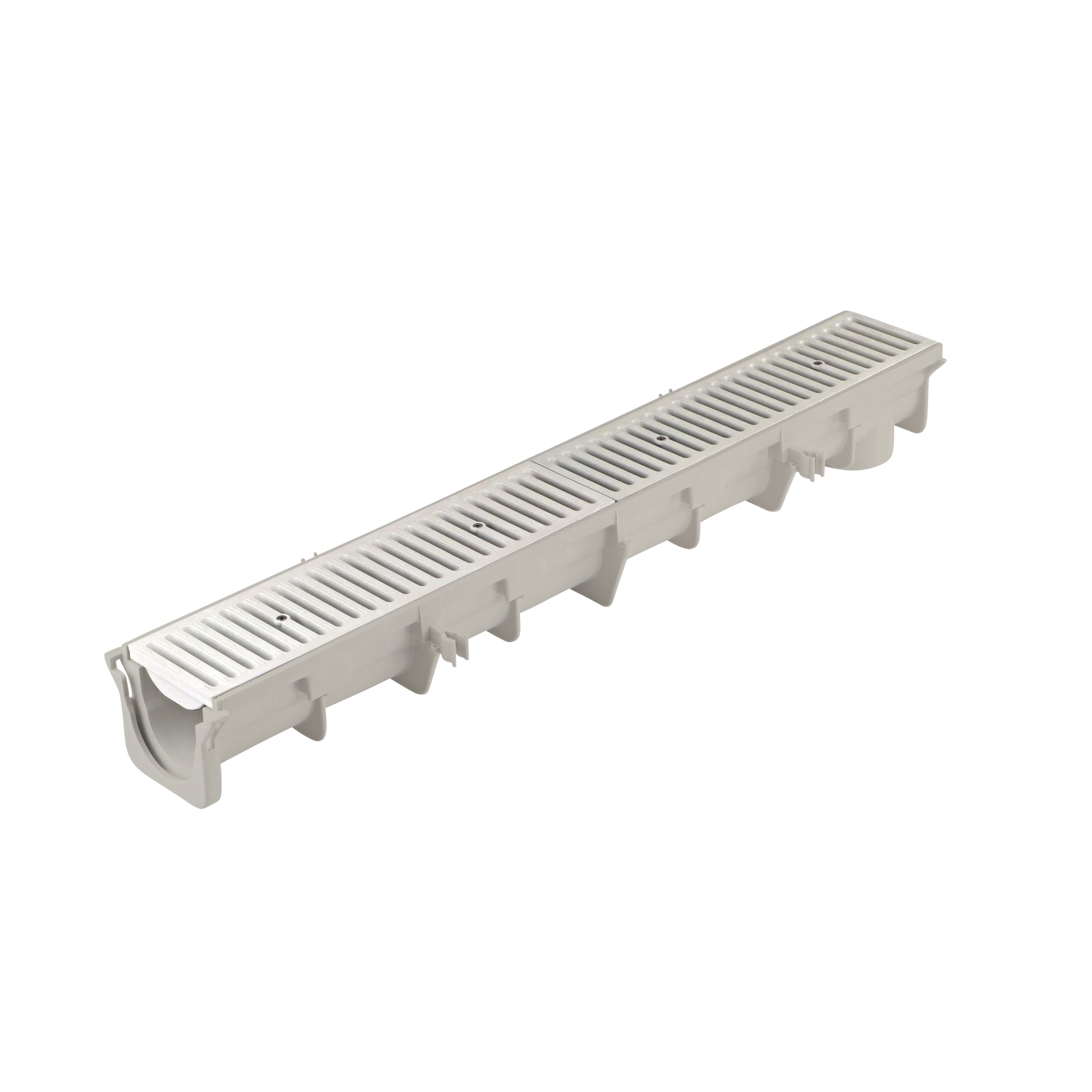

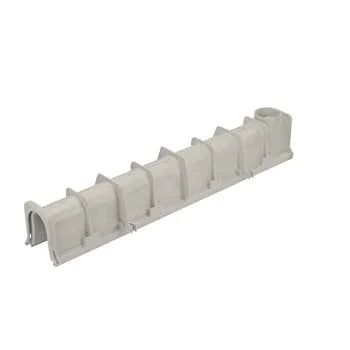

NDS DS-100N - Neutral Dura Slope Channel Drain (Neutral Slope)
The NDS DS-100N Neutral Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications. This innovative system offers superior durability and easy installation, making it an ideal choice for driveways, patios, pool decks, and other areas requiring effective surface water removal.

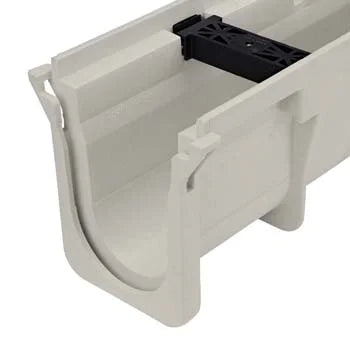

Key Features:
- Durable polyethylene construction
- Neutral slope design for versatile installation
- Interlocking system for seamless connections

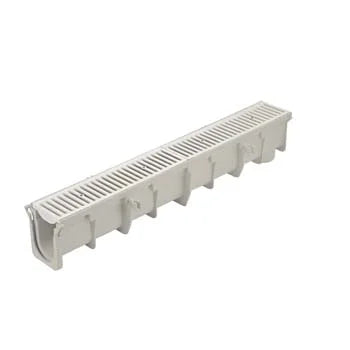

- Compatible with various grate options
- UV-resistant material for long-lasting performance

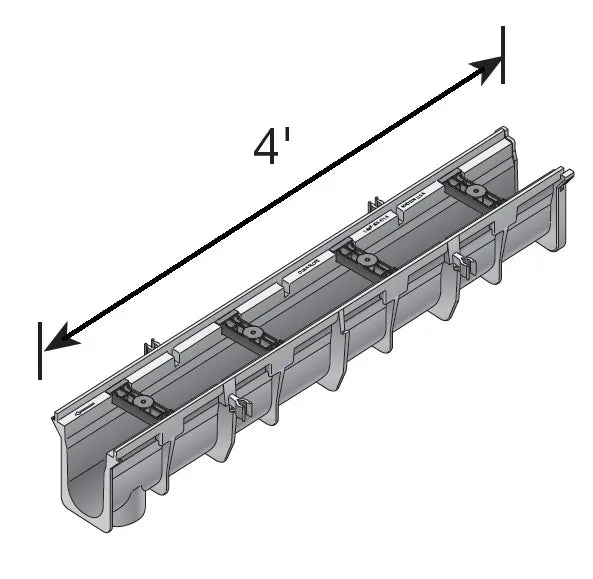

Product Specifications:
- Material: High-density polyethylene (HDPE)
- Length: 39.4 inches (1 meter)
- Width: 5.4 inches (137 mm)
- Height: 5.9 inches (150 mm)
- Load class: Up to Class C (light vehicle traffic)
- Flow rate: Up to 21.8 GPM (82.5 LPM)
- Available grate materials: Plastic, galvanized steel, stainless steel
Installation Instructions:
- Plan the layout:
- Determine the drain location and direction of water flow
- Mark the installation area and excavate a trench
- Prepare the base:
- Create a 4-inch minimum concrete base
- Ensure proper slope for water drainage (minimum 1/8 inch per foot)
- Install the channel:
- Start from the outlet or lowest point
- Connect channel sections using the interlocking system
- Secure channels in place with temporary bracing
- Connect to drainage system:
- Attach the outlet adapter to the drainage pipe
- Ensure a watertight connection
- Pour concrete:
- Fill around the channels with concrete, leaving space for the grates
- Use a concrete vibrator to eliminate air pockets
- Install grates:
- Once concrete has cured, remove temporary bracing
- Snap grates into place along the channel
- Finish and clean:
- Remove any debris from the channel and grates
- Test the system by running water through it
The NDS DS-100N Neutral Dura Slope Channel Drain offers a reliable and efficient solution for managing surface water. Its durable construction and easy installation make it an excellent choice for various applications, ensuring proper drainage and protection against water damage.
Product and Technical Information
Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System
Dura Slope - System Profile - Linear Fall with Neutrals
Dura Slope - System Profile - Linear Fall without Neutrals
Dura Slope - System Profile - Counter Directional Fall with Neutrals
Dura Slope - System Profile - Counter Directional Fall without Neutrals
Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain
Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
