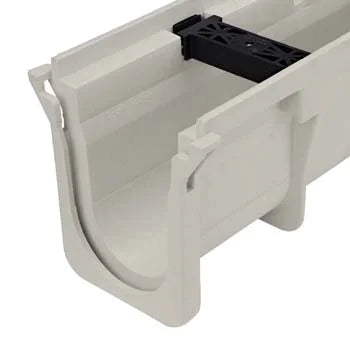

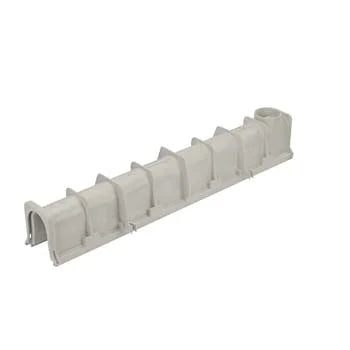

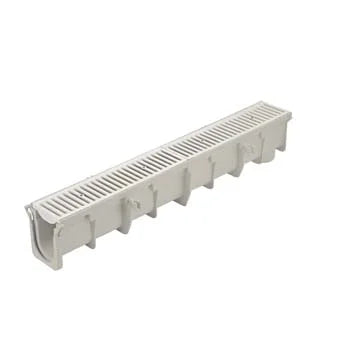

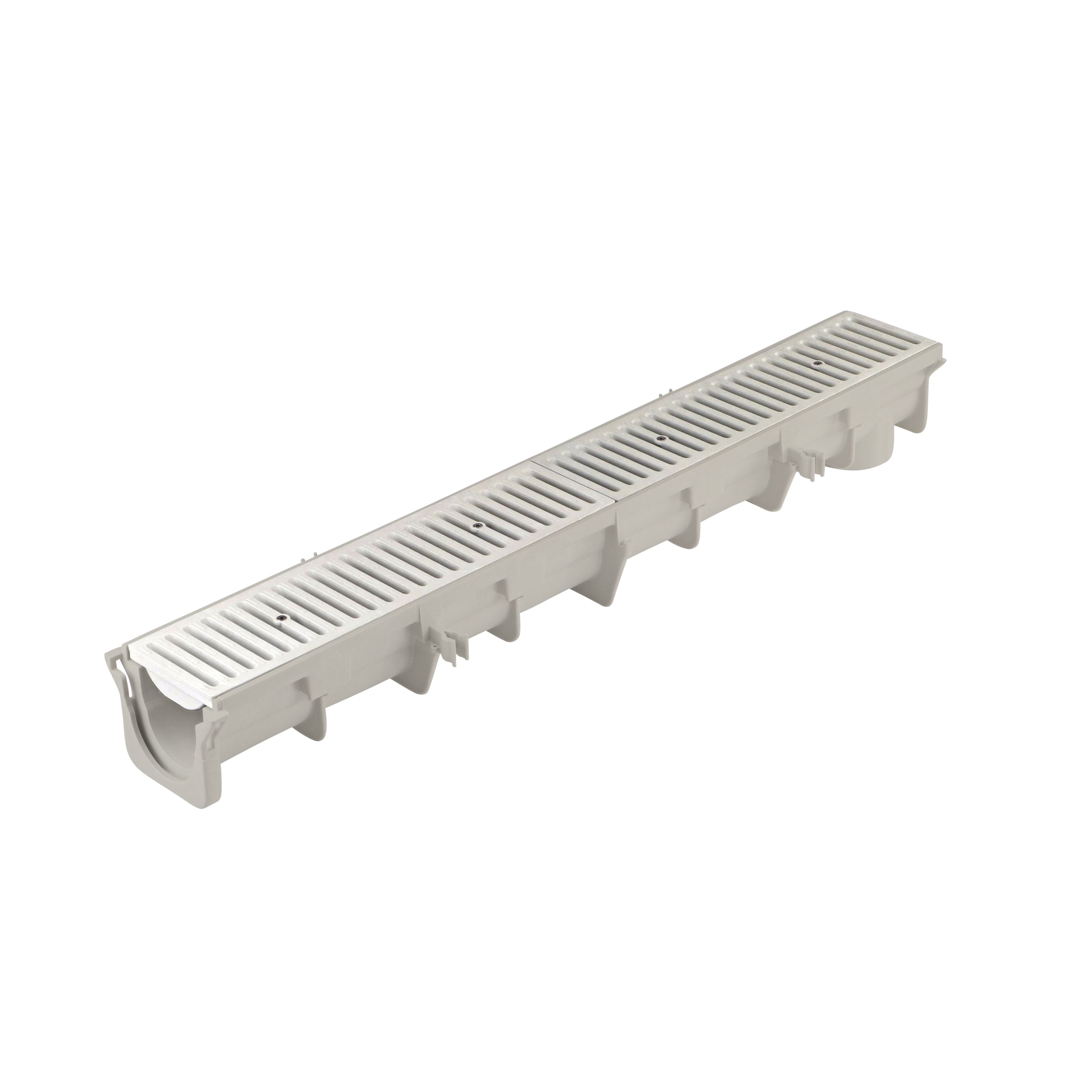

NDS DS-100 - Deep Dura Slope Channel Drain (7.02" to 7.36")

NDS DS-100 - Deep Dura Slope Channel Drain (7.02" to 7.36")

The NDS DS-100 Deep Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications. This innovative system offers superior strength, durability, and ease of installation.

Key Features:

• Pre-sloped channel for optimal water flow
• Durable, high-density polyethylene construction
• Interlocking design for seamless connections
• Compatible with various grate options
• Suitable for pedestrian to light vehicle traffic

Installation Instructions:

1. Excavate a trench allowing for 4" of concrete on all sides of the channel.
2. Pour a 4" concrete base and allow it to set.
3. Begin laying channels from the outlet or lowest point, ensuring proper slope.
4. Connect subsequent channels using the interlocking system.
5. Install end caps and outlet adapters as needed.
6. Pour concrete around the channels, leaving 1/8" below the top for grate installation.
7. Once concrete has cured, install the grates.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Channel length: 39.4" (1 meter)
• Channel width: 5.4" (137 mm)
• Channel depth: 9.8" (249 mm) at deepest point
• Slope: 0.6% built-in slope
• Load class: A15 (pedestrian) to C250 (light vehicles) depending on grate selection
• Flow rate: Up to 21.8 GPM (82.5 L/min) per channel
• Chemical resistance: Excellent resistance to most chemicals

The NDS DS-100 Deep Dura Slope Channel Drain offers a robust and efficient drainage solution for various applications. Its pre-sloped design and durable construction ensure optimal performance and longevity.
