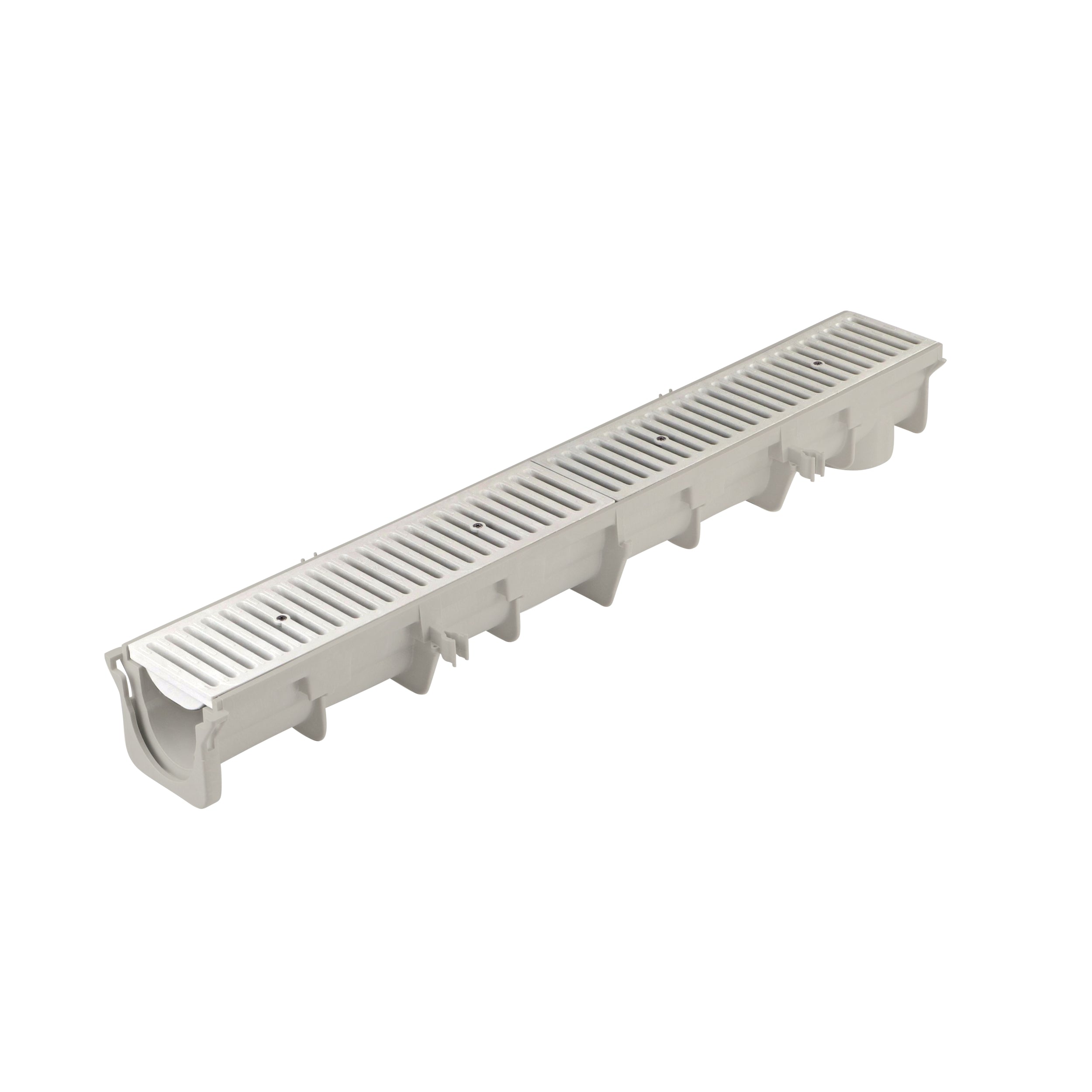

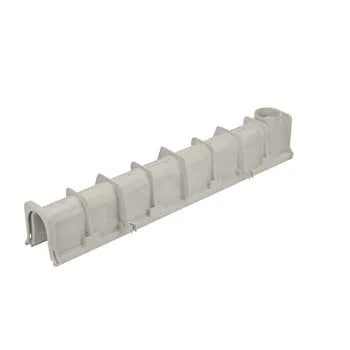

NDS DS-099 - Deep Dura Slope Channel Drain (6.69" to 7.02")
The NDS DS-099 Deep Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications. This innovative channel drain system offers superior strength, durability, and ease of installation.
Key Features:

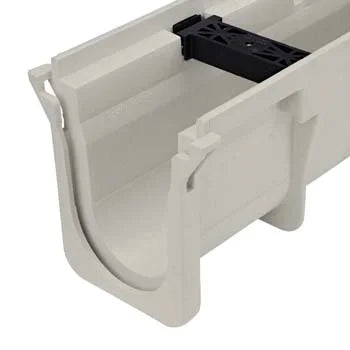

- Sloped channel design for improved water flow
- High-density polyethylene construction
- UV-resistant for long-lasting performance
- Interlocking system for easy installation

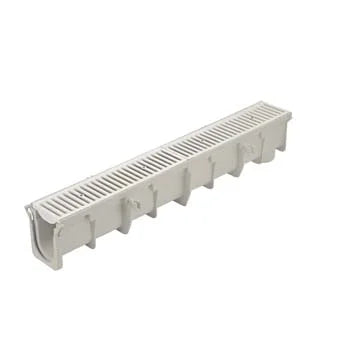

- Compatible with various grate options
Product Specifications:
- Length: 39.4 inches (1 meter)
- Width: 5.4 inches (137 mm)
- Depth: 5.9 inches (150 mm) at outlet end
- Slope: 0.6% built-in slope
- Load class: Up to Class C (EN 1433)
- Material: High-density polyethylene (HDPE)
- Color: Gray
Installation Instructions:
- Excavation:
- Dig a trench 8 inches wider than the channel width and deep enough to accommodate the channel, concrete, and desired finish height.
- Outlet Preparation:
- Install the outlet pipe at the required depth and connect it to the drainage system.
- Concrete Base:
- Pour a 4-inch thick concrete base in the trench and level it.
- Channel Placement:
- Start placing channels from the outlet end, ensuring proper alignment and levelness.
- Use the interlocking system to connect subsequent channels.
- Rebar Installation:
- Install #3 rebar on both sides of the channel, 6 inches on center.
- Concrete Backfill:
- Pour concrete around the sides of the channel, leaving 1/8 inch below the top for the final surface material.
- Grate Installation:
- Once the concrete has cured, install the chosen grate option.
- Final Surfacing:
- Complete the installation by adding the final surface material (asphalt, concrete, or pavers) flush with the top of the grate.
The NDS DS-099 Deep Dura Slope Channel Drain offers a reliable and efficient solution for various drainage needs. Its durable construction and easy installation make it an excellent choice for both professionals and DIY enthusiasts.
Product and Technical Information
Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System
Dura Slope - System Profile - Linear Fall with Neutrals
Dura Slope - System Profile - Linear Fall without Neutrals
Dura Slope - System Profile - Counter Directional Fall with Neutrals
Dura Slope - System Profile - Counter Directional Fall without Neutrals
Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain
Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
