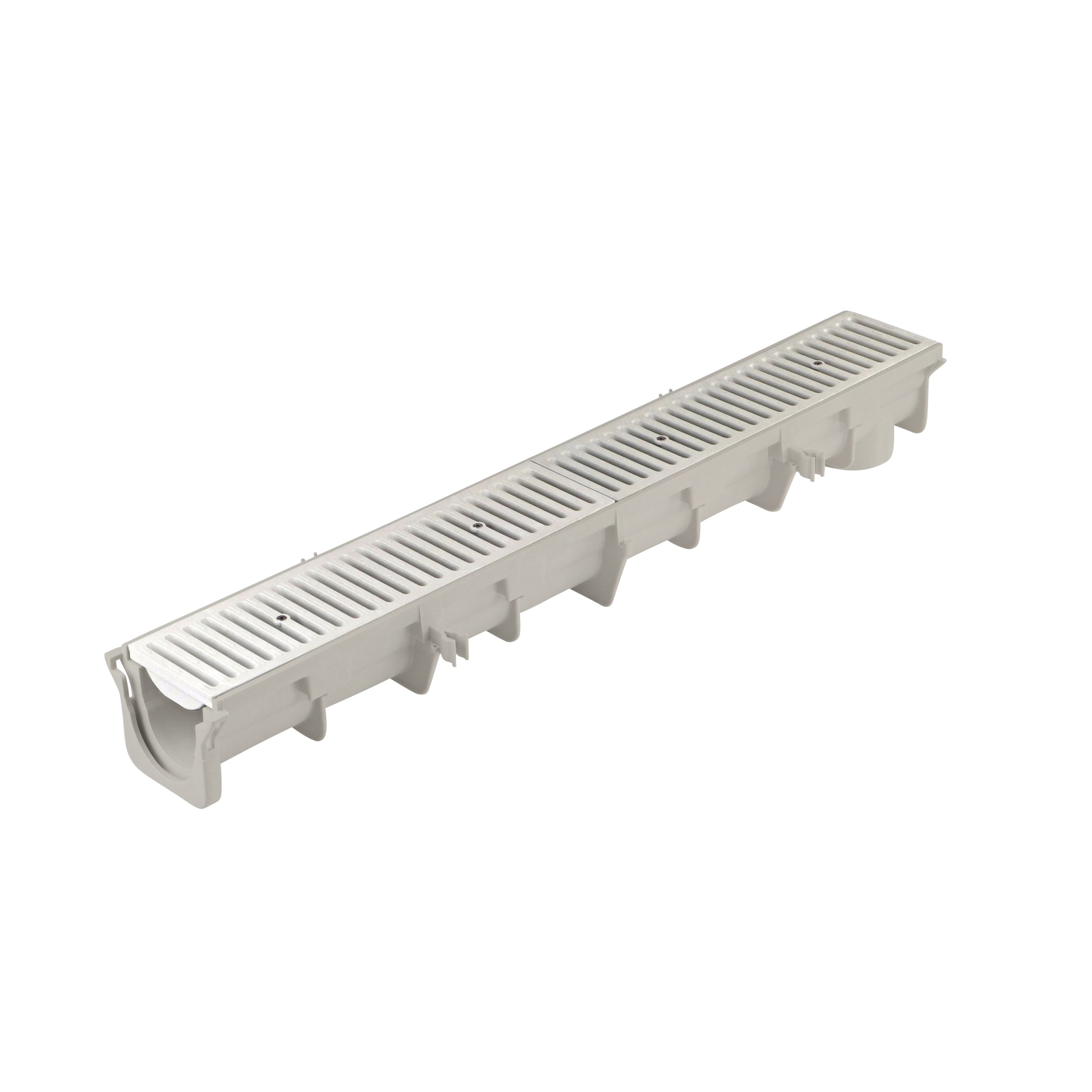

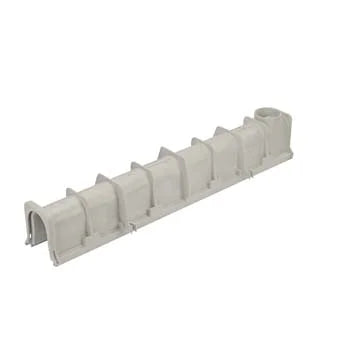

NDS DS-098 - Dura Slope Channel Drain (6.35" to 6.69" Deep)
The NDS DS-098 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This innovative product offers superior strength, durability, and ease of installation.
Key Features:
- Pre-sloped channel for optimal water flow
- Modular design for versatile installations
- Heavy-duty construction for lasting performance

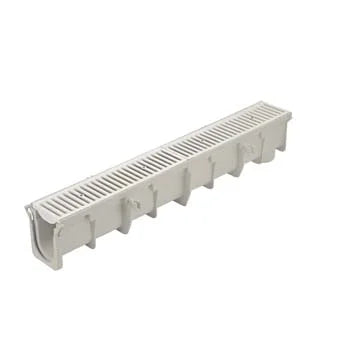

- Compatible with various grate options
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Length: 39.4 inches (1 meter)
- Width: 5.2 inches (132 mm)
- Height: 5.9 inches (150 mm) at outlet end
- Slope: 0.6% built-in slope
- Load class: Up to Class C (EN 1433)
- Available grate materials: Plastic, galvanized steel, stainless steel
- Outlet size: 4-inch diameter
Installation Instructions:
- Excavation:
- Dig a trench 8 inches wider than the channel width and deep enough to accommodate the channel, concrete, and desired surface level.
- Base preparation:
- Pour 4 inches of concrete as a base, ensuring it's level and smooth.
- Channel placement:
- Start at the outlet point and work upslope.

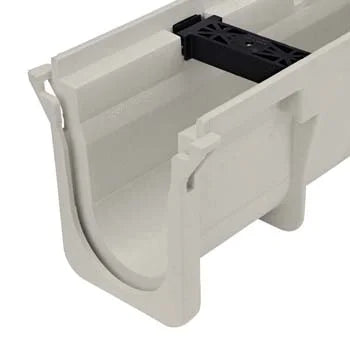

- Connect channels using the interlocking end joints.
- Ensure proper alignment and leveling.
- Concrete backfill:
- Pour concrete around the sides of the channel, leaving the top 1/8 inch below the final surface level.
- Use temporary bracing to prevent channel floating or deformation.
- Grate installation:
- Once concrete has cured, remove bracing and install the selected grates.
- Final touches:
- Complete the surrounding surface installation, ensuring it's slightly higher than the grate for proper drainage.
The NDS DS-098 Dura Slope Channel Drain offers a reliable solution for effective surface water management. Its durable construction and easy installation make it an ideal choice for various applications, from driveways and patios to industrial facilities.
Product and Technical Information
Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System
Dura Slope - System Profile - Linear Fall with Neutrals
Dura Slope - System Profile - Linear Fall without Neutrals
Dura Slope - System Profile - Counter Directional Fall with Neutrals
Dura Slope - System Profile - Counter Directional Fall without Neutrals
Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain
Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
