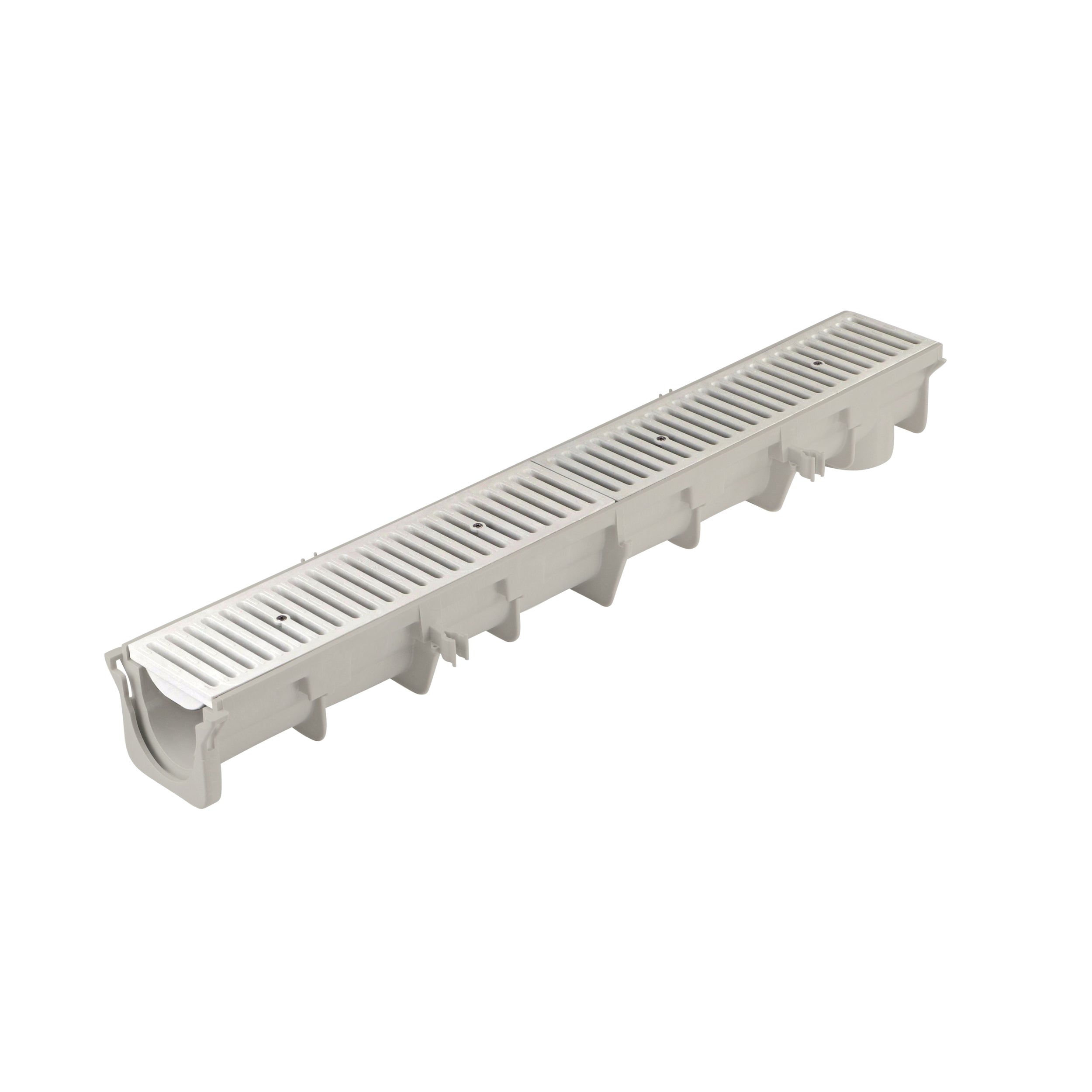

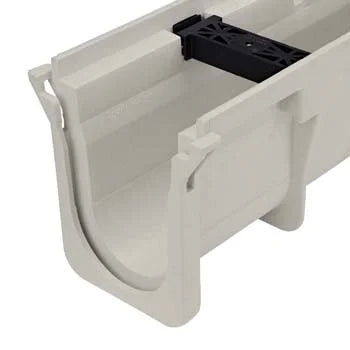

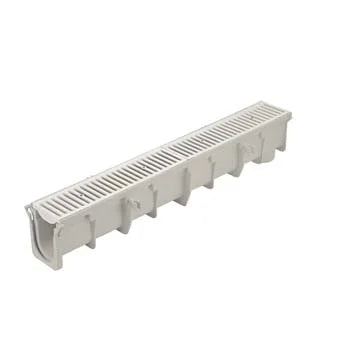

NDS DS-097N - Neutral Dura Slope Channel Drain (Neutral Slope)
The NDS DS-097N Neutral Dura Slope Channel Drain is a high-performance drainage solution designed for efficient water management in residential, commercial, and industrial applications. This innovative channel drain system offers superior durability, easy installation, and excellent flow capacity.
Key Features:
- Neutral slope design for versatile installation
- Durable, high-density polyethylene construction
- Interlocking system for seamless connections
- Compatible with various grate options
- Ideal for driveways, patios, pools, and landscaped areas
Specifications:
- Length: 39.4 inches (1 meter)
- Width: 5.4 inches
- Depth: 4.3 inches
- Material: High-density polyethylene (HDPE)
- Load class: Light duty to medium duty
- Flow rate: Up to 11.2 gallons per minute
- Available grate materials: Plastic, galvanized steel, stainless steel
- Color: Black (body), various options for grates
Installation Instructions:
- Plan the drain layout and mark the installation area.
- Excavate a trench 2 inches wider than the channel on each side and 4 inches deeper than the finished height.
- Pour a 4-inch concrete base and allow it to set.
- Begin installing channels from the outlet or lowest point, working uphill.
- Connect channels using the interlocking system, ensuring a tight fit.
- Install end caps and outlet adapters as needed.
- Pour concrete around the sides of the channel, leaving the top 1/8 inch below the desired finished grade.
- Once concrete has cured, snap grates into place.
- Finish the surrounding surface to be flush with or slightly above the grate level.
For detailed installation guidelines and load-bearing requirements, please consult the manufacturer's manual.
The NDS DS-097N Neutral Dura Slope Channel Drain offers a reliable and efficient drainage solution for various applications. Its durable construction and easy installation make it an excellent choice for both DIY enthusiasts and professional contractors.
Product and Technical Information
Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System
Dura Slope - System Profile - Linear Fall with Neutrals
Dura Slope - System Profile - Linear Fall without Neutrals
Dura Slope - System Profile - Counter Directional Fall with Neutrals
Dura Slope - System Profile - Counter Directional Fall without Neutrals
Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain
Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
