NDS DS-097 - Dura Slope Channel Drain (6.01" to 6.35" Deep)

NDS DS-097 - Dura Slope Channel Drain (6.01" to 6.35" Deep)

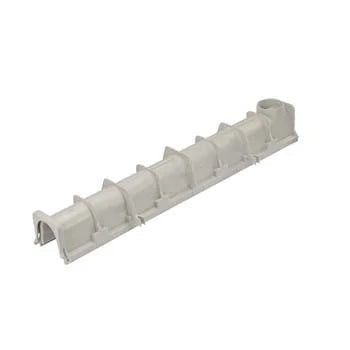

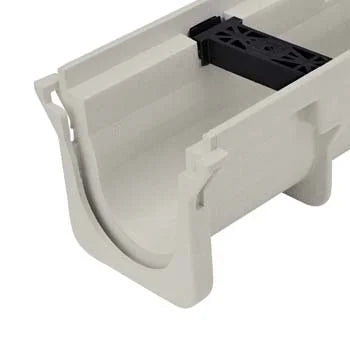

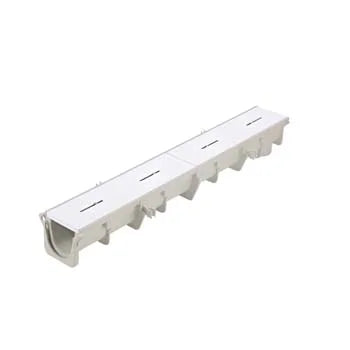

The NDS DS-097 Dura Slope Channel Drain is a high-performance, linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This innovative solution offers superior durability, easy installation, and excellent hydraulic performance.

Key Features:

• Pre-sloped channel for optimal water flow
• Modular design for versatile installation
• Heavy-duty construction for long-lasting performance
• Compatible with various grate options
• ADA compliant when used with appropriate grates

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Length: 39.4 inches (1 meter)
• Width: 5.4 inches
• Height: 9.8 inches (inlet) to 11.8 inches (outlet)
• Slope: 0.6% built-in slope
• Load class: Up to Class C (when used with appropriate grates)
• Flow rate: Up to 31 GPM (gallons per minute)
• Connectivity: Interlocking end caps for easy channel connection

Installation Instructions:

1. Plan the drain layout and mark the installation area.
2. Excavate a trench wide enough to accommodate the channel and surrounding concrete (minimum 4 inches on each side).
3. Create a level base using compacted gravel or concrete.
4. Begin installation at the outlet point, ensuring proper connection to the drainage system.
5. Connect subsequent channel sections, ensuring a secure fit between interlocking end caps.
6. Install rebar on both sides of the channel for reinforcement.
7. Pour concrete around the channel, leaving the top edge exposed for grate installation.
8. Allow concrete to cure according to local building codes.
9. Install the selected grates and secure them in place.
10. Finish the surrounding surface to match the installation area.

The NDS DS-097 Dura Slope Channel Drain offers a reliable and efficient solution for managing surface water in various environments. Its durable construction and easy installation make it an ideal choice for both professionals and DIY enthusiasts.

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
