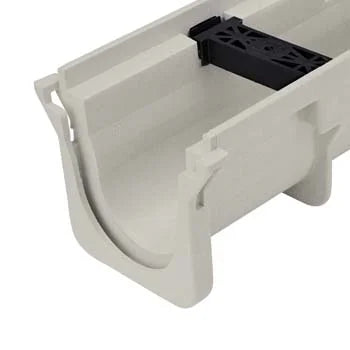

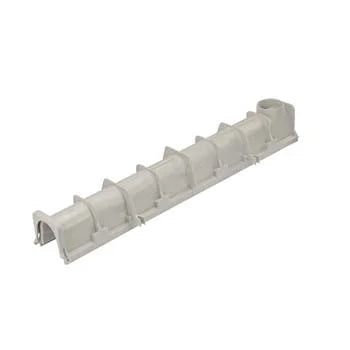

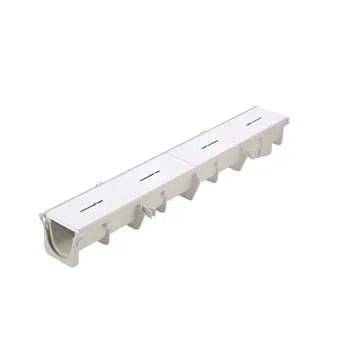

NDS DS-096 - Dura Slope Channel Drain (5.68" to 6.01" Deep)

NDS DS-096 - Dura Slope Channel Drain (5.68" to 6.01" Deep)

The NDS DS-096 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This durable and versatile channel drain offers superior strength and easy installation for a variety of surface drainage needs.

Key Features:

• Modular design for customizable lengths
• High-density polyethylene construction
• Pre-sloped channel for optimal water flow
• Compatible with various grate options
• Suitable for pedestrian to light vehicle traffic

Installation Instructions:

1. Excavate a trench according to project specifications.
2. Pour a concrete haunch around the perimeter.
3. Install the outlet at the lowest point.
4. Connect channel sections, ensuring proper alignment.
5. Secure channels with rebar stakes if needed.
6. Pour concrete around the system, leaving space for the finishing surface.
7. Install grates and finish the surrounding surface.

Product Specifications:

• Length: 39.4" (1 meter) per section
• Width: 5.4" (137 mm)
• Height: 9.8" (249 mm) at outlet end
• Slope: 0.6% built-in slope
• Load class: Up to Class C (light vehicle traffic)
• Material: High-density polyethylene (HDPE)
• Flow rate: Up to 31 GPM (gallons per minute)
• Compressive strength: 14,500 PSI

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
