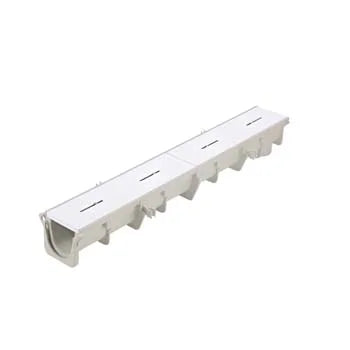

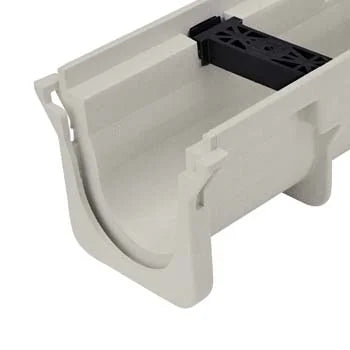

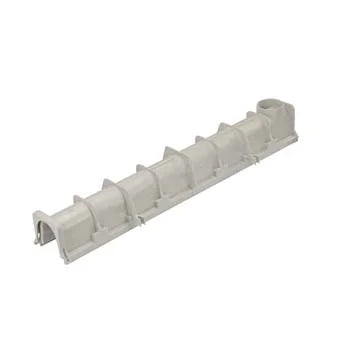

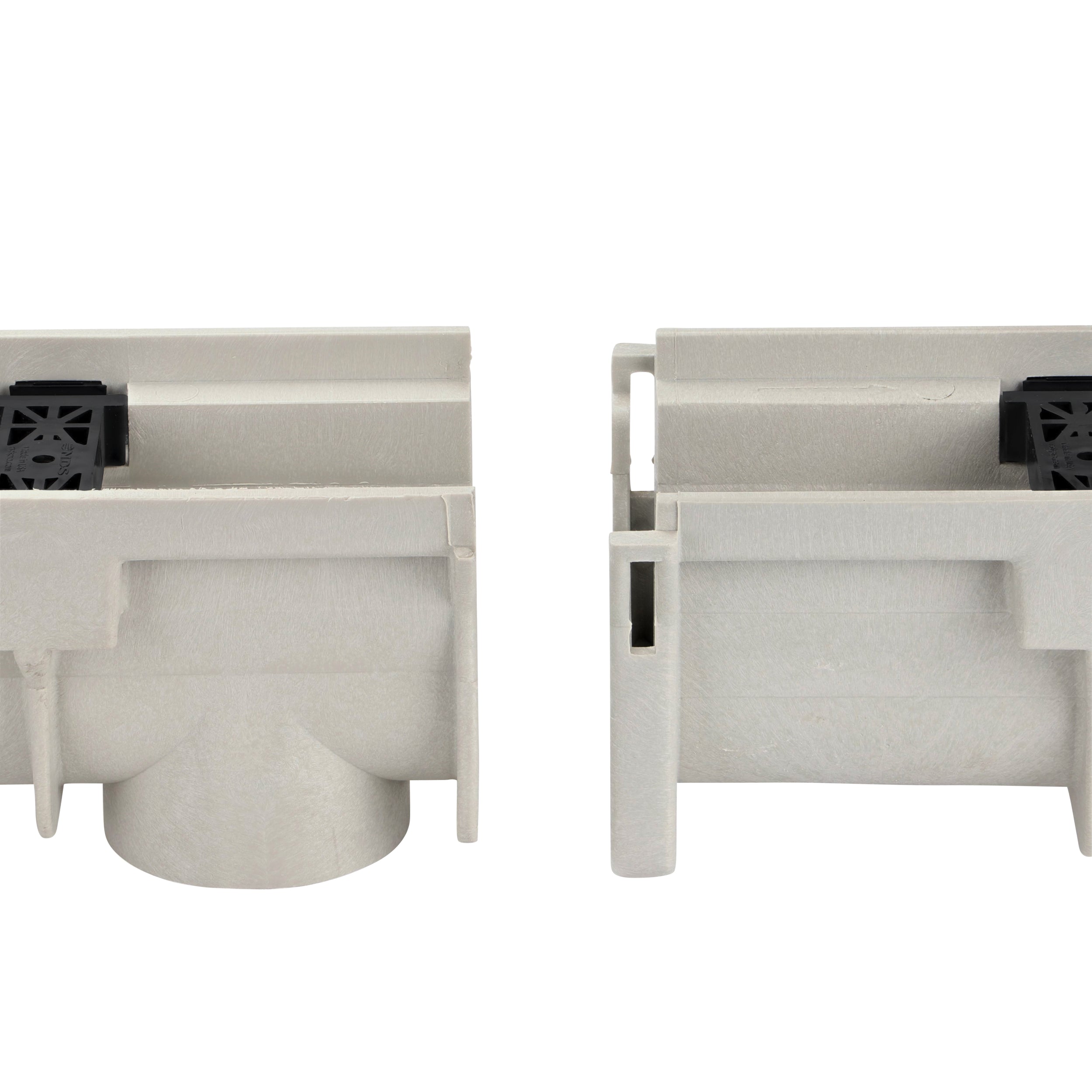

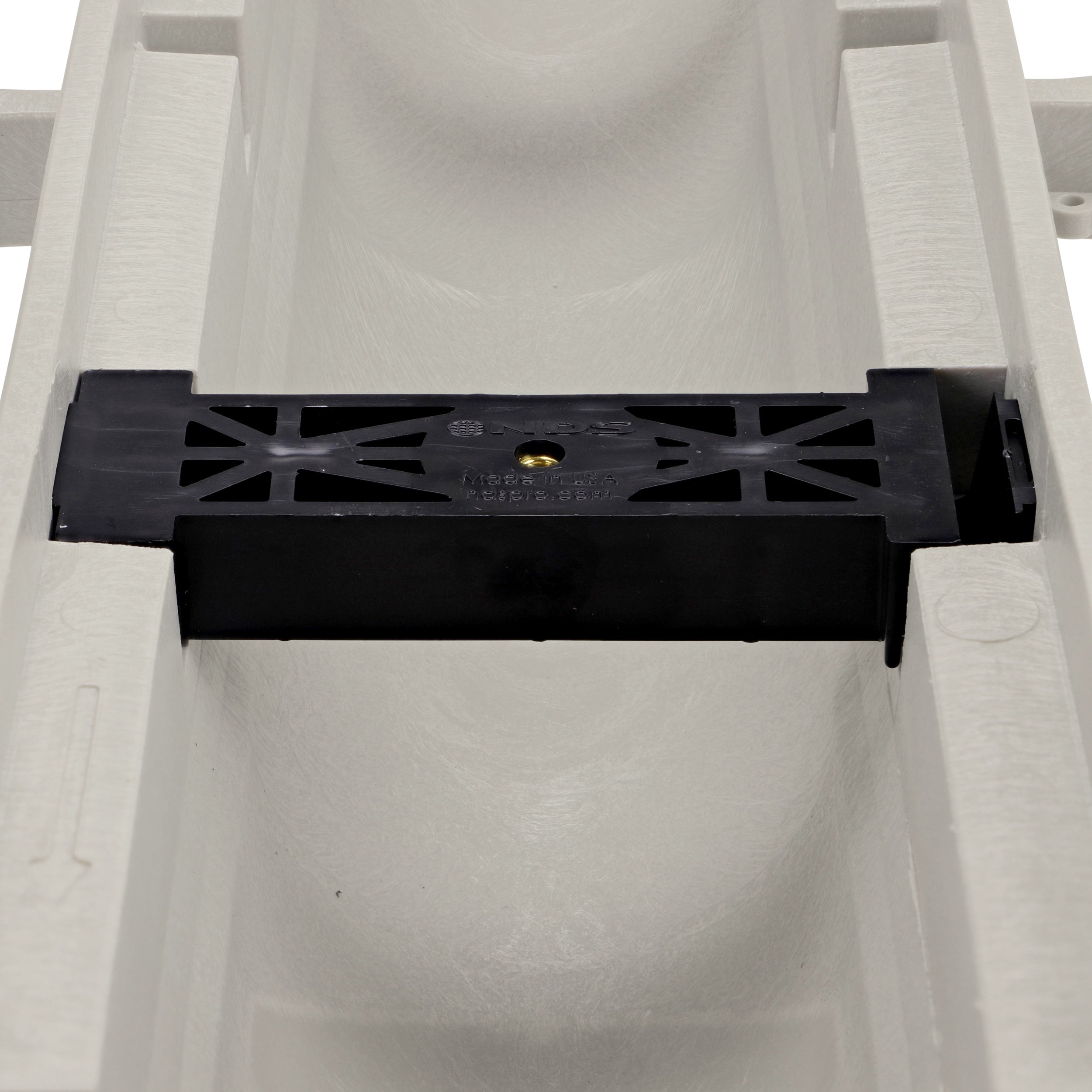

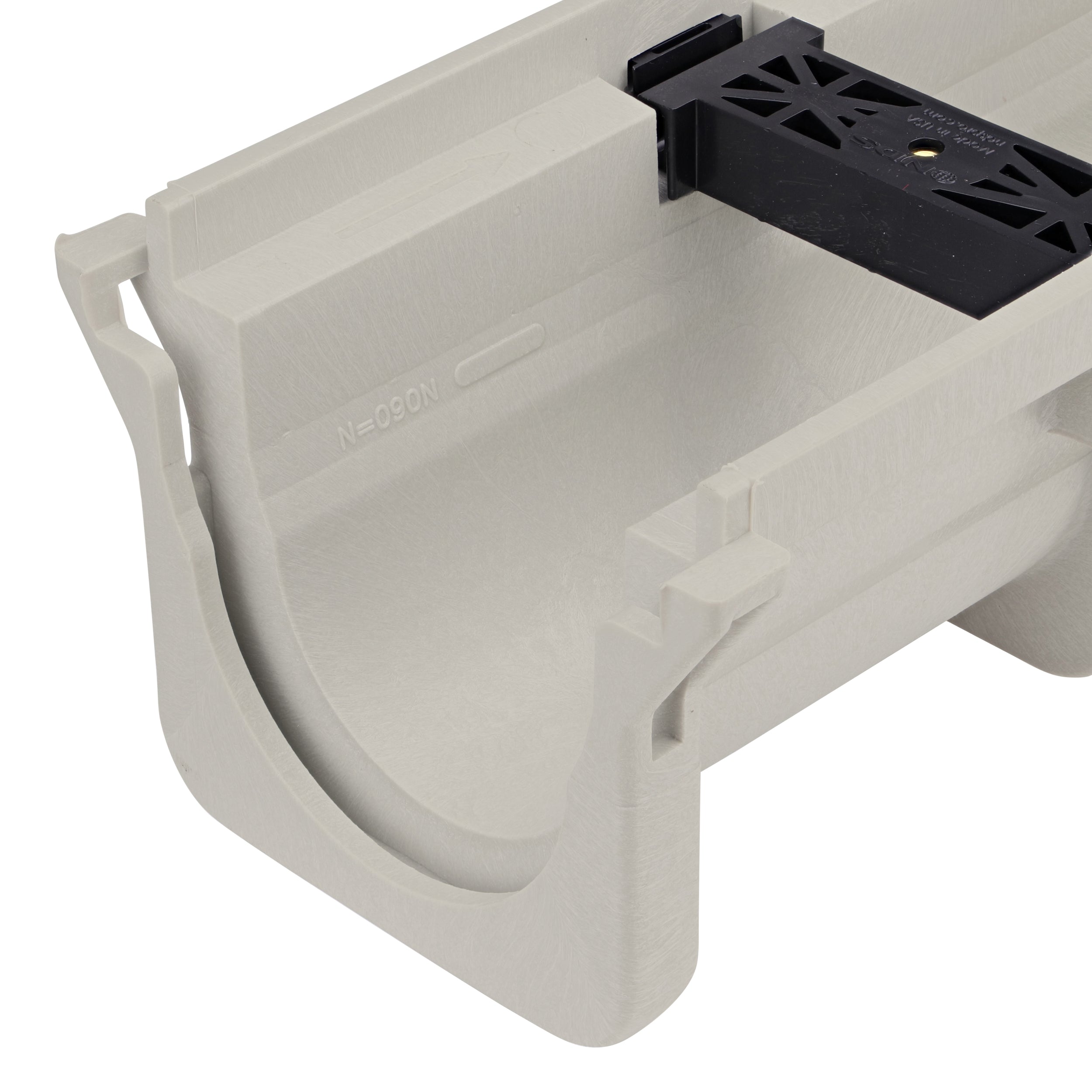

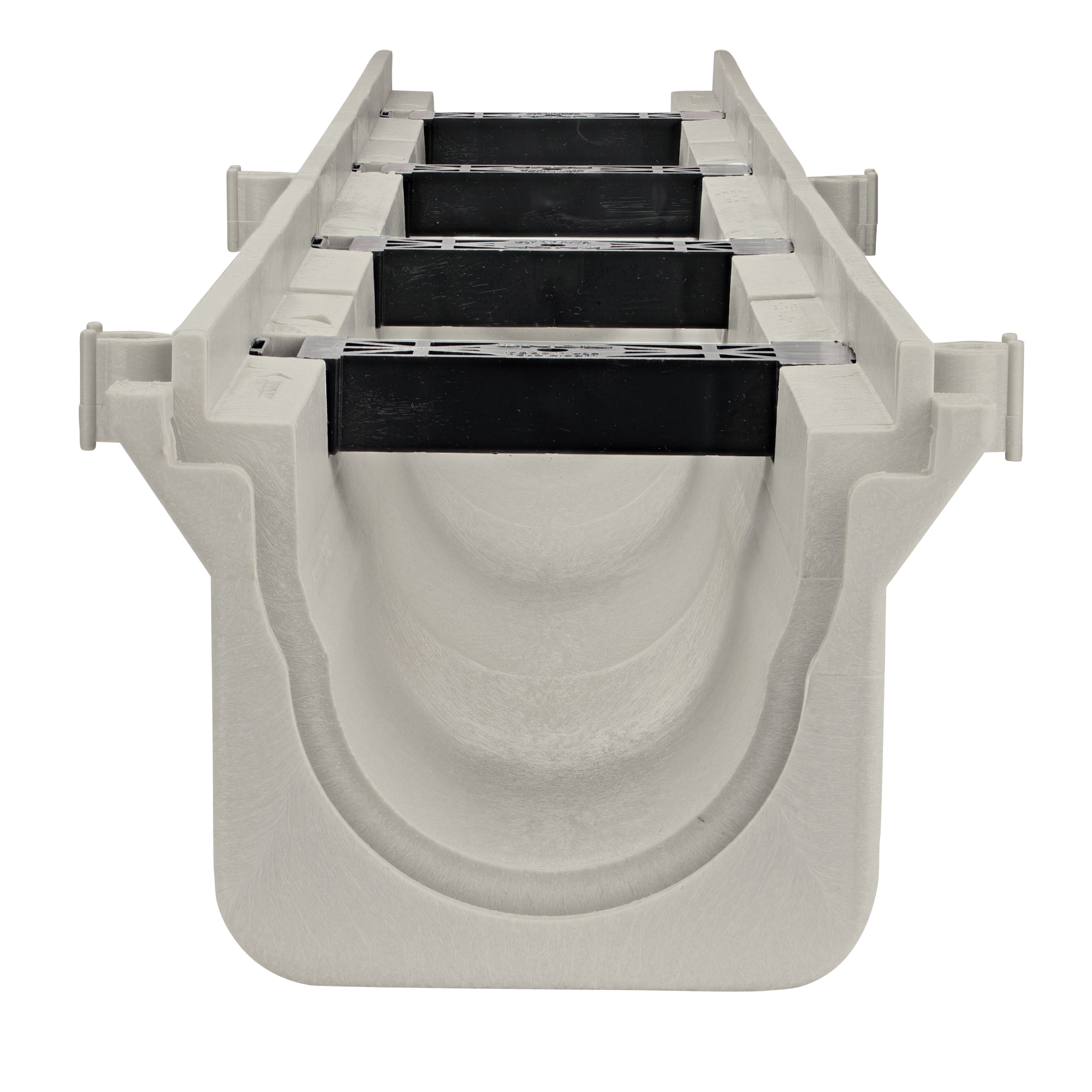

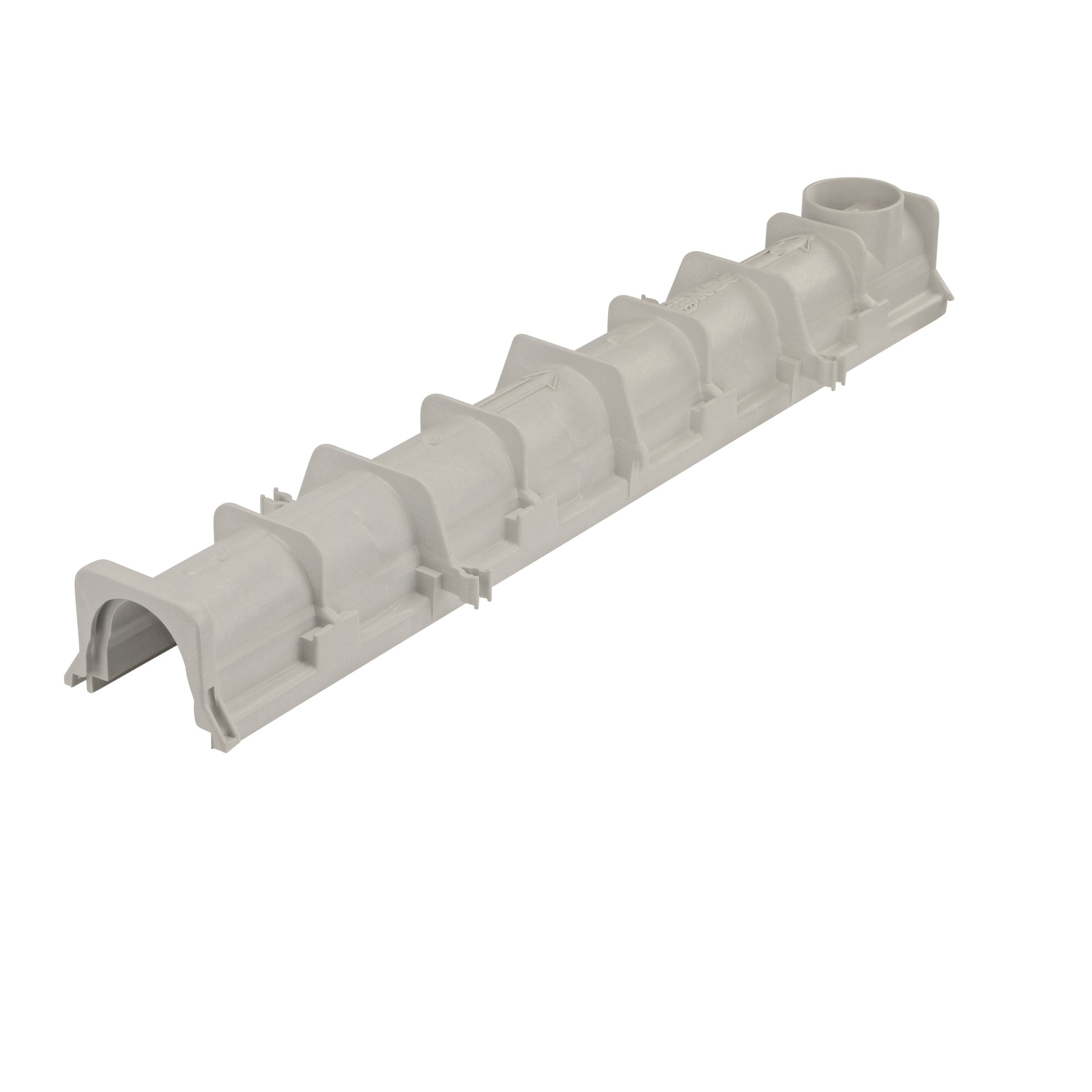

NDS DS-095 - Dura Slope Channel Drain (5.34" to 5.68" Deep)

The NDS DS-095 Dura Slope Channel Drain is a high-performance, pre-sloped trench drain system designed for efficient water management in residential, commercial, and industrial applications. This innovative drainage solution offers superior strength, durability, and ease of installation.

Key Features:

  • Pre-sloped channel for optimal water flow
  • Modular design for customizable layouts
  • High-density polyethylene (HDPE) construction
  • UV-resistant material for long-lasting performance
  • Compatible with various grate options

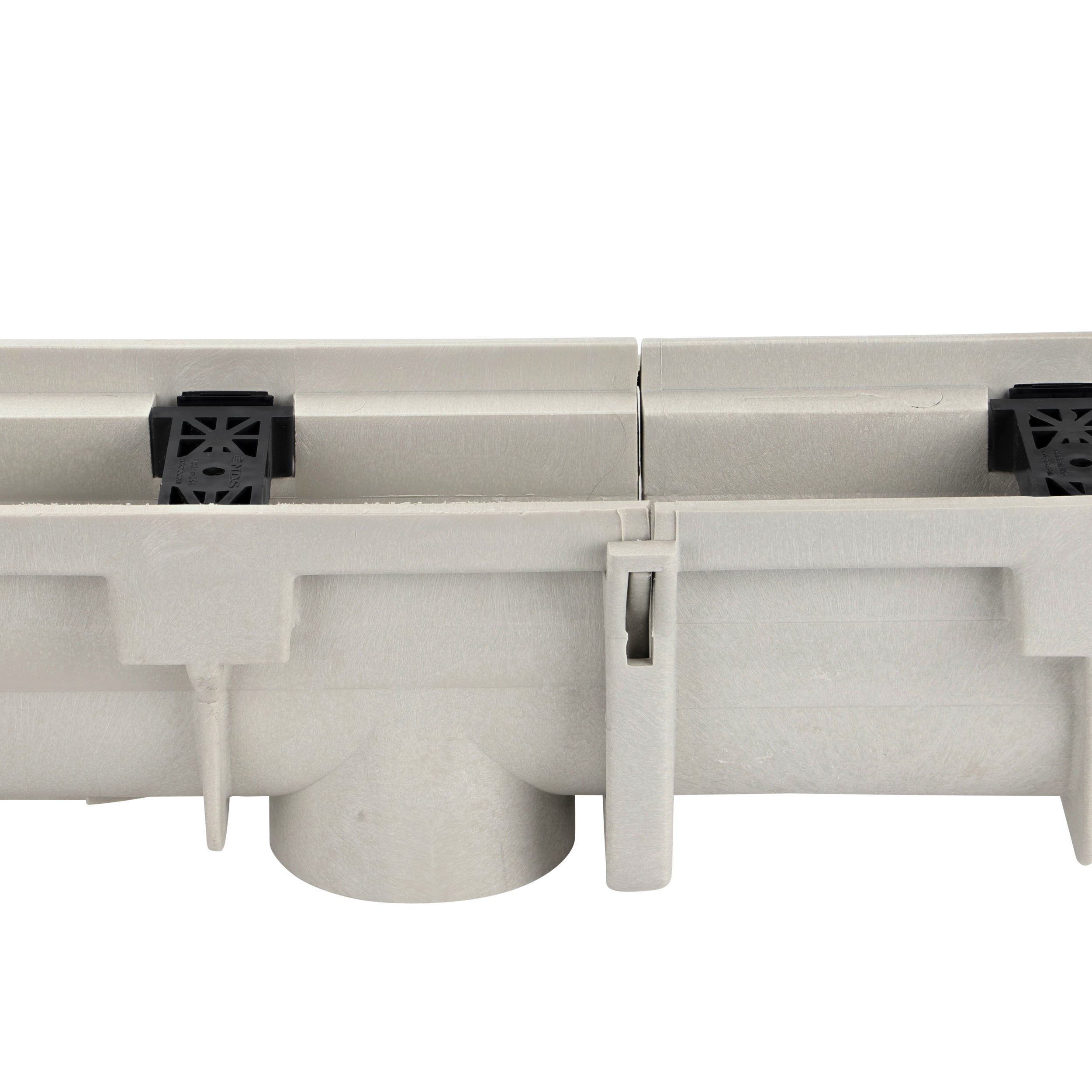

  • Interlocking system for secure connections

Installation Instructions:

  1. Excavate a trench according to project specifications, allowing for proper depth and width.
  2. Pour a concrete haunch around the perimeter of the excavated area.
  3. Begin laying channel sections starting from the outlet or lowest point.
  4. Connect subsequent sections using the interlocking system.
  5. Ensure proper alignment and slope throughout installation.
  6. Install end caps and outlet adapters as needed.
  7. Secure grates to the channel body.
  8. Pour concrete around the drain system, leaving the grates exposed.
  9. Allow concrete to cure before subjecting the drain to traffic or water flow.

Product Specifications:

  • Material: High-density polyethylene (HDPE)
  • Channel length: 39.4 inches (1 meter)
  • Channel width: 5.4 inches (137 mm)
  • Channel depth: 9.5 inches (241 mm)
  • Slope: 0.6% built-in slope
  • Load class: Up to Class C (when installed with concrete)
  • Chemical resistance: Excellent resistance to most chemicals
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Grate options: Various materials and styles available (sold separately)

The NDS DS-095 Dura Slope Channel Drain offers a reliable and efficient solution for managing surface water in a wide range of applications. Its durable construction and user-friendly design make it an excellent choice for both professionals and DIY enthusiasts.
