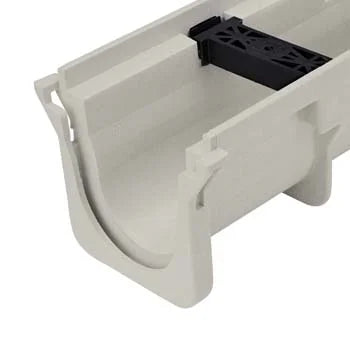

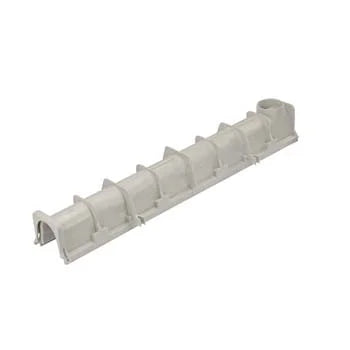

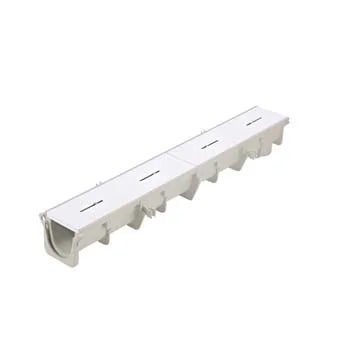

NDS DS-094 - Dura Slope Channel Drain (5.00" to 5.34" Deep)

NDS DS-094 - Dura Slope Channel Drain (5.00" to 5.34" Deep)

The NDS DS-094 Dura Slope Channel Drain is a high-performance, modular trench drain system designed for efficient water management in various applications. It offers superior durability, easy installation, and excellent hydraulic performance.

Key Features:

• Modular design for versatile installations
• High-density polyethylene construction
• Pre-sloped channel for optimal water flow
• Interlocking system for secure connections
• Compatible with various grate options

Installation Instructions:

1. Excavate a trench according to project specifications.
2. Pour a concrete haunch around the perimeter.
3. Install the outlet piece and connect to the drainage pipe.
4. Place channel sections, starting from the outlet and working upstream.
5. Connect sections using the interlocking system.
6. Install rebar for concrete reinforcement if required.
7. Pour concrete around the channels, ensuring proper grading.
8. Install grates and secure them in place.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Channel length: 39.4 inches (1 meter)
• Channel width: 5.4 inches (137 mm)
• Channel depth: 3.9 inches (99 mm)
• Pre-sloped gradient: 0.6%
• Load class: Suitable for pedestrian to light vehicle traffic (Class A)
• Chemical resistance: Excellent resistance to most chemicals
• UV resistance: UV stabilized for outdoor use
• Compliance: Meets ASTM F2418 standards
