NDS DS-093 - Dura Slope Channel Drain (4.67" to 5.00" Deep)

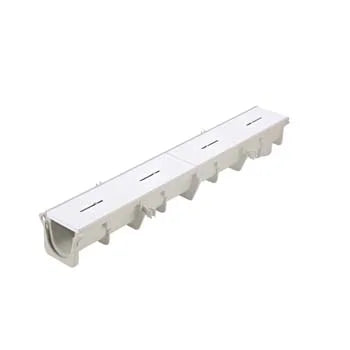

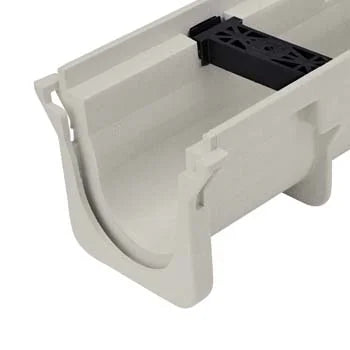

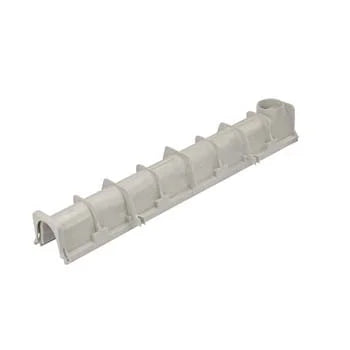

The NDS DS-093 Dura Slope Channel Drain is a high-performance, linear drainage solution designed for efficient water management in residential, commercial, and industrial applications. This innovative system offers superior strength, durability, and ease of installation.
Key Features:
- Modular design for versatile configurations
- Built-in slope for optimal water flow
- UV-resistant, high-density polyethylene construction
- Suitable for pedestrian and light vehicle traffic
Installation Instructions:
- Excavate a trench to the required depth and width, allowing for proper compaction around the channel.
- Pour a concrete haunch or use crushed stone as a base, ensuring it's level and compacted.
- Start laying channels from the outlet or lowest point, working upwards.
- Connect channels using the interlocking male-female connections.
- Secure channels in place and adjust to the desired height using rebar stakes.
- Install end caps and outlet adapters as needed.
- Pour concrete around the channel, leaving the top edge slightly below the final surface level.
- Install grates and secure them with the provided locking mechanisms.
- Finish the surrounding surface to be flush with the top of the grate.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Channel length: 39.4" (1 meter)
- Channel width: 5.4" (137 mm)
- Channel depth: 3.7" to 5.9" (94 mm to 150 mm)
- Built-in slope: 0.6%
- Load class: A15 (with standard grate)
- Flow rate: Up to 17.6 GPM (1.11 L/s) at 0.6% slope
- Chemical resistance: Excellent
- UV resistance: Yes
- Freeze-thaw cycle resistance: Excellent
- Available grate options: Plastic, galvanized steel, stainless steel, cast iron
The NDS DS-093 Dura Slope Channel Drain offers a reliable and cost-effective solution for various drainage needs, combining ease of installation with long-lasting performance.
Product and Technical Information
Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System
Dura Slope - System Profile - Linear Fall with Neutrals
Dura Slope - System Profile - Linear Fall without Neutrals
Dura Slope - System Profile - Counter Directional Fall with Neutrals
Dura Slope - System Profile - Counter Directional Fall without Neutrals
Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain
Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
