NDS DS-092 - Dura Slope Channel Drain (4.34" to 4.67" Deep)

NDS DS-092 - Dura Slope Channel Drain (4.34" to 4.67" Deep)

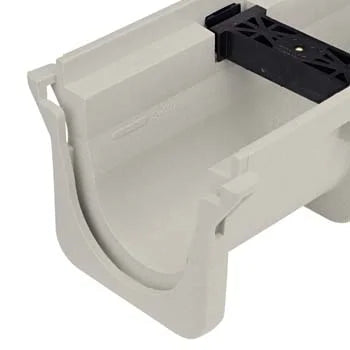

The NDS DS-092 Dura Slope Channel Drain is a high-performance linear drainage system designed for efficient water management in residential, commercial, and industrial applications. This durable and versatile solution offers superior flow capacity and easy installation.

Key Features:

• Modular design for custom lengths
• UV-resistant, high-density polyethylene construction
• Pre-sloped channel for optimal water flow
• Compatible with various grate options
• Suitable for pedestrian to light vehicle traffic

Installation Instructions:

1. Excavate a trench for the drain and compact the soil.
2. Pour a concrete haunch around the drain.
3. Connect drain sections and outlets as needed.
4. Level and align the system using string lines.
5. Install grates and secure them.
6. Pour surrounding concrete, ensuring proper grade.

Product Specifications:

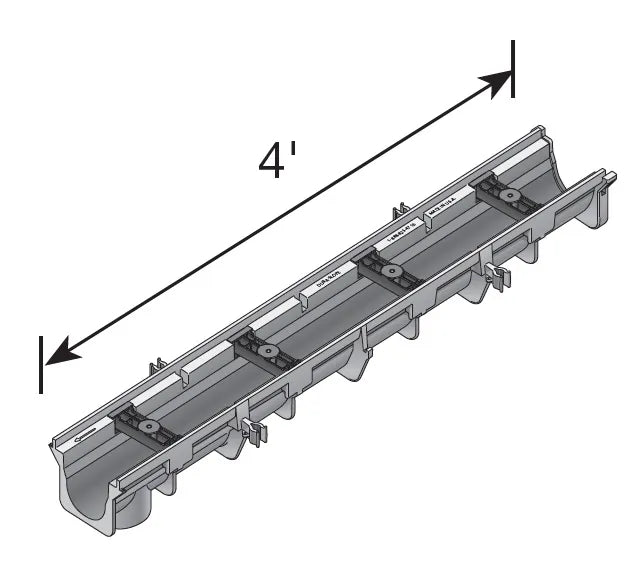

• Length: 39.4" (1 meter) per section
• Width: 5.4" (137 mm)
• Depth: 4.7" to 6.3" (119 to 160 mm)
• Slope: 0.6% built-in slope
• Load class: A - C (depending on grate selection)
• Material: High-density polyethylene (HDPE)
• Flow rate: Up to 17.4 GPM (65.9 LPM)

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
