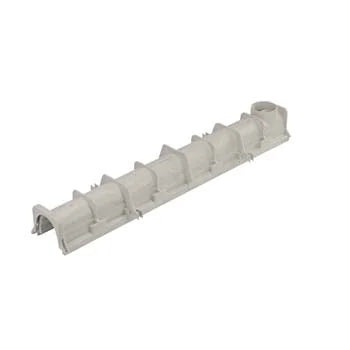

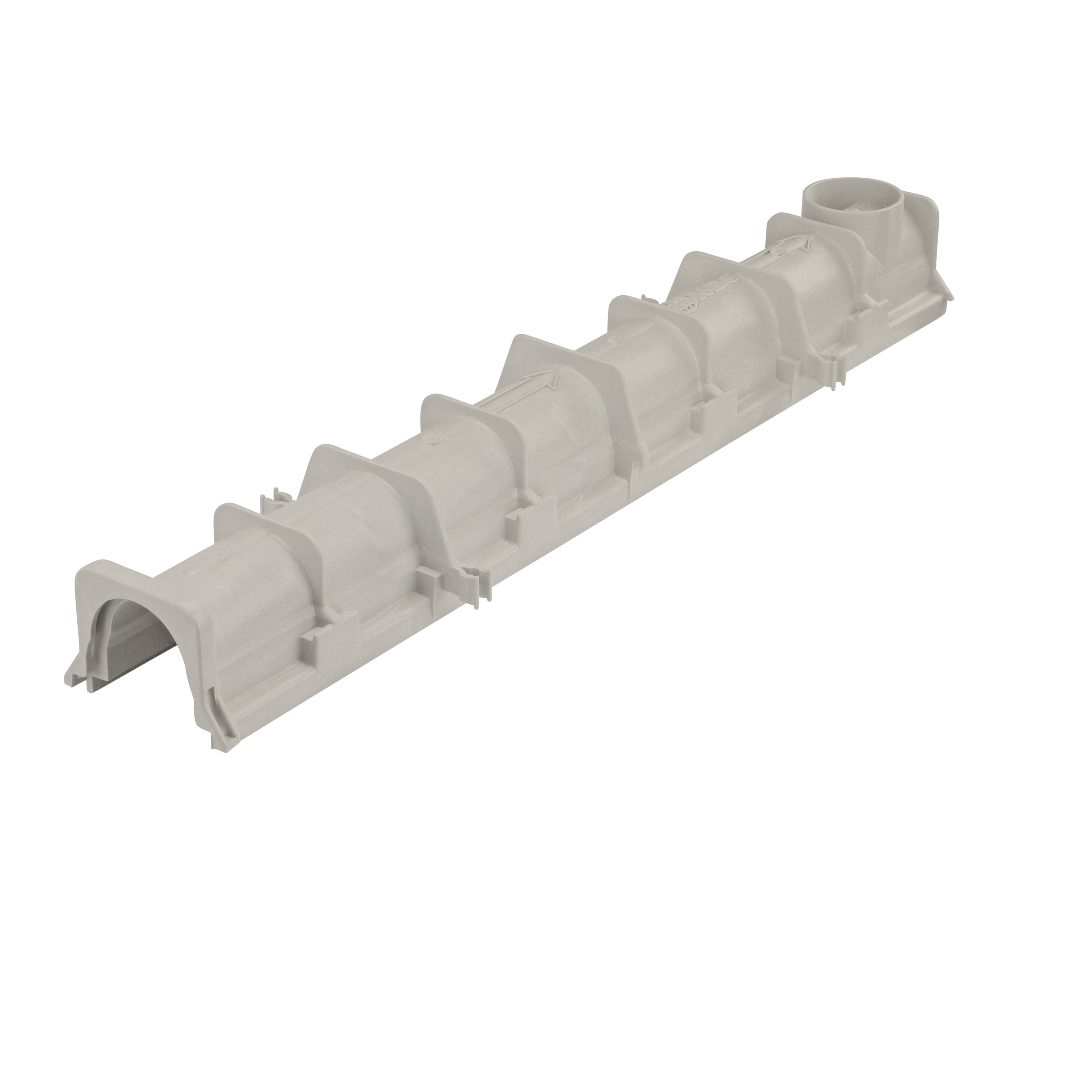

NDS DS-091N - Dura Slope Trench Drain Sections
The NDS DS-091N Dura Slope Channel is a high-performance, pre-sloped trench drain system designed for efficient water management in residential, commercial, and industrial applications. This durable and versatile channel provides excellent drainage solutions for driveways, patios, pool decks, and other areas requiring reliable surface water removal.
Key Features:
- Pre-sloped design for optimal water flow
- Durable, high-density polyethylene construction
- UV-resistant material for long-lasting performance
- Interlocking system for easy installation
- Compatible with various grate options
Installation Instructions:
- Excavate a trench approximately 6 inches wider than the channel width and to the required depth.
- Pour a 3-inch concrete base and allow it to set.
- Begin placing channels starting from the outlet or lowest point, ensuring proper alignment and slope.
- Connect subsequent channels using the interlocking system, securing with screws if needed.
- Install end caps and outlet adapters as required.
- Pour concrete around the sides of the channel, leaving the top edge exposed.
- Once concrete has cured, snap the chosen grates into place.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Length: 39.4 inches (1 meter)
- Width: 5.4 inches
- Height: 3.9 inches
- Pre-sloped: 0.6% built-in slope
- Load class: Suitable for pedestrian and light vehicle traffic (when used with appropriate grates)
- Chemical resistance: Excellent resistance to most chemicals and pollutants
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Color: Gray
The NDS DS-091N Dura Slope Channel offers a reliable and efficient drainage solution for various applications. Its pre-sloped design and durable construction ensure optimal performance and longevity.
