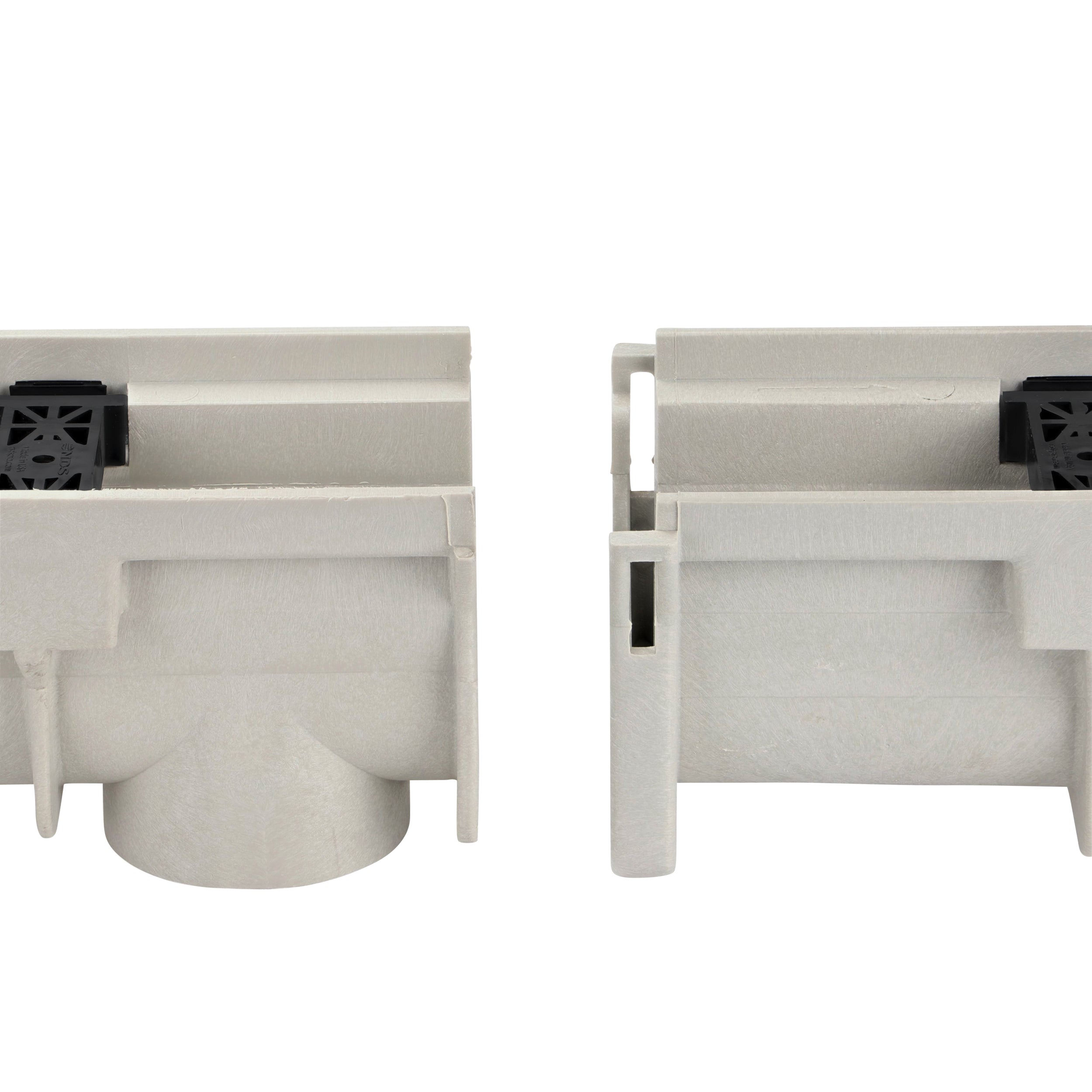

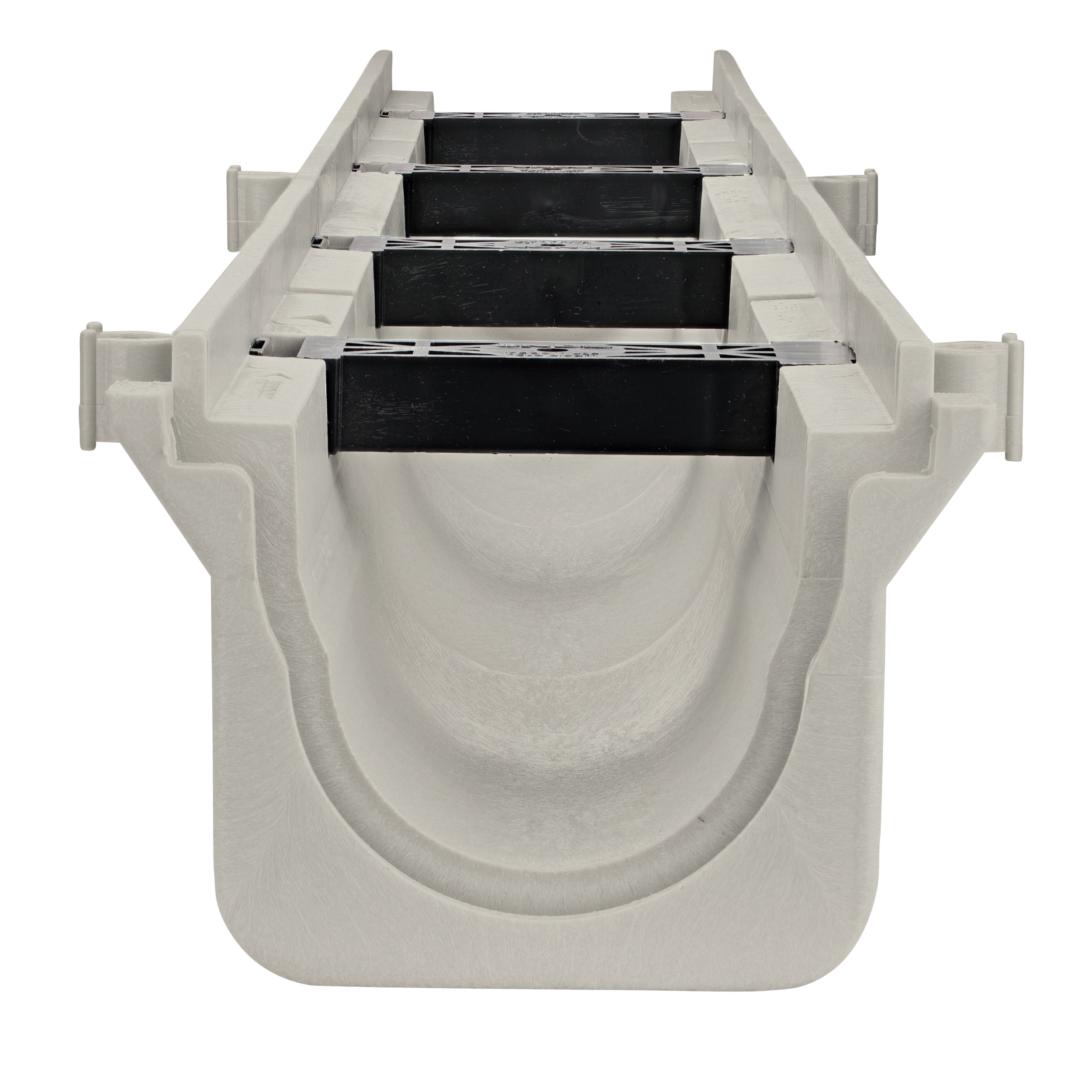

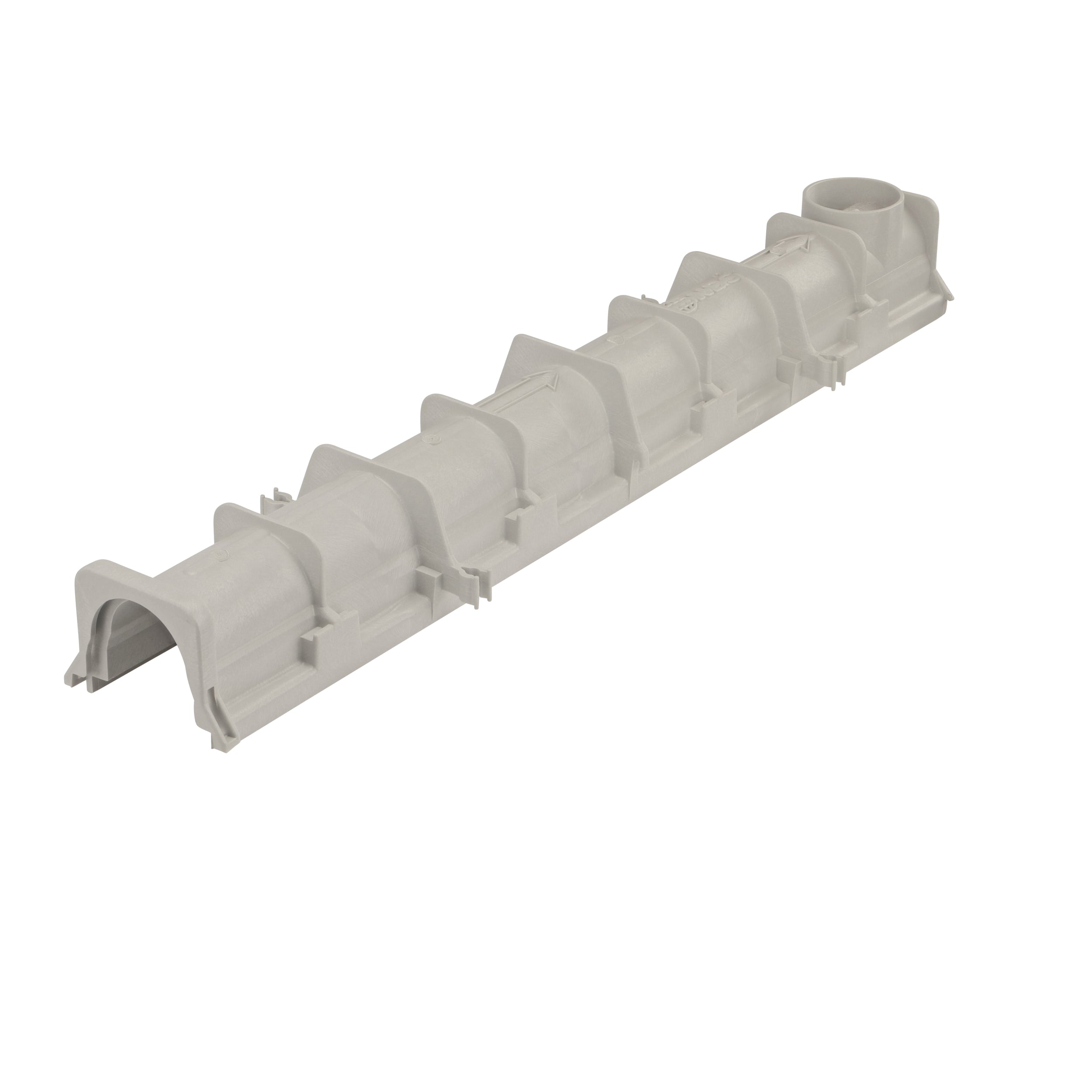

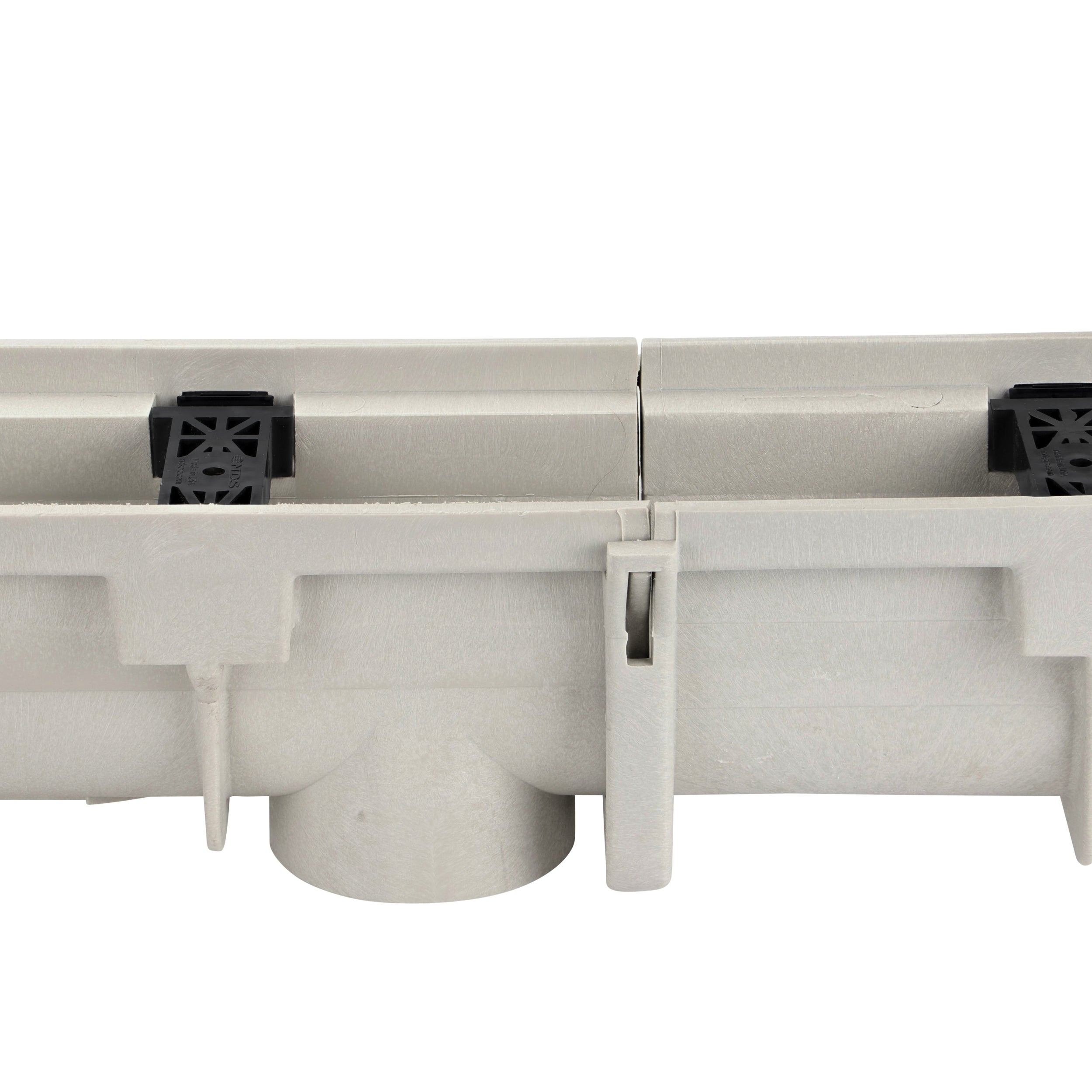

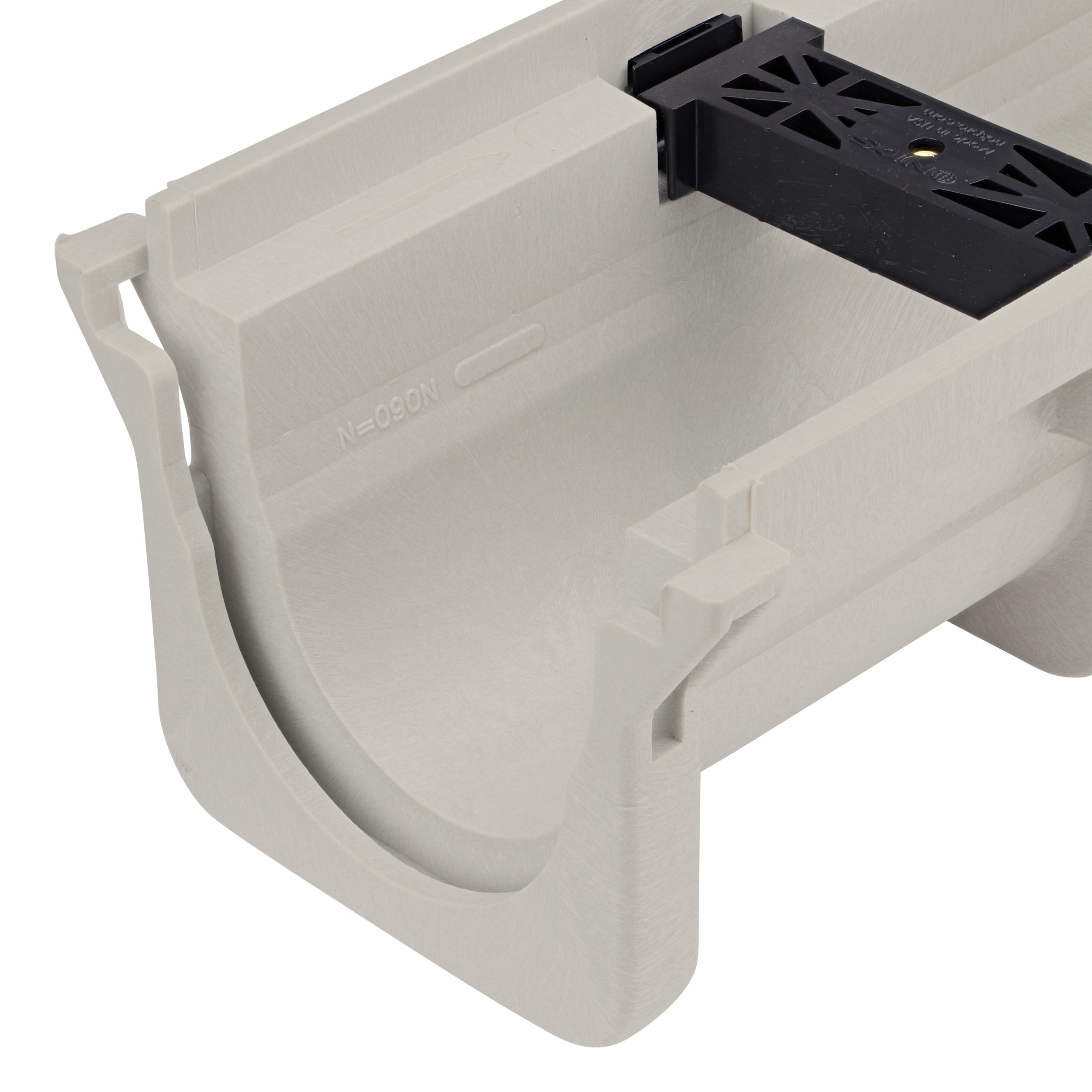

NDS DS-091 - Dura Slope Channel Drain, 4.0 in. to 4.3 in. Invert Depth, 6 in. Wide X 4 ft. Long X 5.8 in. Deep

NDS DS-091 - Dura Slope Channel Drain, 4.0 in. to 4.3 in. Invert Depth, 6 in. Wide X 4 ft. Long X 5.8 in. Deep

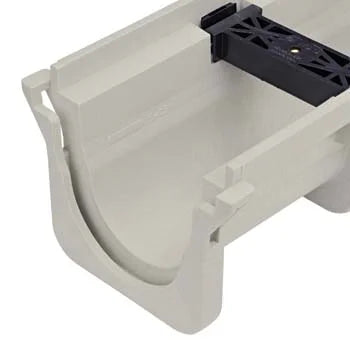

The NDS DS-091 Dura Slope Channel is a high-performance, pre-sloped trench drain system designed for efficient water management in various applications. This durable channel provides reliable drainage for residential, commercial, and industrial settings.

Key Features:

• Pre-sloped design for optimal water flow
• Lightweight yet strong construction
• UV-resistant material
• Interlocking system for easy installation
• Compatible with various grate options

Installation Instructions:

1. Excavate a trench according to project specifications
2. Pour a concrete haunch around the perimeter
3. Place and align channel sections, starting from the outlet
4. Connect sections using the interlocking system
5. Secure channels in place and adjust to proper grade
6. Install end caps and outlet adapters as needed
7. Pour concrete around the channel, leaving space for grates
8. Install grates after concrete has cured

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Dimensions:  6" in Wide x 4' ft Long x 5/8" in Depth
• Pre-built 0.7% slope
• UV resistant
• Chemical resistant
• Temperature range: -40°F to 140°F (-40°C to 60°C)

Product and Technical Information

Catalog - NDS Dura Slope Trench Drain
Brochure - NDS Dura Slope Trench Drain System

Dura Slope - System Profile - Linear Fall with Neutrals

Dura Slope - System Profile - Linear Fall without Neutrals

Dura Slope - System Profile - Counter Directional Fall with Neutrals

Dura Slope - System Profile - Counter Directional Fall without Neutrals

Technical Specifications - NDS Dura Slope
Installation Instructions - NDS Dura Slope Channel Drain

Technical Specifications - NDS Dura-Slope Plastic Perforated Channel Grate
