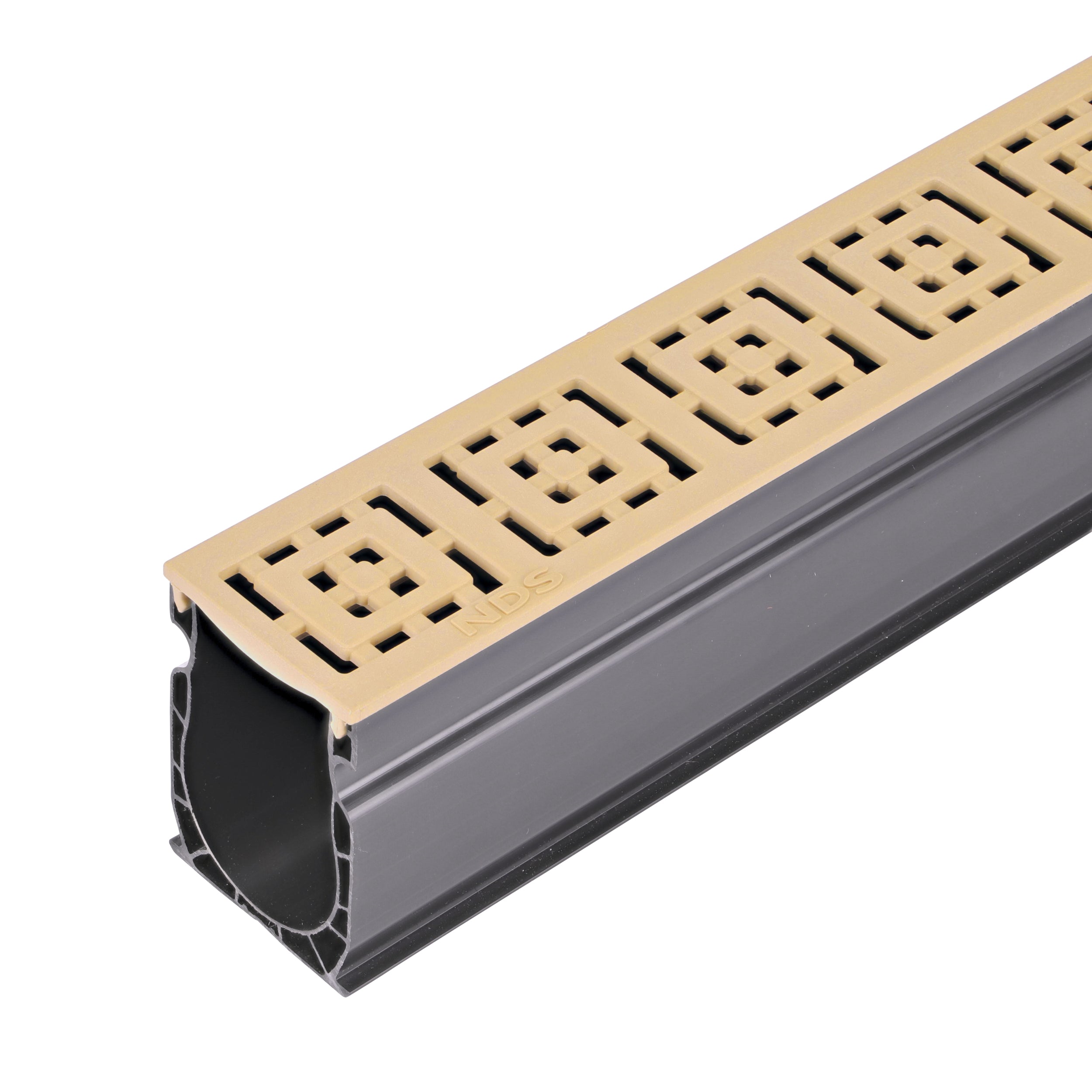

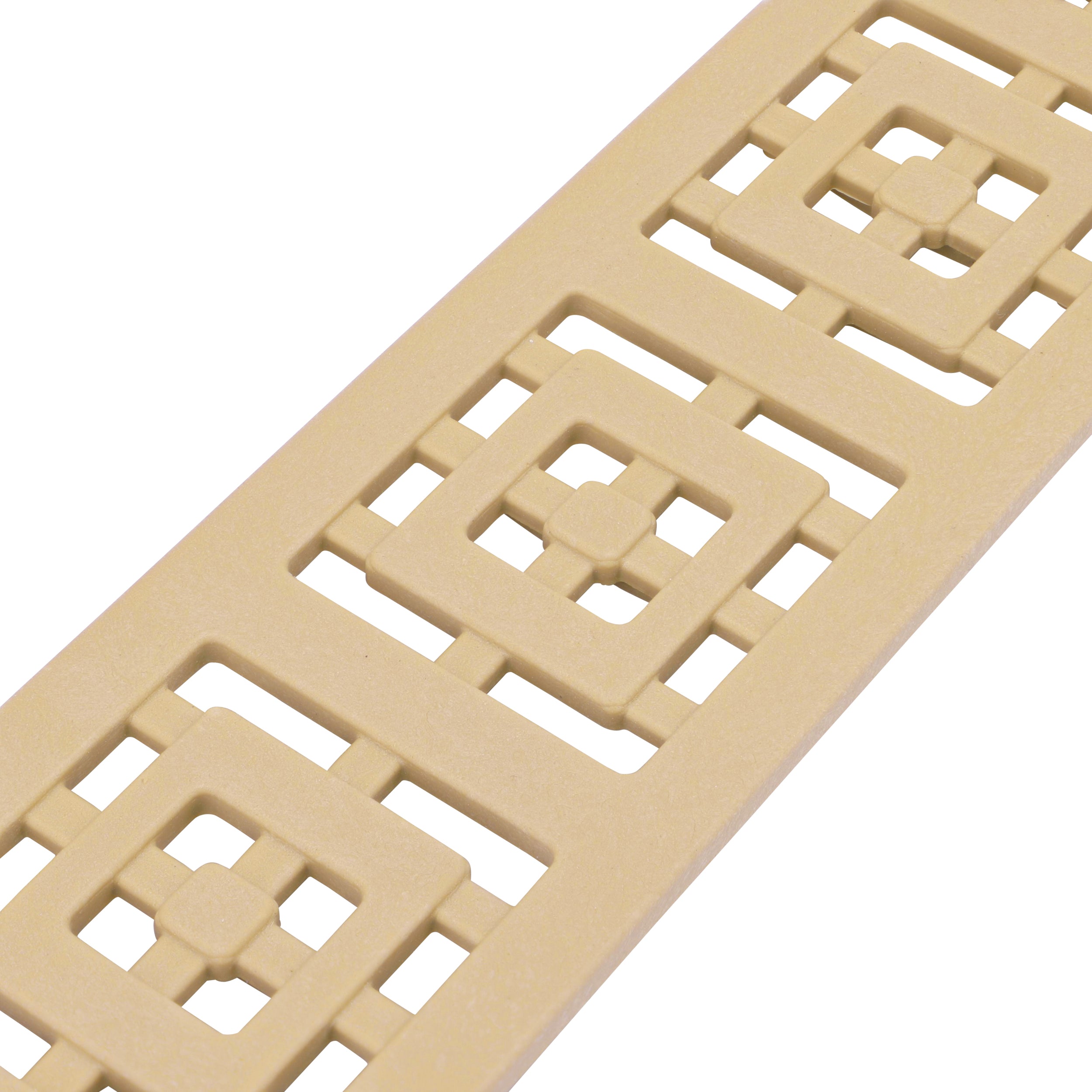

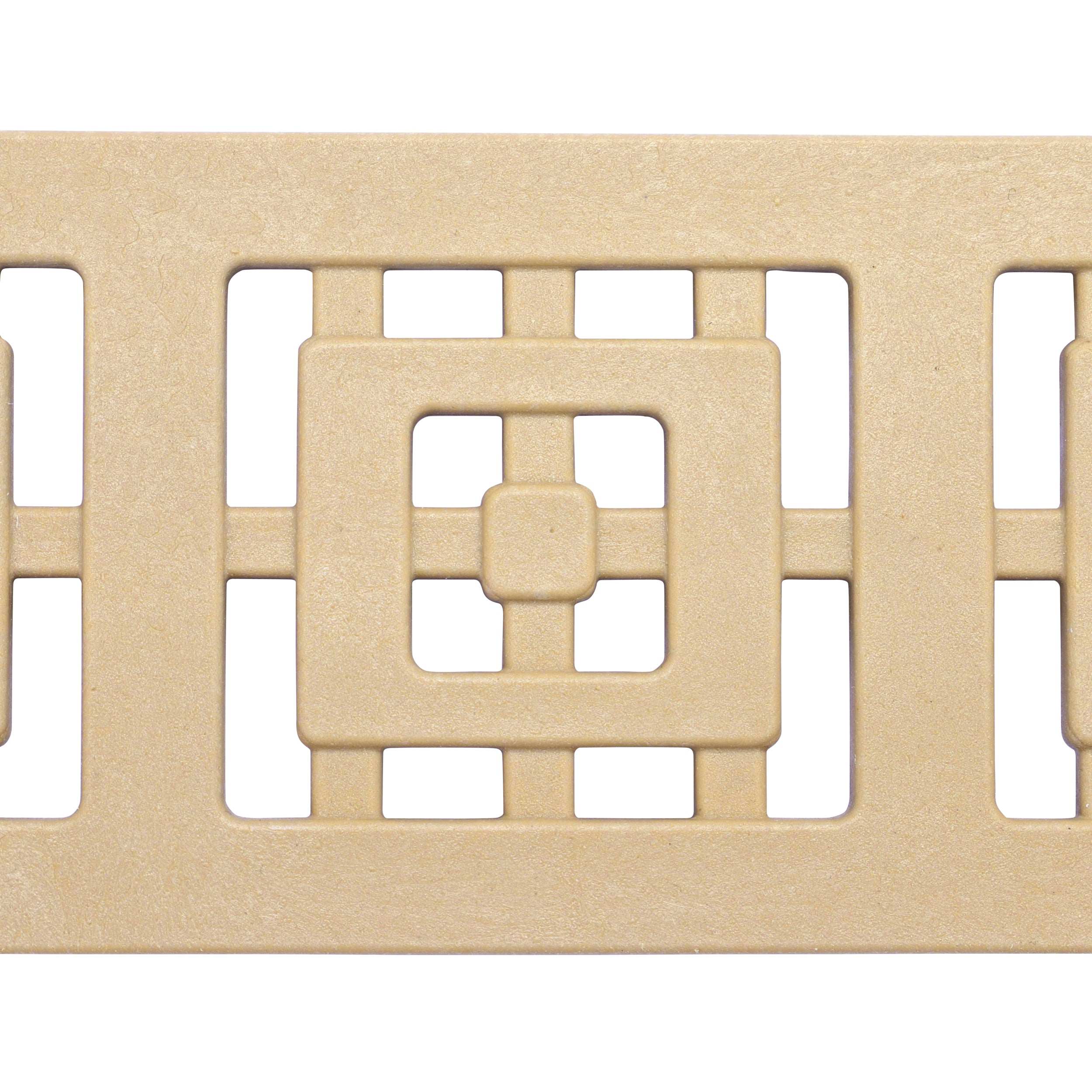

NDS 9252 - 3FT Slim Channel Grate with Square Design - Sand

Price: $12.89

Taxes and shipping calculated at checkout

Frequently Bought Together

In stock and ready for shipping

Product Information

NDS 9252 - Slim Channel Grate Square - Sand

Colors: Gray (#9253) Sand (#9252) and White (#9251)

The NDS 9252 3FT Slim Channel Grate with Square Design is a sleek and efficient drainage solution for residential and light commercial applications. This low-profile grate features a modern square pattern that complements contemporary landscaping and hardscaping designs. Ideal for driveways, patios, pool decks, and walkways, this durable grate effectively collects and diverts surface water to prevent flooding and water damage.

Key Features:

Slim profile for discreet installation
Square design for modern aesthetics
Durable construction for long-lasting performance
Suitable for pedestrian and light vehicle traffic
Easy to clean and maintain

Product Specifications:

Material: High-impact polypropylene
Length: 3 feet (36 inches)
Width: 3 inches
Height: 1.25 inches
Color: White
Load Class: Light duty (up to 2,000 lbs)
Compatible with NDS 3" wide channel drains

Installation Instructions:

Excavate a trench for the channel drain, ensuring proper slope for water flow (minimum 1/8" per foot).
Install the channel drain according to manufacturer instructions.
Place the NDS 9252 grate on top of the installed channel.
Ensure the grate sits flush with the surrounding surface.
Secure the grate to the channel using the provided locking mechanisms or screws.
Fill in any gaps around the grate with your chosen surface material (concrete, pavers, etc.).
Clean the grate of any debris before first use.

Maintenance: Regularly remove debris from the grate surface to maintain optimal drainage. Periodically lift the grate to clean the channel beneath. Inspect for damage and replace if necessary.
