NDS 9203GRAY - 3FT Slim Channel with Grate - Gray

NDS 9203GRAY - Slim Channel Drain

The NDS 9203GRAY 3FT Slim Channel is a sleek, low-profile drainage solution designed for efficient water management in residential and commercial spaces. This 3-foot long channel provides excellent surface water collection while maintaining a discreet appearance.

Key Features:

• Slim design for minimal visual impact
• Durable construction for long-lasting performance
• Easy installation and maintenance
• Suitable for various applications, including driveways, patios, and pool decks

Installation Instructions:

1. Excavate a trench to the required depth and width.
2. Create a concrete base and allow it to cure.
3. Place the channel in the trench, ensuring proper alignment and slope.

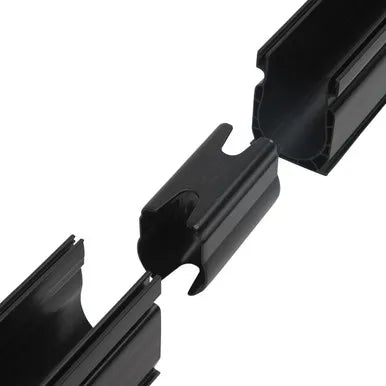

4. Connect multiple channels if necessary, using connectors.
5. Install end caps at the start and end of the channel run.
6. Pour concrete around the sides of the channel for stability.
7. Install the grate and secure it in place.
8. Allow the concrete to fully cure before use.

Product Specifications:

• Length: 3 feet (36 inches)
• Width: 2.25 inches
• Height: 3 inches
• Material: PVC Channel with UV Inhibitor
• Load class: Class A


Product and Technical Information

Sell Sheet - NDS Slim Channel Drain

Technical Sheet - NDS Slim Channel Drain Tees and Elbows

Technical Sheet - All Grates Flow Capacities
Installation Instructions - NDS Slim Channel Slab

Installation Instructions - NDS Slim Channel Pavers

Installation Instructions - NDS Slim Channel Landscape Traffic

CAD Drawing - NDS Slim Channel Slab

CAD Drawing - NDS Slim Channel Paver

CAD Drawing - NDS Slim Channel Landscape

CAD Drawing - NDS Slim Channel Outlets

FAQ - NDS Slim Channel

Video - NDS Slim Channel Parts & Features

Video - NDS Slim Channel Drain - Product Overview
