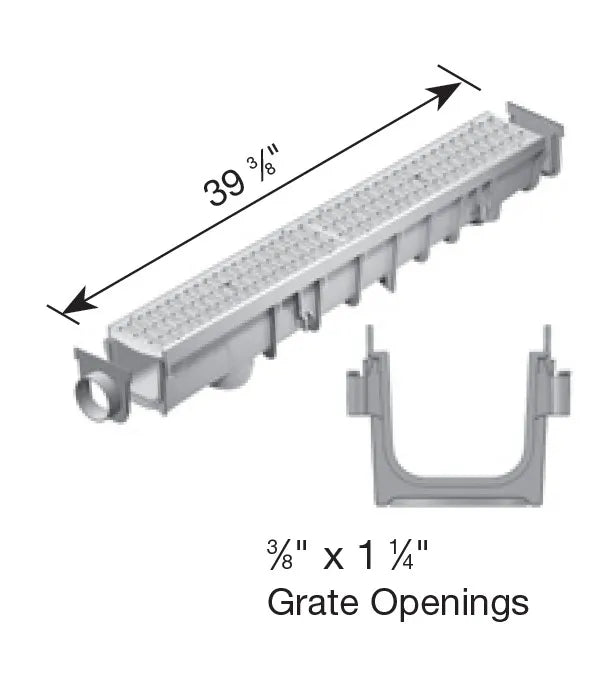

NDS 864GMTL - 5" Pro Series Channel Drain Kit with Metal Grate
The NDS 864GMTL 5" Inch Light Traffic Channel Drain Kit is a high-quality drainage solution designed for residential and light commercial applications. This kit includes a durable 5"-inch wide channel and a stylish light gray metal grate, providing efficient water management while enhancing the aesthetic appeal of your property.
Key Features:
- 5"-inch wide channel for optimal water flow
- Light gray metal grate for a modern, sleek appearance
- Suitable for light traffic areas such as driveways, patios, and walkways
- Easy to install and maintain
- Corrosion-resistant materials for long-lasting performance
Installation Instructions:
- Excavate a trench 8 inches wide and 8 inches deep, allowing for a 3-inch concrete base.
- Pour a 3-inch concrete base and allow it to set.
- Place the channel sections on the concrete base, ensuring proper alignment and slope.
- Connect the channels using the provided connectors.
- Install end caps and outlet adapters as needed.
- Pour concrete around the sides of the channel, leaving the top 1/8 inch below the desired finished grade.
- Once the concrete has cured, snap the metal grates into place.
- Finish the surrounding surface to match the desired grade.
Product Specifications:
- Channel Material: High-density polyethylene (HDPE)
- Grate Material: Galvanized steel with light gray powder coating
- Channel Length: 3 feet per section
- Channel Width: 5.5 inches
- Channel Depth: 4 3/4" inches
- Load Class: Class B (61 to 175 PSI)
- Flow Rate: 59 to 83 GPM
- UV Resistant: Yes
- Freeze-Thaw Resistant: Yes
- Warranty: 10-year limited manufacturer warranty
This NDS 864GMTL 5" Light Traffic Channel Kit offers a perfect balance of functionality and aesthetics, ensuring effective drainage for your outdoor spaces while maintaining a clean, modern look.
